Isuzu WW
▶
TRUCKS
▶
EXR
▶
10658 - EXR RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-28B - VENTILATION SYSTEM
▶

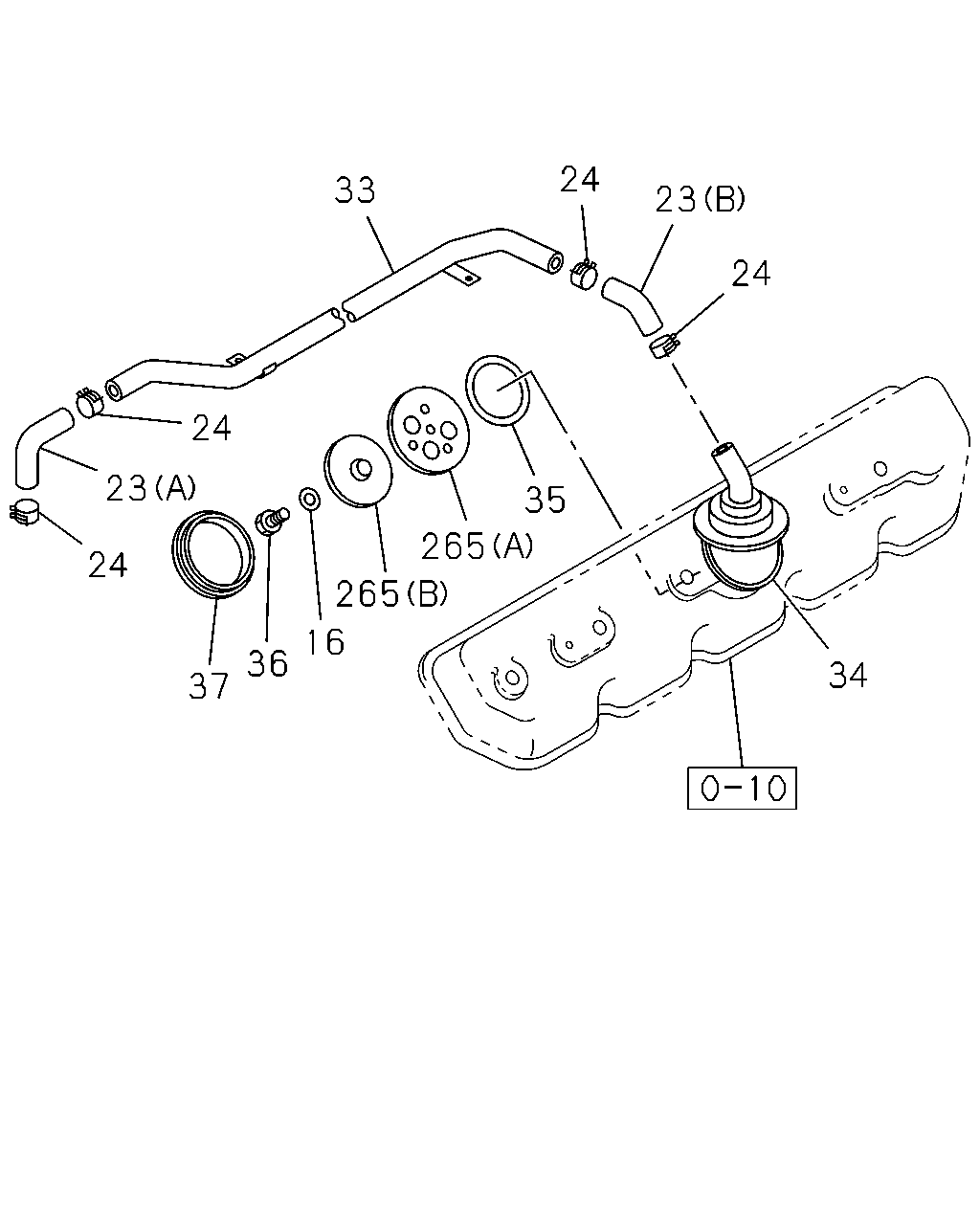

0-28B — VENTILATION SYSTEM
(#2384) — 14 parça
24
33
23
24
24
23
35
265
24
265
16
36
34
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
WASHER; LK,BREATHER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=6.1
9-09150-506-0
04
1
9411-9504
23
HOSE; RUBBER,VENTILATOR PIPE
(B)
1-09360-775-1
01
1
9002-
23
HOSE; RUBBER,VENTILATOR PIPE
(A)
1-09360-831-0
01
1
9002-
24
CLIP; RUBBER HOSE,VENTILATOR
ID=20
1-09707-084-1
04
1
9002-
33
PIPE; VENTILATOR
1-14236-084-4
01
1
9002-
34
VENTILATOR
1-14360-043-2
01
1
9002-
35
GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-418-0
01
1
9002-
36
BOLT; VENTILATOR
M6X12
9-02050-612-0
04
1
9002-9005
36
BOLT; VENTILATOR
M6X12
0-20800-612-0
04
1
9006-9504
36
BOLT; VENTILATOR
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M6X12
0-20800-612-0
04
1
9505-
36
BOLT; VENTILATOR
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M6X12 FLANGE
0-28080-612-0
04
1
9505-
37
GROMMET; BREATHER,HD COVER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>
1-09333-132-0
01
1
9411-
265
PLATE; BAFFLE HD COVER
(A) OD=75
1-14369-051-0
01
1
9002-
265
PLATE; BAFFLE HD COVER
(B) OD=92
1-14369-052-0
01
1
9002-
