6-31 — FRONT DOOR GLASS AND REGULATOR (#23836) — 92 parça

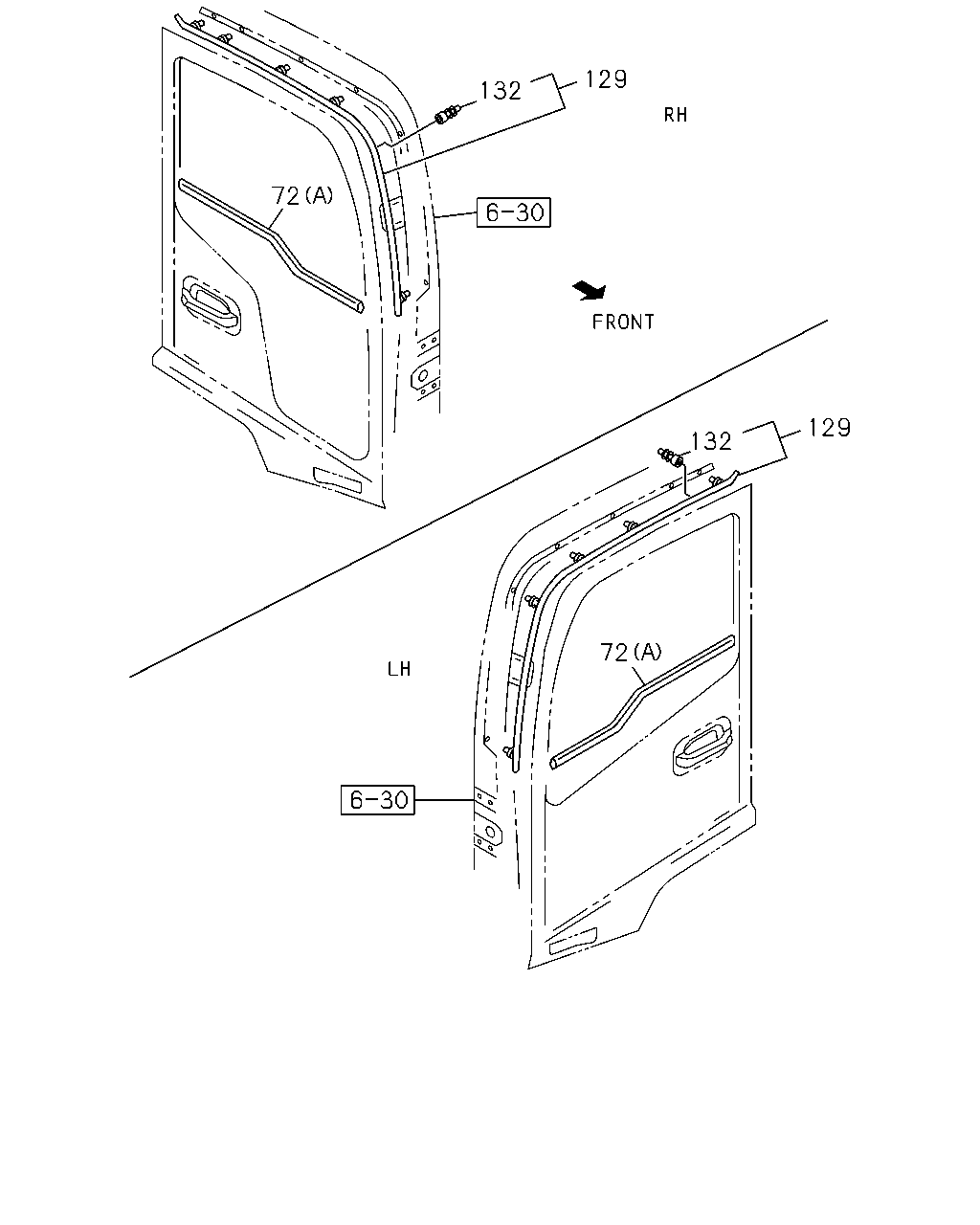

129 132 72 129 132 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0208-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-7	01	1	0202-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-5	01	1	0202-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-7	01	1	0202-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-5	01	1	0202-
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0202-
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0202-
132	CLIP; SEAL,DOOR YELLOW THA	1-09987-254-1	06	1	0202-
132	CLIP; SEAL,DOOR NATURAL THA	1-09987-253-1	06	1	0202-
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0208-

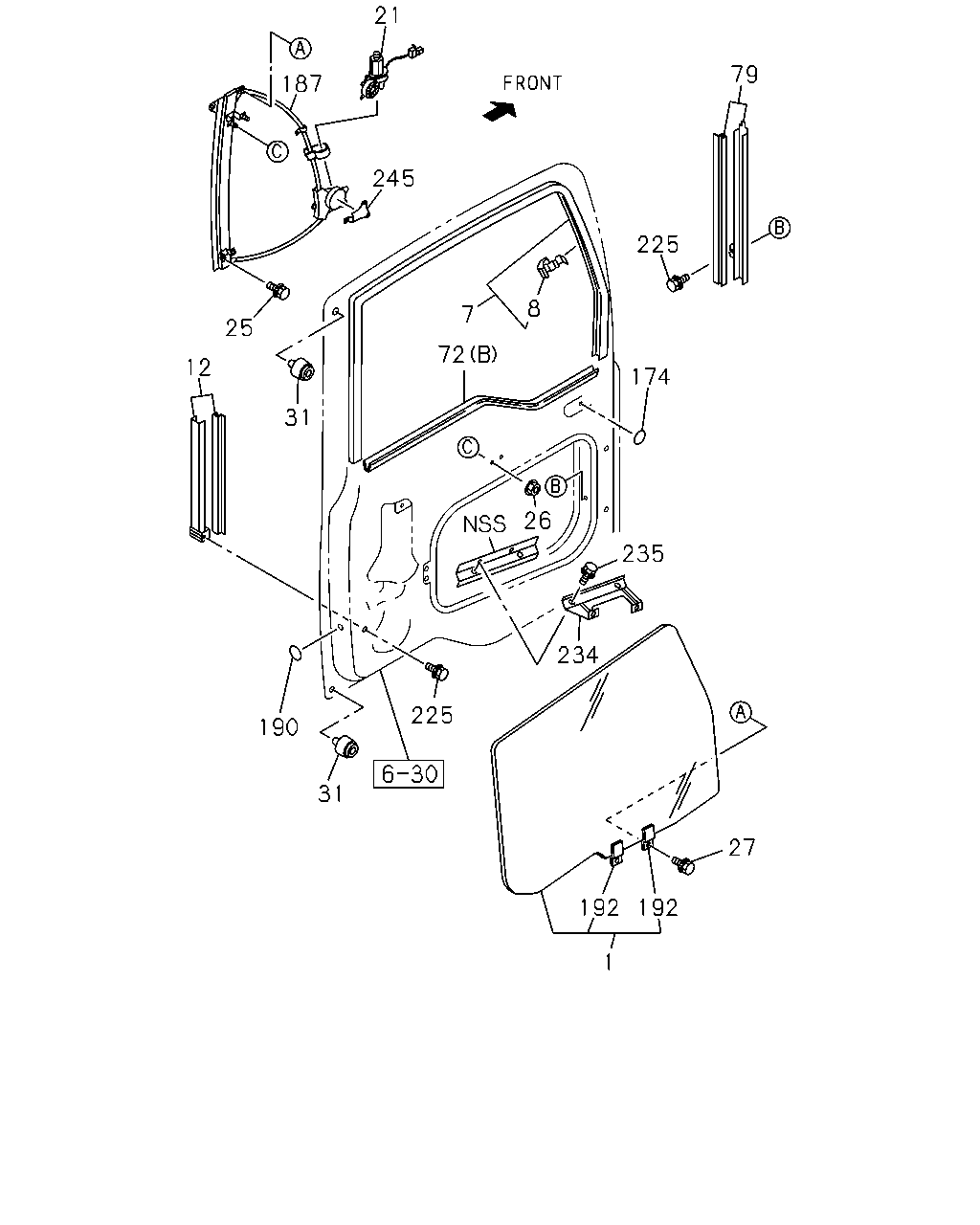

21 79 187 245 225 8 7 25 72 12 174 31 26 235 234 225 190 31 27 192 192 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30> THA	8-97922-100-0	01	1	0202-
1	GLASS; FRT DOOR POWER WINDOW<A30> THA	8-97922-099-0	01	1	0202-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30> THA	8-97917-737-0	01	1	0202-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30> THA	8-97917-738-0	01	1	0202-
7	GLASS RUN; FRT DOOR	1-74318-022-7	01	1	0202-
7	GLASS RUN; FRT DOOR	1-74318-021-7	01	1	0202-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0202-
12	CHANNEL; GLASS RUN,FRT	1-74338-071-2	01	1	0202-
12	CHANNEL; GLASS RUN,FRT	1-74338-070-2	01	1	0202-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-177-0	01	1	0202-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-176-0	01	1	0202-
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	10	1	0202-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	10	1	0406-
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0208-
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	06	1	0202-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0202-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0202-
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0208-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-7	01	1	0202-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-5	01	1	0202-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-7	01	1	0202-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-5	01	1	0202-
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-2	01	1	0202-
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-2	01	1	0202-
174	SEAL; LOCATION HOLE OD=25 BLACK THA	1-76798-019-0	06	1	0202-0212
174	SEAL; LOCATION HOLE OD=25 BLACK THA	1-76798-019-0	08	1	0301-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> OD=52	1-76798-041-0	02	1	0202-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=52	1-76798-041-0	06	1	0202-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-179-2	01	1	0202-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-2	01	1	0202-
190	REFLECTOR; FRT DOOR INNER THA	5-76777-060-1	01	1	0202-
192	HOLDER; DOOR GLASS THA	1-74427-170-0	04	1	0202-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0202-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0202-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0202-
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	08	1	0202-0405
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	08	1	0202-0405
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	08	1	0406-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30>	1-74417-074-0	02	1	0202-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30>	1-74418-181-0	01	1	0202-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30>	1-74418-180-0	01	1	0202-
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0208-

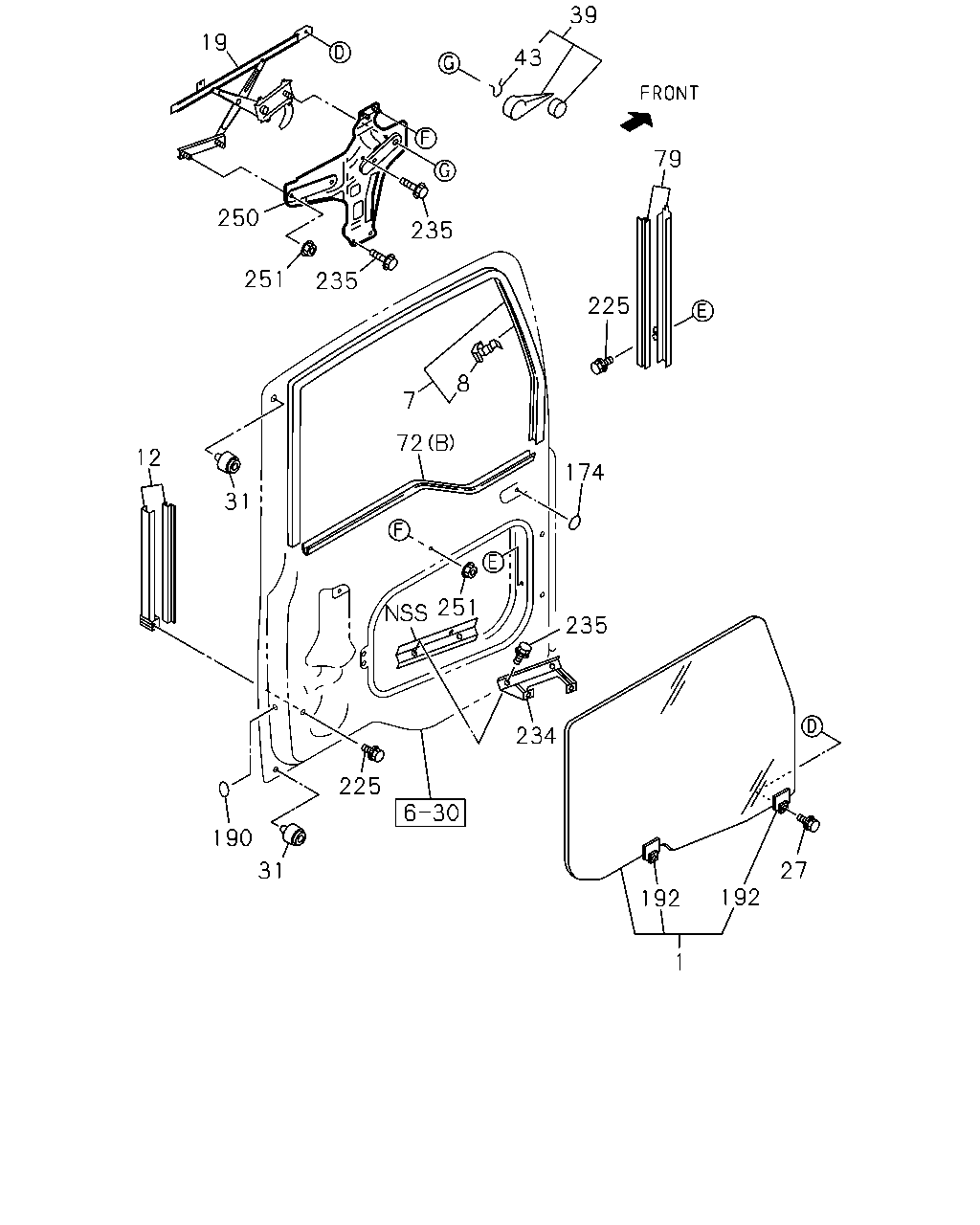

39 19 43 79 250 235 251 235 225 8 7 72 12 174 31 251 235 234 225 190 31 27 192 192 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30> THA	8-97922-100-0	01	1	0202-
1	GLASS; FRT DOOR POWER WINDOW<A30> THA	8-97922-099-0	01	1	0202-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30> THA	8-97917-737-0	01	1	0202-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30> THA	8-97917-738-0	01	1	0202-
7	GLASS RUN; FRT DOOR	1-74318-022-7	01	1	0202-
7	GLASS RUN; FRT DOOR	1-74318-021-7	01	1	0202-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0202-
12	CHANNEL; GLASS RUN,FRT	1-74338-071-2	01	1	0202-
12	CHANNEL; GLASS RUN,FRT	1-74338-070-2	01	1	0202-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-134-4	01	1	0202-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-144-4	01	1	0202-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0202-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0202-
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0208-
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> THA	8-97915-729-0	02	1	0202-
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30> THA	8-97915-807-0	02	1	0202-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-7	01	1	0202-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-5	01	1	0202-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-7	01	1	0202-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-5	01	1	0202-
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-2	01	1	0202-
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-2	01	1	0202-
174	SEAL; LOCATION HOLE OD=25 BLACK THA	1-76798-019-0	06	1	0202-0212
174	SEAL; LOCATION HOLE OD=25 BLACK THA	1-76798-019-0	08	1	0301-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> OD=52	1-76798-041-0	02	1	0202-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=52	1-76798-041-0	06	1	0202-
190	REFLECTOR; FRT DOOR INNER THA	5-76777-060-1	01	1	0202-
192	HOLDER; DOOR GLASS THA	1-74427-170-0	04	1	0202-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0202-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0202-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0202-
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	08	1	0202-0405
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	08	1	0202-0405
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	08	1	0406-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30> THA	1-74418-148-0	02	1	0202-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30> THA	1-74418-149-0	02	1	0202-
251	NUT; BRKT EXC. POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	04	1	0202-
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0208-
