2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#2383) — 126 parça

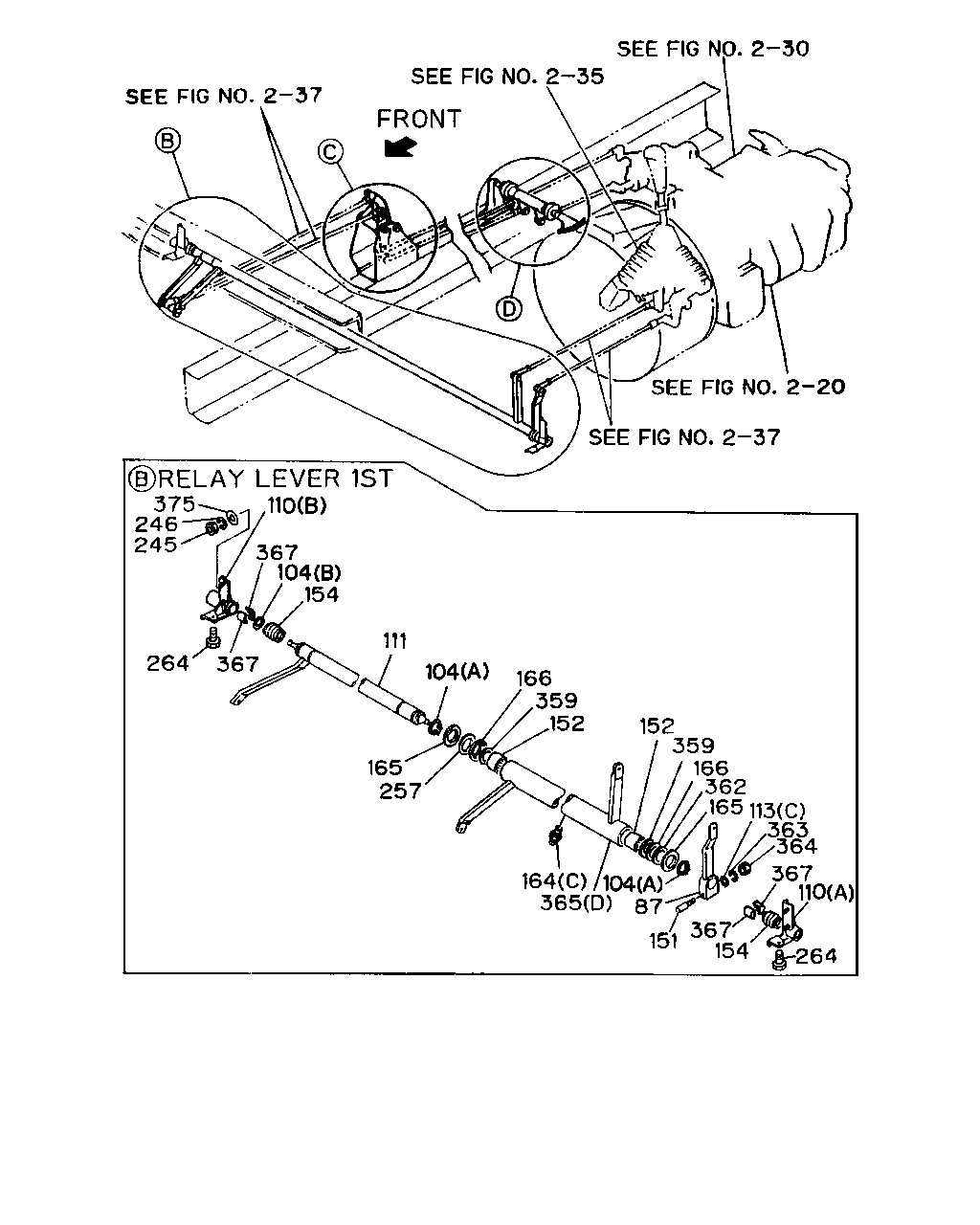

375 246 245 367 110 264 367 104 154 111 165 104 257 166 359 152 152 359 166 362 165 113 363 364 367 110 264 154 367 151 87 104 365 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
87	LEVER; RELAY,SELECT EXZ&LHD(EX6*)	1-33651-327-1	01	1	9002-	●	●	●
104	RING; SNAP EXZ&LHD(EX6*) (A) ID=32.2	9-09180-035-0	02	1	9307-	●	●	●
104	RING; SNAP EXZ&LHD(EX6*) (B) OD=23.5	9-09180-122-0	01	1	9307-	●	●	●
110	BRACKET; RELAY LEVER,1ST EXZ&RHD(EX5*) (A)	1-33657-180-1	01	1	9002-	●	●	●
110	BRACKET; RELAY LEVER,1ST EXZ&RHD(EX5*) (B)	1-33657-184-2	01	1	9002-	●	●	●
110	BRACKET; RELAY LEVER,1ST EXZ&LHD(EX6*) (A)	1-33657-261-3	01	1	9307-	●	●	●
110	BRACKET; RELAY LEVER,1ST EXZ&LHD(EX6*) (B)	1-33657-383-0	01	1	9307-	●	●	●
111	SHAFT; RELAY LEVER,1ST EXZ&RHD(EX5*)	1-33619-123-1	01	1	9002-	●	●	●
111	SHAFT; RELAY LEVER,1ST EXZ&LHD(EX6*)	1-33659-103-2	01	1	9307-	●	●	●
113	WASHER; RELAY LEVER EXZ&RHD(EX5*) (A)	1-09509-041-0	02	1	9002-	●	●	●
113	WASHER; RELAY LEVER EXZ&RHD(EX5*) (B)	9-09160-506-0	01	1	9002-	●	●	●
113	WASHER; RELAY LEVER EXZ&LHD(EX6*) (C)	9-09160-710-0	01	1	9002-	●	●	●
151	BOLT; KEY,RELAY LEVER EXZ&LHD(EX6*)	1-33659-063-0	01	1	9002-	●	●	●
152	BEARING; NEEDLE,RELAY LEVER EXZ&LHD(EX6*)	1-09811-328-0	02	1	9002-	●	●	●
154	COVER; DUST,RELAY LEVER EXZ&LHD(EX6*)	1-33659-068-0	02	1	9002-	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD EXZ&RHD(EX5*) (B)	9-09031-006-0	01	1	9002-	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD EXZ&RHD(EX5*) (A) PT1/8 ELBOW	9-09031-210-0	01	1	9002-	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD EXZ&LHD(EX6*) (C) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-	●	●	●
165	WASHER; RELAY LEVER EXZ&LHD(EX6*)	1-09503-148-0	AR	1	9002-	●	●	●
166	WASHER; NYLON,RELAY LEVER EXZ&LHD(EX6*)	1-09509-040-0	02	1	9002-	●	●	●
245	NUT; BRKT,RELAY LEVER EXZ&LHD(EX6*) M8	9-09110-508-0	04	1	9002-	●	●	●
246	WASHER; LK,BRKT,RELAY LEVER EXZ&LHD(EX6*) ID=8.2	9-09150-508-0	04	1	9002-	●	●	●
257	PIECE; DIST,RELAY LEVER EXZ&LHD(EX6*)	1-09503-198-0	AR	1	9002-	●	●	●
264	BOLT; BRKT,RELAY LEVER EXZ&RHD(EX5*) M8X25 W/LK&PL WASHER	9-01970-825-0	07	1	9002-9005	●	●	●
264	BOLT; BRKT,RELAY LEVER EXZ&RHD(EX5*) M8X25 W/LK&PL WASHER	0-50140-825-0	07	1	9006-	●	●	●
264	BOLT; BRKT,RELAY LEVER EXZ&LHD(EX6*) M8X25 W/LK&PL WASHER	9-01970-825-0	02	1	9002-9005	●	●	●
264	BOLT; BRKT,RELAY LEVER EXZ&LHD(EX6*) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9006-	●	●	●
359	SEAL; RUBBER,RELAY LEVER EXZ&LHD(EX6*)	1-09625-005-1	02	1	9002-	●	●	●
362	SHIM EXZ&RHD(EX5*)	1-33659-092-0	02	1	9002-	●	●	●
362	SHIM EXZ&LHD(EX6*)	1-09503-172-0	01	1	9002-	●	●	●
363	WASHER; LK,KEY BOLT EXZ&LHD(EX6*) ID=10.2	9-09150-510-0	01	1	9002-	●	●	●
364	NUT; KEY BOLT EXZ&LHD(EX6*) M10	9-09111-410-0	01	1	9002-	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	9002-	●	●	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (C)	1-33651-285-2	01	1	9002-9306	●	●	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (C)	1-33651-557-0	01	1	9307-	●		●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (B)	1-33651-286-2	01	1	9002-9306	●	●	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (B)	1-33651-555-0	01	1	9307-	●		●
365	LEVER; RELAY,SELECT EXZ&LHD(EX6*) (D)	1-33651-328-2	01	1	9002-	●	●	●
367	SEAT; BALL,CONT SHAFT EXZ&LHD(EX6*)	1-33659-053-0	04	1	9002-	●	●	●
375	WASHER; PL,BRKT,RELAY LEVER EXZ&LHD(EX6*) ID=8.4	9-09160-508-0	04	1	9002-	●	●	●

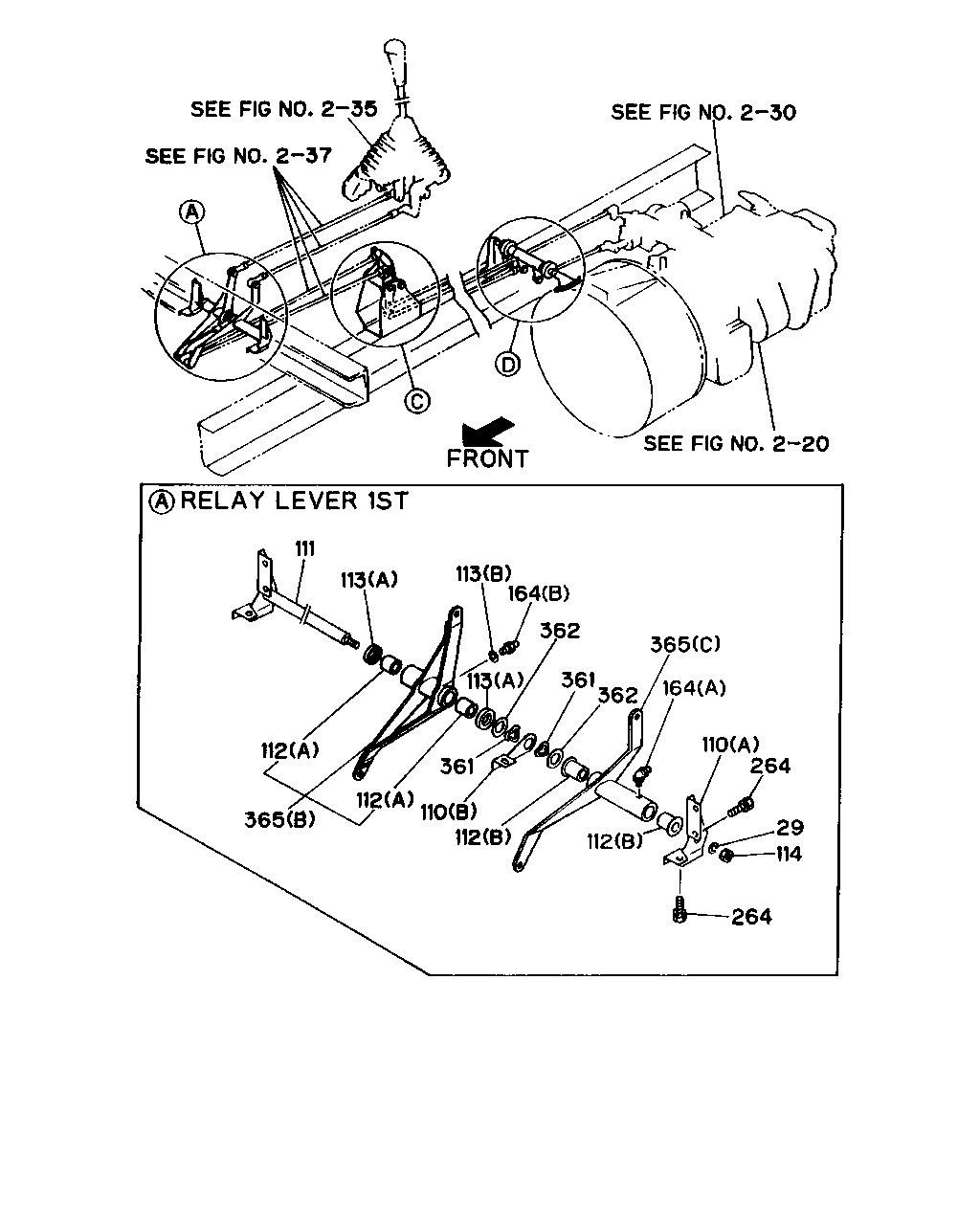

113 111 113 164 362 113 361 362 365 164 110 264 29 114 264 112 112 110 112 361 365 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	WASHER; LK,RELAY LEVER EXZ&RHD(EX5*) ID=14.2	9-09150-514-0	01	1	9002-	●	●	●
110	BRACKET; RELAY LEVER,1ST EXZ&RHD(EX5*) (A)	1-33657-180-1	01	1	9002-	●	●	●
110	BRACKET; RELAY LEVER,1ST EXZ&RHD(EX5*) (B)	1-33657-184-2	01	1	9002-	●	●	●
110	BRACKET; RELAY LEVER,1ST EXZ&LHD(EX6*) (A)	1-33657-261-3	01	1	9307-	●	●	●
110	BRACKET; RELAY LEVER,1ST EXZ&LHD(EX6*) (B)	1-33657-383-0	01	1	9307-	●	●	●
111	SHAFT; RELAY LEVER,1ST EXZ&RHD(EX5*)	1-33619-123-1	01	1	9002-	●	●	●
111	SHAFT; RELAY LEVER,1ST EXZ&LHD(EX6*)	1-33659-103-2	01	1	9307-	●	●	●
112	BUSHING; RELAY LEVER EXZ&RHD(EX5*) (A)	1-09330-050-0	02	1	9002-	●	●	●
112	BUSHING; RELAY LEVER EXZ&RHD(EX5*) (B)	5-33659-054-0	02	1	9002-	●	●	●
113	WASHER; RELAY LEVER EXZ&RHD(EX5*) (A)	1-09509-041-0	02	1	9002-	●	●	●
113	WASHER; RELAY LEVER EXZ&RHD(EX5*) (B)	9-09160-506-0	01	1	9002-	●	●	●
113	WASHER; RELAY LEVER EXZ&LHD(EX6*) (C)	9-09160-710-0	01	1	9002-	●	●	●
114	NUT; RELAY LEVER EXZ&RHD(EX5*) M14	9-99110-414-0	01	1	9002-	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD EXZ&RHD(EX5*) (B)	9-09031-006-0	01	1	9002-	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD EXZ&RHD(EX5*) (A) PT1/8 ELBOW	9-09031-210-0	01	1	9002-	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD EXZ&LHD(EX6*) (C) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-	●	●	●
264	BOLT; BRKT,RELAY LEVER EXZ&RHD(EX5*) M8X25 W/LK&PL WASHER	9-01970-825-0	07	1	9002-9005	●	●	●
264	BOLT; BRKT,RELAY LEVER EXZ&RHD(EX5*) M8X25 W/LK&PL WASHER	0-50140-825-0	07	1	9006-	●	●	●
264	BOLT; BRKT,RELAY LEVER EXZ&LHD(EX6*) M8X25 W/LK&PL WASHER	9-01970-825-0	02	1	9002-9005	●	●	●
264	BOLT; BRKT,RELAY LEVER EXZ&LHD(EX6*) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9006-	●	●	●
361	WASHER; WAVED EXZ&RHD(EX5*)	1-33659-093-0	02	1	9002-	●	●	●
362	SHIM EXZ&RHD(EX5*)	1-33659-092-0	02	1	9002-	●	●	●
362	SHIM EXZ&LHD(EX6*)	1-09503-172-0	01	1	9002-	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	9002-	●	●	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (C)	1-33651-285-2	01	1	9002-9306	●	●	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (C)	1-33651-557-0	01	1	9307-	●		●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (B)	1-33651-286-2	01	1	9002-9306	●	●	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (B)	1-33651-555-0	01	1	9307-	●		●
365	LEVER; RELAY,SELECT EXZ&LHD(EX6*) (D)	1-33651-328-2	01	1	9002-	●	●	●

71 243 46 33 35 34 34 162 34 34 46 206 71 242 71 46 34 162 34 46 34 35 71 33 243 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) M14X45	9-92051-445-0	01	1	9002-9005		●
33	BOLT; BRKT,3RD RELAY LEVER M14X45	9-92051-445-0	01	1	9002-9005			●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M14X45	9-92051-445-0	01	1	9002-9005	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) M14X45	0-20801-445-0	01	1	9006-9306		●
33	BOLT; BRKT,3RD RELAY LEVER M14X45	0-20801-445-0	01	1	9006-9306			●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M14X45	0-20801-445-0	01	1	9006-9306	●
33	BOLT; BRKT,3RD RELAY LEVER M14X45	0-20801-445-0	01	1	9307-	●		●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) M12X45	9-01911-245-0	01	1	9002-9005		●	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) M12X45 W/LK WASHER	0-50041-245-0	01	1	9006-9306		●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X45 W/LK WASHER	0-50041-045-0	01	1	9002-9205	●		●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X40 W/LK WASHER	0-50041-040-0	01	1	9206-	●		●
33	BOLT; BRKT,3RD RELAY LEVER 12PD1 STD ENG(42L) M14X50	9-91056-450-0	02	1	9002-9005	●
33	BOLT; BRKT,3RD RELAY LEVER 12PD1 STD ENG(42L) M14X50	0-10806-450-0	02	1	9006-9306	●
34	SEAT; BALL,RELAY LEVER	1-33659-118-0	04	1	9002-	●	●	●
35	RING; SNAP,RELAY LEVER OD=23.5	9-09180-122-0	01	1	9002-	●	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-076-0	02	1	9002-	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L) (C)	1-33657-193-2	01	1	9002-9306		●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L) (D)	1-33657-198-1	01	1	9002-9306		●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PD1 STD ENG(40L) (A)	1-33657-223-0	01	1	9002-	●		●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (B)	1-33657-188-0	01	1	9002-	●		●
71	BRACKET; 3RD RELAY LEVER,FRAME 12PD1 STD ENG(42L) (A)	1-33657-224-0	01	1	9002-9306	●
162	LEVER; RELAY 6RB1 STD ENG(07L)	1-33651-270-4	01	1	9002-9306		●	●
162	LEVER; RELAY 10PD1 STD ENG(40L)	1-33651-271-2	01	1	9002-	●		●
162	LEVER; RELAY 12PD1 STD ENG(42L)	1-33651-266-1	01	1	9002-9306	●
206	BOLT; BRKT,3RD RELAY LEVER,ENG 6RB1 STD ENG(07L) M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005		●	●
206	BOLT; BRKT,3RD RELAY LEVER,ENG 6RB1 STD ENG(07L) M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-9306		●	●
242	NUT; FLANGE 3RD RELAY LEVER 10PD1 STD ENG(40L),12PD1 STD ENG(42L) M8 FLANGE	5-09440-005-0	04	1	9002-	●		●
243	WASHER; LK,BRKT 6RB1 STD ENG(07L) ID=14.2	9-09150-614-0	01	1	9002-9306		●
243	WASHER; LK,BRKT ID=14.2	9-09150-614-0	01	1	9002-9306			●
243	WASHER; LK,BRKT 10PD1 STD ENG(40L) ID=14.2	9-09150-614-0	01	1	9002-9306	●
243	WASHER; LK,BRKT 12PD1 STD ENG(42L) ID=14.2	9-09150-614-0	02	1	9002-9306	●
243	WASHER; LK,BRKT ID=14.2	9-09150-614-0	01	1	9307-	●		●

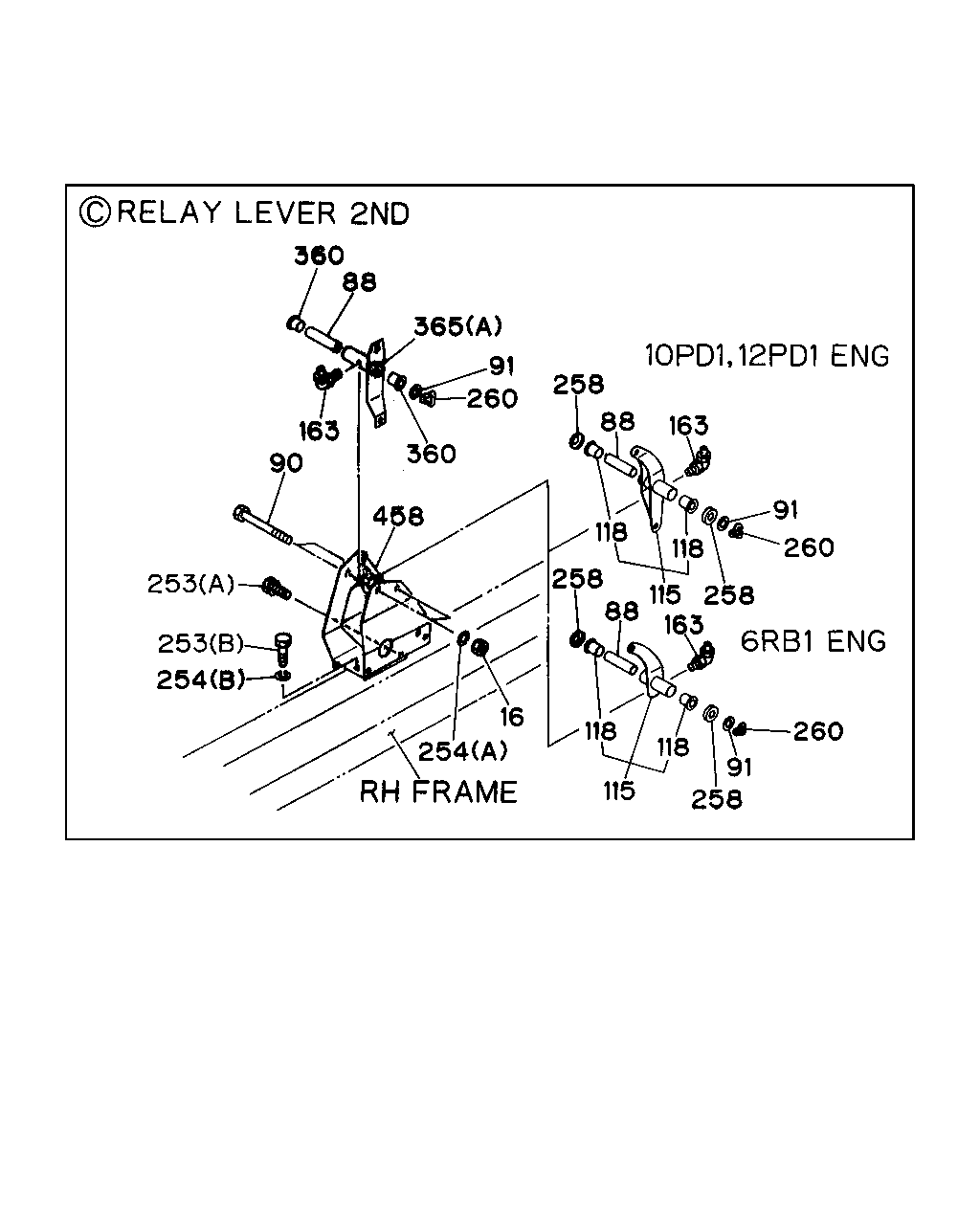

254 253 253 90 163 360 88 365 260 360 91 458 258 163 88 118 91 118 260 258 115 88 258 163 16 254 118 115 118 91 258 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	NUT; RELAY LEVER M14	9-99111-514-0	02	1	9002-	●	●	●
88	COLLAR; RELAY LEVER	1-33659-074-0	02	1	9002-	●	●	●
90	SHAFT	1-33619-125-0	02	1	9002-	●	●	●
91	SHIM; RELAY LEVER	1-33659-092-0	02	1	9002-	●	●	●
115	LEVER; RELAY,2ND SHIFT 6RB1 STD ENG(07L)	1-33651-505-1	01	1	9002-	●	●	●
115	LEVER; RELAY,2ND SHIFT 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-33651-504-1	01	1	9002-	●		●
118	BUSHING; RELAY LEVER ID=22 OD=25 L=18	1-09330-050-0	02	1	9002-	●	●	●
163	NIPPLE; GREASE,RELAY LEVER PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 6RB1 STD ENG(07L) (B) M14X40	9-92051-440-0	02	1	9002-9005		●	●
253	BOLT; BRKT,2ND RELAY LEVER 6RB1 STD ENG(07L) (B) M14X40	0-20801-440-0	02	1	9006-9306		●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9002-	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (B) M14X45	9-92051-445-0	02	1	9002-9005	●		●
253	BOLT; BRKT,2ND RELAY LEVER 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (B) M14X45	0-20801-445-0	02	1	9006-	●		●
254	WASHER; LK,RELAY LEVER (A) ID=14.2	9-09150-514-0	02	1	9002-	●	●	●
254	WASHER; LK,RELAY LEVER (B) ID=14.2	9-09150-614-0	02	1	9002-	●	●	●
258	WASHER; RELAY LEVER	1-09509-041-0	02	1	9002-	●	●	●
260	WASHER; WAVED	1-33659-093-0	02	1	9002-	●	●	●
360	BUSHING; RELAY LEVER L=24	5-33659-054-0	02	1	9002-	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	9002-	●	●	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (C)	1-33651-285-2	01	1	9002-9306	●	●	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (C)	1-33651-557-0	01	1	9307-	●		●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (B)	1-33651-286-2	01	1	9002-9306	●	●	●
365	LEVER; RELAY,SELECT EXZ&RHD(EX5*) (B)	1-33651-555-0	01	1	9307-	●		●
365	LEVER; RELAY,SELECT EXZ&LHD(EX6*) (D)	1-33651-328-2	01	1	9002-	●	●	●
458	BRACKET; 2ND RELAY LEVER	1-33657-210-4	01	1	9002-	●	●	●
