Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

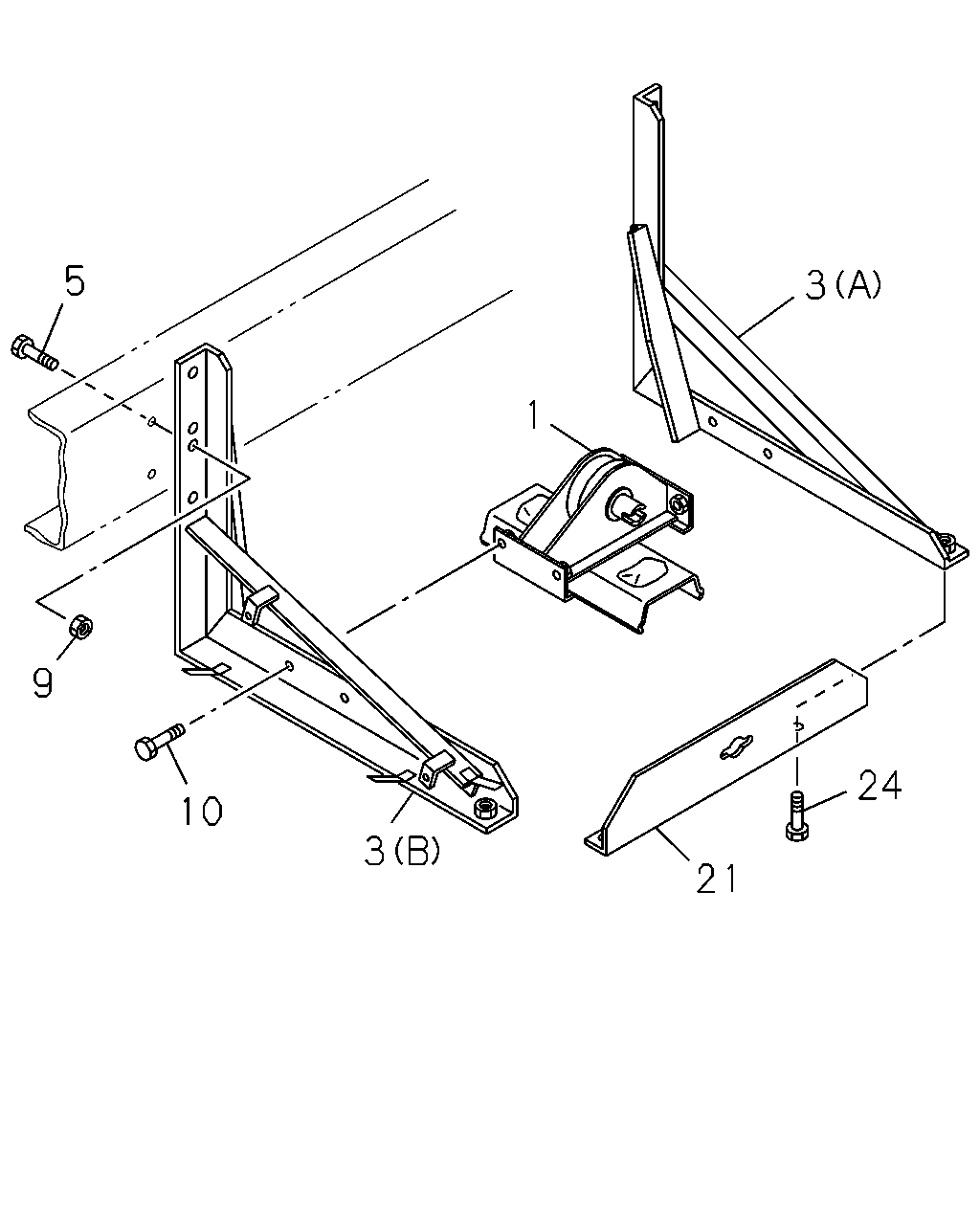

5-30 — SPARE TIRE CARRIER AND COVER
(#23829) — 9 parça
5
3
1
9
24
10
3
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
6SD1 TCN ENG<31L> SPARE WHEEL CARRIER FRAME SIDE<P13> THA
1-53630-208-1
01
1
0202-
3
BRACKET; TIRE CARRIER,FRT
6SD1 TCN ENG<31L> SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
1-53631-389-0
01
1
0202-
3
BRACKET; TIRE CARRIER,FRT
6SD1 TCN ENG<31L> SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
1-53631-393-0
01
1
0202-
5
BOLT; BRKT TO FRAME
6SD1 TCN ENG<31L> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE
0-28681-240-0
06
1
0202-
9
NUT; BRKT TO FRAME
6SD1 TCN ENG<31L> SPARE WHEEL CARRIER FRAME SIDE<P13> M12
9-99110-512-0
06
1
0202-0204
9
NUT; BRKT TO FRAME
6SD1 TCN ENG<31L> SPARE WHEEL CARRIER FRAME SIDE<P13> M12
9-99110-512-0
03
1
0205-
10
BOLT; TIRE HANGER
6SD1 TCN ENG<31L> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE
0-28081-225-0
04
1
0202-
21
BRACKET; SPARE TIRE HANGER
6SD1 TCN ENG<31L> SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53631-128-1
01
1
0202-
24
BOLT; SPARE TIRE
6SD1 TCN ENG<31L> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28681-230-0
02
1
0202-
