Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

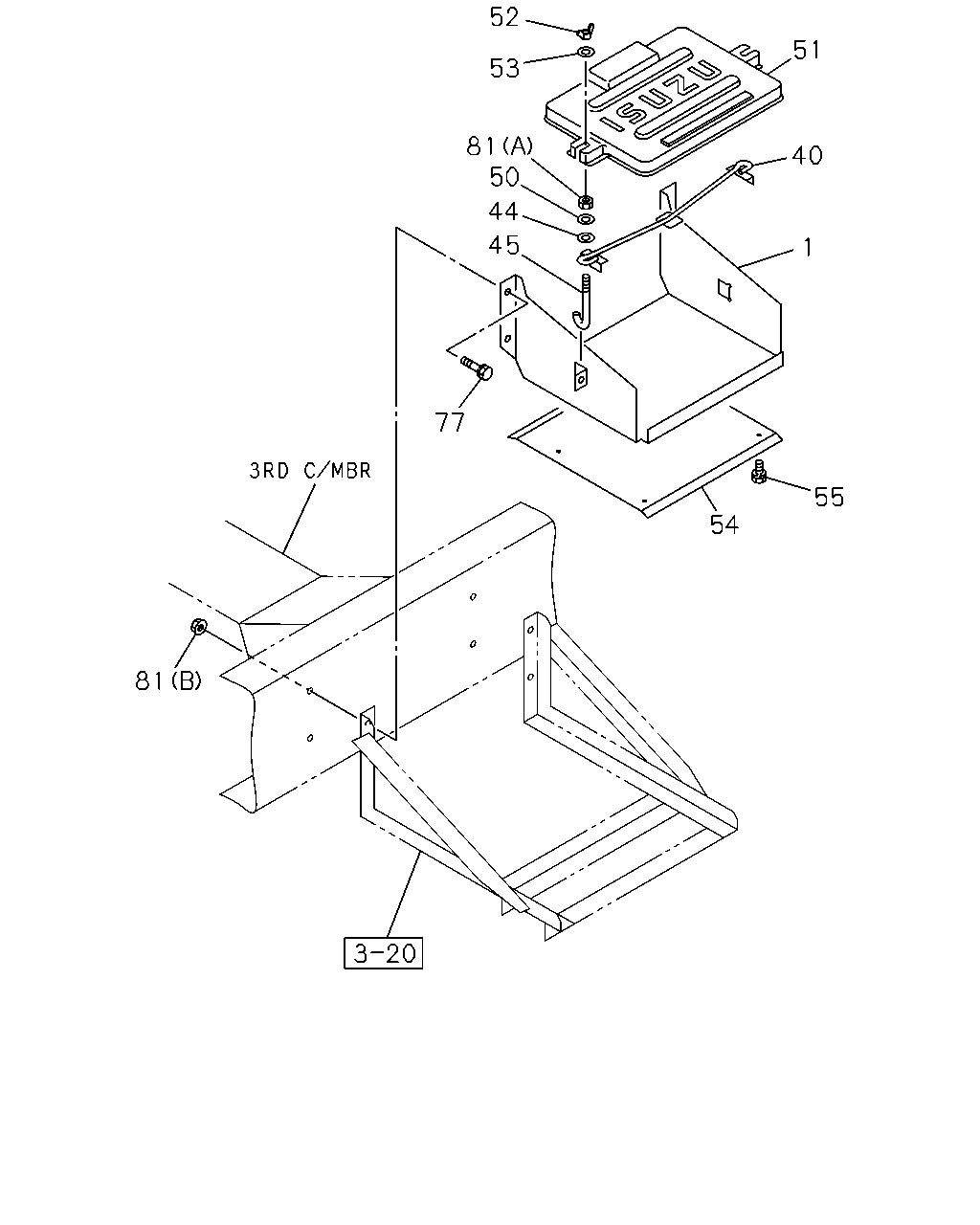

5-20 — BATTERY CARRIER
(#23828) — 17 parça
52
51
53
81
50
40
44
45
1
77
55
54
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CARRIER; BATTERY
THA
8-97914-838-3
01
1
0202-
40
CLAMP; BATTERY
THA
8-97910-232-0
01
1
0202-
44
SPACER; BATTERY
OD=22 T=7 THA
9-53319-024-0
02
1
0202-
45
ROD; TENSION,BATTERY
THA
8-97915-640-1
02
1
0202-
46
WASHER; PL,BATTERY TO CARRIER
ID=8.4 OD=18
9-09160-608-0
02
1
0202-
46
WASHER; PL,BATTERY TO CARRIER
ID=8.4 OD=22
9-09164-708-0
02
1
0202-
49
NUT; ROD,BATTERY
M8
9-09110-408-0
02
1
0202-
50
WASHER; PL,ROD,BATTERY
ID=8.4 OD=22
9-09164-708-0
02
1
0202-
51
COVER; BATTERY
THA
8-97915-940-0
01
1
0202-
52
NUT; WING,COVER FIX
M8 WING NUT
9-09118-408-0
02
1
0202-
52
NUT; WING,COVER FIX
M8 WING NUT
9-09118-408-0
02
1
0202-
53
WASHER; PL,COVER FIX
ID=8.4 OD=18
9-09160-608-0
02
1
0202-
54
PROTECTOR; HEAT,BATTERY
THA
1-53619-093-1
01
1
0202-
55
BOLT; HEAT PROTECTOR
THA
8-97916-573-0
04
1
0202-
77
BOLT; BATTERY BRKT,FRT TO RR
M10X40 FLANGE
0-28681-040-0
04
1
0202-
81
NUT; BATTERY
(B) M10 FLANGE
0-91150-210-0
04
1
0202-
81
NUT; BATTERY
(A) M8
9-09110-408-0
02
1
0202-
