Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

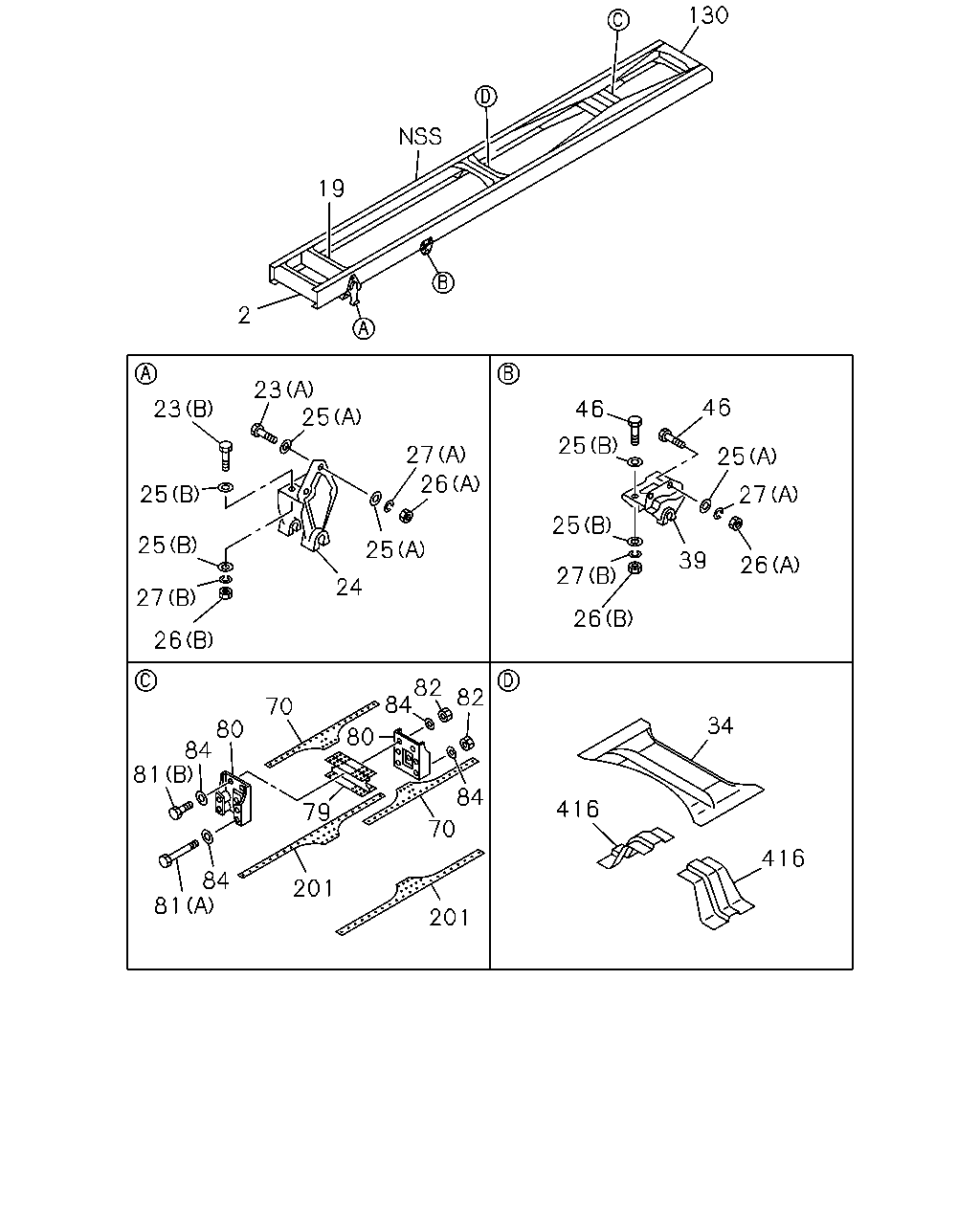

5-01 — FRAME AND OTHER PARTS
(#23825) — 31 parça
130
19
2
23
25
46
23
46
25
27
25
26
25
27
25
25
25
39
26
27
24
27
26
26
82
84
80
79
82
70
34
80
84
81
84
416
70
416
84
81
201
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
6SD1 TCN ENG<31L> THA
8-97912-224-3
01
1
0204-
2
MEMBER; CROSS,1ST
6SD1 TCS ENG<83L> THA
8-97922-163-2
01
1
0208-
19
MEMBER; CROSS,2ND
6SD1 TCN ENG<31L> THA
8-97913-977-1
01
1
0202-
19
MEMBER; CROSS,2ND
6SD1 TCS ENG<83L> THA
8-97922-164-1
01
1
0208-
23
BOLT; BRKT,SPR
(A) M14X50
9-92061-450-0
06
1
0202-
23
BOLT; BRKT,SPR
(B) M16X60
9-92061-660-0
04
1
0202-
24
BRACKET; FRT SPR,FRT
THA
8-97916-024-1
01
1
0202-
24
BRACKET; FRT SPR,FRT
THA
8-97916-023-1
01
1
0202-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0202-
25
WASHER; PL,BRKT
(A) ID=15 THA
9-09651-069-0
28
1
0202-
26
NUT; BRKT,SPR
(A) M14
9-99110-514-0
14
1
0202-
26
NUT; BRKT,SPR
(B) M16
9-99110-516-0
04
1
0202-
27
WASHER; LK,BRKT,FRT SPR
(A) ID=14.2
9-09150-814-0
14
1
0202-0204
27
WASHER; LK,BRKT,FRT SPR
(B) ID=16.2
9-09150-816-0
04
1
0202-0204
34
MEMBER; CROSS,3RD
THA
8-97917-349-0
01
1
0202-
39
BRACKET; FRT SPR,RR
THA
8-97916-043-1
01
1
0202-
39
BRACKET; FRT SPR,RR
THA
8-97916-025-1
01
1
0202-
46
BOLT; BRKT FIX
M14X50
9-92061-450-0
08
1
0202-
70
GUSSET; TRUNNION,UPR
1-53161-566-1
02
1
0202-
72
SPACER; TRUNNION
THA
8-97922-399-0
02
1
0212-
79
MEMBER; CROSS,TRUNNION ASM
6SD1 TCN ENG<31L> THA
8-97913-978-1
01
1
0202-
79
MEMBER; CROSS,TRUNNION ASM
6SD1 TCS ENG<83L> THA
8-97922-185-0
01
1
0208-
80
BRACKET; C/MBR
THA
8-97916-034-0
02
1
0202-
81
BOLT; BRKT
(A) M14X205
1-09000-147-0
02
1
0202-
81
BOLT; BRKT
(B) M14X50
9-92061-450-0
02
1
0202-
82
NUT; BRKT
M14
9-99110-514-0
04
1
0202-
84
WASHER; PL,BRKT
ID=15 THA
9-09651-069-0
08
1
0202-
130
MEMBER; CROSS,END
THA
8-97916-030-0
01
1
0202-
133
RIVET; BRKT
D13X38 PLATED TAPER END
9-06771-338-0
08
1
0204-0207
201
GUSSET; C/MBR
1-53161-567-2
02
1
0202-
416
GUSSET; 3RD C/MBR
THA
8-97917-350-0
02
1
0202-
