4-80 — ROAD WHEEL (#23824) — 69 parça

2 8 32 3 32 3 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12<Q54> (A) SPARE	1-42350-478-0	01	1	0202-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-478-0	01	1	0202-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (A) FRONT,REAR	1-42350-478-0	10	1	0202-
2	WHEEL; DISC 6SD1 TCN ENG<31L> DISC WHEEL SPARE<N79> WHEEL 8.25X22.5 165-13<QM6> (B) SPARE	1-42350-492-0	01	1	0202-0204
2	WHEEL; DISC 6SD1 TCN ENG<31L> WHEEL 8.25X22.5 165-13<QM6> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-492-0	01	1	0202-0204
2	WHEEL; DISC 6SD1 TCN ENG<31L> DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE	1-42350-597-0	01	1	0205-0207
2	WHEEL; DISC 6SD1 TCN ENG<31L> SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-597-0	01	1	0205-0207
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE	1-42350-597-0	01	1	0208-0304
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-597-0	01	1	0208-0304
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE	1-42350-657-0	01	1	0305-0311
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-657-0	01	1	0305-0311
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE	1-42350-667-0	01	1	0312-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-667-0	01	1	0312-
2	WHEEL; DISC 6SD1 TCN ENG<31L> WHEEL 8.25X22.5 165-13<QM6> (B) FRONT,REAR	1-42350-492-0	10	1	0202-0204
2	WHEEL; DISC 6SD1 TCN ENG<31L> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT,REAR	1-42350-597-0	10	1	0205-0207
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT,REAR	1-42350-597-0	10	1	0208-0304
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT,REAR	1-42350-657-0	10	1	0305-0311
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT,REAR	1-42350-667-0	10	1	0312-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD THA	8-97916-064-0	08	1	0202-
3	NUT; WHEEL,FRT AXLE M24 THA	8-97916-063-0	08	1	0202-
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 8.25X22.5 165-13<QM6> SPARE	1-42370-020-3	01	1	0202-0204
8	VALVE; TIRE WHEEL 8.25X22.5 165-13<QM6> SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0202-0204
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	0205-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	0205-
8	VALVE; TIRE WHEEL 8.25X22.5 165-13<QM6> FRONT,REAR	1-42370-020-3	10	1	0202-0204
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT,REAR	1-42370-020-3	10	1	0205-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12<Q54>	1-42355-003-1	03	1	0202-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42355-003-1	03	1	0202-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54>	1-42355-003-1	30	1	0202-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	07	1	0202-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	06	1	0202-

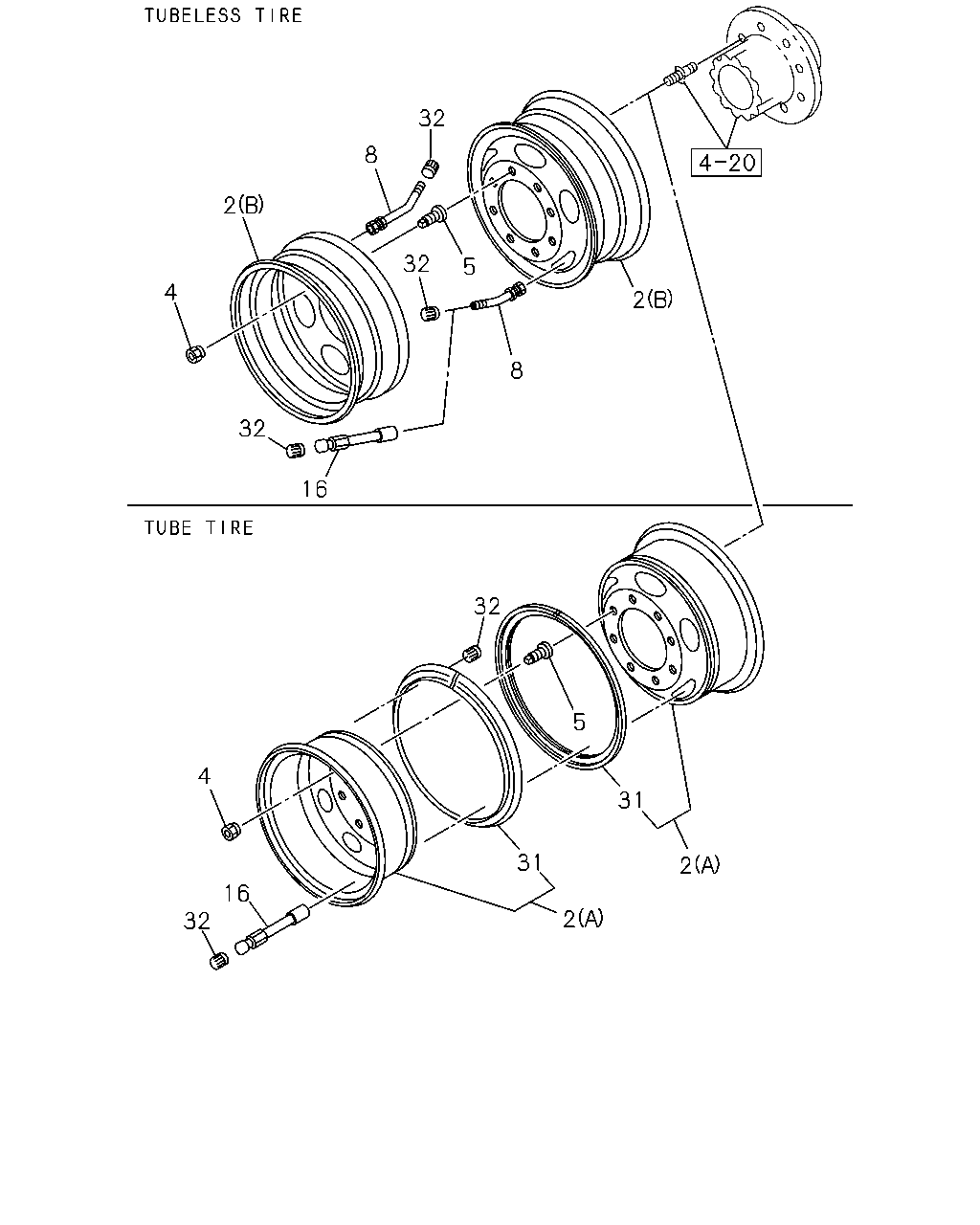

32 8 2 32 5 4 2 8 32 16 32 5 4 31 31 2 16 2 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12<Q54> (A) SPARE	1-42350-478-0	01	1	0202-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-478-0	01	1	0202-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (A) FRONT,REAR	1-42350-478-0	10	1	0202-
2	WHEEL; DISC 6SD1 TCN ENG<31L> DISC WHEEL SPARE<N79> WHEEL 8.25X22.5 165-13<QM6> (B) SPARE	1-42350-492-0	01	1	0202-0204
2	WHEEL; DISC 6SD1 TCN ENG<31L> WHEEL 8.25X22.5 165-13<QM6> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-492-0	01	1	0202-0204
2	WHEEL; DISC 6SD1 TCN ENG<31L> DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE	1-42350-597-0	01	1	0205-0207
2	WHEEL; DISC 6SD1 TCN ENG<31L> SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-597-0	01	1	0205-0207
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE	1-42350-597-0	01	1	0208-0304
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-597-0	01	1	0208-0304
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE	1-42350-657-0	01	1	0305-0311
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-657-0	01	1	0305-0311
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE	1-42350-667-0	01	1	0312-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-667-0	01	1	0312-
2	WHEEL; DISC 6SD1 TCN ENG<31L> WHEEL 8.25X22.5 165-13<QM6> (B) FRONT,REAR	1-42350-492-0	10	1	0202-0204
2	WHEEL; DISC 6SD1 TCN ENG<31L> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT,REAR	1-42350-597-0	10	1	0205-0207
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT,REAR	1-42350-597-0	10	1	0208-0304
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT,REAR	1-42350-657-0	10	1	0305-0311
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT,REAR	1-42350-667-0	10	1	0312-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	0202-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	0202-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	0202-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	0202-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	0202-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	0202-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	0202-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	0202-
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 8.25X22.5 165-13<QM6> SPARE	1-42370-020-3	01	1	0202-0204
8	VALVE; TIRE WHEEL 8.25X22.5 165-13<QM6> SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0202-0204
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	0205-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	0205-
8	VALVE; TIRE WHEEL 8.25X22.5 165-13<QM6> FRONT,REAR	1-42370-020-3	10	1	0202-0204
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT,REAR	1-42370-020-3	10	1	0205-
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	04	1	0202-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12<Q54>	1-42355-003-1	03	1	0202-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42355-003-1	03	1	0202-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54>	1-42355-003-1	30	1	0202-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	07	1	0202-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	06	1	0202-
