4-65 — REAR LEAF SPRING (#23823) — 68 parça

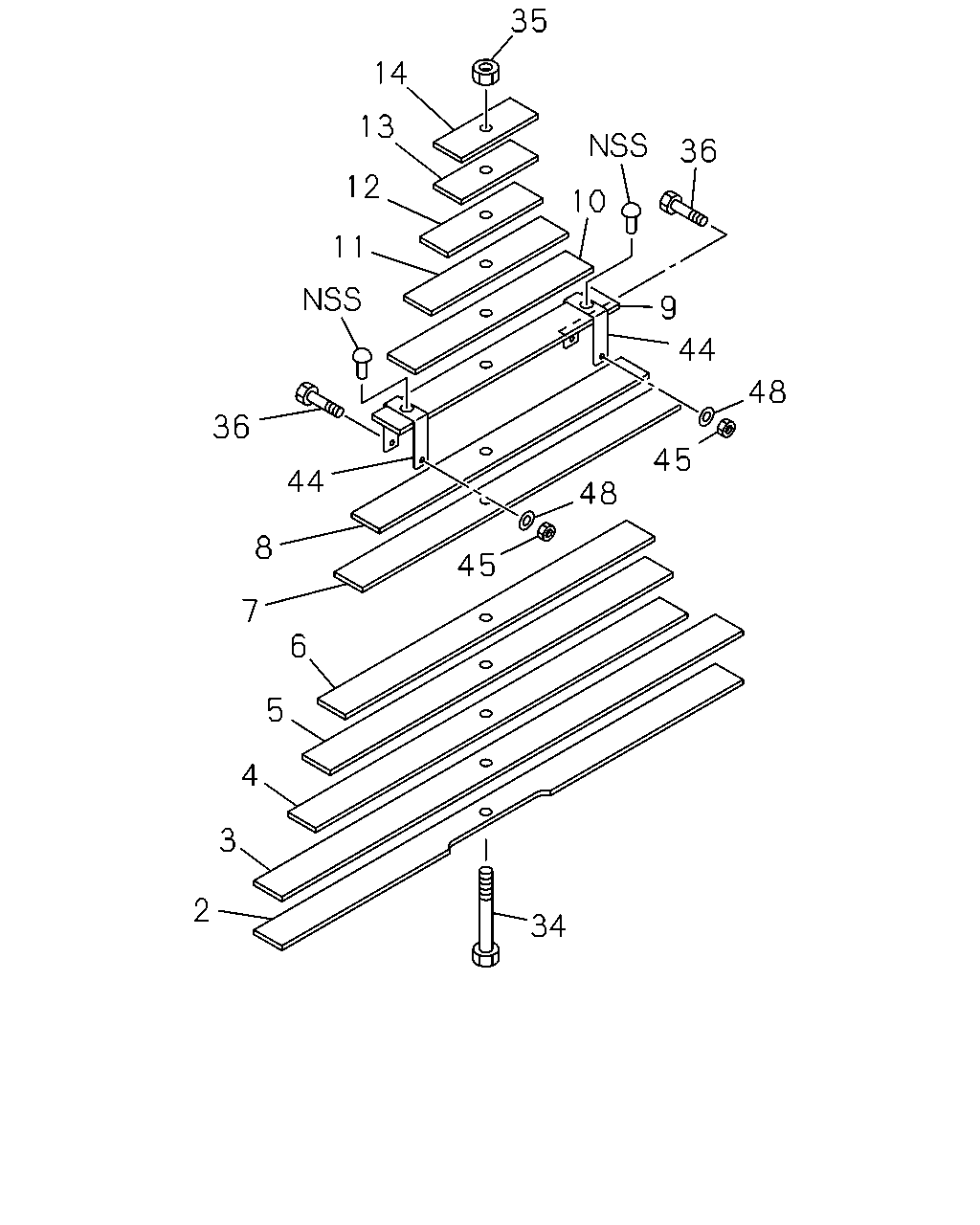

35 14 13 36 12 10 11 9 44 48 36 45 44 48 8 45 7 6 5 4 3 2 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51311-427-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97922-084-0	1-51411-269-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51312-427-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97922-084-0	1-51412-269-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51313-427-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97922-084-0	1-51413-269-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51314-427-1	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97922-084-0	1-51414-269-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51315-427-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-97922-084-0	1-51415-269-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51316-427-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 8-97922-084-0	1-51416-269-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51317-427-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN W/CLIP ASM PART: B = 8-97922-084-0	1-51417-269-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN W/CLIP, THA ASM PART: A = 8-97914-842-0	1-51318-427-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 8-97922-084-0	1-51418-269-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51319-427-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: B = 8-97922-084-0	1-51419-269-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51321-427-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: B = 8-97922-084-0	1-51421-269-0	01	1	-
12	SPRING; LEAF,NO 11,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51322-427-0	01	1	-
12	SPRING; LEAF,NO 11,RR MAIN ASM PART: B = 8-97922-084-0	1-51422-269-0	01	1	-
13	SPRING; LEAF,NO 12,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51323-427-0	01	1	-
14	SPRING; LEAF,NO 13,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51324-427-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=245, THA ASM PART: A = 8-97914-842-0	1-51356-297-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=225 ASM PART: B = 8-97922-084-0	1-51356-362-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16, THA ASM PART: B = 8-97922-084-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 8-97914-842-0	9-99110-116-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: A = 8-97914-842-0	1-09000-195-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: B = 8-97922-084-0	1-09000-751-0	02	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51353-001-0	02	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN ASM PART: B = 8-97922-084-0	1-51353-015-0	02	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN M10 ASM PART: A = 8-97914-842-0, B = 8-97922-084-0	9-09110-010-0	02	1	-
48	WASHER; CLIP,LEAF SPR ID=10.2 ASM PART: A = 8-97914-842-0	9-09150-010-0	02	1	-
48	WASHER; CLIP,LEAF SPR ID=10.2 ASM PART: B = 8-97922-084-0	9-09150-510-0	02	1	-

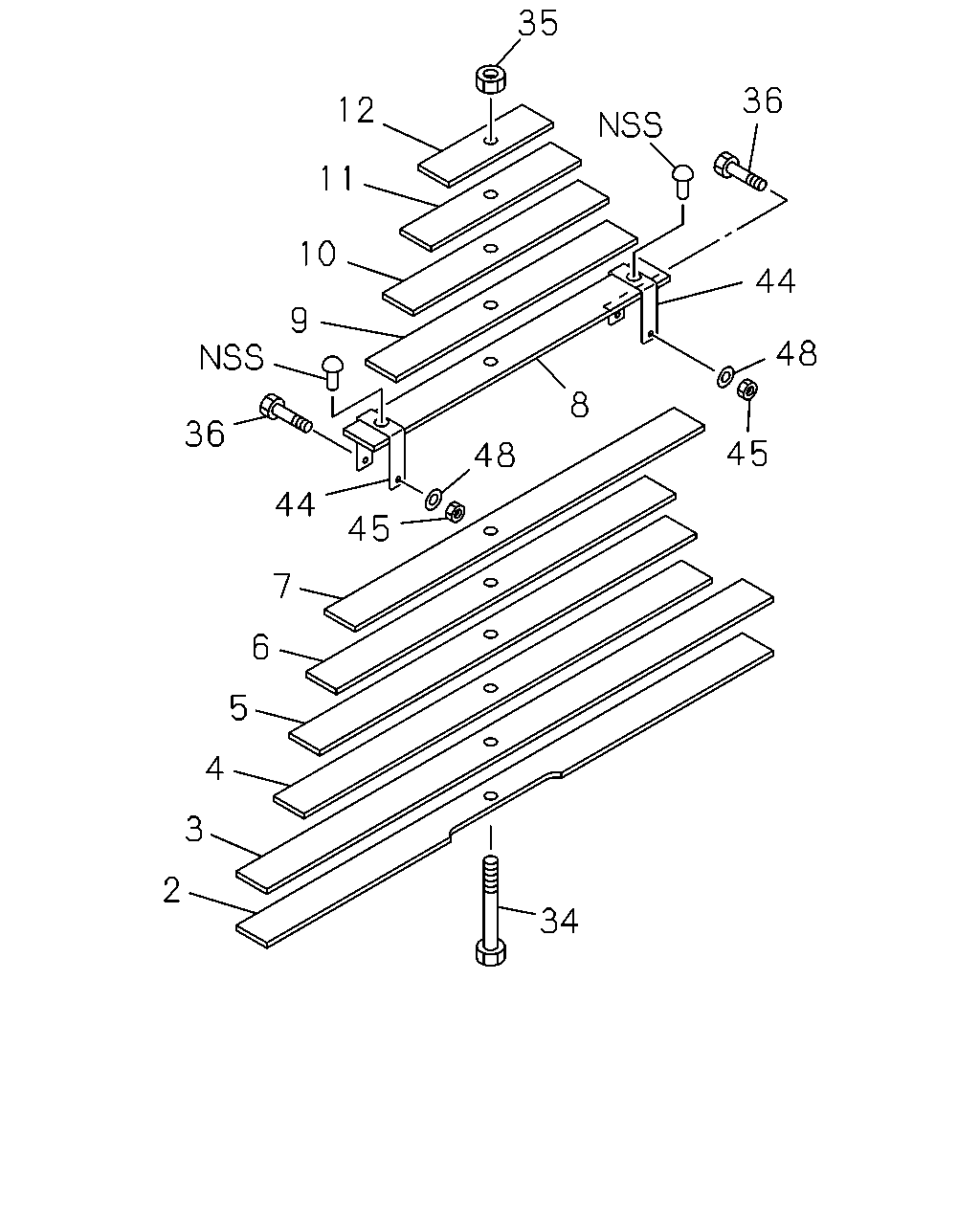

35 36 12 11 10 44 9 48 8 36 45 48 44 45 7 6 5 4 3 2 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51311-427-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97922-084-0	1-51411-269-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51312-427-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97922-084-0	1-51412-269-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51313-427-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97922-084-0	1-51413-269-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51314-427-1	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97922-084-0	1-51414-269-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51315-427-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-97922-084-0	1-51415-269-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51316-427-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 8-97922-084-0	1-51416-269-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51317-427-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN W/CLIP ASM PART: B = 8-97922-084-0	1-51417-269-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN W/CLIP, THA ASM PART: A = 8-97914-842-0	1-51318-427-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 8-97922-084-0	1-51418-269-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51319-427-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: B = 8-97922-084-0	1-51419-269-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51321-427-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: B = 8-97922-084-0	1-51421-269-0	01	1	-
12	SPRING; LEAF,NO 11,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51322-427-0	01	1	-
12	SPRING; LEAF,NO 11,RR MAIN ASM PART: B = 8-97922-084-0	1-51422-269-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=245, THA ASM PART: A = 8-97914-842-0	1-51356-297-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=225 ASM PART: B = 8-97922-084-0	1-51356-362-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16, THA ASM PART: B = 8-97922-084-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 8-97914-842-0	9-99110-116-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: A = 8-97914-842-0	1-09000-195-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: B = 8-97922-084-0	1-09000-751-0	02	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN THA ASM PART: A = 8-97914-842-0	1-51353-001-0	02	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN ASM PART: B = 8-97922-084-0	1-51353-015-0	02	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN M10 ASM PART: A = 8-97914-842-0, B = 8-97922-084-0	9-09110-010-0	02	1	-
48	WASHER; CLIP,LEAF SPR ID=10.2 ASM PART: A = 8-97914-842-0	9-09150-010-0	02	1	-
48	WASHER; CLIP,LEAF SPR ID=10.2 ASM PART: B = 8-97922-084-0	9-09150-510-0	02	1	-
