4-55 — FRONT LEAF SPRING (#23821) — 29 parça

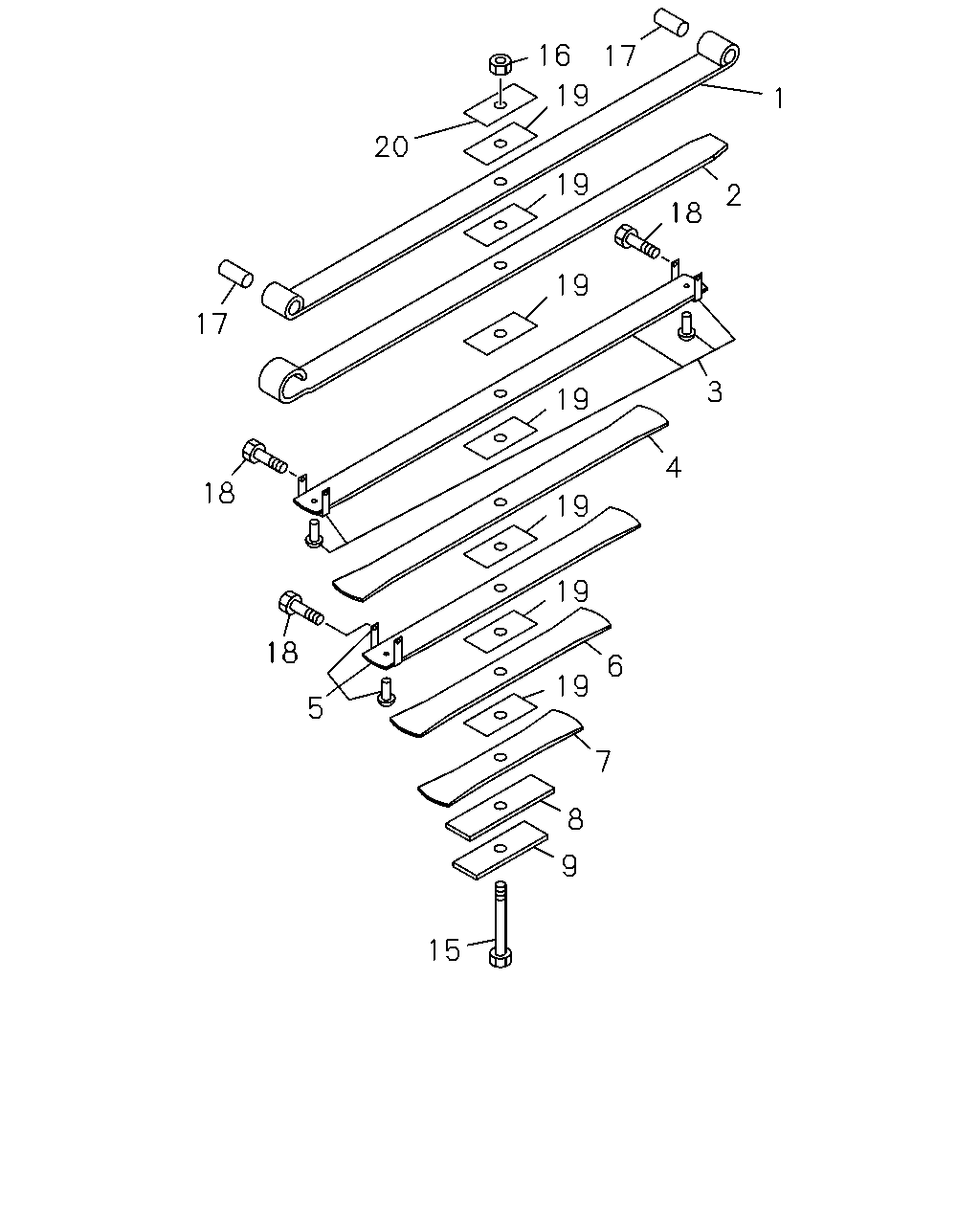

çizim 81343
16 17 19 1 20 19 2 18 19 17 3 19 4 18 19 19 18 6 19 5 7 8 9 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: A = 8-97913-797-0, C = 8-97922-660-0 		1-51131-349-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97922-083-0, D = 8-97922-661-0 		1-51131-843-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: A = 8-97913-797-0, C = 8-97922-660-0 		1-51132-349-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97922-083-0, D = 8-97922-661-0 		1-51132-843-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
W/CLIP, THA ASM PART: A = 8-97913-797-0, C = 8-97922-660-0 		1-51133-349-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-97922-083-0, D = 8-97922-661-0 		1-51133-843-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: A = 8-97913-797-0, C = 8-97922-660-0 		1-51134-349-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-97922-083-0, D = 8-97922-661-0 		1-51134-843-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: A = 8-97913-797-0, C = 8-97922-660-0 		1-51135-349-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-97922-083-0, D = 8-97922-661-0 		1-51135-843-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
W/CLIP, THA ASM PART: A = 8-97913-797-0, C = 8-97922-660-0 		1-51136-349-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: B = 8-97922-083-0, D = 8-97922-661-0 		1-51136-843-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
THA ASM PART: A = 8-97913-797-0, C = 8-97922-660-0 		1-51137-349-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: B = 8-97922-083-0, D = 8-97922-661-0 		1-51137-843-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
THA ASM PART: A = 8-97913-797-0, C = 8-97922-660-0 		1-51138-349-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: B = 8-97922-083-0, D = 8-97922-661-0 		1-51138-843-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
THA ASM PART: A = 8-97913-797-0, C = 8-97922-660-0 		1-51139-349-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: B = 8-97922-083-0, D = 8-97922-661-0 		1-51139-843-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: B = 8-97922-083-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150, THA ASM PART: A = 8-97913-797-0 		8-97920-695-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=145, THA ASM PART: D = 8-97922-661-0 		8-97922-715-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=155, THA ASM PART: C = 8-97922-660-0 		8-97922-716-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16, THA ASM PART: A = 8-97913-797-0, B = 8-97922-083-0, C = 8-97922-660-0, D = 8-97922-661-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38, THA ASM PART: A = 8-97913-797-0, B = 8-97922-083-0, C = 8-97922-660-0, D = 8-97922-661-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99, THA ASM PART: B = 8-97922-083-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99, THA ASM PART: A = 8-97913-797-0, C = 8-97922-660-0, D = 8-97922-661-0 		8-97920-694-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1, THA ASM PART: A = 8-97913-797-0, B = 8-97922-083-0, C = 8-97922-660-0, D = 8-97922-661-0 		1-51177-071-0 07 1 -
20 SEAT; LEAF SPR,FRT
T=12, THA ASM PART: A = 8-97913-797-0, B = 8-97922-083-0, C = 8-97922-660-0, D = 8-97922-661-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
T=6, THA ASM PART: C = 8-97922-660-0, D = 8-97922-661-0 		1-51177-115-0 01 1 -
