4-36 — POWER STEERING CONTROL; ENGINE SIDE (#23817) — 33 parça

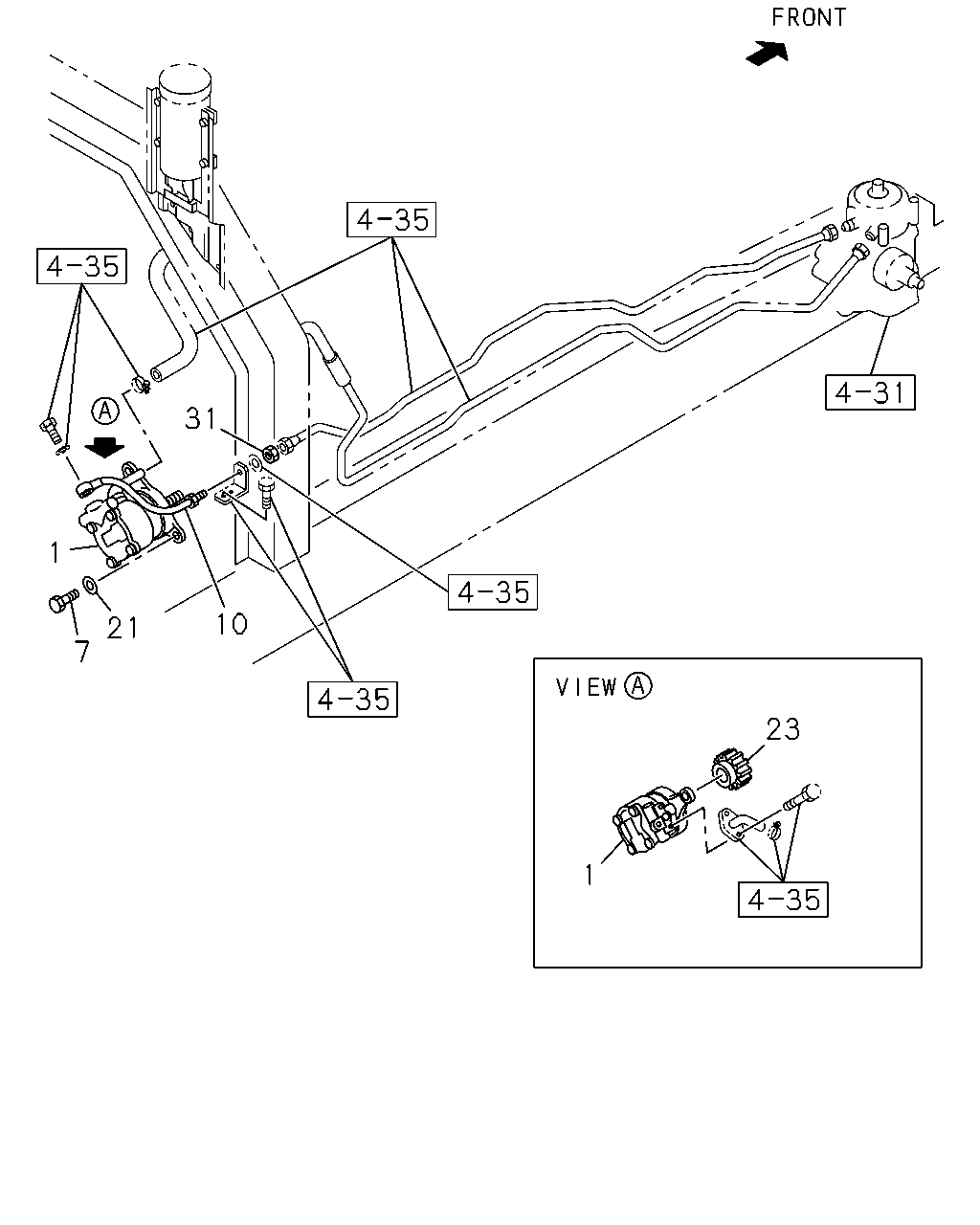

31 1 10 21 7 23 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG<31L>	1-19500-504-0	01	1	0202-0207
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-504-1	01	1	0208-
7	BOLT; OIL PUMP,P/S 6SD1 TCN ENG<31L> M12X75	9-01666-275-0	02	1	0202-0207
7	BOLT; OIL PUMP,P/S M12X75	9-01666-275-0	02	1	0208-
10	HOSE; FLEX,P/S OIL PUMP,INL 6SD1 TCN ENG<31L>	0-09539-520-0	01	1	0202-
21	WASHER; PL,P/S OIL PUMP 6SD1 TCN ENG<31L> ID=12.5	9-09160-512-0	02	1	0202-0207
21	WASHER; PL,P/S OIL PUMP ID=12.5	9-09160-512-0	02	1	0208-
23	GEAR; OIL PUMP 6SD1 TCN ENG<31L> Z=17	1-19581-030-0	01	1	0202-0207
23	GEAR; OIL PUMP Z=17	1-19581-030-0	01	1	0208-
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	0210-
31	NUT; FLEX HOSE M20	9-99111-420-0	01	1	0202-
88	WASHER; GEAR,P/S PUMP	1-19519-293-0	01	1	0210-
88	WASHER; GEAR,P/S PUMP	9-09150-016-0	01	1	0210-

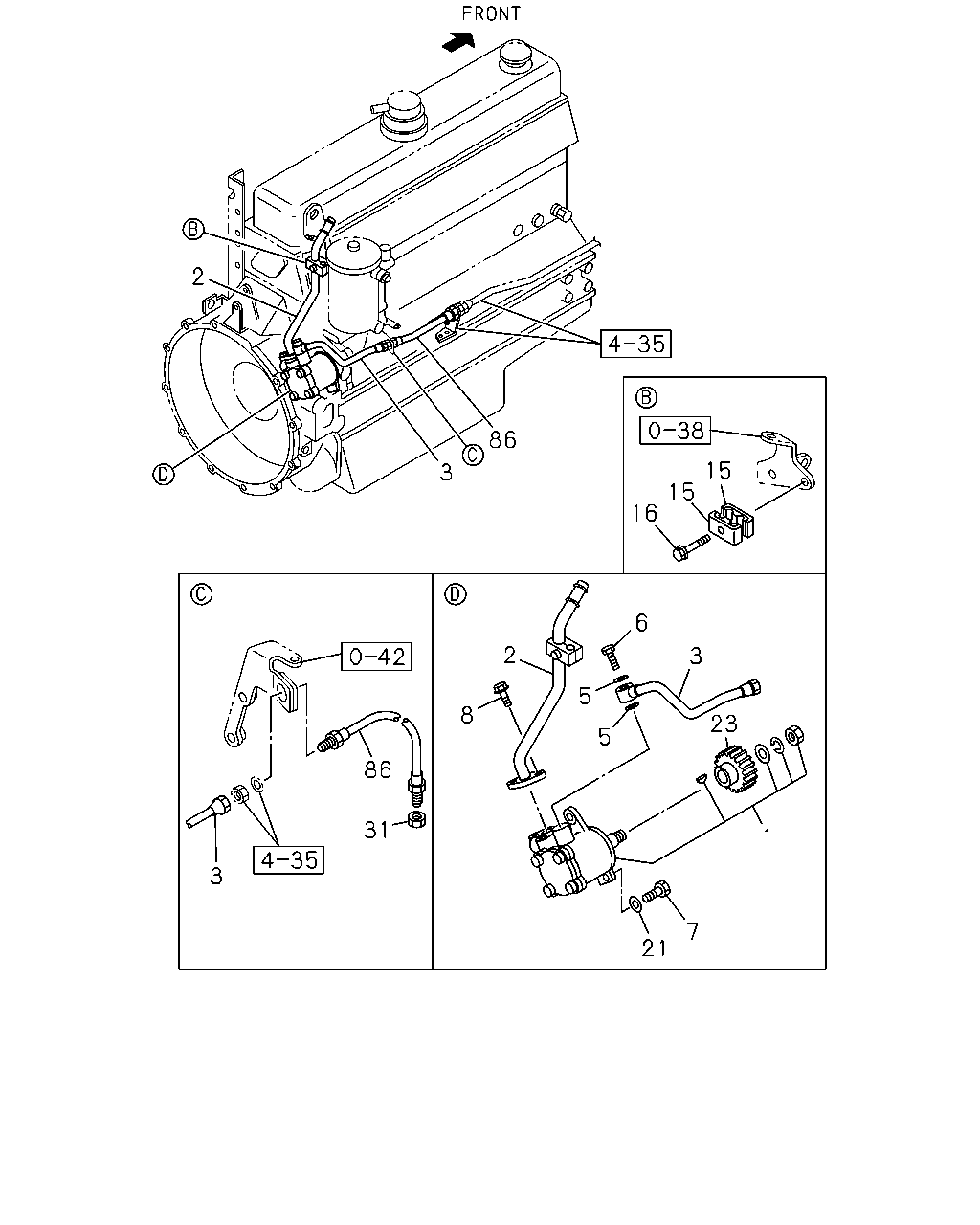

2 86 15 3 15 16 6 2 3 5 8 23 5 86 31 1 3 7 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG<31L>	1-19500-504-0	01	1	0202-0207
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-504-1	01	1	0208-
2	PIPE ASM; OIL,SUCTION 6SD1 TCS ENG<83L>	1-13313-963-0	01	1	0208-
3	PIPE; OIL,CHARGE,P/S 6SD1 TCS ENG<83L>	1-13313-987-0	01	1	0208-
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6SD1 TCS ENG<83L> ID=18.2 OD=24.4	1-09630-087-0	02	1	0208-
6	BOLT; EYE,P/S PIPE 6SD1 TCS ENG<83L> M18X36	1-09675-205-0	01	1	0208-
7	BOLT; OIL PUMP,P/S 6SD1 TCN ENG<31L> M12X75	9-01666-275-0	02	1	0202-0207
7	BOLT; OIL PUMP,P/S M12X75	9-01666-275-0	02	1	0208-
8	BOLT; OIL PIPE 6SD1 TCS ENG<83L> M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0208-
15	CLIP; OIL PIPE SUCTION 6SD1 TCS ENG<83L>	1-09701-210-0	02	1	0208-
16	BOLT; STAY,P/S OIL PUMP 6SD1 TCS ENG<83L> M6X45 FLANGE	0-28080-645-0	01	1	0208-
21	WASHER; PL,P/S OIL PUMP 6SD1 TCN ENG<31L> ID=12.5	9-09160-512-0	02	1	0202-0207
21	WASHER; PL,P/S OIL PUMP ID=12.5	9-09160-512-0	02	1	0208-
23	GEAR; OIL PUMP 6SD1 TCN ENG<31L> Z=17	1-19581-030-0	01	1	0202-0207
23	GEAR; OIL PUMP Z=17	1-19581-030-0	01	1	0208-
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	0210-
31	NUT; FLEX HOSE M20	9-99111-420-0	01	1	0202-
86	HOSE; FLEX,P/S 6SD1 TCS ENG<83L>	0-09536-500-0	01	1	0208-
88	WASHER; GEAR,P/S PUMP	1-19519-293-0	01	1	0210-
88	WASHER; GEAR,P/S PUMP	9-09150-016-0	01	1	0210-
