◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 10899 - GXZ(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#23811) — 133 parça

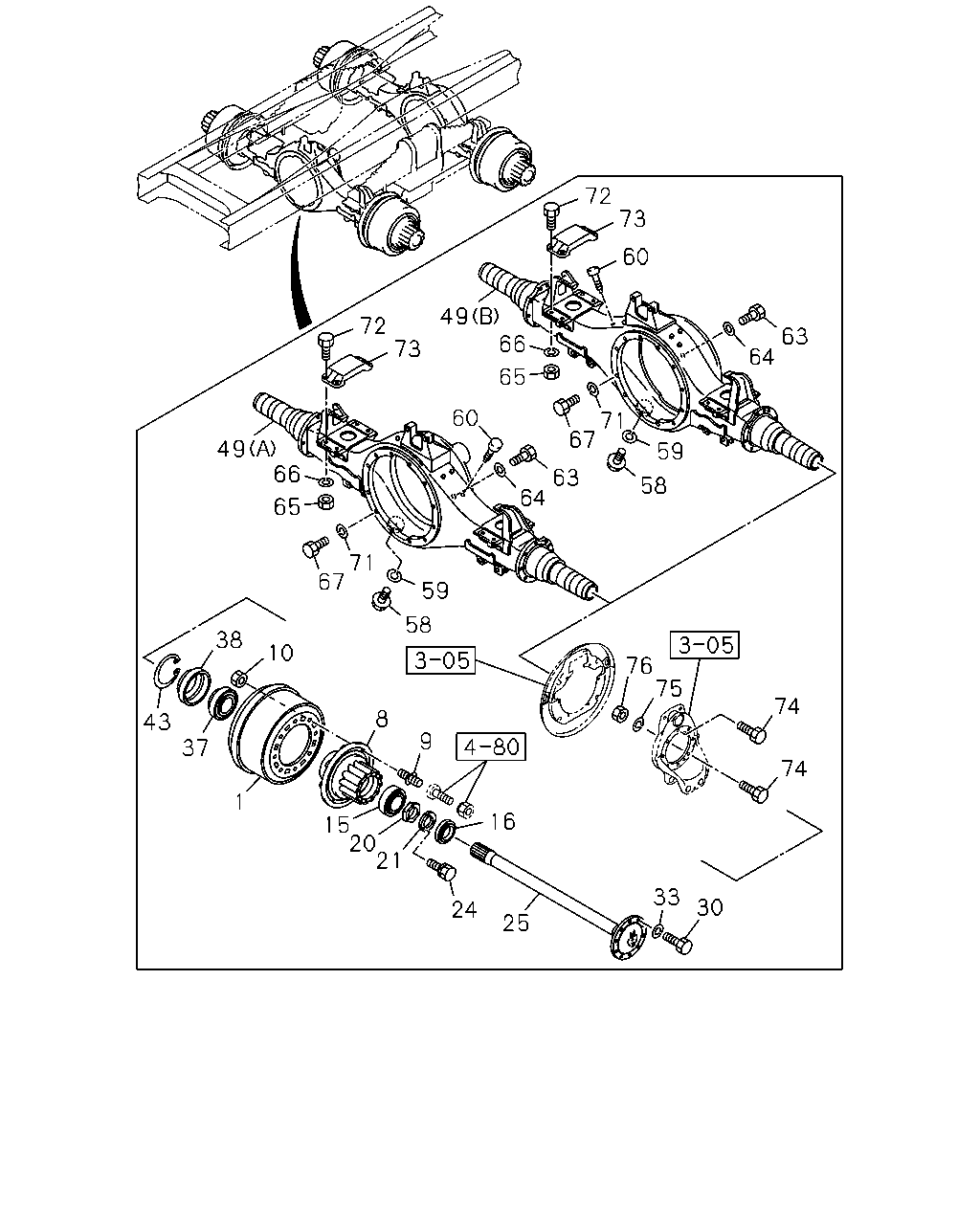

çizim 24357
72 73 60 49 66 72 73 63 64 65 71 67 60 49 66 59 63 64 58 65 71 67 59 58 38 10 76 75 74 8 43 9 37 74 1 16 15 20 21 33 30 24 25
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR
THA 		8-97917-300-0 01 1 0202-
1 DRUM; BRK,RR
THA 		8-97917-300-0 01 1 0202-
1 DRUM; BRK,RR
THA 		8-97917-301-0 01 1 0202-
1 DRUM; BRK,RR
THA 		8-97917-301-0 01 1 0202-
8 HUB; RR AXLE
EXC. REAR AXLE RT210<C2A> 		1-42311-104-0 02 1 0208-
8 HUB; RR AXLE 1-42311-104-0 02 1 0202-0207
8 HUB; RR AXLE 1-42311-104-0 02 1 0202-0207
8 HUB; RR AXLE
REAR AXLE RT210<C2A> 		1-42311-104-0 04 1 0208-
9 PIN; WHEEL,RR AXLE
M20X34.0,M22X51.5 RH THREAD THA 		8-97916-071-0 08 1 0202-
9 PIN; WHEEL,RR AXLE
M20X34.0,M22X51.5 RH THREAD THA 		8-97916-071-0 08 1 0202-
9 PIN; WHEEL,RR AXLE
M20X34.0 LH THREAD,M22X51.5 RH THREAD THA 		8-97916-073-0 08 1 0202-
9 PIN; WHEEL,RR AXLE
M20X34.0 LH THREAD,M22X51.5 RH THREAD THA 		8-97916-073-0 08 1 0202-
10 NUT; WHEEL PIN,RR AXLE
M22 FLANGE THA 		8-97914-195-0 16 1 0202-
10 NUT; WHEEL PIN,RR AXLE
M22 FLANGE THA 		8-97914-195-0 16 1 0202-
15 BEARING; HUB OUTER,RR AXLE
KOYO 		1-09812-232-0 02 1 0202-0207
15 BEARING; HUB OUTER,RR AXLE
KOYO 		1-09812-232-0 02 1 0202-0207
15 BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> KOYO 		1-09812-232-0 02 1 0208-
15 BEARING; HUB OUTER,RR AXLE
REAR AXLE RT210<C2A> KOYO 		1-09812-232-0 02 1 0208-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0202-0207
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0202-0207
16 SEAL; OIL,RR HUB,OUTER
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> TKK 		1-09625-444-0 02 1 0208-
16 SEAL; OIL,RR HUB,OUTER
REAR AXLE RT210<C2A> TKK 		1-09625-444-0 02 1 0208-
20 NUT; BRG,RR HUB
EXC. REAR AXLE RT210<C2A> M88 		9-09843-062-2 02 1 0302-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0202-0207
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0202-0207
20 NUT; BRG,RR HUB
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> M88 		9-09843-062-2 02 1 0208-0301
20 NUT; BRG,RR HUB
REAR AXLE RT210<C2A> M88 		9-09843-062-2 02 1 0208-0301
20 NUT; BRG,RR HUB
REAR AXLE RT210<C2A> M88 		9-09843-062-2 06 1 0302-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 04 1 0302-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 04 1 0302-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0202-0207
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0202-0207
21 WASHER; LK,BRG NUT
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> ID=88 		9-09854-112-0 02 1 0208-
21 WASHER; LK,BRG NUT
REAR AXLE RT210<C2A> ID=88 		9-09854-112-0 02 1 0208-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0202-0207
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0202-0207
24 BOLT; LK WASHER
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> M6X16 FLANGE 		0-28680-616-0 06 1 0208-
24 BOLT; LK WASHER
REAR AXLE RT210<C2A> M6X16 FLANGE 		0-28680-616-0 06 1 0208-
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH L=976 		1-42171-356-0 02 1 0202-0207
25 SHAFT; AXLE,RR
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> L=976 		1-42171-356-0 02 1 0208-
25 SHAFT; AXLE,RR
REAR AXLE RT210<C2A> L=976 		1-42171-356-0 02 1 0208-
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH L=1106 		1-42171-357-0 02 1 0202-0207
25 SHAFT; AXLE,RR
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> L=1106 		1-42171-357-0 02 1 0208-
25 SHAFT; AXLE,RR
REAR AXLE RT210<C2A> L=1106 		1-42171-357-0 02 1 0208-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0202-0207
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0202-0207
30 BOLT; HUB TO AXLE SHAFT
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> M14X58 		1-09000-582-0 20 1 0208-
30 BOLT; HUB TO AXLE SHAFT
REAR AXLE RT210<C2A> M14X58 		1-09000-582-0 20 1 0208-
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0202-0207
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0202-0207
33 WASHER; AXLE SHAFT
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> ID=14.2 		9-09150-814-0 20 1 0208-
33 WASHER; AXLE SHAFT
REAR AXLE RT210<C2A> ID=14.2 		9-09150-814-0 20 1 0208-
37 BEARING; HUB INNER,RR AXLE
KOYO 		1-09812-233-0 02 1 0202-0207
37 BEARING; HUB INNER,RR AXLE
KOYO 		1-09812-233-0 02 1 0202-0207
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> KOYO 		1-09812-233-0 02 1 0208-
37 BEARING; HUB INNER,RR AXLE
REAR AXLE RT210<C2A> KOYO 		1-09812-233-0 02 1 0208-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0202-0207
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0202-0207
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> NOK 		1-09625-265-0 02 1 0208-
38 SEAL; OIL,RR HUB,INNER
REAR AXLE RT210<C2A> NOK 		1-09625-265-0 02 1 0208-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0202-0207
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0202-0207
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> TKK 		1-09625-350-0 02 1 0208-
38 SEAL; OIL,RR HUB,INNER
REAR AXLE RT210<C2A> TKK 		1-09625-350-0 02 1 0208-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0202-0207
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0202-0207
43 RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> OD=179 		1-09587-057-0 02 1 0208-
43 RING; SNAP,HUB SEAL,RR AXLE
REAR AXLE RT210<C2A> OD=179 		1-09587-057-0 02 1 0208-
49 CASE; RR AXLE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> REAR AXLE RT210<C2A> (A) 		1-42160-921-1 01 1 0202-0207
49 CASE; RR AXLE
REAR AXLE RT210<C2A> (A) 		1-42160-921-1 01 1 0208-
49 CASE; RR AXLE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> REAR AXLE RT210<C2A> (B) 		1-42160-965-1 01 1 0202-0207
49 CASE; RR AXLE
REAR AXLE RT210<C2A> (B) 		1-42160-965-1 01 1 0208-
49 CASE; RR AXLE
EXC. REAR AXLE RT210<C2A> (A) 		1-42160-408-1 01 1 0202-0206
49 CASE; RR AXLE
EXC. REAR AXLE RT210<C2A> (A) 		1-42160-932-1 01 1 0207-
49 CASE; RR AXLE
EXC. REAR AXLE RT210<C2A> (B) 		1-42160-409-1 01 1 0202-0206
49 CASE; RR AXLE
EXC. REAR AXLE RT210<C2A> (B) 		1-42160-975-1 01 1 0207-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0202-0207
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0202-0207
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> M24X17 FLANGE 		1-09604-023-0 01 1 0208-
58 PLUG; DRAIN,AXLE CASE
REAR AXLE RT210<C2A> M24X17 FLANGE 		1-09604-023-0 01 1 0208-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0202-0207
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0202-0207
59 GASKET; DRAIN PLUG
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> ID=26.8 		9-09920-605-0 01 1 0208-
59 GASKET; DRAIN PLUG
REAR AXLE RT210<C2A> ID=26.8 		9-09920-605-0 01 1 0208-
60 BREATHER; RR AXLE CASE 9-36122-015-1 02 1 0202-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0202-0207
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0202-0207
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> M24X17 FLANGE 		1-09604-022-0 01 1 0208-
63 PLUG; OIL FILLER,AXLE CASE
REAR AXLE RT210<C2A> M24X17 FLANGE 		1-09604-022-0 01 1 0208-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0202-0207
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0202-0207
64 GASKET; OIL FILLER,AXLE CASE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> ID=26.8 		9-09920-605-0 01 1 0208-
64 GASKET; OIL FILLER,AXLE CASE
REAR AXLE RT210<C2A> ID=26.8 		9-09920-605-0 01 1 0208-
65 NUT
M14 		9-99110-514-0 08 1 0202-0207
65 NUT
M14 		9-99110-514-0 08 1 0202-0207
65 NUT
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> M14 		9-99110-514-0 08 1 0208-
65 NUT
REAR AXLE RT210<C2A> M14 		9-99110-514-0 08 1 0208-
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0202-0207
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0202-0207
66 WASHER; LK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> ID=14.2 		9-09150-814-0 08 1 0208-
66 WASHER; LK
REAR AXLE RT210<C2A> ID=14.2 		9-09150-814-0 08 1 0208-
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0202-0207
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0202-0207
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> M16X70 		9-91066-670-0 04 1 0208-
67 BOLT; FINAL DRIVE SETTING
REAR AXLE RT210<C2A> M16X70 		9-91066-670-0 04 1 0208-
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 15 1 0202-0207
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 15 1 0202-0207
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> M16X40 		9-92061-640-0 15 1 0208-
67 BOLT; FINAL DRIVE SETTING
REAR AXLE RT210<C2A> M16X40 		9-92061-640-0 15 1 0208-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0202-0207
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0202-0207
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> ID=16.2 		9-09150-816-0 12 1 0208-
71 WASHER; LK,FINAL DRIVE SETTING
REAR AXLE RT210<C2A> ID=16.2 		9-09150-816-0 12 1 0208-
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0202-0207
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0202-0207
72 BOLT; PAD FIX
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> M14X45 		9-92061-445-0 08 1 0208-
72 BOLT; PAD FIX
REAR AXLE RT210<C2A> M14X45 		9-92061-445-0 08 1 0208-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0202-0207
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0202-0207
73 PAD; RR SPR CONTACT
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> 		1-42124-101-0 02 1 0208-
73 PAD; RR SPR CONTACT
REAR AXLE RT210<C2A> 		1-42124-101-0 02 1 0208-
74 BOLT; RR BRK ASM SETTING
M14X50 THA 		1-09040-066-0 14 1 0202-0207
74 BOLT; RR BRK ASM SETTING
M14X50 THA 		1-09040-066-0 14 1 0202-0207
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> M14X50 THA 		1-09040-066-0 14 1 0208-
74 BOLT; RR BRK ASM SETTING
REAR AXLE RT210<C2A> M14X50 THA 		1-09040-066-0 14 1 0208-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0202-0207
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0202-0207
75 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> ID=14.2 		9-09150-814-0 16 1 0208-
75 WASHER; LK,RR BRK ASM SETTING
REAR AXLE RT210<C2A> ID=14.2 		9-09150-814-0 16 1 0208-
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0202-0207
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0202-0207
76 NUT; RR BRK ASM SETTING
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> M14 		9-99110-514-0 16 1 0208-
76 NUT; RR BRK ASM SETTING
REAR AXLE RT210<C2A> M14 		9-99110-514-0 16 1 0208-
