Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

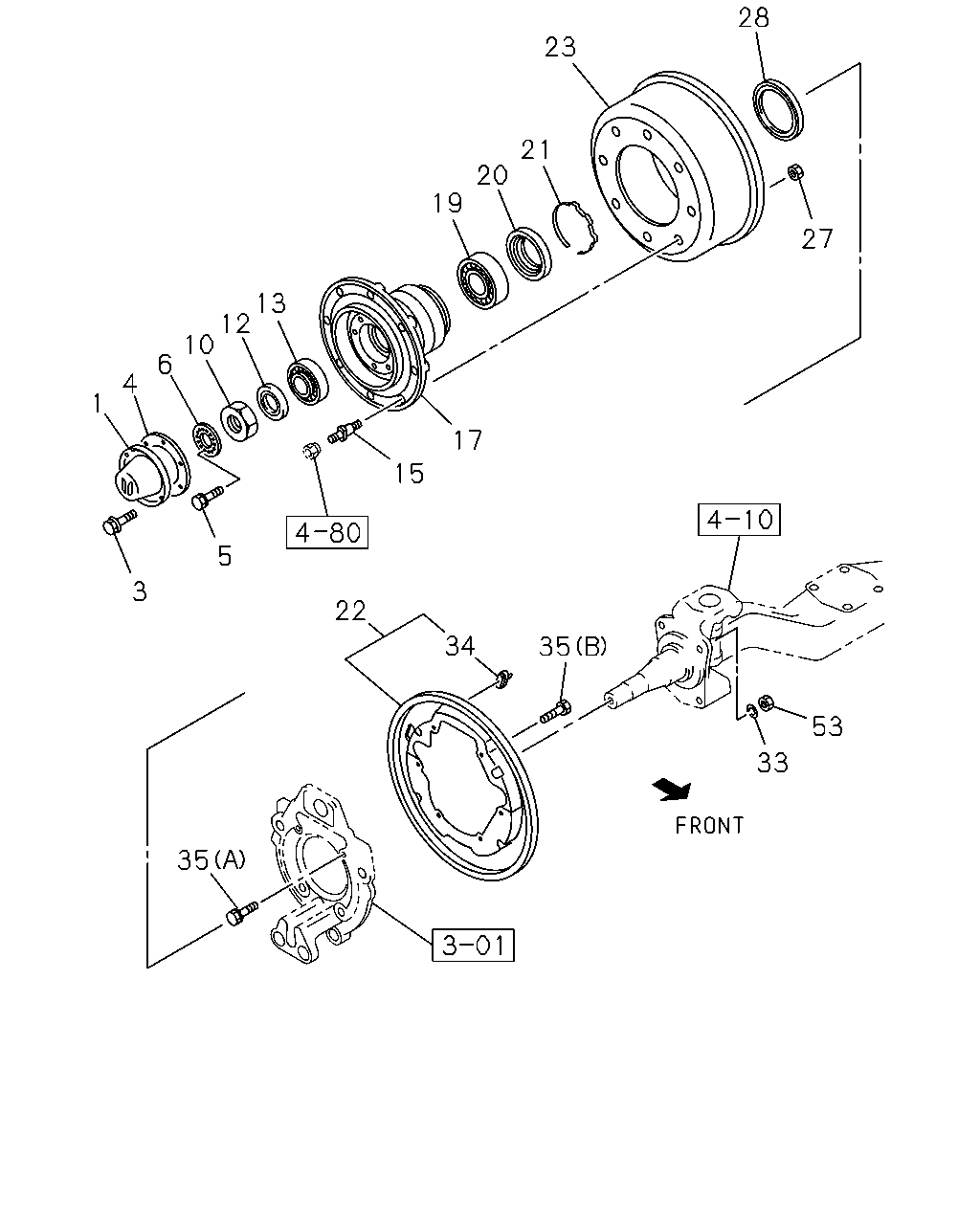

4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#23810) — 21 parça
28
23
21
20
19
27
13
12
10
6
4
1
17
15
5
3
22
34
35
53
33
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
THA
8-97913-543-1
02
1
0202-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
0-28080-812-0
12
1
0202-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-185-1
02
1
0202-
5
BOLT; LK WASHER
M6X16 FLANGE
0-28680-616-0
04
1
0202-
6
WASHER; LK,FRT HUB
ID=48 THA
1-09533-012-1
02
1
0202-
10
NUT; FRT HUB BRG
M48
1-09840-012-5
02
1
0202-
12
WASHER; LK,FRT HUB BRG
ID=48 THA
1-09533-016-0
02
1
0202-
13
BEARING; HUB OUTER,FRT AXLE
KOYO THA
1-09812-234-0
02
1
0202-
17
HUB; FRT AXLE
1-42312-128-2
02
1
0202-
19
BEARING; HUB INNER,FRT AXLE
KOYO THA
1-09812-231-0
02
1
0202-
20
COVER; HUB BRG INNER
THA
1-42319-039-0
02
1
0202-
21
RING; SNAP,HUB
THA
1-09587-017-0
02
1
0202-
22
COVER SET; FRT BRK DRUM
THA
1-47151-458-1
02
1
0202-
23
DRUM; BRK,FRT
THA
1-42315-336-1
02
1
0202-0308
23
DRUM; BRK,FRT
1-42315-355-0
02
1
0309-
28
SEAL; OIL,FRT HUB
OD=140 THA
1-09625-041-0
02
1
0202-
33
WASHER; LK,DRUM COVER
ID=16.2
9-09150-816-0
04
1
0202-
34
COVER; CHECK HOLE,DRUM COVER
THA
1-09333-151-0
04
1
0202-
35
BOLT; DRUM COVER
(B) M10X16 W/LK WASHER
0-50041-016-0
12
1
0202-
35
BOLT; DRUM COVER
(A) M16X52
1-09044-001-2
04
1
0202-
53
NUT; DRUM COVER
M16
9-99110-416-0
04
1
0202-
