3-80 — BRAKE PIPING; TRAILER (#23805) — 126 parça

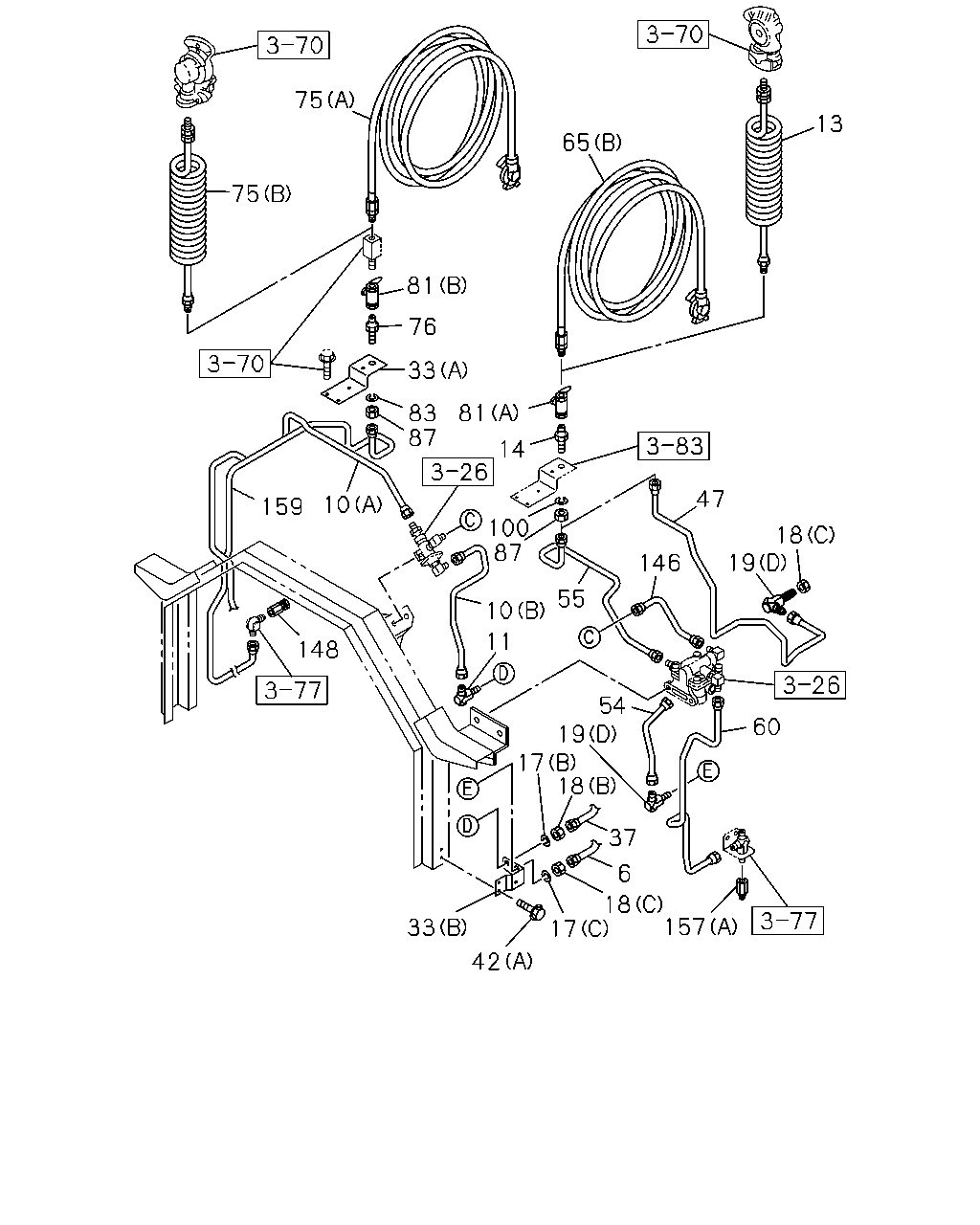

çizim 24087
75 13 65 75 81 76 33 81 83 87 14 47 10 159 100 87 18 19 146 55 10 11 148 54 19 17 18 60 37 6 18 17 157 33 42
BalonParca AdiParca NoAdetTipApplied Date
6 PIPE; AIR,UNION TO UNION 1-49123-420-0 01 1 0202-0204
10 PIPE; AIR,UNION TO DBL CHECK VLV
(A) L=2151 SERVICED BY L=2500 		1-47428-798-0 01 1 0202-0204
10 PIPE; AIR,UNION TO DBL CHECK VLV
(B) 		1-49116-442-0 01 1 0202-0204
11 UNION; AIR PIPE
M16 ELBOW 		9-09235-210-1 02 1 0202-0204
13 HOSE; FLEX,TRAILER SERVICE 1-49216-038-1 01 1 0205-
14 CONNECTOR; AIR PIPE 1-09650-236-1 01 1 0202-
17 WASHER; LK,UNION
(A) ID=12.2 		9-09150-512-0 01 1 0202-
17 WASHER; LK,UNION
(B) ID=16.2 		9-09150-516-0 01 1 0202-0204
17 WASHER; LK,UNION
(C) ID=20.2 		9-09150-520-0 01 1 0202-0204
18 NUT; UNION
(A) M12 		9-99111-412-0 01 1 0202-
18 NUT; UNION
(B) M16 		9-99111-416-0 02 1 0202-0204
18 NUT; UNION
(C) M20 		9-99111-420-0 02 1 0202-
19 UNION; AIR PIPE
(A) 		1-09654-325-0 01 1 0202-
19 UNION; AIR PIPE
(C) M16 L=42 		9-09233-010-1 01 1 0202-0204
19 UNION; AIR PIPE
(D) M20 		9-09235-212-1 01 1 0202-
19 UNION; AIR PIPE
6SD1 TCN ENG<31L> (B) M16 ELBOW 		9-09225-010-1 01 1 0202-0210
19 UNION; AIR PIPE
(B) M16 ELBOW 		9-09225-010-1 01 1 0211-
19 UNION; AIR PIPE
6SD1 TCS ENG<83L> (B) 		1-09661-460-0 01 1 0208-0210
33 BRACKET
(B) 		1-47477-651-0 01 1 0202-0204
33 BRACKET
(A) THA 		8-97917-596-2 01 1 0202-
37 PIPE; AIR,UNION TO UNION
L=1490 SERVICED BY L=1550 		1-47426-419-0 01 1 0202-0204
42 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0202-0204
42 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0202-0204
47 PIPE; AIR,UNION TO UNION 1-49123-238-0 01 1 0205-0306
47 PIPE; AIR,UNION TO UNION
6SD1 TCN ENG<31L> 		1-49123-238-0 01 1 0307-
47 PIPE; AIR,UNION TO UNION
6SD1 TCS ENG<83L> L=1521 SERVICED BY L=1600 		1-49115-467-0 01 1 0307-
54 PIPE; AIR,UNION TO DUAL RELAY VLV 1-49116-443-0 01 1 0202-0204
55 PIPE; AIR,DUAL RELAY VLV 1-49116-560-0 01 1 0202-0204
60 PIPE; AIR,UNION TO DUAL RELAY VLV 1-49118-959-0 01 1 0202-0204
65 HOSE; AIR
(A) L=410 		0-07474-410-1 01 1 0202-0204
65 HOSE; AIR
(B) L=5636 		1-09363-163-1 01 1 0202-0204
75 HOSE; FLEX,TRAILER EMERGENCY
(A) L=5640 		1-09363-164-1 01 1 0202-0204
75 HOSE; FLEX,TRAILER EMERGENCY
(B) 		1-49216-038-1 01 1 0205-
76 NIPPLE; AIR PIPE 1-09650-236-1 01 1 0202-
81 COCK; AIR COUPLING
(A) RED 		1-09680-091-0 01 1 0202-
81 COCK; AIR COUPLING
(B) BLUE 		1-09680-092-0 01 1 0202-
83 WASHER; LK,CONNECTOR
ID=20.2 		9-09150-520-0 01 1 0202-
87 NUT
M20 		9-99111-420-0 02 1 0202-
100 WASHER; LK,AIR PIPE
ID=20.2 		9-09150-520-0 01 1 0202-
146 PIPE; AIR,DBL CHECK VLV 1-49116-067-0 01 1 0202-0204
148 ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0202-0204
148 ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0205-
157 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0202-0204
157 ADAPTER
(B) 		1-09660-728-1 02 1 0205-
159 PIPE; AIR,UNION TO CONNECTOR 1-49116-564-0 01 1 0202-0204
159 PIPE; AIR,UNION TO CONNECTOR 1-49123-237-0 01 1 0205-0306
159 PIPE; AIR,UNION TO CONNECTOR
6SD1 TCN ENG<31L> 		1-49123-237-0 01 1 0307-
159 PIPE; AIR,UNION TO CONNECTOR
6SD1 TCS ENG<83L> 		1-49124-174-0 01 1 0307-

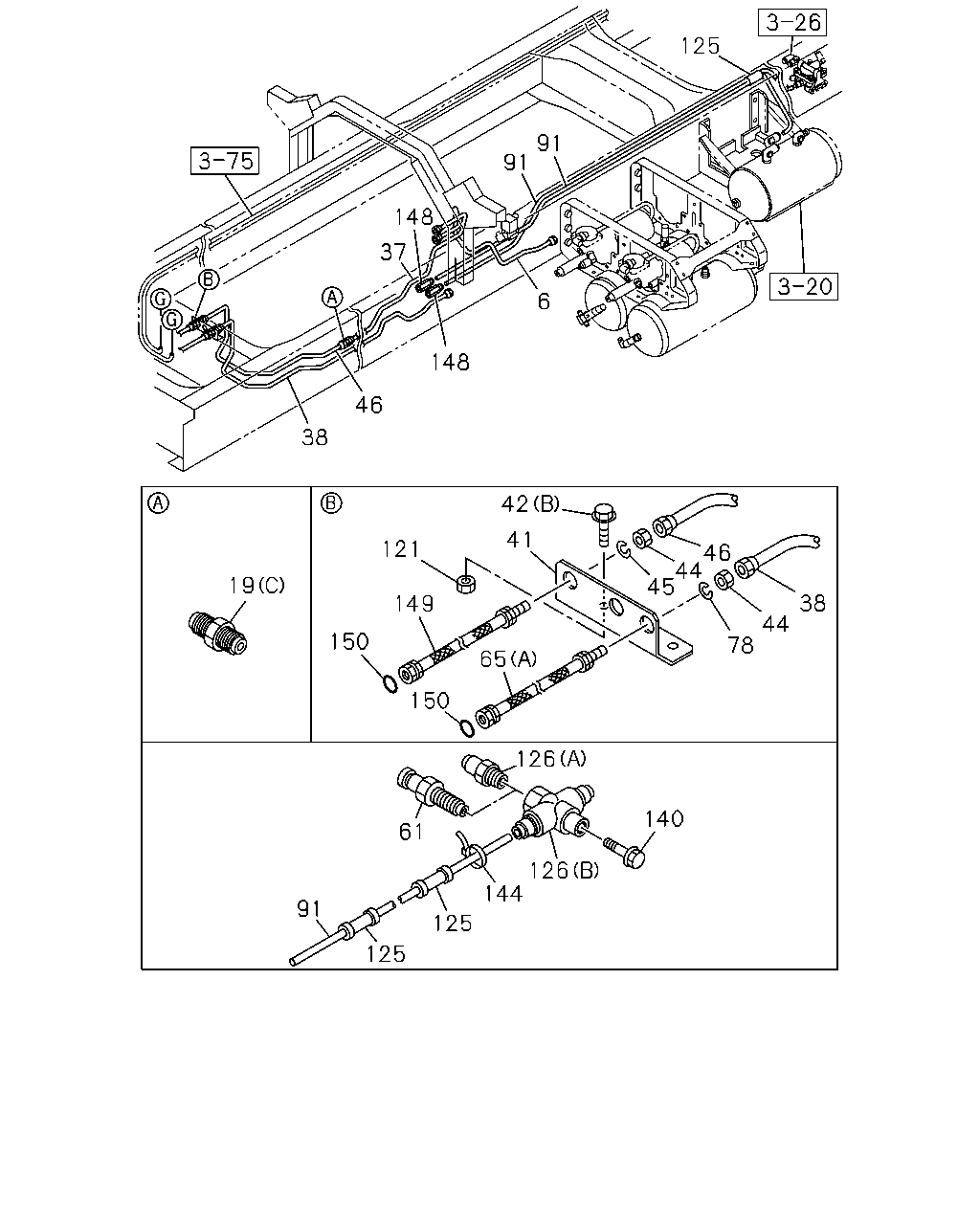

çizim 79577
125 91 91 148 37 6 148 46 38 42 41 121 46 44 45 19 38 149 44 78 150 65 150 126 140 61 126 144 91 125 125
BalonParca AdiParca NoAdetTipApplied Date
6 PIPE; AIR,UNION TO UNION 1-49123-420-0 01 1 0202-0204
19 UNION; AIR PIPE
(A) 		1-09654-325-0 01 1 0202-
19 UNION; AIR PIPE
(C) M16 L=42 		9-09233-010-1 01 1 0202-0204
19 UNION; AIR PIPE
(D) M20 		9-09235-212-1 01 1 0202-
19 UNION; AIR PIPE
6SD1 TCN ENG<31L> (B) M16 ELBOW 		9-09225-010-1 01 1 0202-0210
19 UNION; AIR PIPE
(B) M16 ELBOW 		9-09225-010-1 01 1 0211-
19 UNION; AIR PIPE
6SD1 TCS ENG<83L> (B) 		1-09661-460-0 01 1 0208-0210
37 PIPE; AIR,UNION TO UNION
L=1490 SERVICED BY L=1550 		1-47426-419-0 01 1 0202-0204
38 PIPE; AIR,UNION TO FLEX HOSE
L=2377 		1-49118-960-0 01 1 0202-0204
41 BRACKET; FLEX HOSE 1-47477-573-0 01 1 0202-0204
42 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0202-0204
42 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0202-0204
44 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 0202-0204
45 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 01 1 0202-0204
46 PIPE; AIR,FLEX HOSE TO UNION 1-49116-058-0 01 1 0202-0204
61 UNION; NYLON TUBE 1-09660-770-2 01 1 0202-0204
65 HOSE; AIR
(A) L=410 		0-07474-410-1 01 1 0202-0204
65 HOSE; AIR
(B) L=5636 		1-09363-163-1 01 1 0202-0204
78 WASHER; LK
ID=16.2 		9-09150-516-0 01 1 0202-0204
78 WASHER; LK
6SD1 TCN ENG<31L> ID=16.2 		9-09150-516-0 01 1 0202-0204
78 WASHER; LK
ID=16.2 		9-09150-516-0 01 1 0205-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0202-
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0205-
121 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0202-0204
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0202-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0205-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0205-
126 CONNECTOR; NYLON TUBE
(B) DIN12 RC3/8 & M8 4WAY 		1-09660-758-1 01 1 0202-0204
126 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 0202-0204
140 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0202-0204
144 CLIP; BAND
L=250 		1-09707-126-0 03 1 0202-0204
144 CLIP; BAND
L=250 		1-09707-126-0 01 1 0205-
148 ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0202-0204
148 ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0205-
149 HOSE; FLEX,HAND BRK
L=410 		0-07474-410-1 01 1 0202-0204
150 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 0202-0204

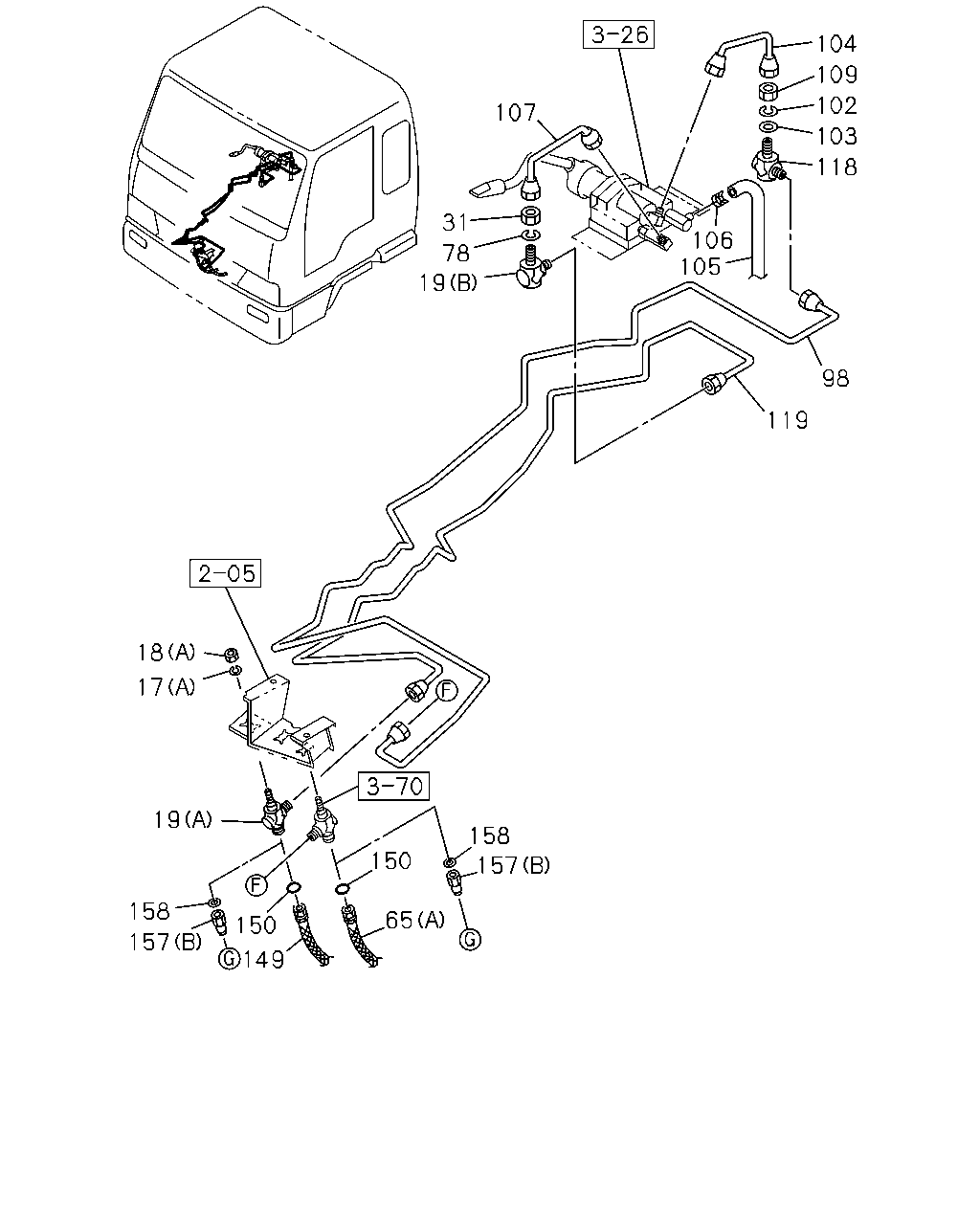

çizim 80358
104 109 102 107 103 118 31 106 105 78 19 98 119 18 17 19 158 150 157 158 65 150 157 149
BalonParca AdiParca NoAdetTipApplied Date
17 WASHER; LK,UNION
(A) ID=12.2 		9-09150-512-0 01 1 0202-
17 WASHER; LK,UNION
(B) ID=16.2 		9-09150-516-0 01 1 0202-0204
17 WASHER; LK,UNION
(C) ID=20.2 		9-09150-520-0 01 1 0202-0204
18 NUT; UNION
(A) M12 		9-99111-412-0 01 1 0202-
18 NUT; UNION
(B) M16 		9-99111-416-0 02 1 0202-0204
18 NUT; UNION
(C) M20 		9-99111-420-0 02 1 0202-
19 UNION; AIR PIPE
(A) 		1-09654-325-0 01 1 0202-
19 UNION; AIR PIPE
(C) M16 L=42 		9-09233-010-1 01 1 0202-0204
19 UNION; AIR PIPE
(D) M20 		9-09235-212-1 01 1 0202-
19 UNION; AIR PIPE
6SD1 TCN ENG<31L> (B) M16 ELBOW 		9-09225-010-1 01 1 0202-0210
19 UNION; AIR PIPE
(B) M16 ELBOW 		9-09225-010-1 01 1 0211-
19 UNION; AIR PIPE
6SD1 TCS ENG<83L> (B) 		1-09661-460-0 01 1 0208-0210
31 NUT; UNION
M16 		9-99111-416-0 01 1 0202-
65 HOSE; AIR
(A) L=410 		0-07474-410-1 01 1 0202-0204
65 HOSE; AIR
(B) L=5636 		1-09363-163-1 01 1 0202-0204
78 WASHER; LK
ID=16.2 		9-09150-516-0 01 1 0202-0204
78 WASHER; LK
6SD1 TCN ENG<31L> ID=16.2 		9-09150-516-0 01 1 0202-0204
78 WASHER; LK
ID=16.2 		9-09150-516-0 01 1 0205-
98 PIPE; AIR,FLEX HOSE TO JOINT
6SD1 TCN ENG<31L> 		1-49116-505-1 01 1 0202-0308
98 PIPE; AIR,FLEX HOSE TO JOINT 1-49124-209-0 01 1 0309-
98 PIPE; AIR,FLEX HOSE TO JOINT
6SD1 TCS ENG<83L> 		1-49123-203-0 01 1 0208-0308
102 WASHER; LK,JOINT
ID=16.2 		9-09150-516-0 01 1 0202-
103 WASHER; PL,JOINT
ID=17 		9-09160-516-0 02 1 0202-
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49116-038-0 01 1 0202-0203
104 PIPE; AIR,JOINT TO PARKING BRK VLV
6SD1 TCN ENG<31L> 		1-49116-038-0 01 1 0204-
104 PIPE; AIR,JOINT TO PARKING BRK VLV
6SD1 TCS ENG<83L> 		1-49123-202-0 01 1 0208-
105 PIPE; VINYL,EXH,PARKING BRK VLV
6SD1 TCN ENG<31L> L=260 ID=9.5 SERVICED BY L=10000 THA 		9-09914-701-0 01 1 0202-
105 PIPE; VINYL,EXH,PARKING BRK VLV
6SD1 TCS ENG<83L> L=240 ID=9.5 SERVICED BY L=10000 THA 		9-09914-701-0 01 1 0208-
106 CLIP; PIPE
ID=14 		8-94238-572-0 01 1 0202-
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49116-039-0 01 1 0202-
109 NUT; JOINT
M16 		9-99111-416-0 01 1 0202-
118 JOINT; AIR PIPE
M16 ELBOW 		9-09225-010-1 01 1 0202-0308
118 JOINT; AIR PIPE
6SD1 TCS ENG<83L> 		1-09661-460-0 01 1 0211-0308
118 JOINT; AIR PIPE 1-09661-460-0 01 1 0309-
119 PIPE; AIR,JOINT TO FLEX HOSE
6SD1 TCN ENG<31L> 		1-49116-506-0 01 1 0202-0308
119 PIPE; AIR,JOINT TO FLEX HOSE 1-49124-210-0 01 1 0309-
119 PIPE; AIR,JOINT TO FLEX HOSE
6SD1 TCS ENG<83L> 		1-49123-041-0 01 1 0208-0308
149 HOSE; FLEX,HAND BRK
L=410 		0-07474-410-1 01 1 0202-0204
150 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 0202-0204
157 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0202-0204
157 ADAPTER
(B) 		1-09660-728-1 02 1 0205-
158 GASKET; UNION
ID=11 OD=18 		9-09572-510-0 02 1 0205-
