Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#23803) — 21 parça
◀
[377A] CAB SIDE (9 parça)

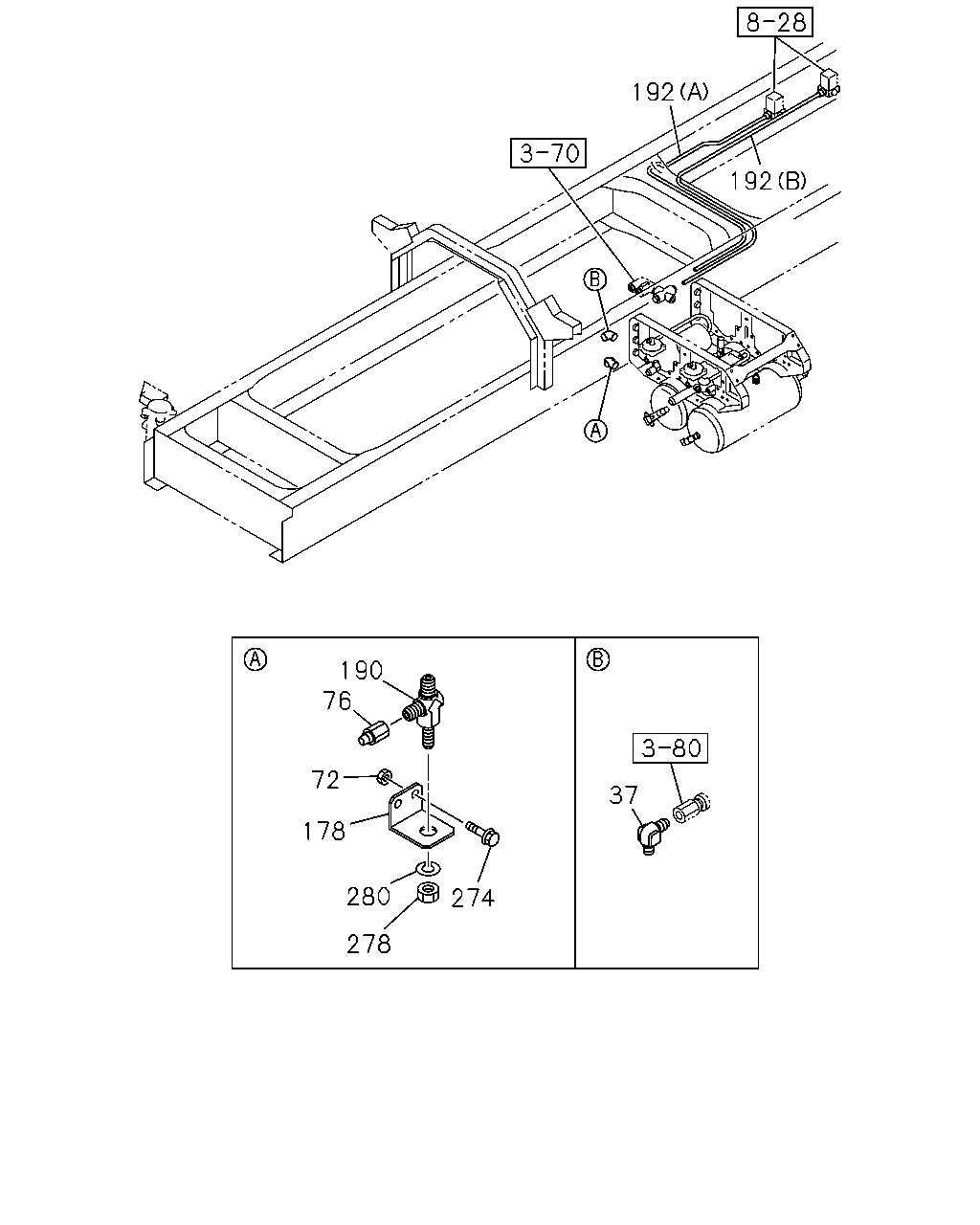

[377A] FRAME SIDE (12 parça)
▶
206
1
60
61
181
316
61
285
126
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,FLEX HOSE TO BRK VLV
1-49112-854-0
01
1
0202-
46
NIPPLE; AIR PIPE
1-09660-807-2
01
1
0202-
60
NUT; NIPPLE,AIR PIPE
M16
9-99111-416-0
01
1
0202-
61
WASHER; LK,NIPPLE
ID=16.2
9-09150-516-0
02
1
0202-
126
UNION; NYLON TUBE
1-09660-807-2
01
1
0202-
181
NUT; TUBE UNION
M16
9-99111-416-0
01
1
0202-
206
PIPE; AIR,BRK VLV TO FLEX HOSE
1-49112-855-1
01
1
0202-
285
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
01
1
0202-
316
WASHER; PL
ID=17
9-09160-516-0
01
1
0202-
192
192
190
76
72
37
178
280
274
278
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
M20
9-09235-212-1
01
1
0202-
72
NUT; BRKT
M8 FLANGE
0-91150-108-0
03
1
0202-0204
72
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0205-
76
ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0202-0204
178
BRACKET; UNION
1-47477-572-0
01
1
0202-0204
190
UNION; 3 WAY
M16 3WAY
9-09238-910-1
01
1
0202-0204
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0202-0204
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0202-0212
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
0301-
274
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
02
1
0202-0204
278
NUT; UNION
M16
9-99111-416-0
01
1
0202-0204
280
WASHER; LK
ID=16.2
9-09150-516-0
01
1
0202-0204
