Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#23802) — 20 parça
◀

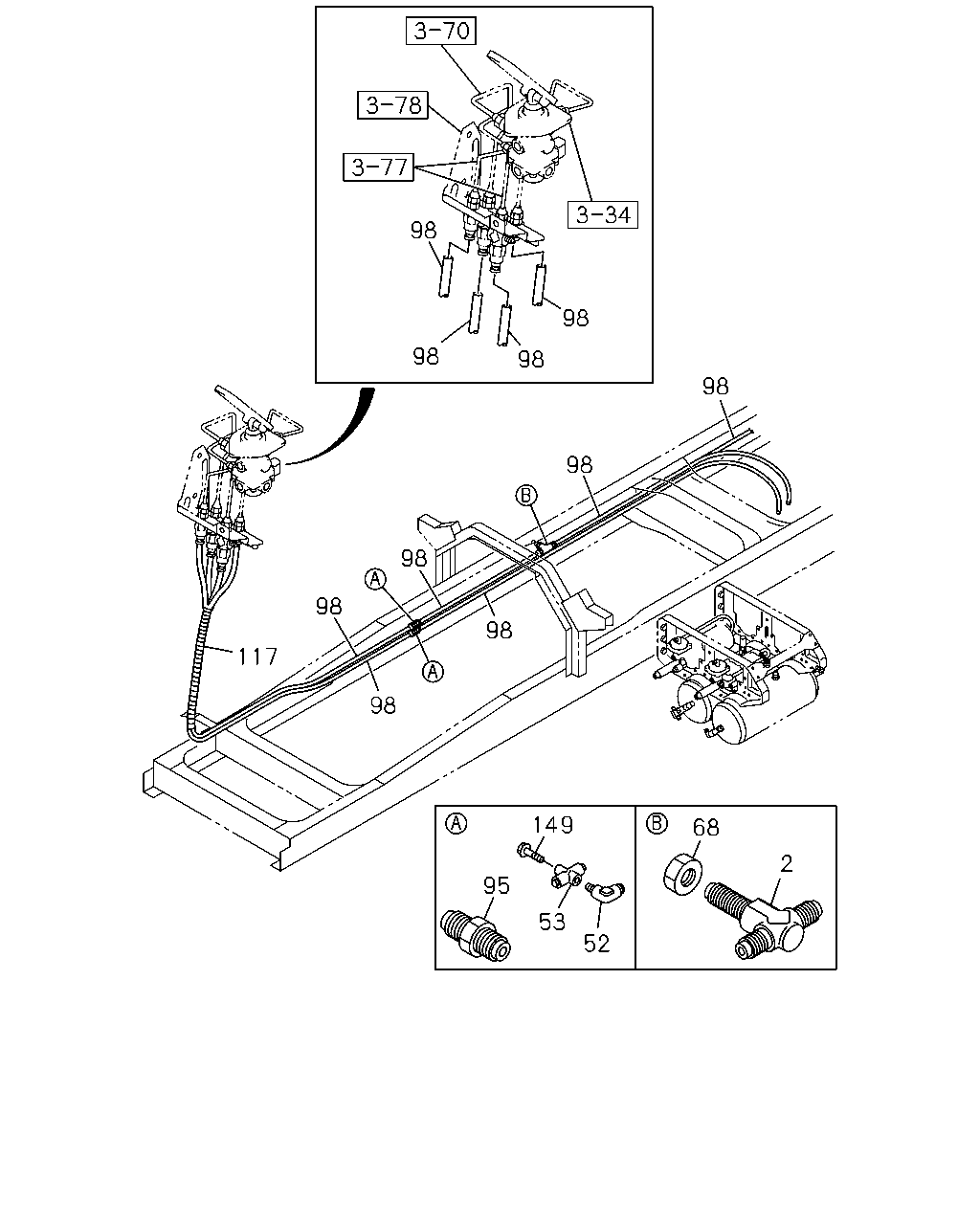

[375A] FRAME SIDE (15 parça)
[375A] CAB SIDE (5 parça)
▶
98
98
98
98
98
98
98
98
98
117
98
149
68
2
95
53
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
M16 3WAY
9-09238-610-1
01
1
0202-0204
52
CONNECTOR; NYLON TUBE
DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0205-
53
UNION; ELBOW
DIN12X2 & R3/8 3WAY
1-09661-131-0
01
1
0205-
68
NUT; UNION
M16
9-99111-416-0
01
1
0202-0204
95
ADAPTER; BRKT
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0202-0204
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0202-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0202-
98
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87410-072-0
AR
1
0202-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
AR
1
0202-0204
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0205-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87410-098-0
AR
1
0202-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87410-104-0
AR
1
0202-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
AR
1
0205-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87410-100-0
AR
1
0205-
149
BOLT; UNION
M8X20 FLANGE
0-28080-820-0
01
1
0205-
118
115
116
138
115
116
138
114
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
114
UNION; NYLON TUBE
1-09660-807-2
02
1
0202-
115
NUT; TUBE UNION
M16
9-99111-416-0
02
1
0202-
116
WASHER; LK,TUBE UNION
ID=16.2
9-09150-516-0
02
1
0202-
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=419
1-49115-942-3
01
1
0202-
138
WASHER; PL,UNION
ID=17
9-09160-516-0
02
1
0202-
