◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 10899 - GXZ(THAI) ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#23801) — 178 parça

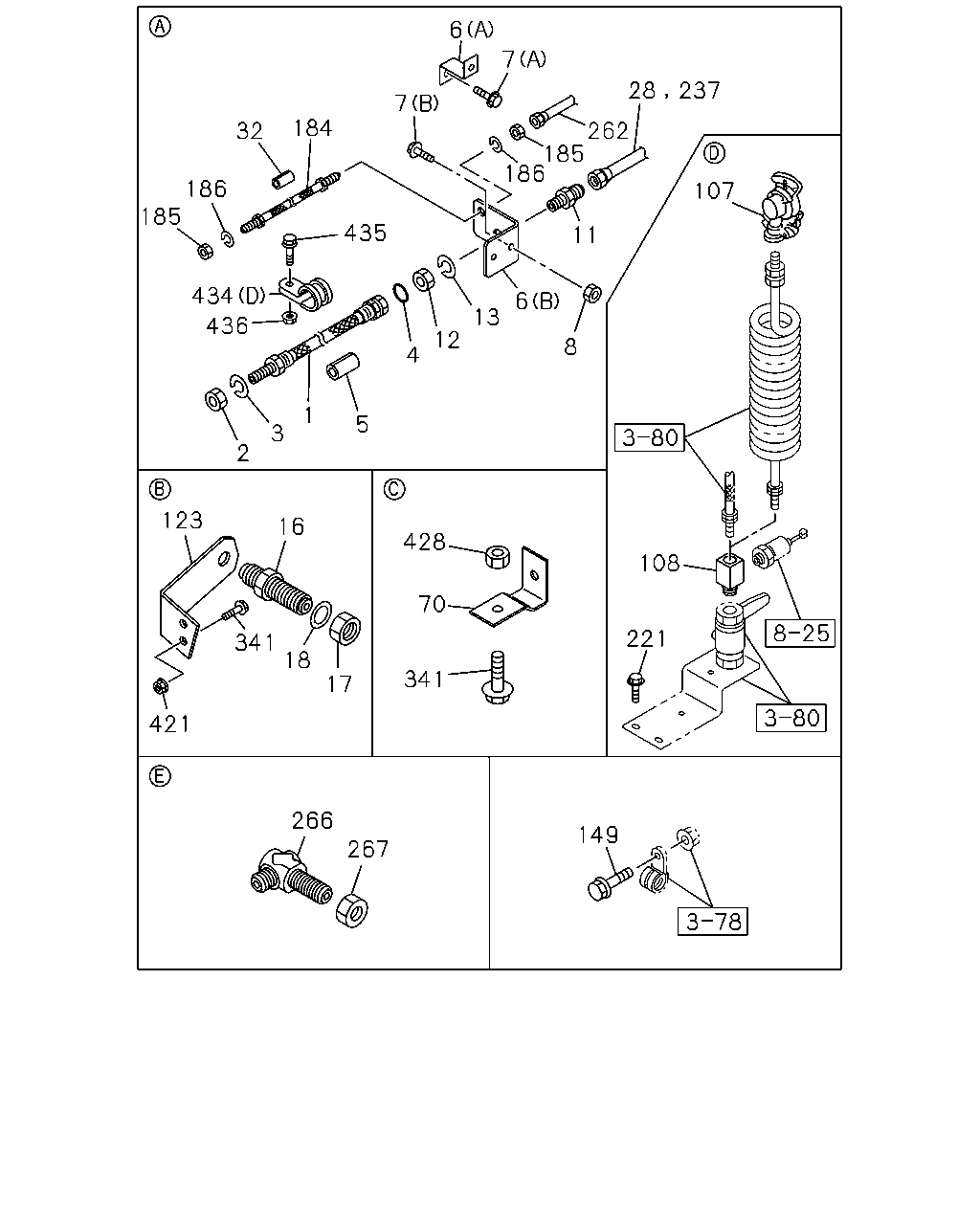

çizim 25415
6 7 7 184 262 185 186 32 186 185 107 435 11 434 6 13 436 12 8 4 1 5 3 2 123 16 428 108 70 221 341 18 341 17 421 266 149 267 28 237
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=560 		0-07806-560-1 01 1 0202-
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 01 1 0202-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 01 1 0202-
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 0202-
5 SLEEVE; FLEX HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 0202-0204
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47475-689-0 01 1 0202-0204
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47476-200-0 01 1 0205-
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47477-304-0 01 1 0202-0204
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47479-304-0 01 1 0205-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0202-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0202-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 0202-
11 UNION; AIR PIPE
M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0202-
12 NUT; UNION
M20 		9-99111-420-0 01 1 0202-
13 WASHER; LK,UNION
ID=20.2 		9-09150-520-0 01 1 0202-
16 UNION; AIR PIPE
M22 		9-09235-215-1 01 1 0202-0207
16 UNION; AIR PIPE
EXC. AIR DRYER<PS7> M22 		9-09235-215-1 01 1 0208-
17 NUT; UNION
M22 		9-09111-422-0 01 1 0202-0207
17 NUT; UNION
EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 0208-
18 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 0205-0207
18 WASHER; LK,UNION
EXC. AIR DRYER<PS7> ID=22.5 		9-09150-522-0 01 1 0208-
28 PIPE; AIR,AIR DRYER 1-49123-236-0 01 1 0205-
32 SLEEVE; RUBBER,AIR PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0202-0204
70 BRACKET; CLIP TO FRAME
L=100 H=30 		1-47477-645-2 02 1 0202-0204
107 COUPLING; SERVICE
SERVICE BLUE 		1-47465-151-0 01 1 0205-
107 COUPLING; SERVICE
EMERGENCY RED 		1-47465-152-0 01 1 0205-
108 CONNECTOR; COUPLING
PT1/2 		1-09664-041-1 01 1 0202-
123 BRACKET; UNION
THA 		8-97922-222-0 01 1 0204-0207
123 BRACKET; UNION
EXC. AIR DRYER<PS7> THA 		8-97922-222-0 01 1 0208-
149 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28680-835-0 01 1 0202-
184 HOSE; FLEX,AIR GOV 1-09363-721-0 01 1 0202-0204
184 HOSE; FLEX,AIR GOV
6SD1 TCN ENG<31L> 		1-09363-721-0 01 1 0205-
184 HOSE; FLEX,AIR GOV
6SD1 TCS ENG<83L> L=580 		1-09363-692-0 01 1 0208-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 02 1 0202-0204
185 NUT; FLEX HOSE,AIR GOV
6SD1 TCN ENG<31L> M12 		9-09840-280-0 02 1 0205-
185 NUT; FLEX HOSE,AIR GOV
6SD1 TCS ENG<83L> M12 		9-09840-280-0 01 1 0208-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 02 1 0202-0204
186 WASHER; LK,FLEX HOSE,AIR GOV
6SD1 TCN ENG<31L> ID=12.2 		9-09150-512-0 02 1 0205-
186 WASHER; LK,FLEX HOSE,AIR GOV
6SD1 TCS ENG<83L> ID=12.2 		9-09150-512-0 01 1 0208-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0202-
221 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28680-825-0 01 1 0208-
221 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0202-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0205-0207
237 PIPE; AIR,FLEX HOSE TO UNION 1-49117-983-0 01 1 0202-0204
262 PIPE; AIR,UNION TO FLEX 1-49118-004-0 01 1 0202-0204
266 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0202-0204
267 NUT; UNION
M12 		9-09840-280-0 01 1 0202-0204
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0202-0204
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0202-0204
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0205-
341 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0205-0207
341 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X35 FLANGE 		0-28680-835-0 02 1 0208-
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0205-0207
421 NUT; BRKT
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 02 1 0208-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0202-0204
434 CLIP
(A) L=250 		1-09707-126-0 02 1 0202-
434 CLIP
(C) ID=17 THA 		1-09987-105-1 01 1 0202-
434 CLIP
(B) THA 		8-94297-486-0 02 1 0202-
434 CLIP
(D) ID=26 L=27 		1-09701-006-0 01 1 0205-
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0204-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0205-
çizim 79684
296 229 297 305 444 255 255
BalonParca AdiParca NoAdetTipApplied Date
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0202-0204
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0205-
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0205-
255 UNION; NYLON TUBE
(A) DIN8 RC1/4 & M8 		1-09660-735-1 02 1 0202-0204
255 UNION; NYLON TUBE
(B) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0202-0204
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0202-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0202-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 0301-
296 TUBE; NYLON
6SD1 TCS ENG<83L> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
AIR DRYER<PS7> (A) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0208-0212
296 TUBE; NYLON
AIR DRYER<PS7> SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0202-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0202-
305 UNION ASM; NYLON TUBE
DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0202-0204
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 02 1 0202-

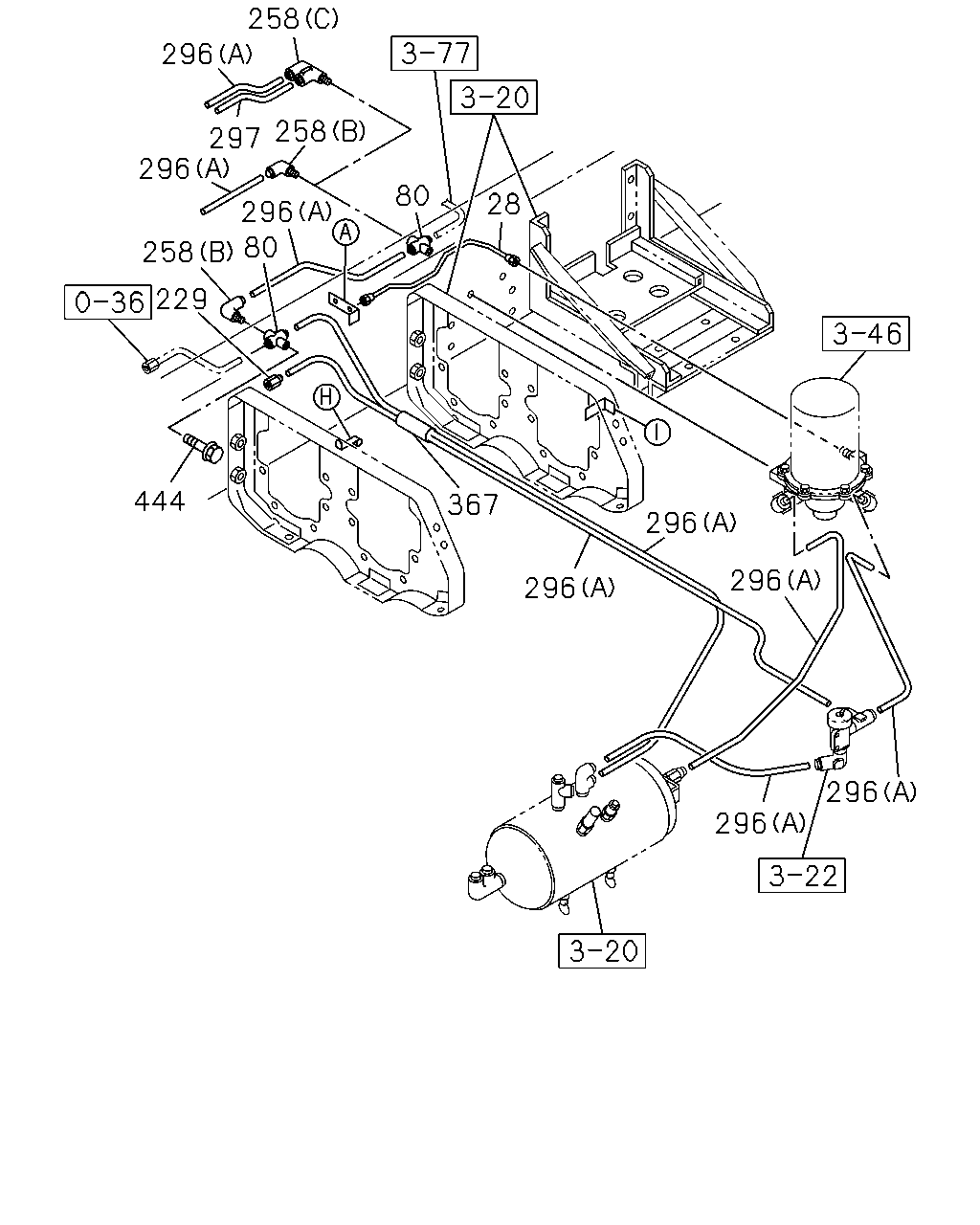

çizim 80483
258 296 258 297 296 80 28 296 258 80 229 444 367 296 296 296 296 296
BalonParca AdiParca NoAdetTipApplied Date
28 PIPE; AIR,AIR DRYER 1-49123-236-0 01 1 0205-
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0205-0207
80 UNION; 3 WAY
6SD1 TCN ENG<31L> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0205-0207
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0208-
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0208-
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0202-0204
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0205-
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0205-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0205-
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG<31L> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0205-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0202-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
6SD1 TCS ENG<83L> DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0208-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0202-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0202-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 0301-
296 TUBE; NYLON
6SD1 TCS ENG<83L> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
AIR DRYER<PS7> (A) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0208-0212
296 TUBE; NYLON
AIR DRYER<PS7> SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0202-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0202-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0205-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0206-
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 02 1 0202-

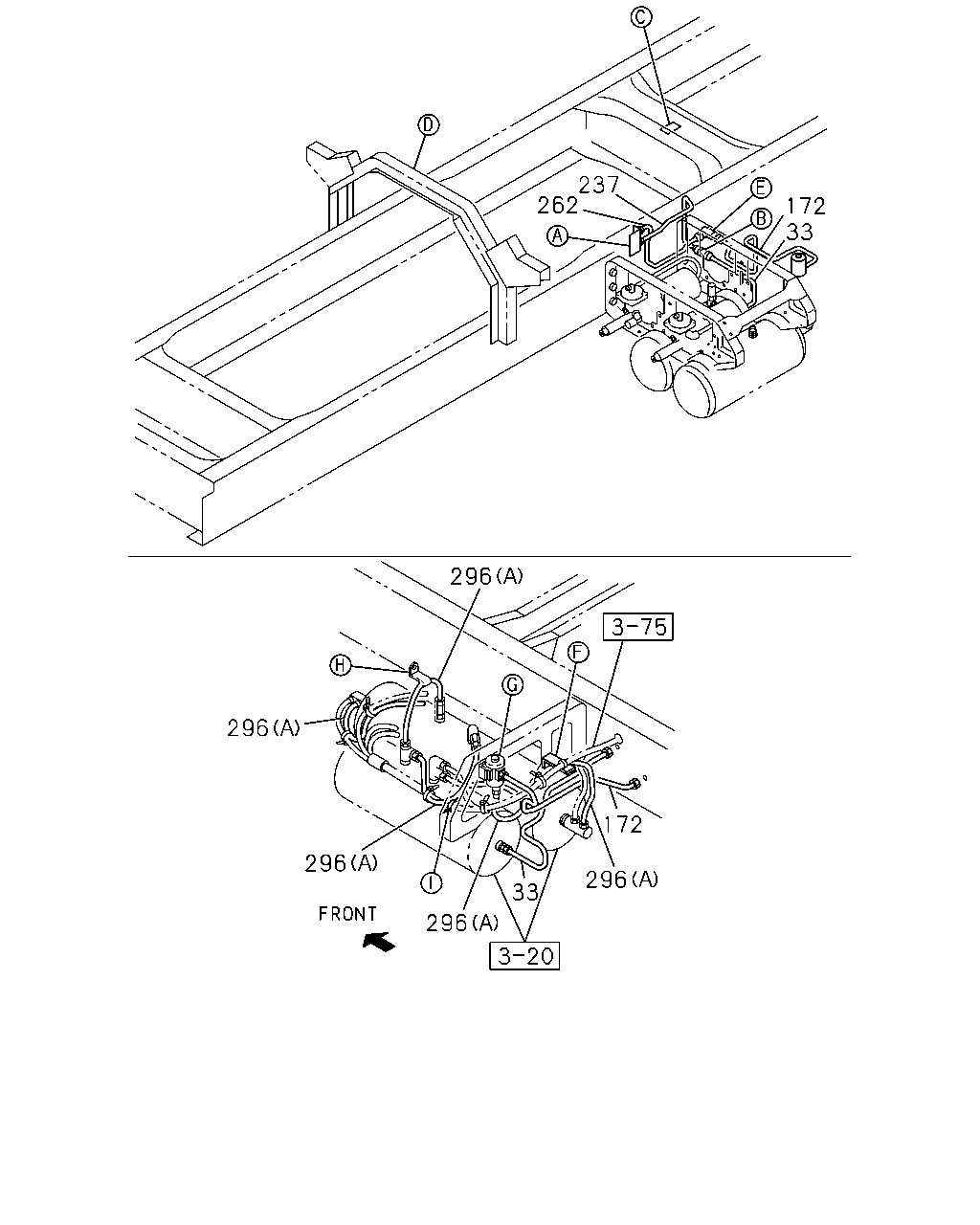

çizim 80758
237 262 172 33 296 296 172 296 296 33 296
BalonParca AdiParca NoAdetTipApplied Date
33 PIPE; AIR,UNION TO AIR TANK 1-49119-064-0 01 1 0202-0204
33 PIPE; AIR,UNION TO AIR TANK 1-49123-600-0 01 1 0205-0207
33 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49123-600-0 01 1 0208-
172 PIPE; AIR,GOV TO UNION 1-49121-211-0 01 1 0202-0204
237 PIPE; AIR,FLEX HOSE TO UNION 1-49117-983-0 01 1 0202-0204
262 PIPE; AIR,UNION TO FLEX 1-49118-004-0 01 1 0202-0204
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0202-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0202-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 0301-
296 TUBE; NYLON
6SD1 TCS ENG<83L> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
AIR DRYER<PS7> (A) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0208-0212
296 TUBE; NYLON
AIR DRYER<PS7> SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0202-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0301-

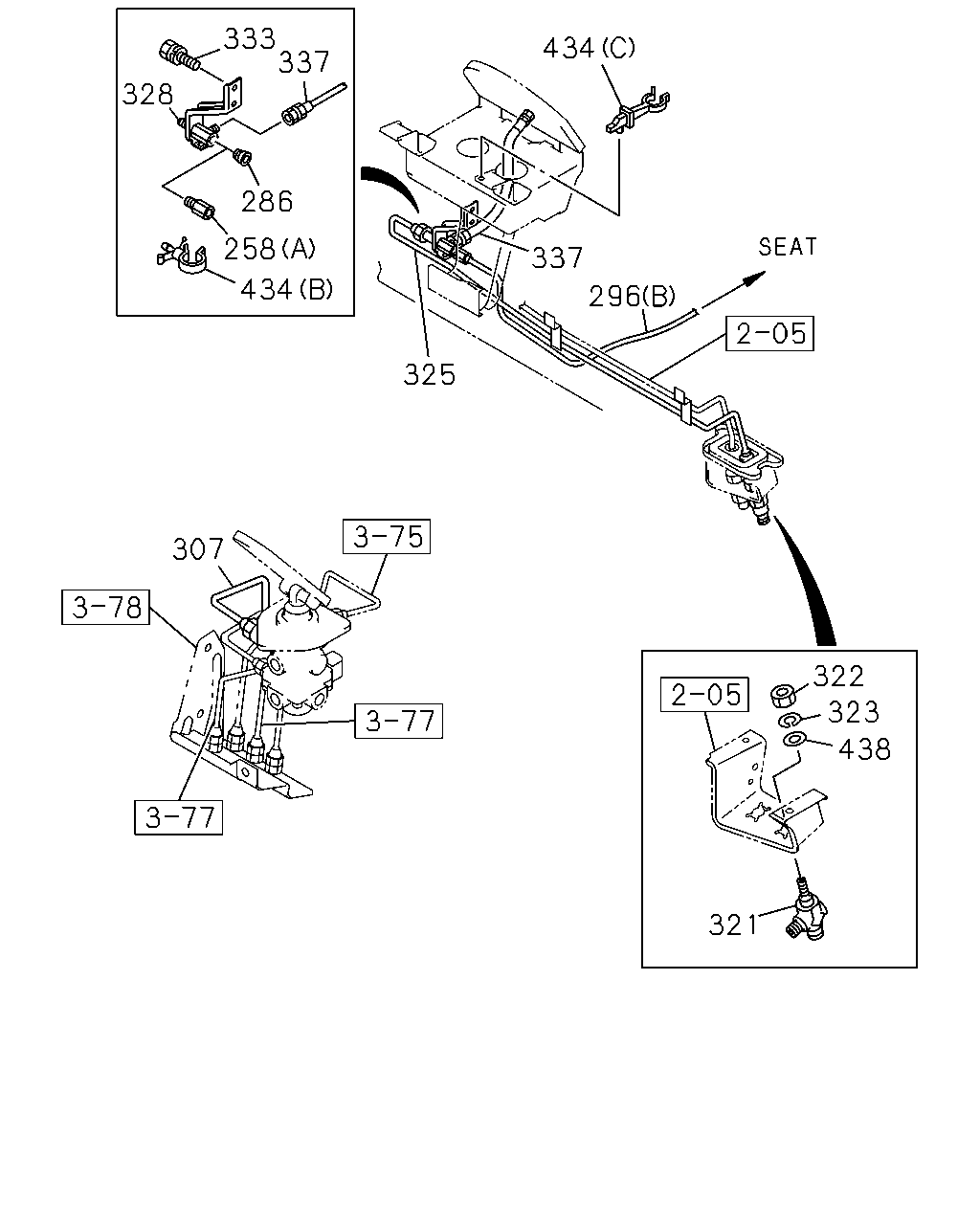

çizim 81897
333 337 434 328 286 258 337 434 296 325 307 322 323 438 321
BalonParca AdiParca NoAdetTipApplied Date
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0205-
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG<31L> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0205-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0202-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
6SD1 TCS ENG<83L> DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0208-
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> 		9-09204-510-0 01 1 0202-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0202-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0202-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 0301-
296 TUBE; NYLON
6SD1 TCS ENG<83L> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
AIR DRYER<PS7> (A) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0208-0212
296 TUBE; NYLON
AIR DRYER<PS7> SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0202-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0301-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0202-
321 JOINT; FLEX HOSE 1-09656-711-0 01 1 0202-
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0202-
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0202-
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0202-
328 UNION; AIR PIPE 1-47470-362-2 01 1 0202-
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0202-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 0202-
434 CLIP
(A) L=250 		1-09707-126-0 02 1 0202-
434 CLIP
(C) ID=17 THA 		1-09987-105-1 01 1 0202-
434 CLIP
(B) THA 		8-94297-486-0 02 1 0202-
434 CLIP
(D) ID=26 L=27 		1-09701-006-0 01 1 0205-
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0202-

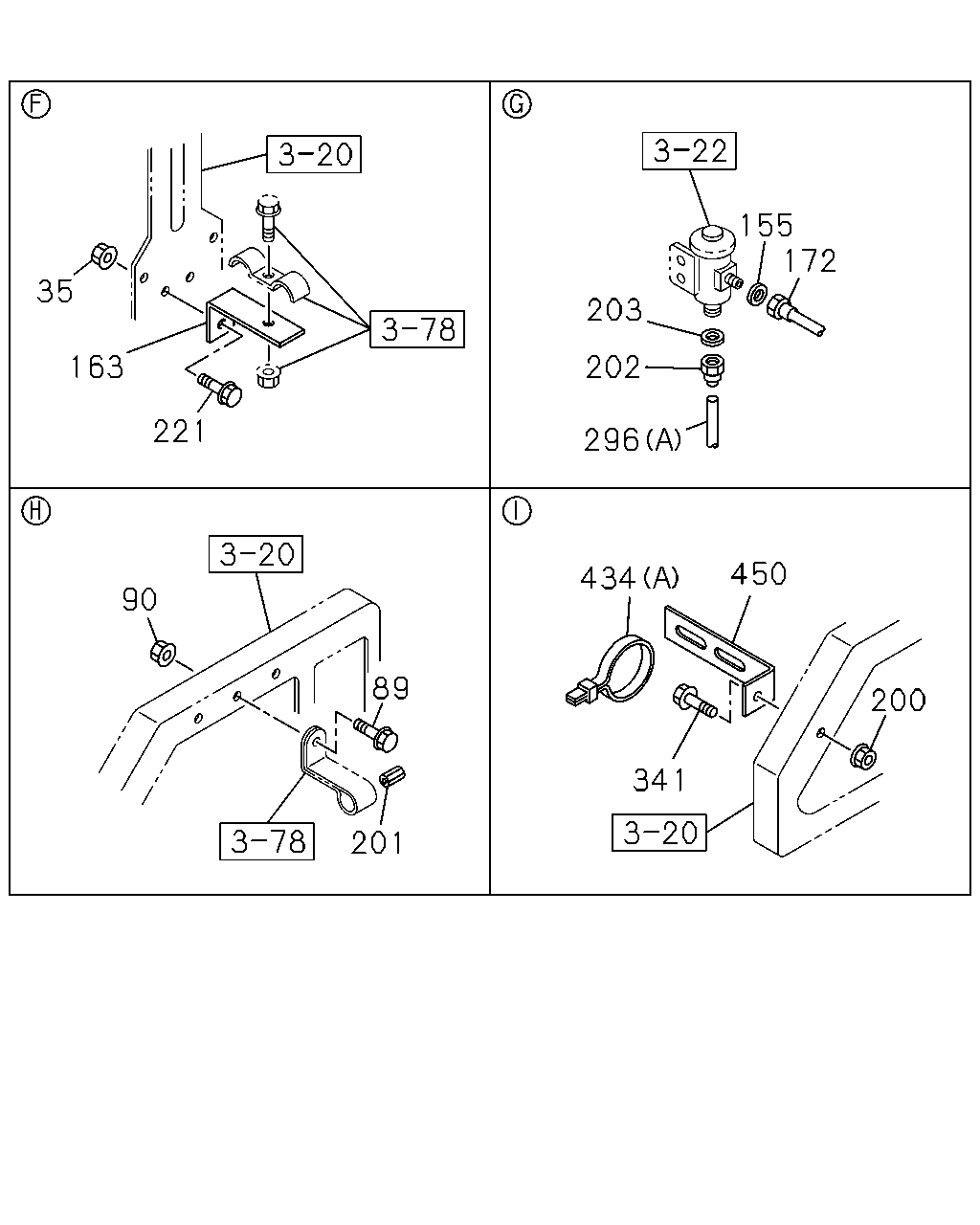

çizim 85324
155 172 35 203 163 202 221 296 450 434 90 89 200 341 201
BalonParca AdiParca NoAdetTipApplied Date
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0205-0207
35 NUT; BRKT
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0208-
89 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0202-
90 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0202-
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 01 1 0202-0204
163 BRACKET; AIR PIPE
L=90 B=25 		1-47475-530-0 01 1 0205-0207
163 BRACKET; AIR PIPE
EXC. AIR DRYER<PS7> L=90 B=25 		1-47475-530-0 01 1 0208-
172 PIPE; AIR,GOV TO UNION 1-49121-211-0 01 1 0202-0204
200 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0202-
201 SLEEVE; RUBBER,NYLON TUBE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0202-0211
202 ADAPTER
DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0202-0204
203 GASKET; ADAPTER,GOV
ID=11 OD=18 		9-09572-510-0 01 1 0202-0204
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0202-
221 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28680-825-0 01 1 0208-
221 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0202-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0205-0207
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0202-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0202-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 0301-
296 TUBE; NYLON
6SD1 TCS ENG<83L> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
AIR DRYER<PS7> (A) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0208-0212
296 TUBE; NYLON
AIR DRYER<PS7> SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0202-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0301-
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0202-0204
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0202-0204
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0205-
341 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0205-0207
341 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X35 FLANGE 		0-28680-835-0 02 1 0208-
434 CLIP
(A) L=250 		1-09707-126-0 02 1 0202-
434 CLIP
(C) ID=17 THA 		1-09987-105-1 01 1 0202-
434 CLIP
(B) THA 		8-94297-486-0 02 1 0202-
434 CLIP
(D) ID=26 L=27 		1-09701-006-0 01 1 0205-
450 BRACKET; CLIP
L=100 H=30 		1-47477-645-2 02 1 0202-0204
450 BRACKET; CLIP 1-47479-307-0 02 1 0205-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
