◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#2380) — 62 parça

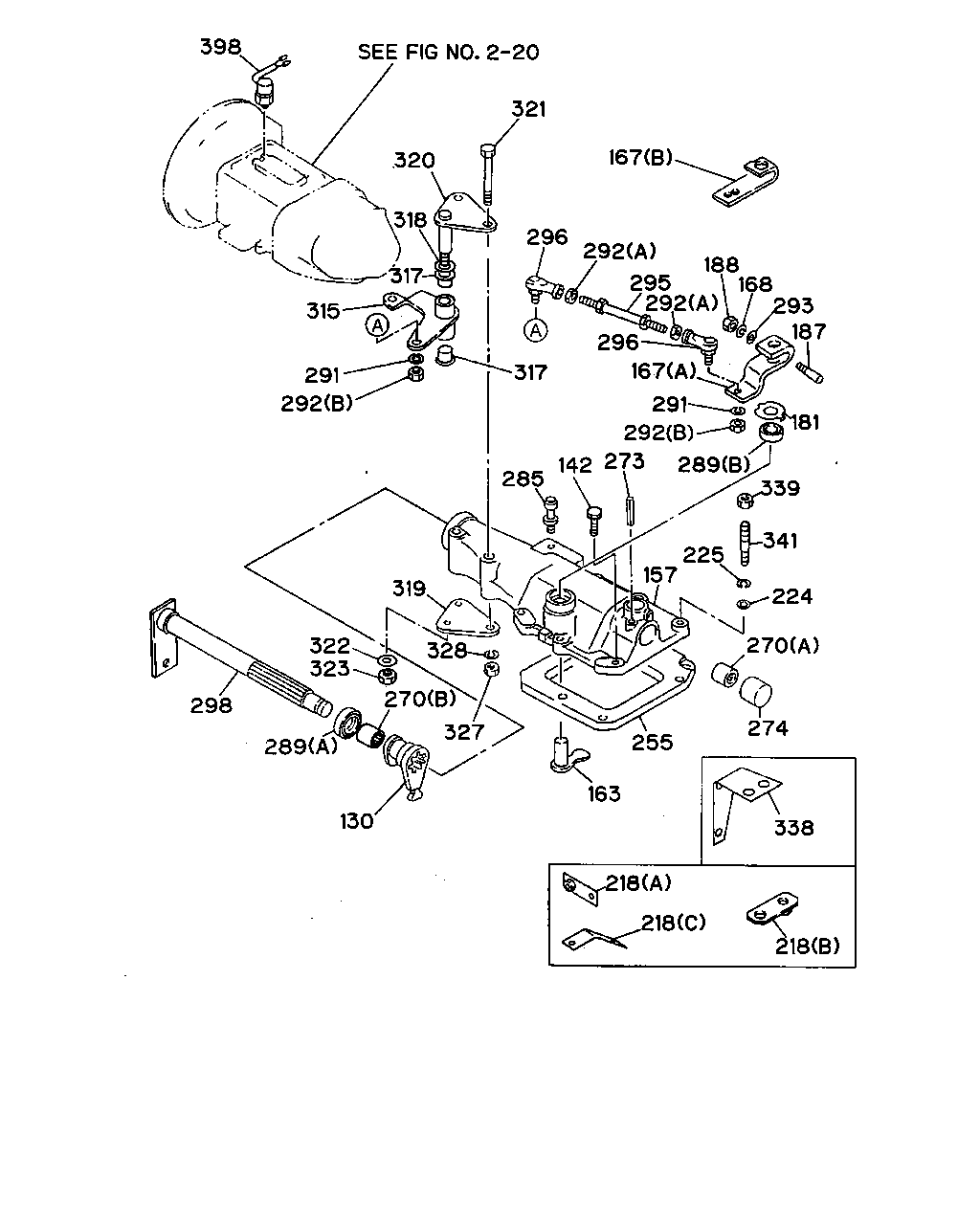

çizim 95546
298 289 130 323 270 322 327 328 319 285 142 273 289 157 225 255 163 218 218 218 338 274 270 341 224 339 181 292 291 167 296 317 187 293 168 188 292 295 292 296 167 321 320 318 315 317 291 292 398
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
130 LEVER; SHIFT,INTERNAL 1-33521-055-0 01 1 9002- ● ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9002- ● ● ● ● ● ●
157 BOX; QUAD,TRANS 1-33541-267-1 01 1 9002- ● ● ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9002- ● ● ● ● ● ●
167 LEVER; SELECT,EXTERNAL
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (B) 		1-33521-070-0 01 1 9002- ● ● ● ● ● ●
167 LEVER; SELECT,EXTERNAL
8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) (A) 		1-33521-064-0 01 1 9002- ● ● ●
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 9002-9412 ● ● ● ● ● ●
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 9501- ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9002- ● ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9002- ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9002- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47465-485-0 02 1 9002- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-123-1 01 1 9002- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-228-0 02 1 9002- ● ● ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9002- ● ● ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9002- ● ● ● ● ● ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 9002- ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9002-9306 ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9307- ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9002-9306 ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9307- ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9002-9306 ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9002- ● ● ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9002- ● ● ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9002- ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-005-0 01 1 9002-9008 ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9009- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9002- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9002- ● ● ● ● ● ●
291 WASHER; LK,LINK ROD
ID=8.2 		9-09150-508-0 02 1 9206-9312 ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9002-9412 ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9501- ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9401- ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09110-408-0 02 1 9002-9312 ● ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9002- ● ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) 		1-33652-393-0 01 1 9002-9510 ● ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
6RB1TC ENG(30L) 		9-08400-815-0 01 1 9511- ● ● ●
295 ROD; LINK,RELAY LEVER
8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) L=130 		1-33652-392-0 01 1 9002-9402 ● ● ●
295 ROD; LINK,RELAY LEVER
8PD1 STD ENG(38L),10PD1 STD ENG(40L) L=130 		1-09765-262-0 01 1 9403- ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9002- ● ● ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-068-0 01 1 9002- ● ● ● ● ● ●
315 LEVER; SELECT
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) 		1-33651-337-0 01 1 9002- ● ● ● ● ● ●
315 LEVER; SELECT
8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) 		1-33651-246-2 01 1 9002- ● ● ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9002- ● ● ● ● ● ●
318 WASHER; WAVE 9-09855-315-0 01 1 9002- ● ● ● ● ● ●
319 BRACKET; SELECT LEVER
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) 		1-33657-196-0 01 1 9002-9306 ● ● ● ● ● ●
319 BRACKET; SELECT LEVER
8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) 		1-33657-190-0 01 1 9002- ● ● ●
319 BRACKET; SELECT LEVER
6RB1TC ENG(30L) 		1-33657-196-0 01 1 9307- ● ●
320 SHAFT; LEVER
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) 		1-33619-134-0 01 1 9002-9306 ● ● ● ● ● ●
320 SHAFT; LEVER
6RB1TC ENG(30L) 		1-33619-134-0 01 1 9307- ● ●
320 SHAFT; LEVER
8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) 		1-33619-129-0 01 1 9002- ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		9-01056-080-0 02 1 9002-9004 ● ● ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9005-9306 ● ● ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9307- ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9002- ● ● ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9002- ● ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-510-0 02 1 9307- ● ● ●
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9002- ● ● ● ● ● ●
338 BRACKET; FLEX TUBE 1-47475-452-0 01 1 9002- ● ● ● ● ● ●
339 NUT; QUAD BOX
M10 		9-09110-510-0 02 1 9002- ● ● ● ● ● ●
341 STUD; QUAD BOX 1-09305-004-0 02 1 9002- ● ● ● ● ● ●
398 SWITCH; REV LAMP 1-82440-046-0 01 1 9002- ● ● ● ● ● ●
