6-05 — FRONT PANEL (#238) — 53 parça

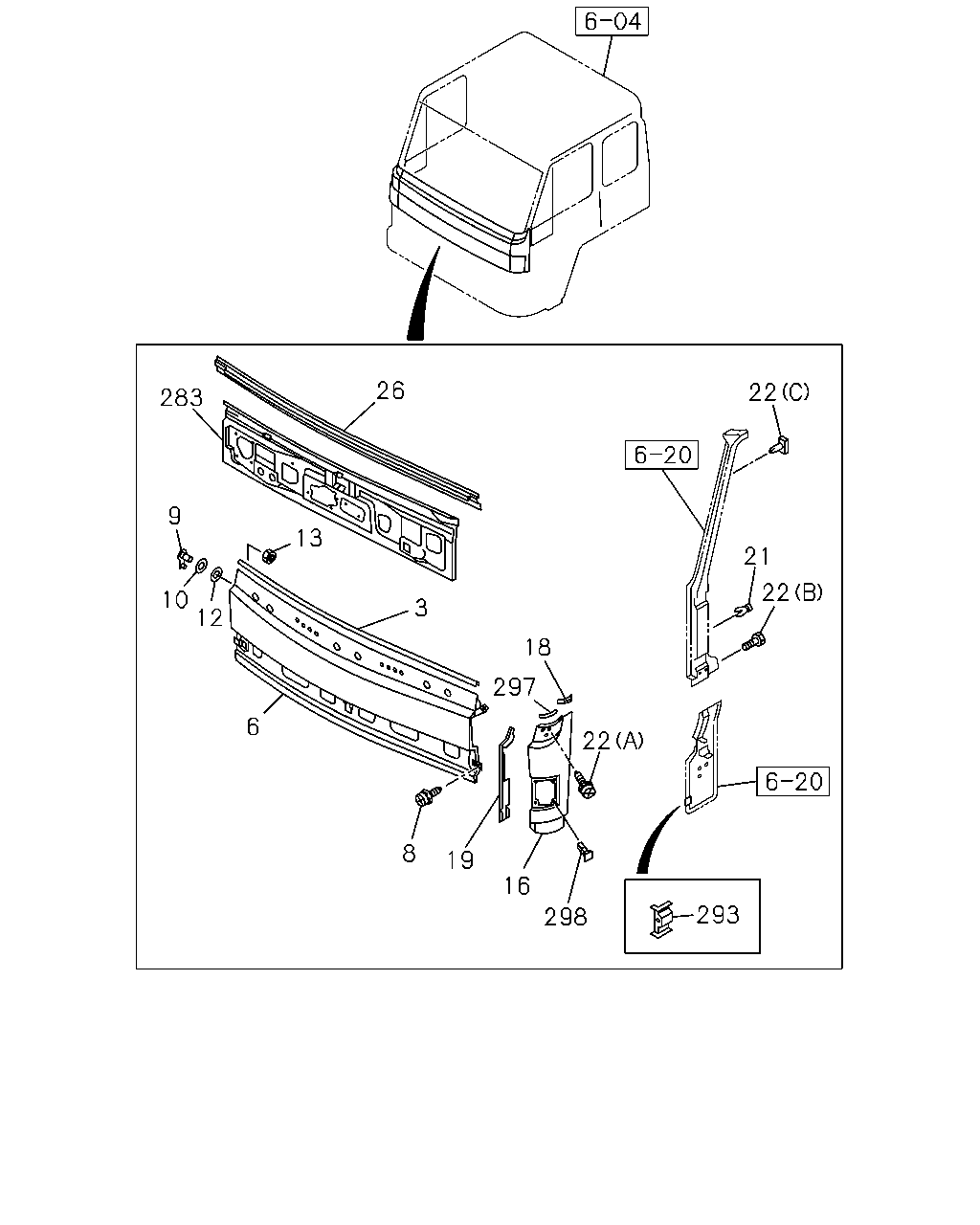

çizim 94558
283 26 9 10 13 12 3 6 18 297 22 8 19 16 298 293 22 21 22
BalonParca AdiParca NoAdetTipApplied Date
3 FINISHER; FRT PANEL UPR
L=2100 		1-71907-093-0 01 1 9212-
6 PANEL; FRONT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-65480-976-0 01 1 9212-
6 PANEL; FRONT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-65480-934-0 01 1 9212-
8 SCREW; FRT PANEL
M6X16 W/LK&PL WASHER 		1-09980-574-0 07 1 9212-
9 FASTENER; FRT PANEL TO SIDE PANEL 1-65570-152-1 02 1 9212-
10 WASHER; FRT PANEL TO SIDE PANEL
ID=9 OD=20 		1-09985-145-0 02 1 9212-
12 WASHER; PL,FRT PANEL TO SIDE PANEL
ID=8.4 OD=22 		9-09160-708-0 02 1 9212-
13 NUT; FRT PANEL TO SIDE PANEL
M8 FLANGE 		1-09984-064-0 02 1 9212-
16 PANEL; FRONT,SIDE 1-65480-536-8 01 1 9212-
16 PANEL; FRONT,SIDE 1-65480-533-8 01 1 9212-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-65570-172-1 01 1 9212-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-65570-171-1 01 1 9212-
19 SEAL; FRT SIDE PANEL 1-65580-195-0 01 1 9212-
19 SEAL; FRT SIDE PANEL 1-65580-194-0 01 1 9212-
21 GROMMET; SCREW,FRT SIDE PANEL
D=10X10 L=8 M6 		1-09983-119-0 02 1 9212-
22 SCREW; FRT PANEL SIDE
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 02 1 9212-
22 SCREW; FRT PANEL SIDE
(B) M6X16 W/LK&PL WASHER 		1-09981-426-0 04 1 9212-
22 SCREW; FRT PANEL SIDE
(C) D=10X16 L=8 M6 		1-09983-118-0 02 1 9212-
26 PANEL; REINF,FRT PANEL CENTER,INNER 1-61480-476-3 01 1 9212-
283 PANEL ASM; FRT CENTER,INNER 1-61480-478-5 01 1 9212-
293 BRACKET; PANEL 1-61480-496-1 02 1 9212-
297 FINISHER; SIDE PANEL,CAB
L=2040 		1-71998-300-0 02 1 9212-
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL 8-94279-039-0 08 1 9212-

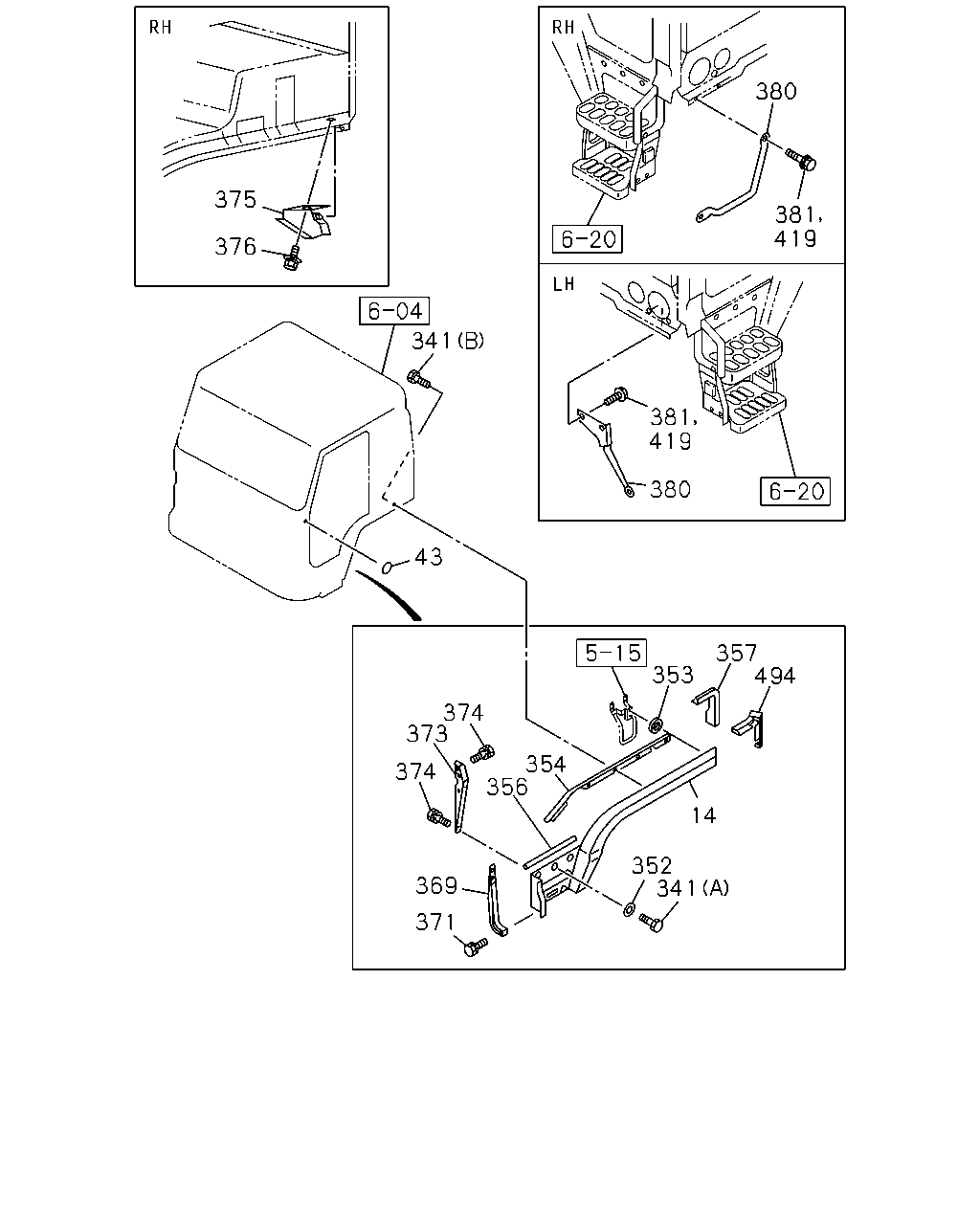

çizim 94679
375 376 341 43 380 381 419 381 419 380 357 353 494 14 354 356 374 373 374 369 371 352 341
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
FRONT FENDER WIDE<SA4> 		1-65480-727-4 01 1 9212-
14 FENDER; FRT
FRONT FENDER WIDE<SA4> 		1-65480-726-4 01 1 9212-
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> 		1-65480-681-6 01 1 9212-
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> 		1-65480-680-6 01 1 9212-
43 GROMMET; LOCATION HOLE,A-POST
OD=36 BLACK 		1-76798-018-0 02 1 9212-
341 BOLT; FENDER TO COWL
(A) M6X20 W/LK&PL WASHER 		1-09980-493-0 06 1 9212-
341 BOLT; FENDER TO COWL
(B) M6X20 W/LK&PL WASHER 		1-09980-495-0 12 1 9212-
352 WASHER; NYLON 1-09985-171-0 06 1 9212-
353 SPACER; FENDER TO CAB
FRONT FENDER WIDE<SA4> ID=12.5 		1-09503-171-0 02 1 9501-
354 SEAL; FENDER SIDE 1-71998-307-1 01 1 9212-
354 SEAL; FENDER SIDE 1-71998-306-1 01 1 9212-
356 FINISHER; STEP CLOSING,FENDER 1-71998-228-0 01 1 9212-
356 FINISHER; STEP CLOSING,FENDER 1-71998-148-1 01 1 9212-
357 FINISHER; WIDE FENDER RR
FRONT FENDER WIDE<SA4> 		1-71998-311-0 01 1 9212-
357 FINISHER; WIDE FENDER RR
FRONT FENDER WIDE<SA4> 		1-71998-310-0 01 1 9212-
369 SUPPORT; FENDER STEP FRT 1-65680-300-3 01 1 9212-
369 SUPPORT; FENDER STEP FRT 1-65680-299-3 01 1 9212-
371 BOLT; SUPPORT,FENDER STEP FRT
M8X20 W/LK&PL WASHER 		1-09980-496-0 04 1 9212-
373 SUPPORT; FENDER STEP REAR 1-65680-280-5 01 1 9212-
373 SUPPORT; FENDER STEP REAR 1-65680-279-5 01 1 9212-
374 BOLT; SUPPORT,FENDER STEP REAR
M8X20 W/LK&PL WASHER 		1-09980-496-0 08 1 9212-
375 SUPPORT; FENDER REAR 1-65680-663-0 01 1 9212-
376 BOLT; SUPPORT,FENDER RR
M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 9212-
380 STAY ASM; FENDER STEP FRT
AUXILIARY STEPS<E29> 		1-65680-793-0 01 1 9212-
380 STAY ASM; FENDER STEP FRT
AUXILIARY STEPS<E29> 		1-65680-843-0 01 1 9212-
381 BOLT; STAY,FENDER STEP
AUXILIARY STEPS<E29> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 9212-
381 BOLT; STAY,FENDER STEP
AUXILIARY STEPS<E29> M8X20 W/LK&PL WASHER 		1-09980-496-0 01 1 9212-
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		1-09980-496-0 08 1 9212-
494 FINISHER; FENDER
EXC. FRONT FENDER WIDE<SA4> 		1-71998-150-1 01 1 9212-
494 FINISHER; FENDER
EXC. FRONT FENDER WIDE<SA4> 		1-71998-149-1 01 1 9212-
