3-55 — BRAKE PIPING; OIL,REAR (#23799) — 38 parça

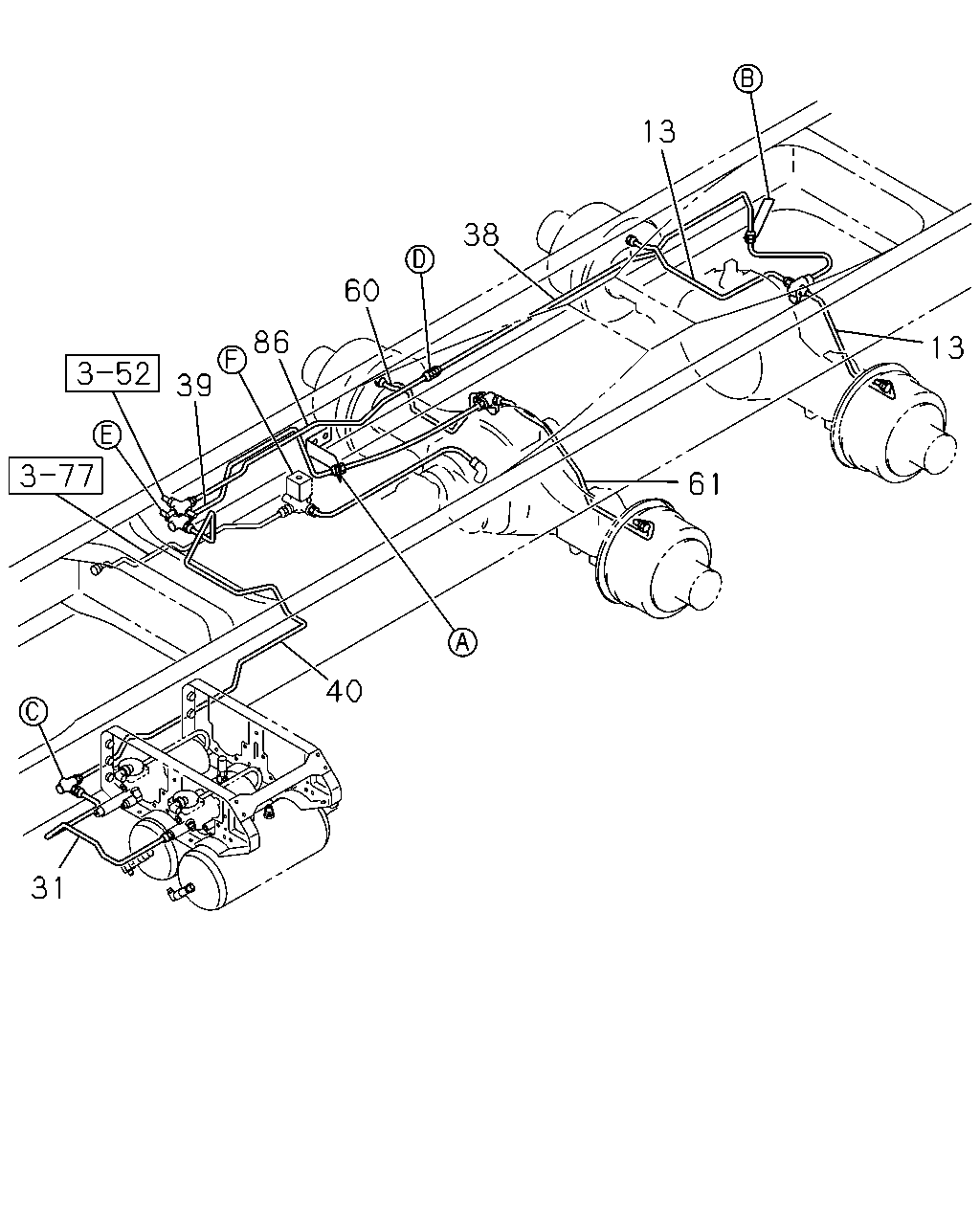

13 38 60 86 13 39 61 40 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; BRK,RR AXLE THA	8-97917-462-0	01	1	0202-
13	PIPE; BRK,RR AXLE THA	8-97917-460-0	01	1	0202-
31	PIPE; OIL,AIR MASTER TO UNION 6SD1 TCN ENG<31L> THA	8-97917-625-0	01	1	0202-0203
31	PIPE; OIL,AIR MASTER TO UNION THA	8-97922-170-1	01	1	0204-
38	PIPE; OIL,UNION TO FLEX HOSE THA	8-97917-639-0	01	1	0202-
39	PIPE; OIL,UNION TO RR FLEX HOSE THA	8-97917-615-0	01	1	0202-
40	PIPE; BRK,UNION TO UNION 6SD1 TCN ENG<31L> THA	8-97917-628-0	01	1	0202-0203
40	PIPE; BRK,UNION TO UNION THA	8-97922-171-0	01	1	0204-
60	PIPE ASM; BRK THA	8-97917-459-0	01	1	0202-
61	PIPE ASM; BRK THA	8-97917-968-0	01	1	0202-
86	PIPE; BRK,UNION TO UNION THA	8-97917-636-0	01	1	0202-

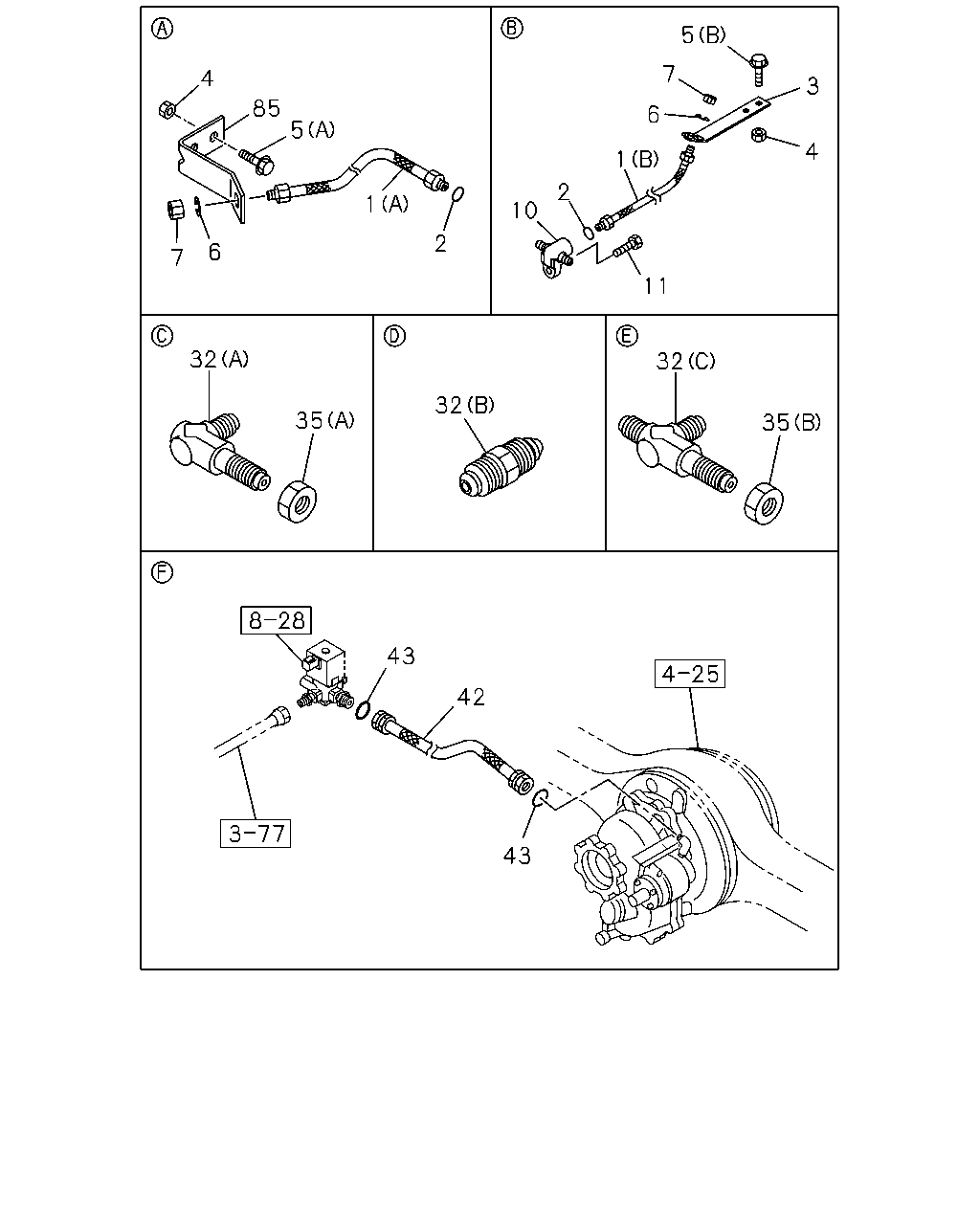

5 7 4 3 85 6 5 4 1 2 1 10 2 6 7 11 32 32 32 35 35 43 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK (A) L=525	1-09364-191-0	01	1	0202-
1	HOSE; FLEX,RR BRK (B) L=575	1-09364-195-0	01	1	0202-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0202-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0202-
3	BRACKET; FLEX HOSE,RR BRK	1-47476-573-1	01	1	0202-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0202-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0202-
5	BOLT; BRKT,FLEX HOSE,RR BRK (A) M8X35 FLANGE	0-28680-835-0	02	1	0202-
5	BOLT; BRKT,FLEX HOSE,RR BRK (B) M8X40 FLANGE	0-28680-840-0	02	1	0202-
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0202-
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0202-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0202-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0202-
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0202-0207
10	NIPPLE; RR AXLE CASE FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A>	9-09903-668-3	01	1	0208-
10	NIPPLE; RR AXLE CASE REAR AXLE RT210<C2A>	9-09903-668-3	01	1	0208-
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0202-0207
11	BOLT; NIPPLE,RR AXLE CASE FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> EXC. REAR AXLE RT210<C2A> M10X25 W/LK WASHER	0-50041-025-0	01	1	0208-
11	BOLT; NIPPLE,RR AXLE CASE REAR AXLE RT210<C2A> M10X25 W/LK WASHER	0-50041-025-0	01	1	0208-
32	UNION; OIL PIPE (C) M12 2WAY	1-09654-059-2	01	1	0202-
32	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	01	1	0202-
32	UNION; OIL PIPE (A) M12 ELBOW	9-09225-206-1	01	1	0202-
35	NUT; UNION (A) M12	9-09840-280-0	01	1	0202-
35	NUT; UNION (B) M12	9-99111-412-0	01	1	0202-
42	HOSE; FLEX,DIFF LOCK L=580	0-07151-580-0	01	1	0202-
43	GASKET; FLEX TUBE ID=11 OD=18	9-09572-510-0	02	1	0202-
85	BRACKET; FLEX HOSE,FWD RR	1-47476-295-1	01	1	0202-
