3-52 — BRAKE PIPING; OIL,FRONT (#23798) — 26 parça

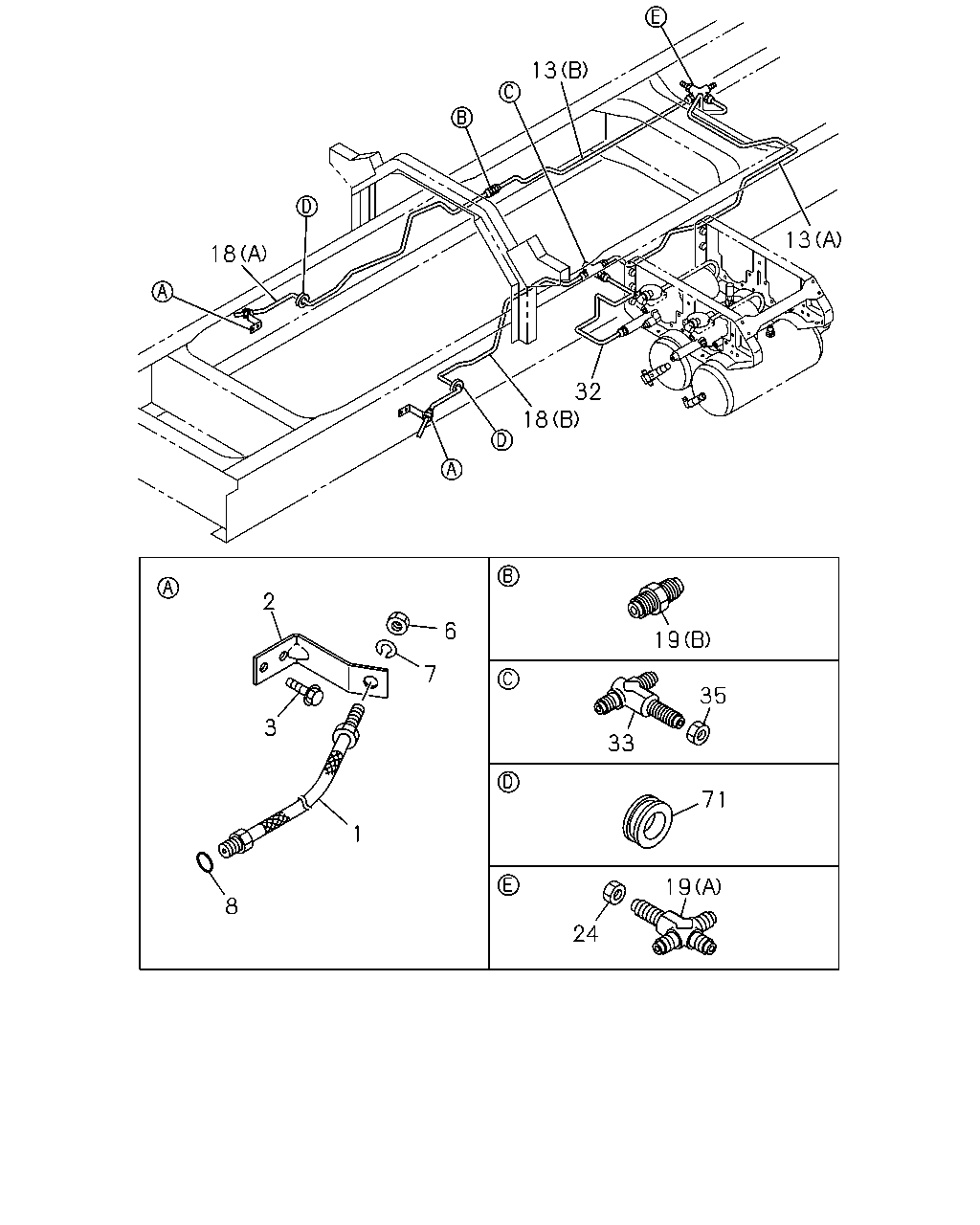

çizim 81974
13 13 18 32 18 2 6 19 7 35 3 33 71 1 19 8 24
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
L=650 		1-09364-200-0 02 1 0202-
2 BRACKET; FLEX HOSE,FRT BRK
6SD1 TCN ENG<31L> REAR AXLE RT210<C2A> 		1-47479-285-0 02 1 0202-0204
2 BRACKET; FLEX HOSE,FRT BRK 1-47479-285-0 02 1 0205-
2 BRACKET; FLEX HOSE,FRT BRK
6SD1 TCN ENG<31L> EXC. REAR AXLE RT210<C2A> 		1-47476-295-1 02 1 0202-0204
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE 		0-28680-820-0 04 1 0202-
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 0202-
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 0202-
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 0202-
13 PIPE; OIL,UNION TO UNION
6SD1 TCN ENG<31L> (A) THA 		8-97917-600-0 01 1 0202-0203
13 PIPE; OIL,UNION TO UNION
(A) THA 		8-97922-166-0 01 1 0204-
13 PIPE; OIL,UNION TO UNION
6SD1 TCN ENG<31L> (B) THA 		8-97917-603-0 01 1 0202-0203
13 PIPE; OIL,UNION TO UNION
(B) THA 		8-97922-167-0 01 1 0204-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6SD1 TCN ENG<31L> REAR AXLE RT210<C2A> (B) THA 		8-97922-091-0 01 1 0202-0203
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) THA 		8-97922-169-0 01 1 0204-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6SD1 TCN ENG<31L> REAR AXLE RT210<C2A> (A) THA 		8-97922-090-0 01 1 0202-0203
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) THA 		8-97922-168-2 01 1 0204-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6SD1 TCN ENG<31L> EXC. REAR AXLE RT210<C2A> (B) THA 		8-97917-611-0 01 1 0202-0203
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6SD1 TCN ENG<31L> EXC. REAR AXLE RT210<C2A> (A) THA 		8-97917-606-0 01 1 0202-0203
19 UNION; OIL PIPE
(A) 		1-09656-232-1 01 1 0202-
19 UNION; OIL PIPE
(B) M12 L=40 		9-09223-006-1 01 1 0202-
24 NUT; UNION,OIL PIPE
M12 		9-99111-412-0 01 1 0202-
32 PIPE; OIL,AIR MASTER TO UNION
6SD1 TCN ENG<31L> THA 		8-97917-598-0 01 1 0202-0203
32 PIPE; OIL,AIR MASTER TO UNION
THA 		8-97922-165-1 01 1 0204-
33 UNION; OIL PIPE 1-09656-487-1 01 1 0202-
35 NUT; UNION,OIL PIPE
M14 		9-99111-414-0 01 1 0202-
71 GROMMET; OIL PIPE
ID=28 OD=35 T=17 THA 		9-09956-256-1 02 1 0202-
