Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#23797) — 22 parça
◀

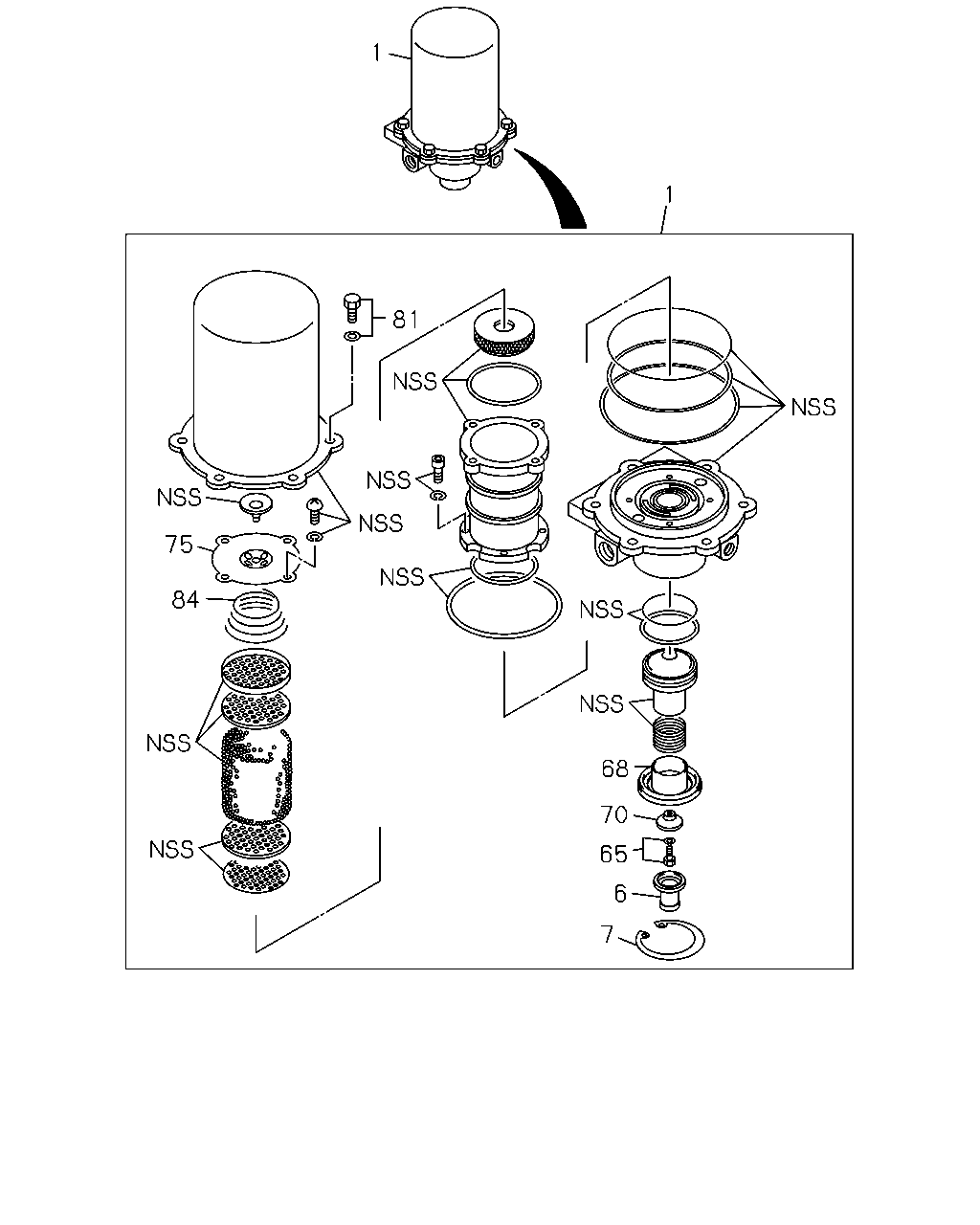

[346A] COMPONENT (9 parça)
[346A] REPAIR KIT AND PISTON KIT (5 parça)

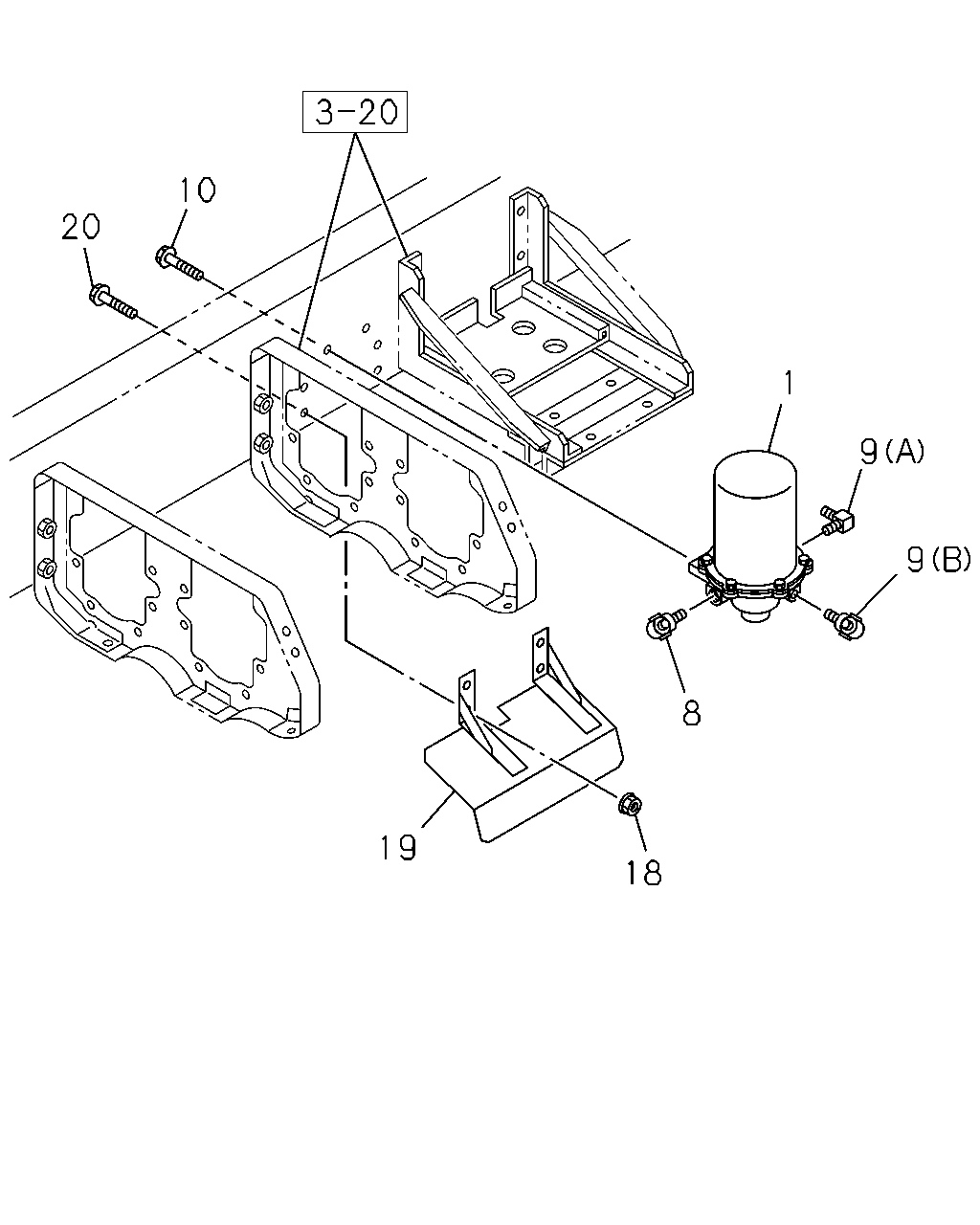

[346A] FIXING (8 parça)
▶
1
1
81
75
84
68
70
65
6
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-299-0
01
1
0208-
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
1-48199-404-0
01
1
0208-
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
1-48199-403-0
01
1
0208-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
0208-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-408-0
01
1
0208-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
0208-
75
COVER; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-427-0
01
1
0208-
81
BOLT; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-436-0
06
1
0208-
84
SPRING; AIR DRYER
AIR DRYER<PS7>
1-48199-425-0
01
1
0208-
2
3
68
70
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-217-0
01
1
0208-
3
PISTON KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-193-0
01
1
0208-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
0208-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-408-0
01
1
0208-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
0208-
10
20
1
9
9
8
19
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-299-0
01
1
0208-
8
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
0208-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M22 & PT1/2 ELBOW
1-09650-444-0
01
1
0208-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0208-
10
BOLT; AIR DRYER
AIR DRYER<PS7> M10X25 FLANGE
0-28681-025-0
03
1
0208-
18
NUT; PROTECTOR
AIR DRYER<PS7> M8 FLANGE
0-91150-108-0
04
1
0208-
19
PROTECTOR; HEAT,AIR DRYER
AIR DRYER<PS7> THA
8-97921-848-0
01
1
0208-
20
BOLT; PROTECTOR
AIR DRYER<PS7> M8X30 FLANGE
0-28680-830-0
04
1
0208-
