Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶

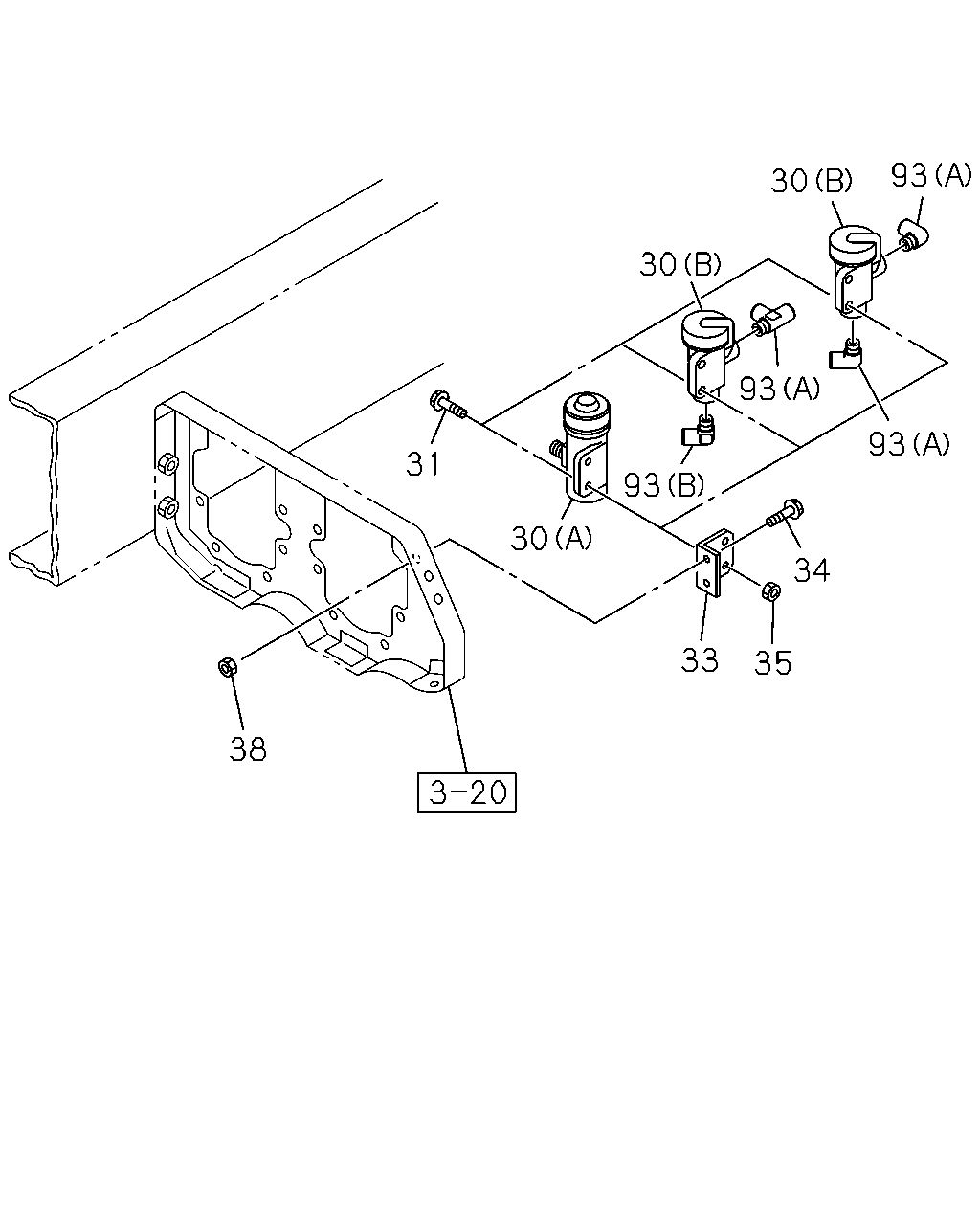

3-22 — AIR CONTROL PARTS
(#23793) — 14 parça
◀
[322A] FIXING (12 parça)
[322A] REPAIR KIT (2 parça)
▶
93
30
30
93
93
31
93
30
34
33
35
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
GOVERNOR; AIR CONT
(A)
1-48350-059-0
01
1
0202-0204
30
GOVERNOR; AIR CONT
(B)
1-48350-063-0
01
1
0205-
31
BOLT; GOV TO FRAME
M8X25 FLANGE
0-28680-825-0
02
1
0202-
33
BRACKET; GOV,AIR CONT
THA
1-48359-022-0
01
1
0202-0204
33
BRACKET; GOV,AIR CONT
1-48359-107-1
01
1
0205-
34
BOLT; BRKT,GOV
M8X30 FLANGE
0-28680-830-0
02
1
0202-
35
NUT; GOV TO FRAME
M8 FLANGE
0-91150-108-0
02
1
0202-
38
NUT; BRKT,GOV
M8 FLANGE
0-91150-108-0
02
1
0202-
93
CONNECTOR; GOV
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
0205-0207
93
CONNECTOR; GOV
EXC. AIR DRYER<PS7> (A) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
0208-
93
CONNECTOR; GOV
AIR DRYER<PS7> (A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0208-
93
CONNECTOR; GOV
AIR DRYER<PS7> (B) DIN8X2 & R1/4 3WAY
1-09661-006-0
01
1
0208-
240
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
240
REPAIR KIT; AIR CONT GOV
1-85576-293-0
01
1
0202-0204
240
REPAIR KIT; AIR CONT GOV
1-85576-303-0
01
1
0205-
