3-20 — AIR TANK (#23792) — 85 parça

82 82 79 71 141 73 80 81 79 126 78 129 128 74 77 138 82 81 126 237 238 80 67 130 239 240 86 71 82 138 145 145 145 125 145 125 152 140 151 151 139 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

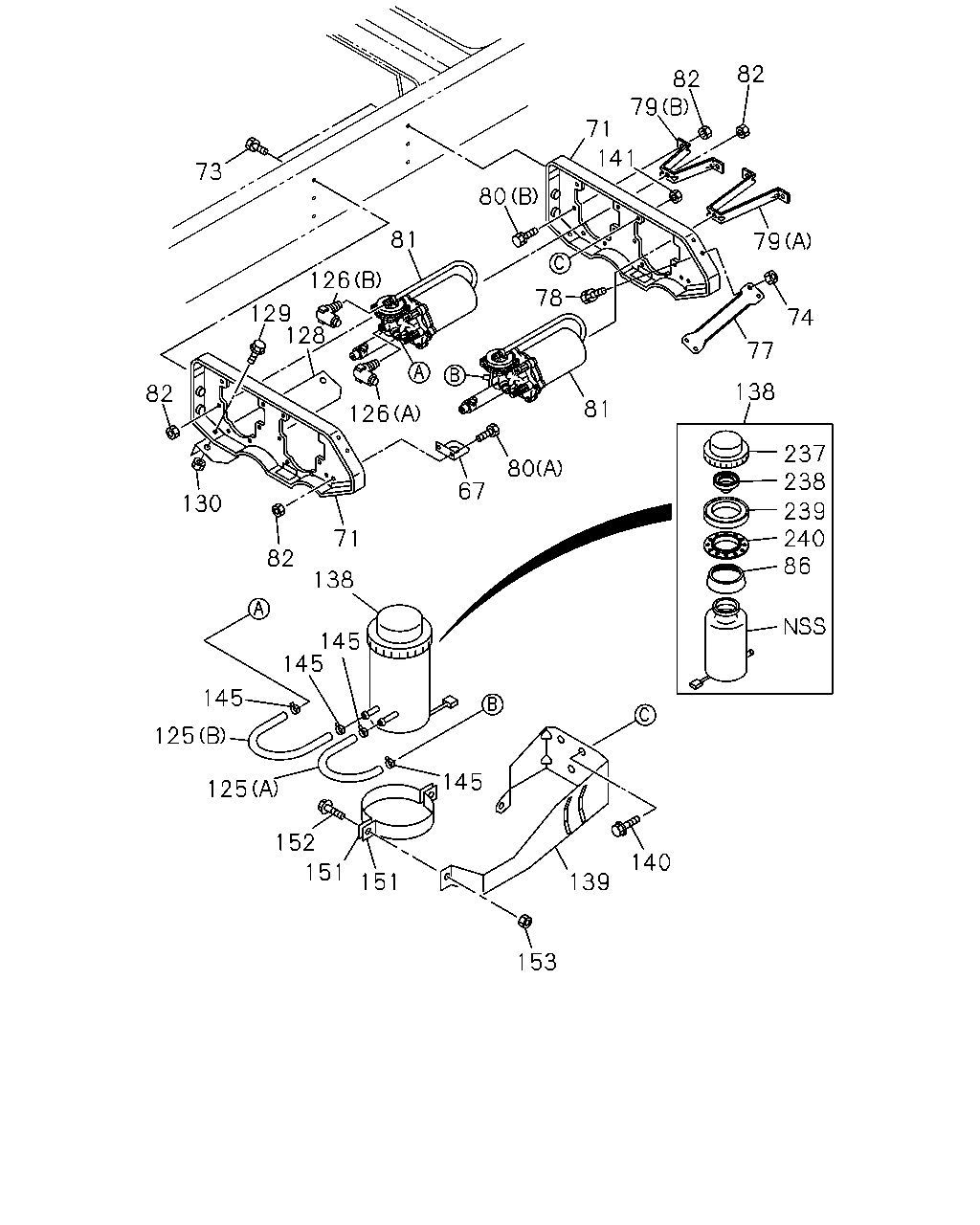

67	STAY; SUB TANK THA	1-48317-321-2	01	1	0202-
71	BRACKET; AIR MASTER,TANDEM	1-53318-276-1	02	1	0202-
73	BOLT; BRKT TO FRAME,AIR MASTER M12X40 FLANGE	0-28681-240-0	06	1	0202-
74	NUT; STAY AIR MASTER M10 FLANGE	0-91150-210-0	04	1	0202-
77	STAY; AIR MASTER UPR	1-53318-293-1	01	1	0202-
78	BOLT; STAY AIR MASTER M10X30 FLANGE	0-28681-030-0	04	1	0202-
79	STAY; AIR MASTER TO BRKT (B)	1-53318-347-0	01	1	0202-
79	STAY; AIR MASTER TO BRKT (A)	1-53318-348-0	01	1	0202-
80	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	02	1	0202-
80	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	04	1	0202-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-671-2	01	1	0202-0206
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-794-0	01	1	0207-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-687-1	01	1	0202-0206
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-795-0	01	1	0207-
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	16	1	0202-
86	SEAL; DUST	1-47529-019-0	01	1	0202-
125	HOSE; OIL TANK TO AIR MASTER (A)	1-47469-118-0	01	1	0202-
125	HOSE; OIL TANK TO AIR MASTER (B)	1-47469-119-0	01	1	0202-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0202-
126	CONNECTOR; ELBOW (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0202-
128	PROTECTOR	1-53319-018-0	01	1	0202-
129	BOLT; PROTECTOR FIX M8X30 FLANGE	0-28680-830-0	02	1	0202-
130	NUT; PROTECTOR FIX M8 FLANGE	0-91150-108-0	02	1	0202-
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0202-0206
138	TANK ASM; OIL,AIR MASTER	1-47530-185-0	01	1	0207-
139	BRACKET; OIL TANK	1-47537-153-0	01	1	0202-
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE	0-28681-025-0	03	1	0202-
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	03	1	0202-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14 THA	1-09704-102-0	04	1	0202-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0202-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	0202-
153	NUT; OIL TANK TO BAND M8	9-09110-408-0	02	1	0202-
215	PIPE; VINYL AIR DRYER<PS7> THA	8-97922-208-0	01	1	0208-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> L=158.7 THA	8-97922-209-0	03	1	0208-
237	CAP; OIL TANK	1-47525-030-0	01	1	0202-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0202-
239	FILTER; DUST	1-47529-017-0	01	1	0202-
240	HOLDER; FILTER	1-47529-018-0	01	1	0202-

46 50 46 93 55 284 13 8 8 63 1 46 62 46 184 7 10 212 43 36 3 13 6 13 13 8 3 14 14 1 9 7 284 6 14 2 14 13 213 5 7 6 11 1 7 8 236 6 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

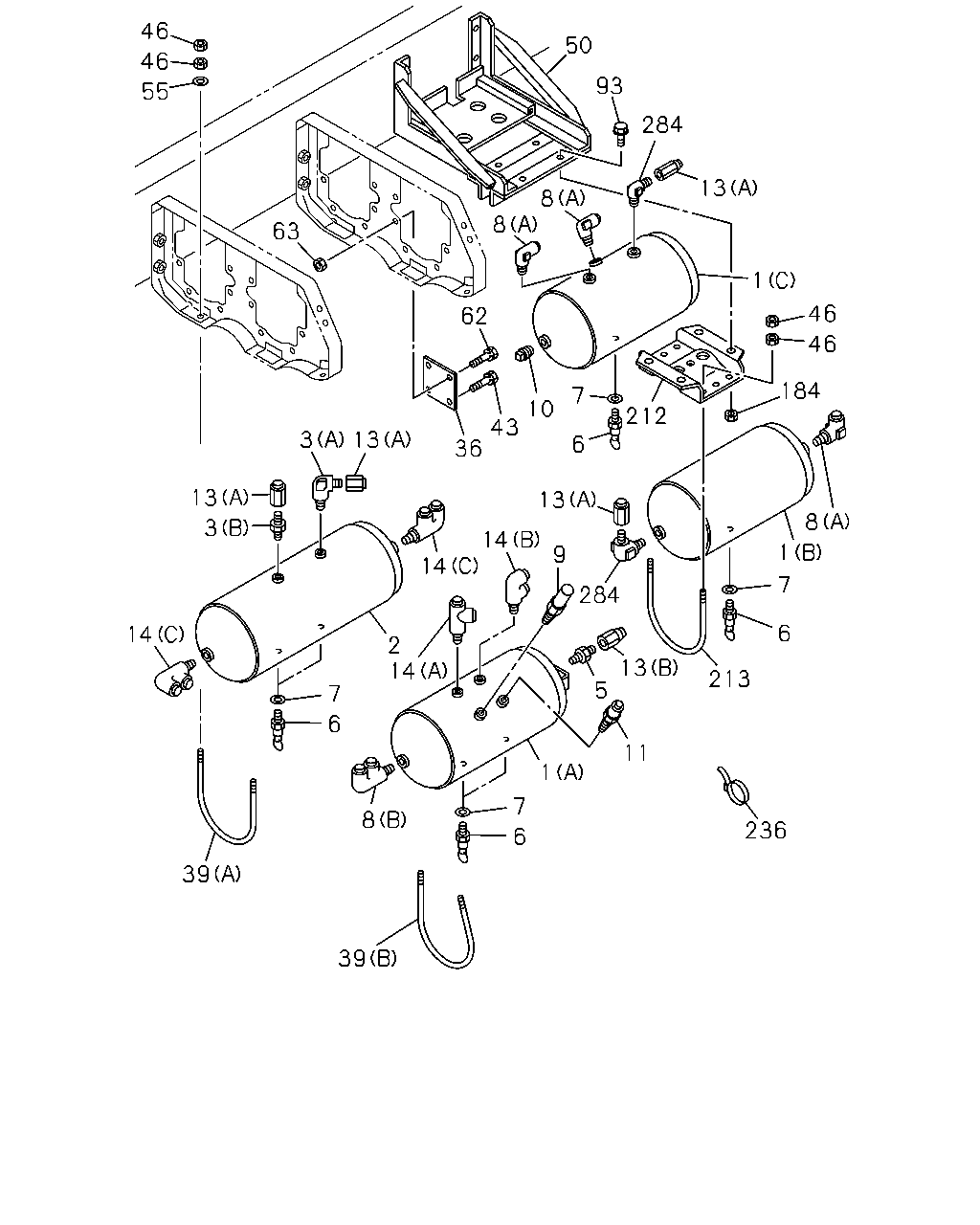

1	TANK ASM; AIR (B) 11L	1-48310-515-1	01	1	0202-0204
1	TANK ASM; AIR (C)	1-48330-538-0	01	1	0205-
1	TANK ASM; AIR (A)	1-48370-493-0	01	1	0202-
2	TANK; AIR	1-48370-810-0	01	1	0202-
3	VALVE; CHECK,AIR TANK (B) THA	1-48410-182-3	01	1	0202-
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW THA	1-48410-412-0	01	1	0202-
5	UNION; AIR TANK M22 & PT3/4 THA	1-48410-136-3	01	1	0202-
6	COCK; DRAIN,AIR TANK THA	1-48312-015-0	01	1	0202-0204
6	COCK; DRAIN,AIR TANK THA	1-48312-015-0	02	1	0205-
6	COCK; DRAIN,AIR TANK THA	1-48312-015-0	02	1	0202-0204
6	COCK; DRAIN,AIR TANK THA	1-48312-015-0	02	1	0202-0204
6	COCK; DRAIN,AIR TANK THA	1-48312-015-0	03	1	0205-
7	GASKET; DRAIN COCK ID=14 THA	1-09630-145-0	01	1	0202-0204
7	GASKET; DRAIN COCK ID=14 THA	1-09630-145-0	02	1	0205-
7	GASKET; DRAIN COCK ID=14 THA	1-09630-145-0	02	1	0202-0204
7	GASKET; DRAIN COCK ID=14 THA	1-09630-145-0	02	1	0202-0204
7	GASKET; DRAIN COCK ID=14 THA	1-09630-145-0	03	1	0205-
8	CONNECTOR; AIR TANK (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0202-0204
8	CONNECTOR; AIR TANK (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0205-
8	CONNECTOR; AIR TANK (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0202-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA THA	1-48340-054-1	01	1	0202-
10	PLUG; AIR TANK PT1/4	9-99204-513-0	01	1	0205-
11	VALVE; SAFETY,AIR TANK	1-48320-012-1	01	1	0202-
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0202-
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0202-
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (B) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0208-
14	UNION; 3 WAY,AIR TANK (A) DIN8X2 & R3/8 3WAY	1-09661-007-0	01	1	0202-
14	UNION; 3 WAY,AIR TANK (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0202-
14	UNION; 3 WAY,AIR TANK (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0202-
36	STAY; MAIN TANK	1-48317-760-0	01	1	0202-
39	U-BOLT; AIR TANK (A) THA	1-48317-301-0	02	1	0202-
39	U-BOLT; AIR TANK (B) THA	1-48317-302-0	01	1	0202-
43	BOLT; STAY,AIR TANK,MAIN M10X30 FLANGE	0-28681-030-0	02	1	0202-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0202-
46	NUT; U-BOLT M8	9-09110-408-0	12	1	0202-
50	STAY; AIR TANK THA	8-97911-600-1	01	1	0202-
55	WASHER; PL,U-BOLT ID=8.4 OD=18	9-09160-608-0	04	1	0202-
62	BOLT; SUPPORT M10X25 FLANGE	0-28681-025-0	02	1	0202-
63	NUT; SUPPORT M10 FLANGE	0-91150-210-0	02	1	0202-
93	BOLT; FIX M10X30 FLANGE	0-28681-030-0	04	1	0202-
184	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0202-
212	BRACKET; AIR TANK TRAILER	1-48317-543-0	01	1	0202-
213	BOLT; U AIR TANK L=210	1-48317-458-1	02	1	0202-
215	PIPE; VINYL AIR DRYER<PS7> THA	8-97922-208-0	01	1	0208-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> L=158.7 THA	8-97922-209-0	03	1	0208-
236	CLIP; BAND AIR DRYER<PS7> THA	8-97922-207-0	01	1	0208-
284	CONNECTOR; MAG VLV M20 & PT3/4 ELBOW THA	1-48410-412-0	01	1	0202-
