Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#23791) — 46 parça
◀

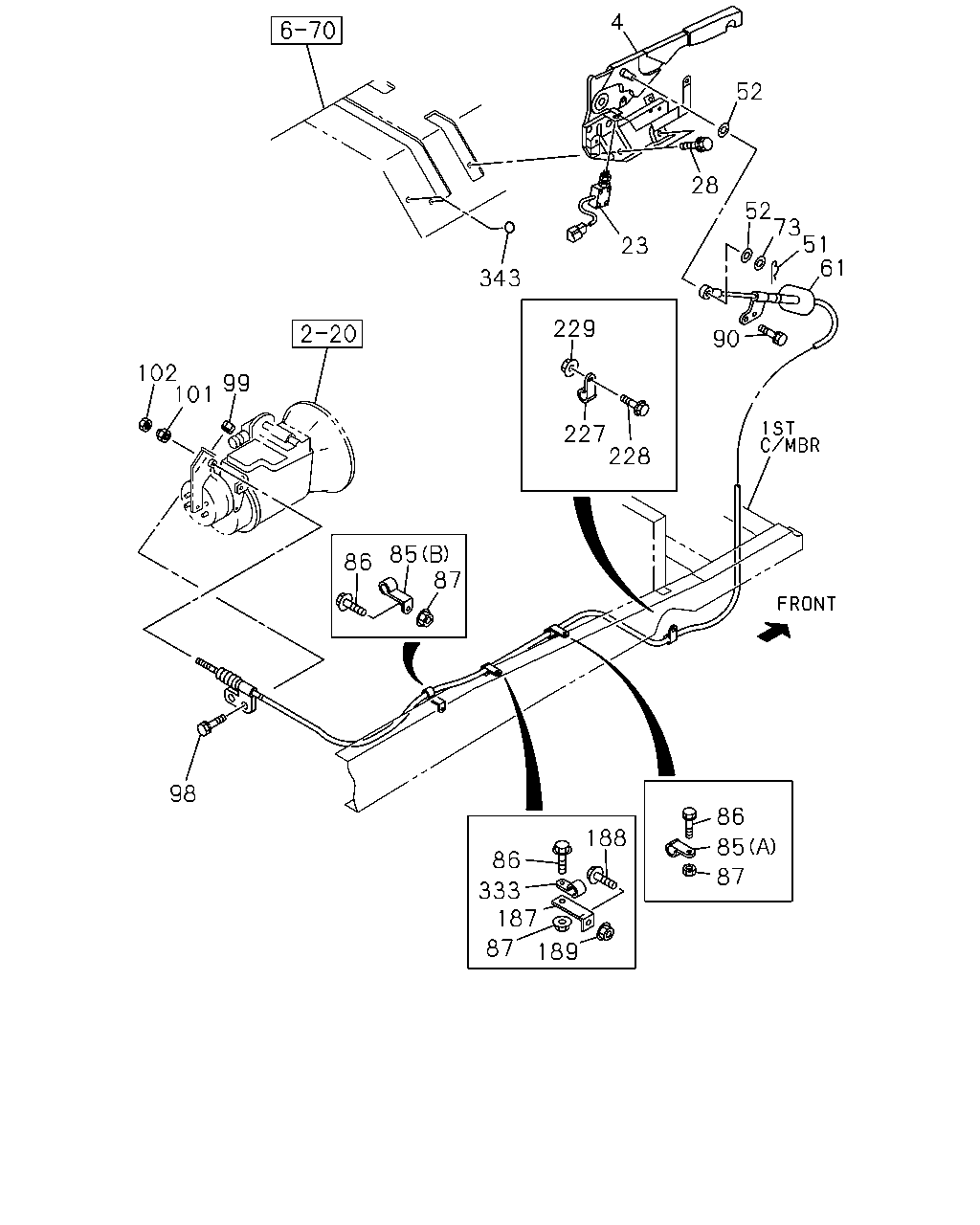

[311A] LEVER AND CABLE FIXING (40 parça)
[311A] FLOOR SIDE FIXING (6 parça)
▶
4
52
28
52
73
51
61
23
343
90
229
102
101
99
227
228
85
87
86
98
86
188
85
86
87
333
187
87
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
1-79996-568-0
01
1
0202-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
0202-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
0202-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
0202-
52
WASHER; CURVED RELAY LEVER
ID=19
8-94206-429-1
02
1
0202-
61
CABLE; PARKING BRK
6SD1 TCN ENG<31L> L=5094 THA
8-97917-705-0
01
1
0202-
61
CABLE; PARKING BRK
6SD1 TCS ENG<83L> L=5179 THA
8-97921-820-0
01
1
0208-
73
WASHER; PL,CABLE
ID=17
9-09160-516-0
01
1
0202-
85
CLIP; BRKT
(B) ID=16 H=25 L=25
1-09701-162-0
01
1
0202-
85
CLIP; BRKT
6SD1 TCN ENG<31L> (A) ID=18 L=28
1-09701-067-0
01
1
0202-
85
CLIP; BRKT
6SD1 TCS ENG<83L> (A) ID=16 L=28
1-09700-872-0
01
1
0208-
86
BOLT
M8X16 FLANGE
0-28080-816-0
01
1
0202-0204
86
BOLT
6SD1 TCN ENG<31L> M8X16 FLANGE
0-28080-816-0
01
1
0202-0204
86
BOLT
M8X16 FLANGE
0-28080-816-0
01
1
0205-
86
BOLT
M8X30 FLANGE
0-28680-830-0
01
1
0202-
86
BOLT
M8X25 FLANGE
0-28680-825-0
02
1
0205-
86
BOLT
M8X30 FLANGE
0-28650-830-0
01
1
0307-
87
NUT
M8 FLANGE
0-91150-108-0
01
1
0202-0204
87
NUT
M8 FLANGE
0-91150-108-0
01
1
0202-0204
87
NUT
M8 FLANGE
0-91150-108-0
01
1
0202-0204
87
NUT
M8 FLANGE
0-91150-108-0
02
1
0205-0304
87
NUT
M8 FLANGE
0-91150-108-0
01
1
0305-
87
NUT
M8 FLANGE
0-91150-108-0
01
1
0205-0304
87
NUT
M8 FLANGE
0-91150-108-0
01
1
0205-0304
87
NUT
M8 FLANGE
0-91150-108-0
03
1
0305-
90
BOLT; CABLE TO BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0202-
98
BOLT; RR COVER
M10X30 FLANGE
0-28681-030-0
02
1
0202-
99
NUT; CONT CABLE
M10 FLANGE
0-91150-210-0
02
1
0202-
101
NUT; CABLE TO LEVER
1-46259-007-0
01
1
0202-
102
NUT; LK,CABLE TO LEVER
M8 FLANGE
0-91150-108-0
01
1
0202-
187
BRACKET; HAND BRK
6SD1 TCN ENG<31L>
1-47477-741-0
01
1
0202-0204
188
BOLT; BRKT SET
M8X30 FLANGE
0-28680-830-0
01
1
0202-0204
189
NUT; BRKT SET
M8 FLANGE
0-91150-108-0
01
1
0202-0204
227
CLIP; RAD
ID=13 L=20
9-09525-235-0
01
1
0202-
227
CLIP; RAD
6SD1 TCS ENG<83L> ID=13 L=40
9-09525-276-0
01
1
0208-
228
BOLT; CLIP RAD MTG
M8X16 FLANGE
0-28080-816-0
01
1
0202-
229
NUT; CLIP RAD MTG
M8 FLANGE
0-91150-108-0
01
1
0202-
333
CLIP; CABLE
ID=14.5 L=20
1-09701-012-0
01
1
0202-
333
CLIP; CABLE
ID=14.5 L=40 THA
1-09701-014-0
01
1
0205-
343
SEAL
OD=25 BLACK THA
1-76798-019-0
02
1
0202-
61
324
218
46
45
46
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
BOLT; CABLE TO FLOOR
M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0202-
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
9-09525-535-0
03
1
0202-
61
CABLE; PARKING BRK
6SD1 TCN ENG<31L> L=5094 THA
8-97917-705-0
01
1
0202-
61
CABLE; PARKING BRK
6SD1 TCS ENG<83L> L=5179 THA
8-97921-820-0
01
1
0208-
218
NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE
1-09985-340-0
02
1
0202-
324
BRACKET
1-79998-750-3
01
1
0202-
