Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#2379) — 435 parça

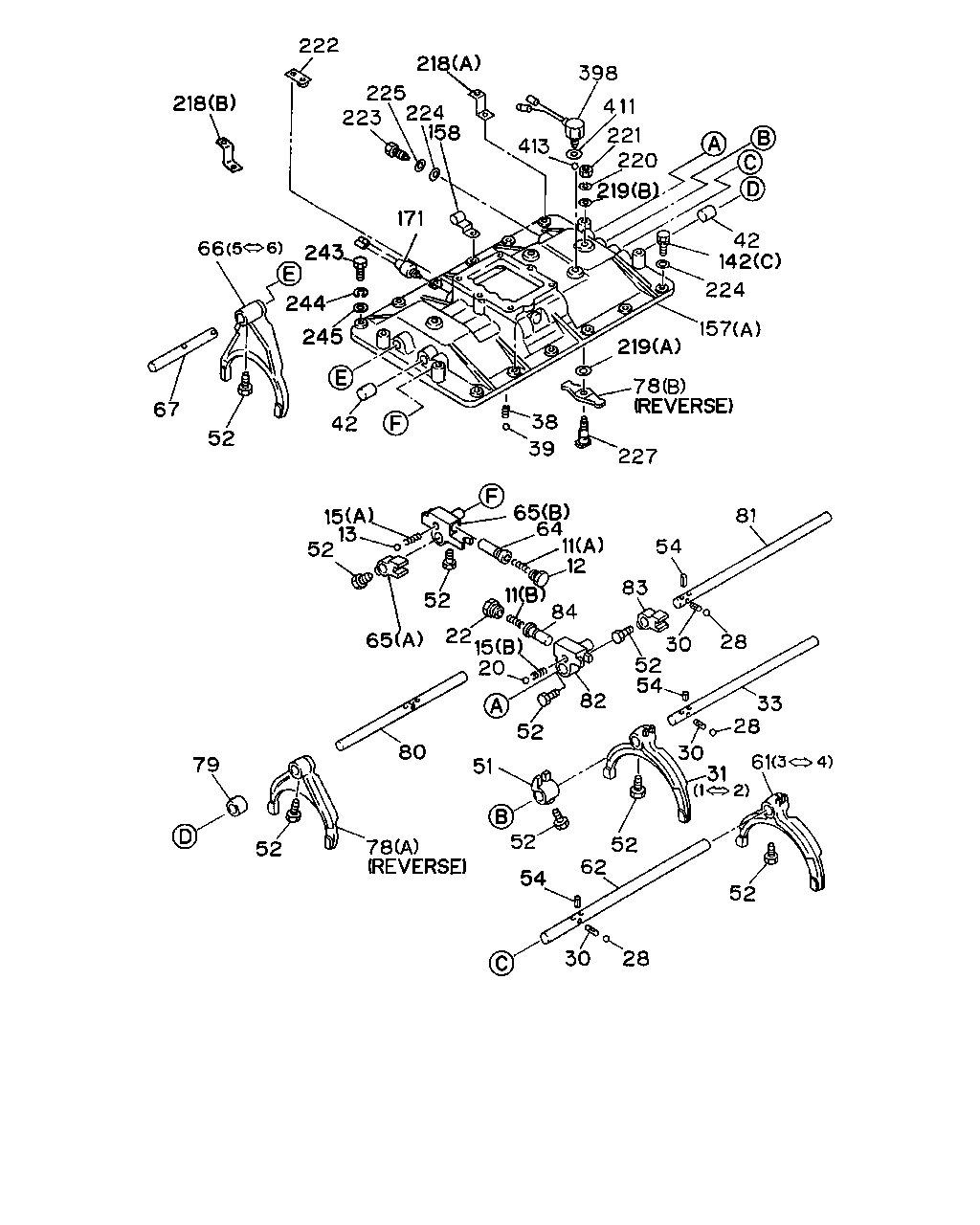

222 218 66 243 171 223 225 218 224 413 158 398 221 411 219 220 42 142 224 219 157 78 38 244 67 42 245 52 39 227 81 54 83 28 30 52 54 33 28 30 31 61 52 28 30 54 62 52 52 82 84 11 52 22 15 20 52 51 80 78 52 79 65 52 15 13 65 64 11 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9002-	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9002-9004	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9005-	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-420-0	01	1	9002-9004			●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-0	01	1	9002-	●	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9002-9004	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9005-	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9002-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	9005-			●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-0	01	1	9002-	●	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9002-	●	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9002-	●	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-291-1	01	1	9002-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-295-1	01	1	9002-9306			●
31	ARM; SHIFT,LOW & 2ND	1-33511-386-1	01	1	9307-			●
33	ROD; SHIFT,LOW & 2ND	1-33531-293-1	01	1	9002-9010	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-352-0	01	1	9011-	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-296-1	01	1	9002-			●
38	SPRING; DETENT	1-09580-379-0	04	1	9002-	●	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9002-	●	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9002-	●	●	●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-256-2	01	1	9002-	●	●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33511-298-3	01	1	9002-	●	●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-286-0	01	1	9002-			●
52	BOLT; SHIFT ARM M12X20 3-HOLE	1-09052-025-0	09	1	9002-9107	●	●	●
52	BOLT; SHIFT ARM M12X20 NO-HOLE	1-09052-032-1	09	1	9108-9512	●	●	●
52	BOLT; SHIFT ARM M12X20	1-09052-039-0	09	1	9601-	●		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9002-	●	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-314-2	01	1	9002-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-315-1	01	1	9002-			●
62	ROD; SHIFT,3RD & 4TH	1-33531-290-1	01	1	9002-	●	●	●
64	SLEEVE; SHIFT BLOCK,5TH TO 6TH	1-33516-022-1	01	1	9002-			●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-286-0	01	1	9002-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-256-2	01	1	9002-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-293-2	01	1	9002-			●
66	ARM; SHIFT,5TH & 6TH	1-33511-273-1	01	1	9002-	●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-297-1	01	1	9002-			●
67	ROD; SHIFT,5TH & 6TH L=321	1-33531-291-1	01	1	9002-	●	●
67	ROD; SHIFT,5TH & 6TH	1-33531-297-1	01	1	9002-			●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9002-	●	●	●
78	ARM; SHIFT,REV (A)	1-33511-313-1	01	1	9002-	●	●
78	ARM; SHIFT,REV (A)	1-33511-245-1	01	1	9002-			●
79	STOPPER; REV BLOCK	9-33537-018-0	01	1	9002-			●
80	ROD; SHIFT,REV ARM	1-33531-289-0	01	1	9002-			●
81	ROD; SHIFT,REV BLOCK	1-33531-295-1	01	1	9002-			●
82	BLOCK; SHIFT,REV	1-33511-298-3	01	1	9002-			●
83	BLOCK; SHIFT,REV LEVER	1-33511-038-2	01	1	9002-			●
84	SLEEVE; REV	1-33516-022-1	01	1	9002-			●
142	BOLT; QUAD BOX (C) M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	15	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	13	1	9307-	●		●
142	BOLT; QUAD BOX (B) M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X33 L=60	1-09029-050-0	01	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-0	01	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	9307-	●		●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01651-060-0	04	1	9002-9004	●	●	●
142	BOLT; QUAD BOX (C) M10X60	0-16811-060-0	04	1	9005-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	04	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	02	1	9307-	●		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X55 L=85	1-09049-016-0	02	1	9307-	●		●
157	BOX; QUAD,TRANS (B)	1-33541-393-1	01	1	9002-		●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9002-	●		●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108			●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-			●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-375-1	01	1	9002-9010	●		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-388-1	01	1	9011-	●		●
158	CLIP; HARNESS ID=6	9-09917-391-0	01	1	9002-9306	●	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9307-			●
158	CLIP; HARNESS L=36	8-94224-891-1	03	1	9307-	●
171	SWITCH; NEUTRAL	1-82440-044-2	01	1	9002-9009	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9010-9306	●	●	●
171	SWITCH; NEUTRAL	1-82440-081-2	01	1	9307-9509	●		●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9510-	●		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	02	1	9002-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9307-	●		●
219	WASHER; PL,SPINDLE (B) ID=12.5 OD=26	9-09164-612-0	01	1	9002-9205	●	●	●
219	WASHER; PL,SPINDLE (A) ID=16.5	9-09857-042-0	01	1	9002-	●		●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9002-9205	●	●	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9002-9205	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●	●	●
222	BRACKET; CLIP L=65	1-47476-513-0	01	1	9002-9306	●	●	●
222	BRACKET; CLIP L=65	1-47476-513-0	02	1	9307-	●		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9002-	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9002-	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	05	1	9002-9205	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	07	1	9002-9205	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9002-	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9002-	●	●	●
243	BOLT; COVER M6X10	9-02050-610-0	01	1	9002-9005		●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	9-02050-610-0	01	1	9002-9005	●		●
243	BOLT; COVER M6X10	0-20800-610-0	01	1	9006-9205		●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	0-20800-610-0	01	1	9006-9205	●		●
243	BOLT; COVER M6X10 FLANGE	0-28080-610-0	01	1	9206-		●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10 FLANGE	0-28080-610-0	01	1	9206-	●		●
244	WASHER; LK,COVER ID=6.1	9-09150-506-0	01	1	9002-9205		●
244	WASHER; LK,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.1	9-09150-506-0	01	1	9002-9205	●		●
245	WASHER; PL,COVER ID=6.4 OD=14	9-09160-606-0	01	1	9002-9205		●
245	WASHER; PL,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.4 OD=14	9-09160-606-0	01	1	9002-9205	●		●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9002-9306	●	●	●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	9307-	●		●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	9002-9208	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-	●	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9002-	●	●	●

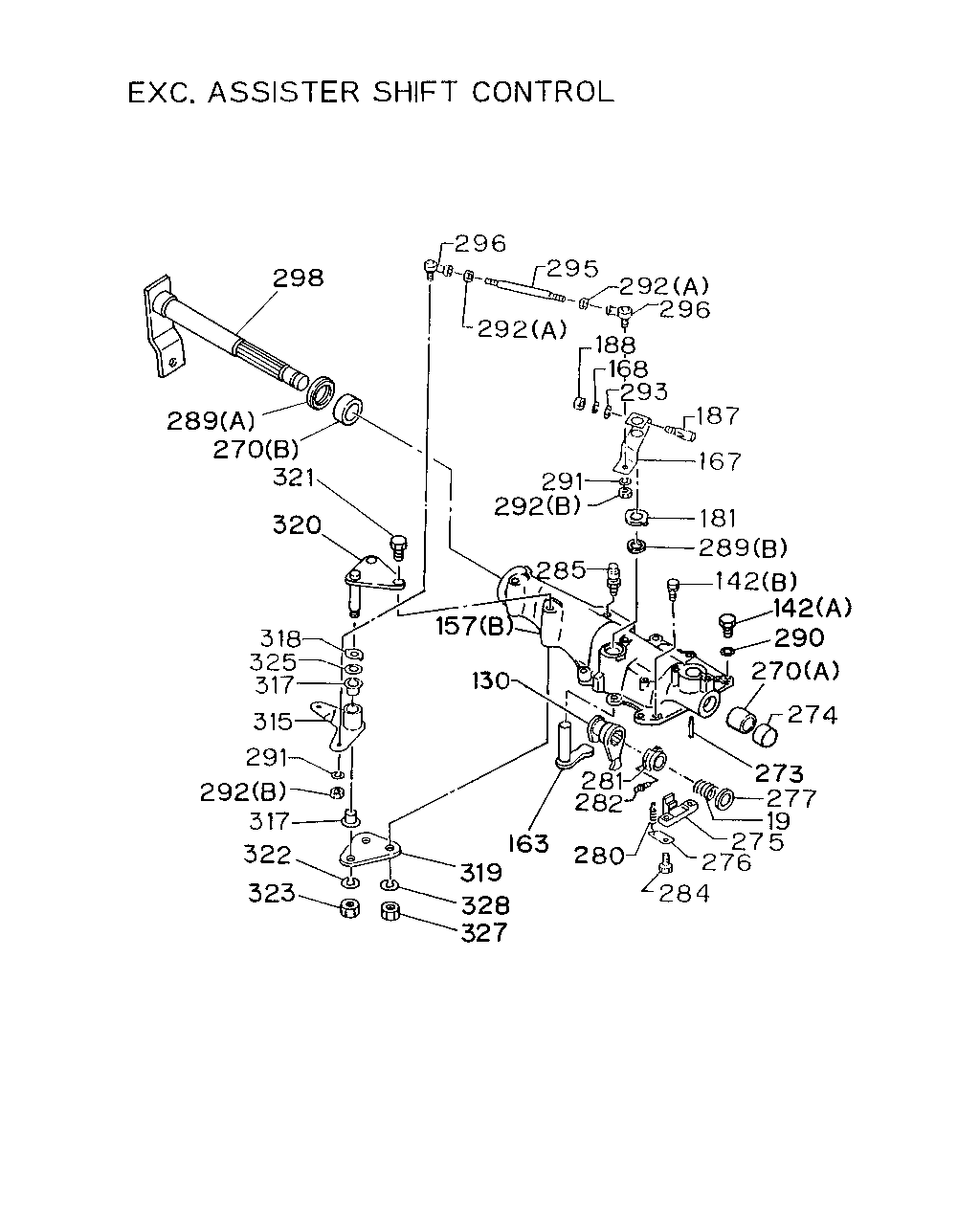

298 296 292 295 292 296 188 187 293 168 291 167 292 181 289 142 285 142 290 270 274 273 277 19 275 276 284 280 163 282 281 130 157 320 321 270 289 318 325 317 315 291 292 317 322 323 319 328 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	SPRING; COIL COMP	1-09580-431-0	01	1	9002-9205	●	●
19	SPRING; COIL COMP	1-09580-519-0	01	1	9206-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-103-1	01	1	9002-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-103-1	01	1	9002-	●		●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-115-1	01	1	9002-9401	●		●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-125-0	01	1	9402-	●		●
142	BOLT; QUAD BOX (C) M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	15	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	13	1	9307-	●		●
142	BOLT; QUAD BOX (B) M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X33 L=60	1-09029-050-0	01	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-0	01	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	9307-	●		●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01651-060-0	04	1	9002-9004	●	●	●
142	BOLT; QUAD BOX (C) M10X60	0-16811-060-0	04	1	9005-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	04	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	02	1	9307-	●		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X55 L=85	1-09049-016-0	02	1	9307-	●		●
157	BOX; QUAD,TRANS (B)	1-33541-393-1	01	1	9002-		●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9002-	●		●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108			●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-			●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-375-1	01	1	9002-9010	●		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-388-1	01	1	9011-	●		●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9002-	●	●	●
167	LEVER; SELECT,EXTERNAL 6RB1 STD ENG(07L)	1-33521-079-0	01	1	9002-9306		●	●
167	LEVER; SELECT,EXTERNAL 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-33521-096-1	01	1	9002-	●		●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9002-9412	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9002-	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9002-	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9002-9205	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	9002-9306		●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	9002-9306	●		●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	9307-	●		●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	9002-9306		●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	9002-9306	●		●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	9307-	●		●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	9002-9306		●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	9002-9306	●		●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	9002-	●		●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9002-	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9002-	●	●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-027-0	01	1	9002-		●
275	BLOCK; OBSTRUCT,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8>	1-33529-027-0	01	1	9002-	●
275	BLOCK; OBSTRUCT,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-33529-031-1	01	1	9002-	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9002-	●	●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9002-	●	●
280	SPRING; COIL TENSION	1-09583-255-0	01	1	9002-		●
280	SPRING; COIL TENSION EXC. ASSISTER SHIFT CONTROL<WX8>	1-09583-255-0	01	1	9002-	●
280	SPRING; COIL TENSION ASSISTER SHIFT CONTROL<WX8>	1-09583-285-0	01	1	9002-	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-030-1	01	1	9002-	●	●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9002-	●	●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9002-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-005-0	01	1	9002-9008	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9009-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9002-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9002-	●	●	●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9002-9205	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9205	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9002-9412	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9501-	●		●
292	NUT; LINK ROD (B) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9302-9312	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9401-	●		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9002-	●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	9002-9510	●	●	●
295	ROD; LINK,RELAY LEVER	9-08400-815-0	01	1	9511-	●		●
296	ROD END L=48	1-09760-038-1	02	1	9002-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-089-0	01	1	9002-		●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-089-0	01	1	9002-	●		●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-113-0	01	1	9002-	●		●
315	LEVER; SELECT	1-33651-416-0	01	1	9002-9306		●
315	LEVER; SELECT 6RB1 STD ENG(07L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-416-0	01	1	9002-9306	●		●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-513-0	01	1	9002-	●		●
315	LEVER; SELECT 10PD1 STD ENG(40L),12PD1 STD ENG(42L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-417-0	01	1	9002-	●		●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9002-	●	●	●
318	WASHER; WAVE	9-09855-315-0	01	1	9002-	●	●	●
319	BRACKET; SELECT LEVER 6RB1 STD ENG(07L)	1-33657-196-0	01	1	9002-9306		●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33657-447-0	01	1	9002-	●		●
319	BRACKET; SELECT LEVER 10PD1 STD ENG(40L),12PD1 STD ENG(42L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-190-0	01	1	9002-	●		●
320	SHAFT; LEVER 6RB1 STD ENG(07L)	1-33619-134-0	01	1	9002-9306		●	●
320	SHAFT; LEVER 10PD1 STD ENG(40L),12PD1 STD ENG(42L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-129-0	01	1	9002-	●		●
321	BOLT; BRKT,RELAY LEVER M10X80	9-01056-080-0	02	1	9002-9004		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	9-01056-080-0	02	1	9002-9004	●		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9005-9306		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9005-9306	●		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9307-	●		●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9002-9205	●		●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●		●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9002-	●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9002-	●	●	●
325	SHIM; LEVER	1-33659-096-0	01	1	9002-	●	●	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9002-		●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9002-	●		●
328	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9002-9306		●
328	WASHER; LK,BRKT EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	02	1	9002-9306	●		●

284 280 283 276 282 281 272 275 19 273 279 278 277 274 271 290 142 157 142 289 181 167 187 293 168 188 296 292 295 292 296 306 301 300 299 298 292 291 285 271 289 324 130 163 319 321 322 323 317 292 315 291 317 325 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	SPRING; COIL COMP	1-09580-431-0	01	1	9002-9205	●	●
19	SPRING; COIL COMP	1-09580-519-0	01	1	9206-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-103-1	01	1	9002-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-103-1	01	1	9002-	●		●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-115-1	01	1	9002-9401	●		●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-125-0	01	1	9402-	●		●
142	BOLT; QUAD BOX (C) M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	15	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	13	1	9307-	●		●
142	BOLT; QUAD BOX (B) M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X33 L=60	1-09029-050-0	01	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-0	01	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	9307-	●		●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01651-060-0	04	1	9002-9004	●	●	●
142	BOLT; QUAD BOX (C) M10X60	0-16811-060-0	04	1	9005-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	04	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	02	1	9307-	●		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X55 L=85	1-09049-016-0	02	1	9307-	●		●
157	BOX; QUAD,TRANS (B)	1-33541-393-1	01	1	9002-		●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9002-	●		●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108			●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-			●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-375-1	01	1	9002-9010	●		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-388-1	01	1	9011-	●		●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9002-	●	●	●
167	LEVER; SELECT,EXTERNAL 6RB1 STD ENG(07L)	1-33521-079-0	01	1	9002-9306		●	●
167	LEVER; SELECT,EXTERNAL 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-33521-096-1	01	1	9002-	●		●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9002-9412	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9002-	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9002-	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9002-9205	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9002-	●		●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9002-	●		●
272	RING; SNAP,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9002-	●		●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9002-	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9002-	●	●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-027-0	01	1	9002-		●
275	BLOCK; OBSTRUCT,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8>	1-33529-027-0	01	1	9002-	●
275	BLOCK; OBSTRUCT,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-33529-031-1	01	1	9002-	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9002-	●	●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9002-	●	●
278	WASHER; LK,STOPPER ASSISTER SHIFT CONTROL<WX8> ID=5.1	9-09150-505-0	01	1	9002-9111	●
279	BOLT; STOPPER ASSISTER SHIFT CONTROL<WX8>	9-92050-508-0	01	1	9002-9005	●
279	BOLT; STOPPER ASSISTER SHIFT CONTROL<WX8> M5X8	0-20800-508-0	01	1	9006-	●
280	SPRING; COIL TENSION	1-09583-255-0	01	1	9002-		●
280	SPRING; COIL TENSION EXC. ASSISTER SHIFT CONTROL<WX8>	1-09583-255-0	01	1	9002-	●
280	SPRING; COIL TENSION ASSISTER SHIFT CONTROL<WX8>	1-09583-285-0	01	1	9002-	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-030-1	01	1	9002-	●	●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9002-	●	●
283	STOPPER; SHIFT SHAFT ASSISTER SHIFT CONTROL<WX8>	1-33529-032-0	01	1	9002-	●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9002-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-005-0	01	1	9002-9008	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9009-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9002-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9002-	●	●	●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9002-9205	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9205	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9002-9412	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9501-	●		●
292	NUT; LINK ROD (B) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9302-9312	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9401-	●		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9002-	●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	9002-9510	●	●	●
295	ROD; LINK,RELAY LEVER	9-08400-815-0	01	1	9511-	●		●
296	ROD END L=48	1-09760-038-1	02	1	9002-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-089-0	01	1	9002-		●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-089-0	01	1	9002-	●		●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-113-0	01	1	9002-	●		●
299	GASKET; QUAD BOX TO POWER ASSISTOR ALSO INCLUDED IN GASKET SET(M/T). ASSISTER SHIFT CONTROL<WX8>	1-33542-032-0	01	1	9002-9406	●		●
300	WASHER; LK,SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	06	1	9002-9205	●		●
301	WASHER; PL,SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> ID=10.5 OD=18	9-09160-510-0	06	1	9002-9205	●		●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X85	1-09040-062-1	02	1	9002-9205	●		●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X82	1-09040-092-1	02	1	9206-9406	●		●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X50	9-01656-050-0	02	1	9002-9004	●		●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X50	0-16806-050-0	02	1	9005-9205	●		●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	9206-	●		●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X85	9-01656-085-0	02	1	9002-9004	●		●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X85	0-16806-085-0	02	1	9005-9205	●		●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X80 FLANGE	0-28181-080-0	02	1	9206-9406	●		●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X80 FLANGE	0-28181-080-0	04	1	9407-	●		●
315	LEVER; SELECT	1-33651-416-0	01	1	9002-9306		●
315	LEVER; SELECT 6RB1 STD ENG(07L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-416-0	01	1	9002-9306	●		●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-513-0	01	1	9002-	●		●
315	LEVER; SELECT 10PD1 STD ENG(40L),12PD1 STD ENG(42L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-417-0	01	1	9002-	●		●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9002-	●	●	●
318	WASHER; WAVE	9-09855-315-0	01	1	9002-	●	●	●
319	BRACKET; SELECT LEVER 6RB1 STD ENG(07L)	1-33657-196-0	01	1	9002-9306		●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33657-447-0	01	1	9002-	●		●
319	BRACKET; SELECT LEVER 10PD1 STD ENG(40L),12PD1 STD ENG(42L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-190-0	01	1	9002-	●		●
321	BOLT; BRKT,RELAY LEVER M10X80	9-01056-080-0	02	1	9002-9004		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	9-01056-080-0	02	1	9002-9004	●		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9005-9306		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9005-9306	●		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9307-	●		●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9002-9205	●		●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●		●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9002-	●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9002-	●	●	●
324	BOLT; SHAFT ASSISTER SHIFT CONTROL<WX8> L=61	1-33619-126-2	01	1	9002-	●		●
325	SHIM; LEVER	1-33659-096-0	01	1	9002-	●	●	●

222 243 223 244 245 171 42 39 227 38 224 225 218 218 398 411 413 221 220 219 42 142 224 157 173 219 158 78 88 52 6 7 10 8 87 78 33 28 30 54 51 52 11 22 51 52 55 15 20 52 31 61 52 54 62 54 28 30 65 52 28 30 67 75 52 66 52 15 14 13 52 12 77 75 76 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY	1-33511-233-1	01	1	9002-	●	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 ID=24.4	1-09623-183-0	01	1	9002-	●	●
8	SPINDLE; REV & 7TH	1-33519-008-1	01	1	9002-	●	●
10	BOLT; SPINDLE M10X25 W/LK WASHER	0-50051-025-0	02	1	9002-9203	●	●
10	BOLT; SPINDLE M10X22	1-09033-005-0	02	1	9204-9205	●	●
10	BOLT; SPINDLE M10X20	1-09044-078-0	02	1	9206-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9002-	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9002-9004	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9005-	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-420-0	01	1	9002-9004			●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-0	01	1	9002-	●	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●
14	STOPPER; SHIFT ROD,7TH TO RR	1-33537-019-0	01	1	9002-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9002-9004	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9005-	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9002-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	9005-			●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-0	01	1	9002-	●	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9002-	●	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9002-	●	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-291-1	01	1	9002-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-295-1	01	1	9002-9306			●
31	ARM; SHIFT,LOW & 2ND	1-33511-386-1	01	1	9307-			●
33	ROD; SHIFT,LOW & 2ND	1-33531-293-1	01	1	9002-9010	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-352-0	01	1	9011-	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-296-1	01	1	9002-			●
38	SPRING; DETENT	1-09580-379-0	04	1	9002-	●	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9002-	●	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9002-	●	●	●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-256-2	01	1	9002-	●	●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33511-298-3	01	1	9002-	●	●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-286-0	01	1	9002-			●
52	BOLT; SHIFT ARM M12X20 3-HOLE	1-09052-025-0	09	1	9002-9107	●	●	●
52	BOLT; SHIFT ARM M12X20 NO-HOLE	1-09052-032-1	09	1	9108-9512	●	●	●
52	BOLT; SHIFT ARM M12X20	1-09052-039-0	09	1	9601-	●		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9002-	●	●	●
55	SLEEVE; 1ST & 2ND	1-33516-022-1	01	1	9002-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-314-2	01	1	9002-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-315-1	01	1	9002-			●
62	ROD; SHIFT,3RD & 4TH	1-33531-290-1	01	1	9002-	●	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-286-0	01	1	9002-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-256-2	01	1	9002-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-293-2	01	1	9002-			●
66	ARM; SHIFT,5TH & 6TH	1-33511-273-1	01	1	9002-	●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-297-1	01	1	9002-			●
67	ROD; SHIFT,5TH & 6TH L=321	1-33531-291-1	01	1	9002-	●	●
67	ROD; SHIFT,5TH & 6TH	1-33531-297-1	01	1	9002-			●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-236-1	01	1	9002-	●	●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-300-3	01	1	9002-	●	●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-294-1	01	1	9002-	●	●
77	SLEEVE; REV & 7TH	1-33516-022-1	01	1	9002-	●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9002-	●	●	●
78	ARM; SHIFT,REV (A)	1-33511-313-1	01	1	9002-	●	●
78	ARM; SHIFT,REV (A)	1-33511-245-1	01	1	9002-			●
87	ARM; SHIFT,7TH	1-33511-275-1	01	1	9002-	●	●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-285-0	01	1	9002-	●	●
142	BOLT; QUAD BOX (C) M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	15	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	13	1	9307-	●		●
142	BOLT; QUAD BOX (B) M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X33 L=60	1-09029-050-0	01	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-0	01	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	9307-	●		●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01651-060-0	04	1	9002-9004	●	●	●
142	BOLT; QUAD BOX (C) M10X60	0-16811-060-0	04	1	9005-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	04	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	02	1	9307-	●		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X55 L=85	1-09049-016-0	02	1	9307-	●		●
157	BOX; QUAD,TRANS (B)	1-33541-393-1	01	1	9002-		●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9002-	●		●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108			●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-			●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-375-1	01	1	9002-9010	●		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-388-1	01	1	9011-	●		●
158	CLIP; HARNESS ID=6	9-09917-391-0	01	1	9002-9306	●	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9307-			●
158	CLIP; HARNESS L=36	8-94224-891-1	03	1	9307-	●
171	SWITCH; NEUTRAL	1-82440-044-2	01	1	9002-9009	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9010-9306	●	●	●
171	SWITCH; NEUTRAL	1-82440-081-2	01	1	9307-9509	●		●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9510-	●		●
173	SCREW; SET,7TH TO REV	1-09000-446-0	01	1	9002-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	02	1	9002-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9307-	●		●
219	WASHER; PL,SPINDLE (B) ID=12.5 OD=26	9-09164-612-0	01	1	9002-9205	●	●	●
219	WASHER; PL,SPINDLE (A) ID=16.5	9-09857-042-0	01	1	9002-	●		●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9002-9205	●	●	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9002-9205	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●	●	●
222	BRACKET; CLIP L=65	1-47476-513-0	01	1	9002-9306	●	●	●
222	BRACKET; CLIP L=65	1-47476-513-0	02	1	9307-	●		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9002-	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9002-	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	05	1	9002-9205	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	07	1	9002-9205	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9002-	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9002-	●	●	●
243	BOLT; COVER M6X10	9-02050-610-0	01	1	9002-9005		●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	9-02050-610-0	01	1	9002-9005	●		●
243	BOLT; COVER M6X10	0-20800-610-0	01	1	9006-9205		●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	0-20800-610-0	01	1	9006-9205	●		●
243	BOLT; COVER M6X10 FLANGE	0-28080-610-0	01	1	9206-		●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10 FLANGE	0-28080-610-0	01	1	9206-	●		●
244	WASHER; LK,COVER ID=6.1	9-09150-506-0	01	1	9002-9205		●
244	WASHER; LK,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.1	9-09150-506-0	01	1	9002-9205	●		●
245	WASHER; PL,COVER ID=6.4 OD=14	9-09160-606-0	01	1	9002-9205		●
245	WASHER; PL,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.4 OD=14	9-09160-606-0	01	1	9002-9205	●		●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9002-9306	●	●	●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	9307-	●		●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	9002-9208	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-	●	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9002-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
