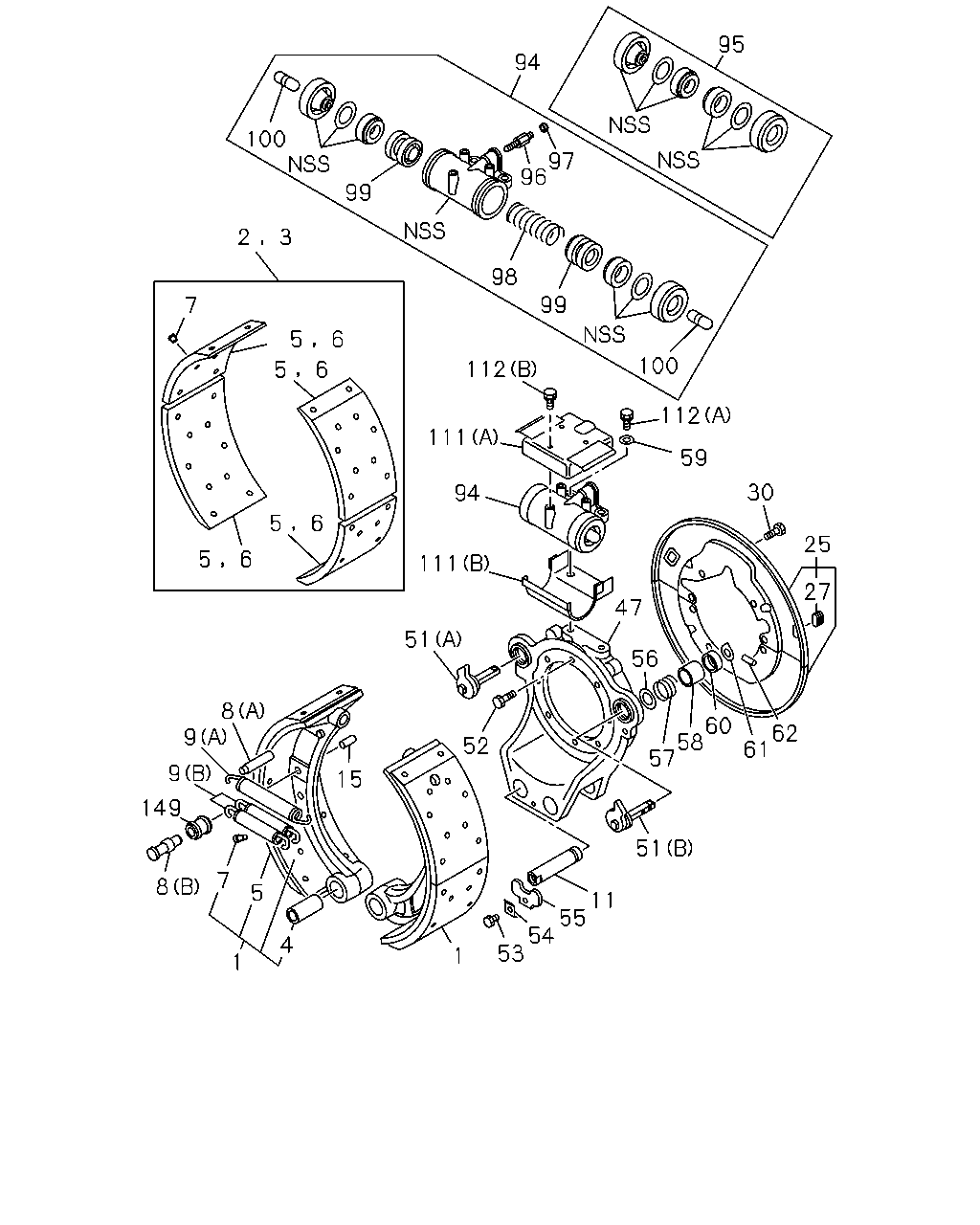

1 |
SHOE; BRK,RR
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
|
1-47120-326-0 |
06 |
1 |
0202-0207 |
| |
1 |
SHOE; BRK,RR
REAR AXLE RT210<C2A>
|
1-47120-326-0 |
06 |
1 |
0208- |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
|
1-47120-326-0 |
04 |
1 |
0202- |
| |
2 |
LINING SET; RR BRK,STANDARD
T=16
|
1-88310-301-0 |
02 |
1 |
0202- |
| |
2 |
LINING SET; RR BRK,STANDARD
T=16
|
1-88310-301-0 |
02 |
1 |
0202- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
T=17
|
1-88310-302-0 |
02 |
1 |
0202- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
T=17
|
1-88310-302-0 |
02 |
1 |
0202- |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47112-012-0 |
06 |
1 |
0202-0207 |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
REAR AXLE RT210<C2A>
THA
|
1-47112-012-0 |
06 |
1 |
0208- |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-47112-012-0 |
04 |
1 |
0202- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
T=16
|
1-47125-420-0 |
12 |
1 |
0202-0207 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
REAR AXLE RT210<C2A>
T=16
|
1-47125-420-0 |
12 |
1 |
0208- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
T=16
|
1-47125-420-0 |
08 |
1 |
0202- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
T=17
|
1-47125-421-0 |
12 |
1 |
0202-0207 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
REAR AXLE RT210<C2A>
T=17
|
1-47125-421-0 |
12 |
1 |
0208- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
T=17
|
1-47125-421-0 |
08 |
1 |
0202- |
| |
7 |
RIVET; LINING,RR BRK
L=18.5
THA
|
1-09732-034-0 |
AR |
1 |
0202- |
| |
7 |
RIVET; LINING,RR BRK
L=18.5
THA
|
1-09732-034-0 |
AR |
1 |
0202- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-09744-051-0 |
06 |
1 |
0202-0207 |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
REAR AXLE RT210<C2A>
THA
|
1-09744-051-0 |
06 |
1 |
0208- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47119-025-0 |
06 |
1 |
0202-0207 |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
REAR AXLE RT210<C2A>
THA
|
1-47119-025-0 |
06 |
1 |
0208- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
(B)
THA
|
1-09744-051-0 |
04 |
1 |
0202- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
(A)
THA
|
1-47119-025-0 |
04 |
1 |
0202- |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-09583-175-0 |
03 |
1 |
0202-0207 |
| |
9 |
SPRING; RETURN,BRK SHOE
REAR AXLE RT210<C2A>
THA
|
1-09583-175-0 |
03 |
1 |
0208- |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-09583-210-0 |
06 |
1 |
0202-0207 |
| |
9 |
SPRING; RETURN,BRK SHOE
REAR AXLE RT210<C2A>
THA
|
1-09583-210-0 |
06 |
1 |
0208- |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
(A)
THA
|
1-09583-175-0 |
02 |
1 |
0202- |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
(B)
THA
|
1-09583-210-0 |
04 |
1 |
0202- |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
L=121.5
THA
|
1-47131-039-0 |
06 |
1 |
0202-0207 |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
REAR AXLE RT210<C2A>
L=121.5
THA
|
1-47131-039-0 |
06 |
1 |
0208- |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
L=121.5
THA
|
1-47131-039-0 |
04 |
1 |
0202- |
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47116-002-0 |
06 |
1 |
0202-0207 |
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
REAR AXLE RT210<C2A>
THA
|
1-47116-002-0 |
06 |
1 |
0208- |
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-47116-002-0 |
04 |
1 |
0202- |
| |
25 |
COVER SET; RR BRK DRUM
THA
|
1-47151-526-1 |
02 |
1 |
0202- |
| |
25 |
COVER SET; RR BRK DRUM
THA
|
1-47151-526-1 |
02 |
1 |
0202- |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
THA
|
1-09333-151-0 |
04 |
1 |
0202-0207 |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
THA
|
1-09333-151-0 |
04 |
1 |
0202-0207 |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-09333-151-0 |
04 |
1 |
0208- |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
REAR AXLE RT210<C2A>
THA
|
1-09333-151-0 |
04 |
1 |
0208- |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0202-0207 |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0202-0207 |
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0208- |
| |
30 |
BOLT; DRUM COVER
REAR AXLE RT210<C2A>
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0208- |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47137-151-0 |
03 |
1 |
0202-0207 |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
REAR AXLE RT210<C2A>
THA
|
1-47137-151-0 |
03 |
1 |
0208- |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-47137-151-0 |
02 |
1 |
0202- |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47165-058-1 |
03 |
1 |
0202-0207 |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
REAR AXLE RT210<C2A>
THA
|
1-47165-058-1 |
03 |
1 |
0208- |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47165-059-1 |
03 |
1 |
0202-0207 |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
REAR AXLE RT210<C2A>
THA
|
1-47165-059-1 |
03 |
1 |
0208- |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
(A)
THA
|
1-47165-058-1 |
02 |
1 |
0202- |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
(B)
THA
|
1-47165-059-1 |
02 |
1 |
0202- |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
M14X50
THA
|
1-09040-066-0 |
03 |
1 |
0202-0207 |
| |
52 |
BOLT; ANCHOR BRKT
REAR AXLE RT210<C2A>
M14X50
THA
|
1-09040-066-0 |
03 |
1 |
0208- |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
M14X50
THA
|
1-09040-066-0 |
02 |
1 |
0202- |
| |
53 |
BOLT; LOCK PLATE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
M10X16
|
0-20801-016-0 |
03 |
1 |
0202-0207 |
| |
53 |
BOLT; LOCK PLATE
REAR AXLE RT210<C2A>
M10X16
|
0-20801-016-0 |
03 |
1 |
0208- |
| |
53 |
BOLT; LOCK PLATE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
M10X16
|
0-20801-016-0 |
02 |
1 |
0202- |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47133-011-0 |
03 |
1 |
0202-0207 |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
REAR AXLE RT210<C2A>
THA
|
1-47133-011-0 |
03 |
1 |
0208- |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-47133-011-0 |
02 |
1 |
0202- |
| |
55 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47133-005-0 |
03 |
1 |
0202-0207 |
| |
55 |
PLATE; LK,RR WHEEL CYL
REAR AXLE RT210<C2A>
THA
|
1-47133-005-0 |
03 |
1 |
0208- |
| |
55 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-47133-005-0 |
02 |
1 |
0202- |
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47169-033-0 |
06 |
1 |
0202-0207 |
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
REAR AXLE RT210<C2A>
THA
|
1-47169-033-0 |
06 |
1 |
0208- |
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-47169-033-0 |
04 |
1 |
0202- |
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47169-046-0 |
06 |
1 |
0202-0207 |
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
REAR AXLE RT210<C2A>
THA
|
1-47169-046-0 |
06 |
1 |
0208- |
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-47169-046-0 |
04 |
1 |
0202- |
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47169-034-0 |
06 |
1 |
0202-0207 |
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
REAR AXLE RT210<C2A>
THA
|
1-47169-034-0 |
06 |
1 |
0208- |
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-47169-034-0 |
04 |
1 |
0202- |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
ID=14.2
|
9-09150-514-0 |
06 |
1 |
0202-0207 |
| |
59 |
WASHER; LK,RR WHEEL CYL
REAR AXLE RT210<C2A>
ID=14.2
|
9-09150-514-0 |
06 |
1 |
0208- |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
ID=14.2
|
9-09150-514-0 |
04 |
1 |
0202- |
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47169-031-0 |
06 |
1 |
0202-0207 |
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
REAR AXLE RT210<C2A>
THA
|
1-47169-031-0 |
06 |
1 |
0208- |
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-47169-031-0 |
04 |
1 |
0202- |
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47169-032-1 |
06 |
1 |
0202-0207 |
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
REAR AXLE RT210<C2A>
THA
|
1-47169-032-1 |
06 |
1 |
0208- |
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-47169-032-1 |
04 |
1 |
0202- |
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47169-030-0 |
06 |
1 |
0202-0207 |
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
REAR AXLE RT210<C2A>
THA
|
1-47169-030-0 |
06 |
1 |
0208- |
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-47169-030-0 |
04 |
1 |
0202- |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
|
1-47600-684-0 |
03 |
1 |
0202-0207 |
| |
94 |
CYLINDER; WHEEL,RR BRK
REAR AXLE RT210<C2A>
|
1-47600-684-0 |
03 |
1 |
0208- |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
|
1-47600-684-0 |
02 |
1 |
0202- |
| |
95 |
CUP SET; RR WHEEL CYL
|
1-87830-527-0 |
02 |
1 |
0202- |
| |
95 |
CUP SET; RR WHEEL CYL
|
1-87830-527-0 |
02 |
1 |
0202- |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47615-002-0 |
03 |
1 |
0202-0207 |
| |
96 |
SCREW; BLEEDER,RR BRK
REAR AXLE RT210<C2A>
THA
|
1-47615-002-0 |
03 |
1 |
0208- |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-47615-002-0 |
02 |
1 |
0202- |
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
OD=12
THA
|
1-47619-011-0 |
03 |
1 |
0202-0207 |
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
REAR AXLE RT210<C2A>
OD=12
THA
|
1-47619-011-0 |
03 |
1 |
0208- |
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
OD=12
THA
|
1-47619-011-0 |
02 |
1 |
0202- |
| |
98 |
SPRING; RR WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-09580-019-0 |
03 |
1 |
0202-0207 |
| |
98 |
SPRING; RR WHEEL CYL
REAR AXLE RT210<C2A>
THA
|
1-09580-019-0 |
03 |
1 |
0208- |
| |
98 |
SPRING; RR WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-09580-019-0 |
02 |
1 |
0202- |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
|
1-47624-302-0 |
06 |
1 |
0202-0207 |
| |
99 |
PISTON; RR WHEEL CYL
REAR AXLE RT210<C2A>
|
1-47624-302-0 |
06 |
1 |
0208- |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
|
1-47624-302-0 |
04 |
1 |
0202- |
| |
100 |
ROD; PUSH,RR WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47621-009-0 |
06 |
1 |
0202-0207 |
| |
100 |
ROD; PUSH,RR WHEEL CYL
REAR AXLE RT210<C2A>
THA
|
1-47621-009-0 |
06 |
1 |
0208- |
| |
100 |
ROD; PUSH,RR WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-47621-009-0 |
04 |
1 |
0202- |
| |
111 |
COVER; WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47159-089-0 |
03 |
1 |
0202-0207 |
| |
111 |
COVER; WHEEL CYL
REAR AXLE RT210<C2A>
THA
|
1-47159-089-0 |
03 |
1 |
0208- |
| |
111 |
COVER; WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
|
1-47159-118-0 |
03 |
1 |
0202-0207 |
| |
111 |
COVER; WHEEL CYL
REAR AXLE RT210<C2A>
|
1-47159-118-0 |
03 |
1 |
0208- |
| |
111 |
COVER; WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
(A)
THA
|
1-47159-089-0 |
02 |
1 |
0202- |
| |
111 |
COVER; WHEEL CYL
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
(B)
|
1-47159-118-0 |
02 |
1 |
0202- |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
M14X35
THA
|
0-20801-435-0 |
06 |
1 |
0202-0207 |
| |
112 |
BOLT; WHEEL CYL SETTING
REAR AXLE RT210<C2A>
M14X35
THA
|
0-20801-435-0 |
06 |
1 |
0208- |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
M8X16 W/LK WASHER
|
0-50040-816-0 |
09 |
1 |
0202-0207 |
| |
112 |
BOLT; WHEEL CYL SETTING
REAR AXLE RT210<C2A>
M8X16 W/LK WASHER
|
0-50040-816-0 |
09 |
1 |
0208- |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
(A)
M14X35
THA
|
0-20801-435-0 |
04 |
1 |
0202- |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
(B)
M8X16 W/LK WASHER
|
0-50040-816-0 |
06 |
1 |
0202- |
| |
149 |
PIN; GUIDE RETURN
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
REAR AXLE RT210<C2A>
THA
|
1-47119-024-0 |
06 |
1 |
0202-0207 |
| |
149 |
PIN; GUIDE RETURN
REAR AXLE RT210<C2A>
THA
|
1-47119-024-0 |
06 |
1 |
0208- |
| |
149 |
PIN; GUIDE RETURN
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8
17.5"<W4A>
EXC. REAR AXLE RT210<C2A>
THA
|
1-47119-024-0 |
04 |
1 |
0202- |
