Sayfa 2-20 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11364 - FSR(MALAYSIA)W/B4200 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶

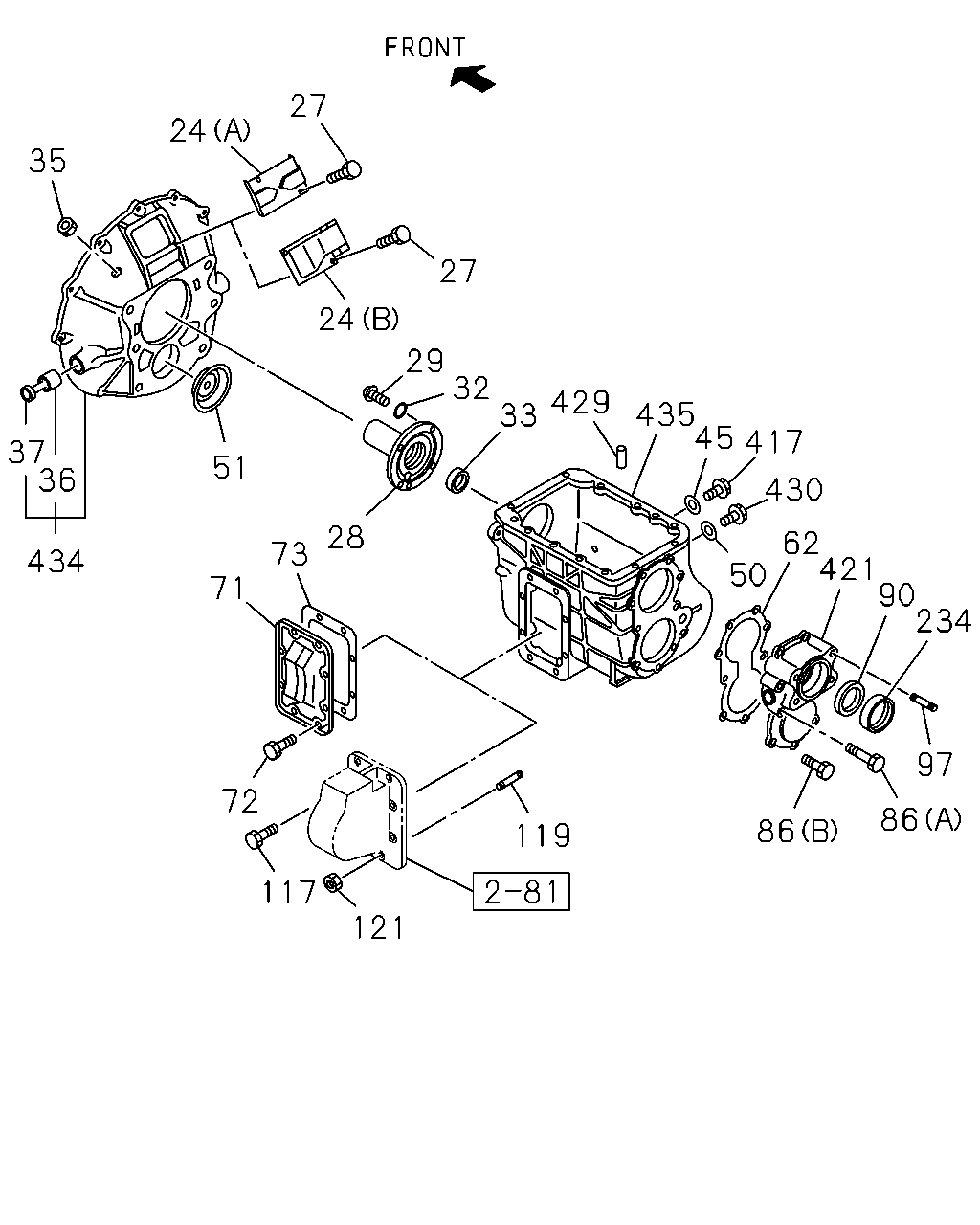

2-20 — MANUAL TRANSMISSION ASM AND CASE (#23779) — 47 parça

27 24 35 27 24 29 32 429 33 435 45 417 37 36 51 430 28 62 421 90 234 73 434 50 71 97 72 86 86 119 117 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST (A)	1-31131-027-0	01	1	9706-9807
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	9808-1410
24	COVER; CHECK HOLE,DUST (B)	8-98284-107-0	01	1	1411-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9706-0104
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512
27	BOLT; COVER TO CLU HSG M8X16 FLANGE MAL	0-28050-816-0	02	1	0601-
28	COVER; FRT,TRANS CASE	1-33121-134-1	01	1	9706-
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9706-0805
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9706-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	9706-
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9706-
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9706-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9706-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 MAL	1-09623-058-0	01	1	9706-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 MAL	1-09623-058-0	01	1	9706-
51	COVER; SEAL,COUNTER,FRT	1-33319-056-1	01	1	9706-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9706-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	9706-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9706-0512
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9706-
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	9706-
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	9706-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9706-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). JTEKT	1-09625-522-0	01	1	9706-9710
97	STUD; PARKING BRK M14X22.5 L=42.5	8-97365-445-0	01	1	9706-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9706-0805
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9706-0604
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9706-0602
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE MAL	0-91180-210-0	02	1	0603-
234	COVER; OIL SEAL	1-33139-001-1	01	1	9706-
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9706-9802
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-0201
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-
421	COVER; RR,TRANS	1-33131-058-5	01	1	9706-
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9706-
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9706-
434	HOUSING; CLU	1-31110-154-1	01	1	9706-0203
434	HOUSING; CLU	1-31110-207-0	01	1	0204-
435	CASE; TRANS	1-33111-239-1	01	1	9706-0112
435	CASE; TRANS	1-33111-318-0	01	1	0201-0303
435	CASE; TRANS	1-33111-340-0	01	1	0304-

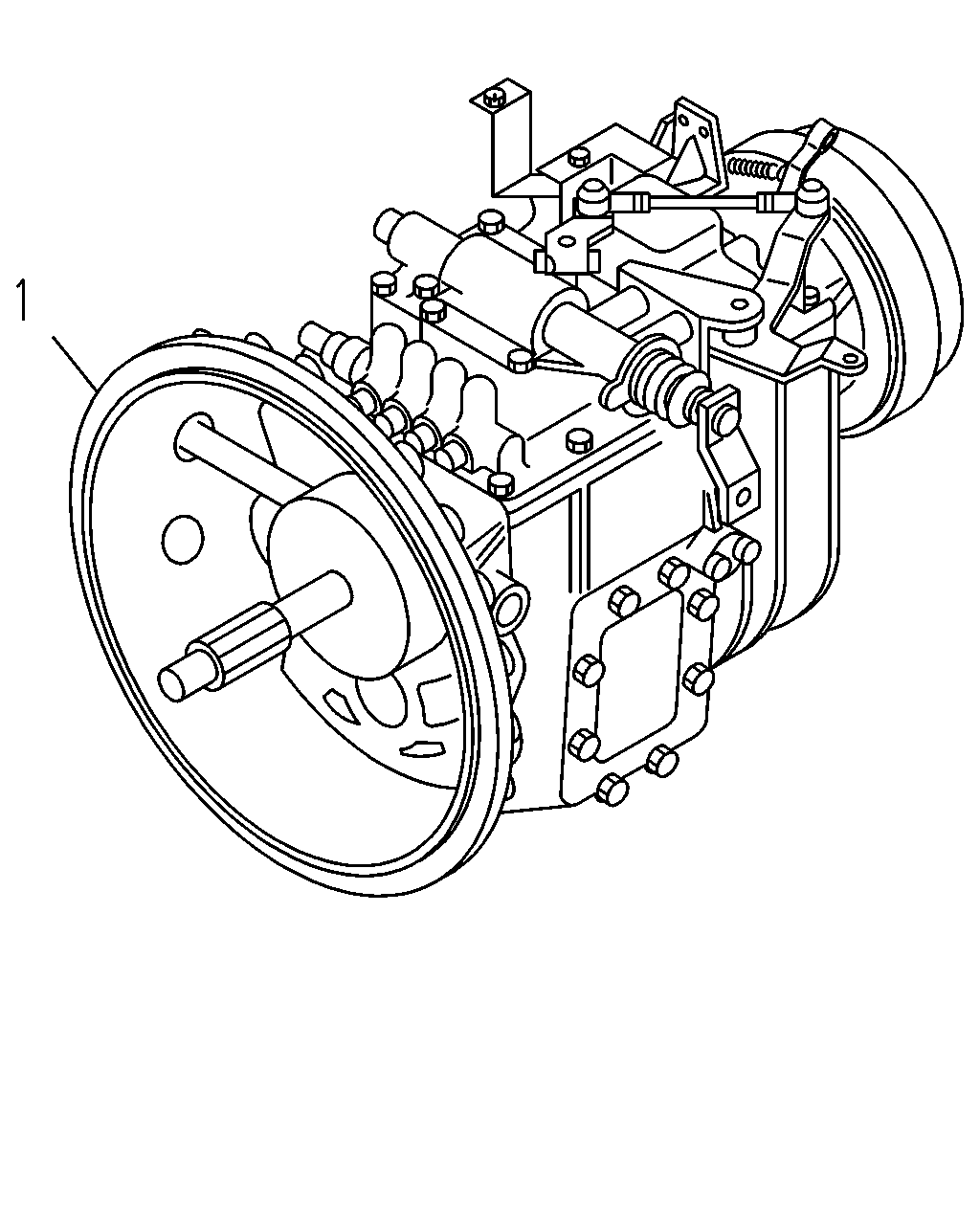

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-524-0	01	1	9706-
	1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-524-0	01	1	9706-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
