◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11364 - FSR(MALAYSIA)W/B4200 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#23770) — 73 parça
çizim 72147
1 34 36 476 475 475 36 476 5
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
MAL 		1-22122-382-1 01 1 9706-
5 PROTECTOR; HEAT 1-33659-182-1 01 1 9706-
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9706-0410
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411-
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9706-
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-1 02 1 9706-
476 SPRING; VIBNON,EXH PIPE
MAL 		1-09583-298-0 02 1 9706-
çizim 102512
81 121 75 60 107 75 56 70 94 97 97 22 63 105 22 81 121 75 60 81 107 75 56 56 70 94 97 97 22 63 105 22 81 266 75 62 56 75 107 94 22 81 22 70 60 97 105
BalonParca AdiParca NoAdetTipApplied Date
22 CLAMP; EXH PIPE
ID=80-84 MAL 		1-22133-233-0 02 1 9706-
22 CLAMP; EXH PIPE
ID=80-84 MAL 		1-22133-233-0 02 1 9706-
22 CLAMP; EXH PIPE
ID=80-84 MAL 		1-22133-233-0 02 1 9706-
56 BRACKET; CLAMP,EXH PIPE
(C) L=254 		1-22131-527-1 01 1 9706-
56 BRACKET; CLAMP,EXH PIPE
(A) H=119 		1-22139-060-0 01 1 9706-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22139-082-0 01 1 9706-
60 BRACKET; FRAME TO BRKT
(B) 		1-22131-514-0 01 1 9706-
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-679-1 01 1 9706-
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-679-1 01 1 9706-
62 TUBE; DIST,BRKT
L=22 MAL 		9-22159-024-0 01 1 9706-
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9706-
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9706-
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9706-0204
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9706-0204
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0512
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0512
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0512
70 BOLT; BRKT
M10X50 MAL 		0-10856-050-0 01 1 0601-
70 BOLT; BRKT
M10X50 MAL 		0-10856-050-0 01 1 0601-
70 BOLT; BRKT
M10X50 MAL 		0-10856-050-0 01 1 0601-
70 BOLT; BRKT
M10X55 MAL 		0-10806-055-0 01 1 9706-0204
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9706-
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9706-
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 9706-
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 9706-0602
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 01 1 0603-
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9706-0602
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 0603-
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9706-0603
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9706-0603
81 NUT; BRKT
(A) M10 LOCK NUT MAL 		0-91370-010-0 01 1 0604-
81 NUT; BRKT
(A) M10 LOCK NUT MAL 		0-91370-010-0 01 1 0604-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 04 1 9706-0812
97 WASHER; PL,CLAMP
(B) ID=10.5 MAL 		0-91614-510-0 02 1 0901-0907
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9706-0812
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9706-0812
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0901-
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0901-
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0901-
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9706-9810
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9706-0512
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9706-0512
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9706-0512
105 NUT; CLAMP
M10 MAL 		0-91110-510-0 02 1 0601-
105 NUT; CLAMP
M10 MAL 		0-91110-510-0 02 1 0601-
105 NUT; CLAMP
M10 MAL 		0-91110-510-0 02 1 0601-
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9706-0512
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
107 BOLT; BRKT
(B) M10X35 FLANGE MAL 		0-28681-035-0 02 1 9706-0512
107 BOLT; BRKT
(B) M10X35 FLANGE MAL 		0-28651-035-0 02 1 0601-
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9706-0605
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9706-0605
121 WASHER; PL,BRKT
ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 0606-
121 WASHER; PL,BRKT
ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 0606-
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9706-0204

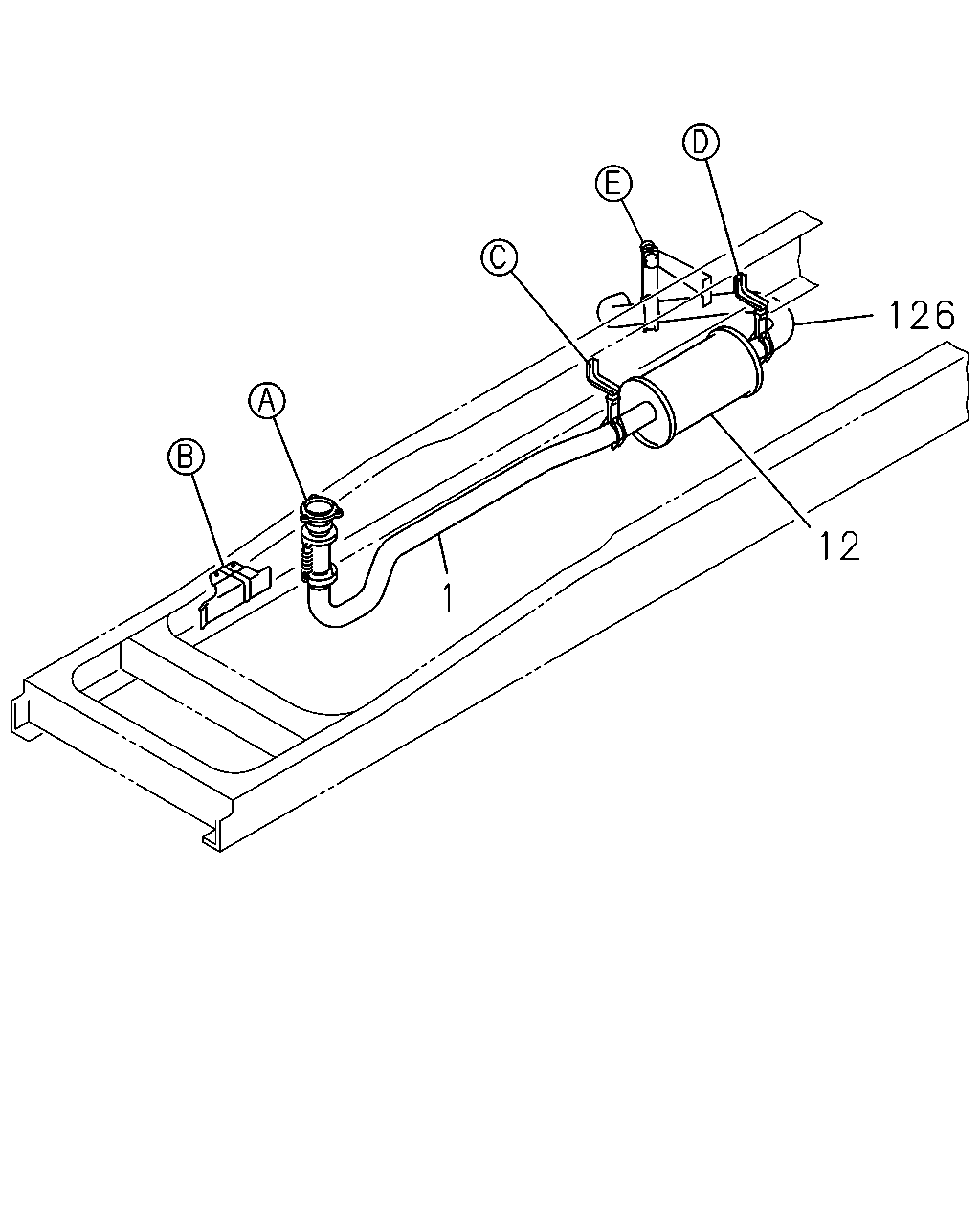

çizim 102513
126 12 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
MAL 		1-22122-382-1 01 1 9706-
12 SILENCER ASM; EXH 1-22140-752-0 01 1 9706-9807
12 SILENCER ASM; EXH
MAL 		1-22140-873-0 01 1 9808-0205
12 SILENCER ASM; EXH
MAL 		1-22140-880-0 01 1 0206-
126 PIPE; EXH,RR
MAL 		1-22126-119-1 01 1 9706-
