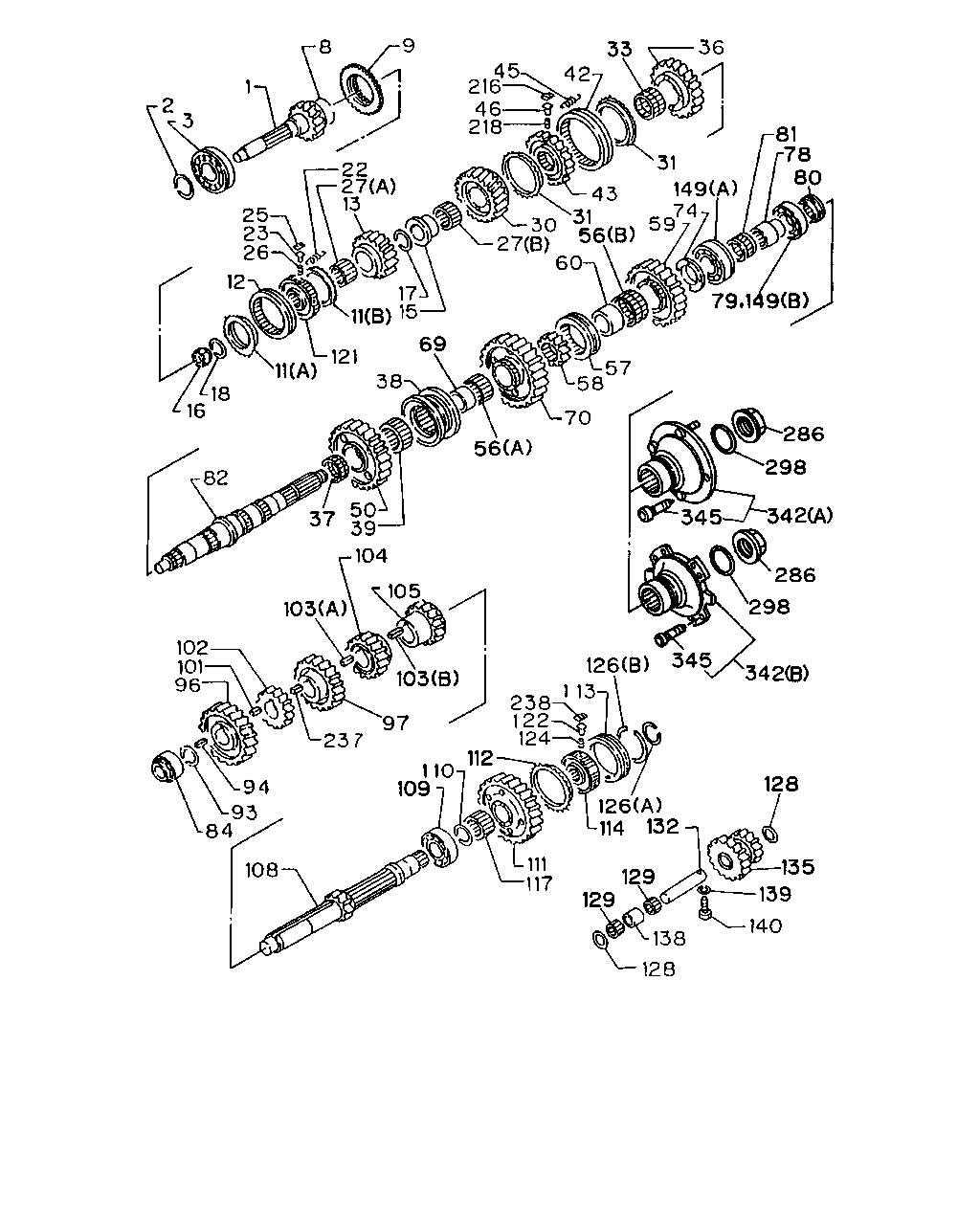

2-26A — MANUAL TRANSMISSION GEAR (#2377) — 138 parça

2 1 3 8 9 33 42 45 216 36 46 218 22 27 13 25 23 26 12 17 11 15 11 121 18 16 69 38 82 50 37 39 104 103 105 102 101 96 103 97 237 94 93 84 108 109 110 112 111 117 129 128 129 114 124 238 113 122 126 132 128 140 138 135 139 342 126 345 298 286 342 345 298 286 56 70 58 57 60 27 30 31 43 56 59 74 149 31 81 78 80 79 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-9306	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-		●
1	SHAFT; TOP GEAR,TRANS 10PD1 STD ENG(40L) Z=22	1-33211-611-1	01	1	9002-			●
1	SHAFT; TOP GEAR,TRANS 12PD1 STD ENG(42L) Z=22	1-33211-738-0	01	1	9002-9306			●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9002-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9002-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9002-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9002-	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●
11	RING; BLOCK,5TH & 6TH (A),(B) Z=54	1-33265-290-2	02	1	9002-9406	●	●	●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-5	01	1	9407-		●	●
11	RING; BLOCK,5TH & 6TH (B)	1-33265-426-0	01	1	9407-		●	●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	9002-	●	●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	9002-9306	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	9002-		●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-416-0	01	1	9002-			●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	9002-	●	●	●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	9002-	●		●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205	●	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-353-0	02	1	9206-	●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205	●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-360-0	02	1	9206-	●	●	●
27	BEARING; 4TH GEAR (B) NTN	1-09811-391-0	02	1	9412-		●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9002-	●	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-333-0	02	1	9002-9111	●	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-376-3	02	1	9112-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-226-0	01	1	9002-9205	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9206-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9002-	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-246-0	01	1	9002-9205	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9206-	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	9002-	●	●	●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	9002-	●	●	●
42	SLEEVE	1-33262-133-2	01	1	9002-	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-154-4	01	1	9002-9204	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-178-2	01	1	9205-	●	●	●
45	SPRING; BLOCK INSERT	1-09583-171-0	03	1	9002-	●	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-	●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205	●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9206-	●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205	●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9206-	●	●	●
57	SLEEVE; REV	1-33262-112-1	01	1	9002-	●	●	●
58	HUB; CLU,REV	1-33261-164-1	01	1	9002-	●	●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-	●	●
59	GEAR; REV MAINSHAFT Z=39-38	1-33257-045-0	01	1	9002-			●
60	COLLAR; REV MAIN	1-33234-062-0	01	1	9002-9302	●	●	●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	9303-	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-1	01	1	9002-	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-044-1	01	1	9002-			●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	9002-	●	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9002-	●		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9002-		●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-148-0	01	1	9002-9203	●		●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-172-0	01	1	9204-9306	●		●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-149-0	01	1	9002-9205	●		●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-173-0	01	1	9206-9306	●		●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) Z=7	1-33371-021-4	01	1	9002-	●	●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-028-0	01	1	9002-9306		●	●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	9002-	●		●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	9002-	●		●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	9002-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9002-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9002-	●	●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-9306	●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-		●
96	GEAR; COUNTER DRIVE Z=46	1-33331-178-0	01	1	9002-			●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	9002-9306	●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	9002-		●
97	GEAR; 5TH,COUNTER Z=41	1-33338-231-0	01	1	9002-			●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-	●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9002-	●	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-	●	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9002-	●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-	●	●	●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110	●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-9306	●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-		●
108	SHAFT; COUNTER Z=21-13	1-33311-190-0	01	1	9002-9110			●
108	SHAFT; COUNTER Z=21-13	1-33311-239-0	01	1	9111-			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9002-	●	●	●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	9002-	●		●
112	RING; BLOCK,7TH SYN	1-33265-213-1	01	1	9002-9203	●		●
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	01	1	9204-	●		●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-121-2	01	1	9002-	●		●
114	HUB; CLU,7TH	1-33261-152-1	01	1	9002-9205	●		●
114	HUB; CLU,7TH	1-33261-177-2	01	1	9206-	●		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-248-0	01	1	9002-9205	●		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	9206-	●		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-390-0	02	1	9412-9601	●		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	9602-	●		●
121	HUB; CLU,6TH	1-33261-134-0	01	1	9002-9204	●	●	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9205-	●	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●		●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9002-	●	●	●
126	RING; SNAP,CLU HUB (B) ID=130 T=2.5	1-09588-040-0	01	1	9002-	●		●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-	●		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-	●	●	●
132	SHAFT; REV	1-33351-016-1	01	1	9002-	●	●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-	●	●
135	GEAR; REV IDLER Z=25-30	1-33361-046-0	01	1	9002-			●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9002-	●	●	●
139	WASHER; LK,PIECE ID=10.5 TOOTH LK INT	9-09151-210-0	01	1	9002-9205	●	●	●
140	BOLT; LK PIECE M10X16	0-23801-016-0	01	1	9002-9205	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9206-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9002-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9002-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9307-			●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9307-			●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	9002-	●	●	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD	1-09580-091-1	03	1	9002-	●	●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	9002-	●	●	●
238	INSERT	1-33263-025-2	03	1	9002-	●		●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	9002-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9002-	●	●	●
342	FLANGE; OUTPUT P90 PROP SHAFT<C5T> (A)	1-37243-171-4	01	1	9002-	●	●	●
342	FLANGE; OUTPUT P115 PROP SHAFT<C5X> (B)	1-37243-203-0	01	1	9002-		●	●
345	BOLT; FLANGE TO YOKE P115 PROP SHAFT<C5X>	1-46219-069-0	04	1	9002-		●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-048-1	04	1	9307-9412		●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-086-0	04	1	9501-		●	●
