Isuzu WW
▶
TRUCKS
▶
FSR
▶
11364 - FSR(MALAYSIA)W/B4200
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

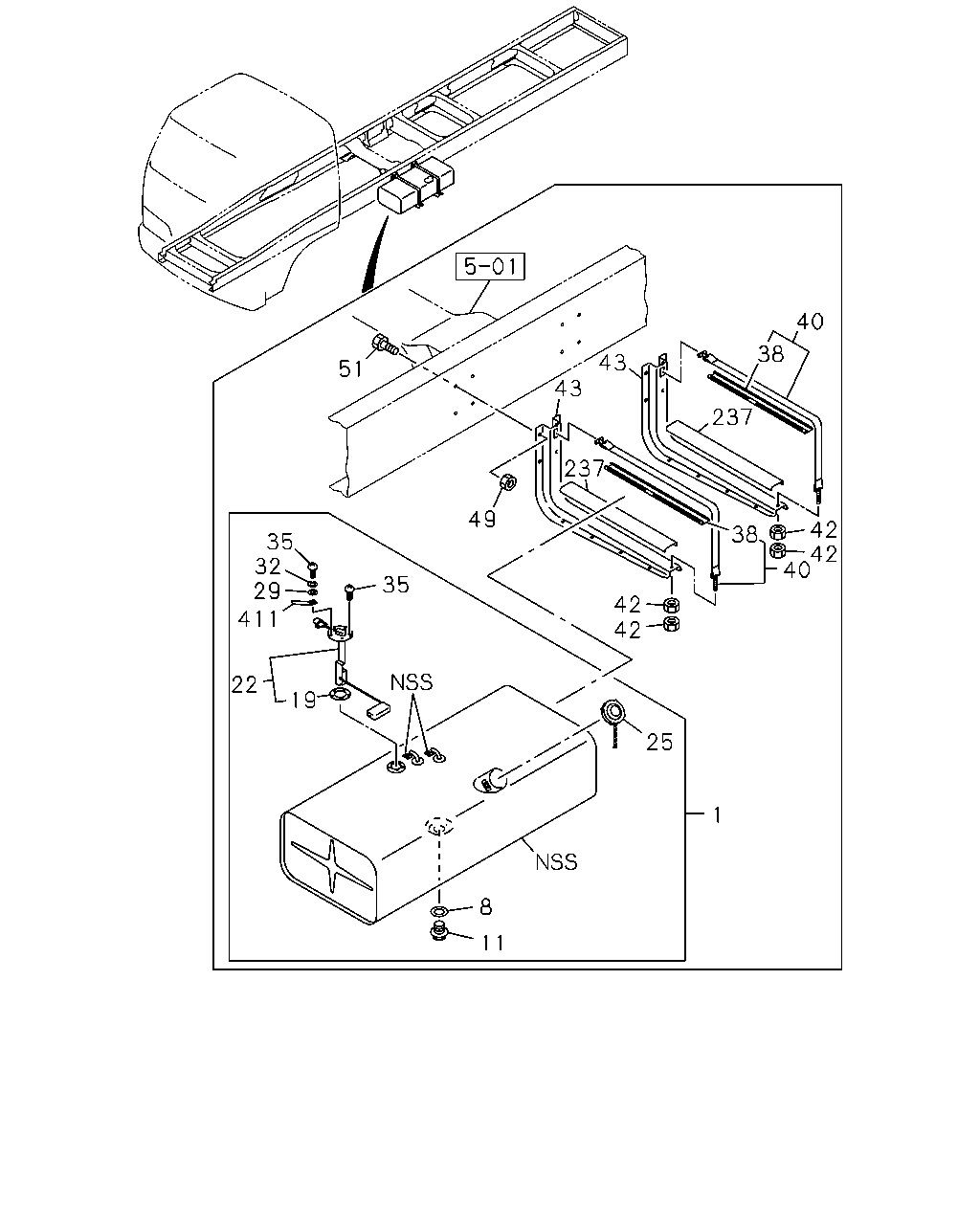

1-40 — FUEL TANK
(#23767) — 27 parça
40
38
43
51
43
237
237
49
42
42
40
38
35
32
29
35
42
42
411
22
19
25
1
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1220X533X323 200L
1-22400-995-2
01
1
9706-
8
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
9-09923-030-0
01
1
9706-0509
8
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
8-98030-375-0
01
1
0510-
11
PLUG; DRAIN,FUEL TANK
M36
1-09604-052-0
01
1
9706-0005
11
PLUG; DRAIN,FUEL TANK
M36
1-09604-052-0
01
1
0006-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71 MAL
5-83148-001-0
01
1
9706-
22
UNIT; FUEL TANK
1-83141-084-1
01
1
9706-
25
CAP; FILLER,FUEL TANK
1-22440-028-0
01
1
9706-
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
9-09160-505-0
01
1
9706-0605
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
0-91610-505-0
01
1
0606-
32
WASHER; LK,FUEL TANK UNIT
ID=5.1
9-09150-505-0
01
1
9706-0501
35
SCREW; FUEL TANK UNIT
M5X10
9-93497-510-0
05
1
9706-0501
35
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
9-03910-510-0
05
1
0502-0604
35
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER MAL
0-36220-510-0
05
1
0605-
38
INSULATION; SUPPORT BELT
L=540
1-22553-014-2
02
1
0802-
38
INSULATION; SUPPORT BELT
L=540
1-22553-014-2
02
1
9706-0112
40
BELT; SUPPORT,FUEL TANK
L=775
1-22550-211-2
02
1
9706-0112
40
BELT; SUPPORT,FUEL TANK
L=790
1-22550-186-2
02
1
0201-
42
NUT; SUPPORT BELT
M10
9-09110-510-0
04
1
9706-0512
42
NUT; SUPPORT BELT
M10 MAL
0-91110-510-0
04
1
0601-
43
BRACKET; FUEL TANK
1-53461-206-1
02
1
9706-
49
NUT; BRKT
M12 FLANGE
0-91150-212-0
12
1
9706-0602
49
NUT; BRKT
M12 FLANGE MAL
0-91180-212-0
12
1
0603-
51
BOLT; BRKT TO FRAME
M12X35 FLANGE
0-28681-235-0
12
1
9706-0512
51
BOLT; BRKT TO FRAME
M12X35 FLANGE
0-28651-235-0
12
1
0601-
237
GASKET; BRKT TO FUEL TANK
L=480
1-22553-002-0
02
1
9706-
411
CLIP; FUEL TANK UNIT HARNESS
L=50
1-09700-416-0
01
1
9706-
