◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25B - SPEEDOMETER DRIVEN GEAR ▶
2-25B — SPEEDOMETER DRIVEN GEAR (#2376) — 19 parça

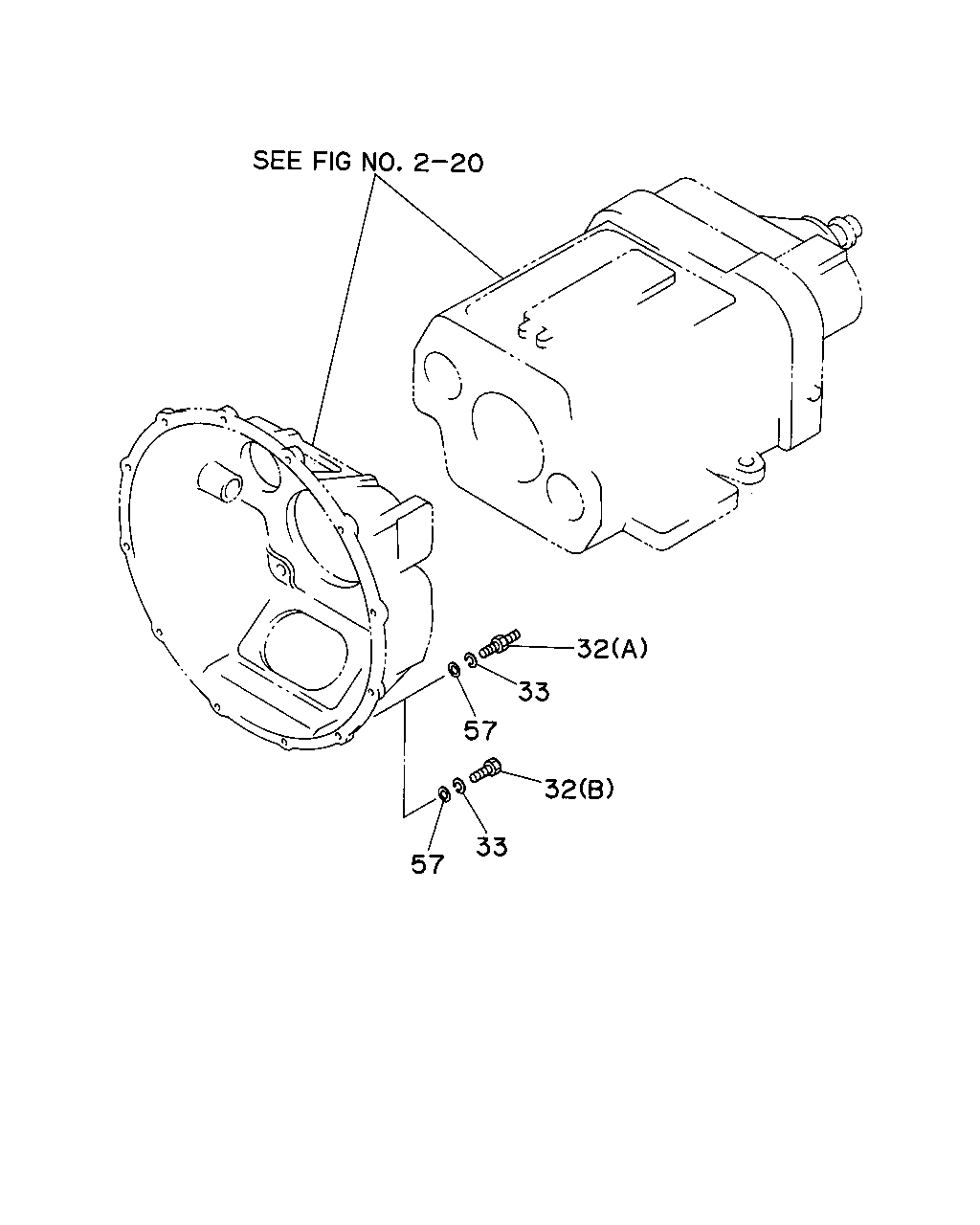

çizim 93772
32 33 57 32 33 57
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
32 BOLT; CLU HSG TO FLYWHEEL HSG
8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) (A) M10X16,M12X35 L=59 		1-09029-031-1 02 1 9002- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X45 		9-02351-245-0 03 1 9002-9205 ● ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X45 		0-50151-245-0 03 1 9206- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (A) M10X16,M12X35 L=59 		1-09029-031-1 01 1 9002- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X16,M12X35 L=59 		1-09029-031-1 01 1 9002- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (B) M12X35 		9-02351-235-0 08 1 9002-9005 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X35 		9-02351-235-0 08 1 9002-9005 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (B) M12X35 		0-23801-235-0 08 1 9006-9205 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X35 		0-23801-235-0 08 1 9006-9205 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (B) M12X35 W/LK&PL WASHER 		0-50151-235-0 08 1 9206-9306 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X35 W/LK&PL WASHER 		0-50151-235-0 08 1 9206-9306 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6RB1TC ENG(30L) (B) M12X35 W/LK&PL WASHER 		0-50151-235-0 08 1 9307- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
8PD1 STD ENG(38L),10PD1 STD ENG(40L) (B) M12X35 W/LK&PL WASHER 		0-50151-235-0 07 1 9307- ● ●
33 WASHER; LK,CLU HSG
8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) ID=12.2 		9-09150-612-0 02 1 9206- ● ● ●
33 WASHER; LK,CLU HSG
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) ID=12.2 		9-09150-612-0 01 1 9206- ● ● ●
33 WASHER; LK,CLU HSG
ID=12.2 		9-09150-612-0 01 1 9206- ● ● ●
57 WASHER; PL,CLU HSG
8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) ID=12.5 		9-09164-512-0 02 1 9206- ● ● ●
57 WASHER; PL,CLU HSG
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) ID=12.5 		9-09164-512-0 01 1 9206- ● ● ●
57 WASHER; PL,CLU HSG
ID=12.5 		9-09164-512-0 01 1 9206- ● ● ●
