1 |

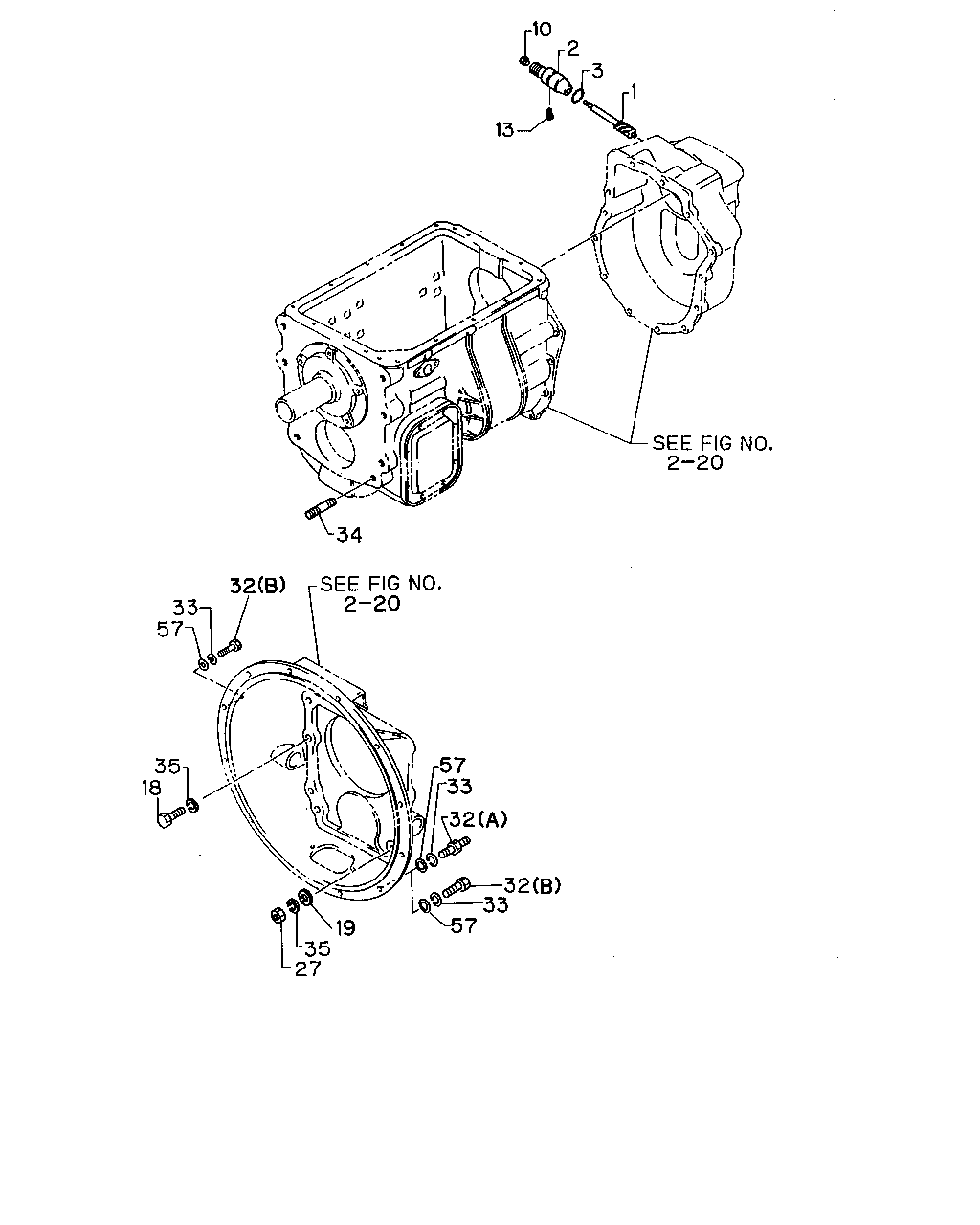

GEAR; DRIVEN,SPD
FINAL GEAR 39/7 17.5"(W3Z)
RR TIRE 10.00R20<87X>
Z=19
|
1-33372-145-4 |
01 |
1 |
9002- |
● |
● |
● |
| |
1 |
GEAR; DRIVEN,SPD
FINAL GEAR 39/7 17.5"(W3Z)
RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X>,RR
TIRE 11.00-20<97X>
Z=18
|
1-33372-144-4 |
01 |
1 |
9002- |
● |
● |
● |
| |
1 |
GEAR; DRIVEN,SPD
FINAL GEAR 43/7 17.5"(W3Y)
Z=20
|
1-33372-146-4 |
01 |
1 |
9002- |
● |
● |
● |
| |
1 |
GEAR; DRIVEN,SPD
FINAL GEAR 43/6 17.5"(W3U)
RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR
TIRE 10.00-20<96X>
Z=17
|
1-33372-153-1 |
01 |
1 |
9002-9306 |
|
|
● |
| |
1 |
GEAR; DRIVEN,SPD
FINAL GEAR 43/6 17.5"(W3U)
RR TIRE 11.00-20<97X>
Z=16
|
1-33372-084-3 |
01 |
1 |
9002-9306 |
● |
|
● |
| |
2 |
BUSHING; DRIVEN GEAR,SPEEDOMETER
|
1-33373-056-2 |
01 |
1 |
9002-9309 |
● |
● |
● |
| |
2 |
BUSHING; DRIVEN GEAR,SPEEDOMETER
|
1-33373-074-0 |
01 |
1 |
9310- |
● |
|
● |
| |
3 |
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
|
1-09623-246-0 |
01 |
1 |
9002- |
● |
● |
● |
| |
10 |
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T).
NOK
|
1-09625-113-0 |
01 |
1 |
9002-9003 |
● |
● |
● |
| |
10 |
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T).
NOK
|
1-09625-510-0 |
01 |
1 |
9004- |
● |
● |
● |
| |
13 |
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
|
1-09044-063-0 |
01 |
1 |
9002- |
● |
● |
● |
| |
18 |
BOLT; CLU HSG TO TRANS
M16X50
|
9-92351-650-0 |
06 |
1 |
9002-9005 |
● |
● |
● |
| |
18 |
BOLT; CLU HSG TO TRANS
M16X50
|
0-23801-650-0 |
06 |
1 |
9006-9203 |
● |
● |
● |
| |
18 |
BOLT; CLU HSG TO TRANS
M16X50 W/LK&PL WASHER
|
0-50151-650-0 |
06 |
1 |
9204- |
● |
● |
● |
| |
19 |
WASHER; PL,CLU HSG TO TRANS
ID=17
|
9-09160-516-0 |
02 |
1 |
9204- |
● |
● |
● |
| |
27 |
NUT; CLU HSG TO TRANS
M16
|
9-99110-516-0 |
02 |
1 |
9002- |
● |
● |
● |
| |
32 |
BOLT; CLU HSG TO FLYWHEEL HSG
(B)
M12X35 W/LK&PL WASHER
|
0-50151-235-0 |
10 |
1 |
9206- |
|
● |
● |
| |
32 |
BOLT; CLU HSG TO FLYWHEEL HSG
EXC. 15? CLUCH TWIN PLATE(SGL)
(B)
M12X35 W/LK&PL WASHER
|
0-50151-235-0 |
10 |
1 |
9206- |
● |
|
|
| |
32 |
BOLT; CLU HSG TO FLYWHEEL HSG
15? CLUCH TWIN PLATE(SGL)
(A)
M10X16,M12X35 L=59
|
1-09029-031-1 |
02 |
1 |
9002- |
● |
● |
● |
| |
32 |
BOLT; CLU HSG TO FLYWHEEL HSG
15? CLUCH TWIN PLATE(SGL)
(A)
M10X16,M12X67 L=91
|
1-09029-043-1 |
02 |
1 |
9002-9306 |
● |
|
|
| |
32 |
BOLT; CLU HSG TO FLYWHEEL HSG
15? CLUCH TWIN PLATE(SGL)
(B)
M12X65
|
9-01656-265-0 |
10 |
1 |
9002-9005 |
● |
|
|
| |
32 |
BOLT; CLU HSG TO FLYWHEEL HSG
15? CLUCH TWIN PLATE(SGL)
(B)
M12X65
|
0-16806-265-0 |
10 |
1 |
9006-9205 |
● |
|
|
| |
32 |
BOLT; CLU HSG TO FLYWHEEL HSG
15? CLUCH TWIN PLATE(SGL)
(B)
M12X65
|
1-09033-017-0 |
10 |
1 |
9206-9306 |
● |
|
|
| |
33 |
WASHER; LK,CLU HSG
ID=12.2
|
9-09150-612-0 |
02 |
1 |
9206- |
● |
● |
● |
| |
34 |
STUD; CLU HSG
M16X45 L=69
|
9-04411-645-0 |
02 |
1 |
9002- |
● |
● |
● |
| |
35 |
WASHER; LK,CLU HSG TO TRANS
ID=16.2
|
9-09150-516-0 |
02 |
1 |
9002- |
● |
● |
● |
| |
57 |
WASHER; PL,CLU HSG
ID=12.5
|
9-09164-512-0 |
02 |
1 |
9206- |
● |
● |
● |
