Isuzu WW
▶
TRUCKS
▶
FSR
▶
11364 - FSR(MALAYSIA)W/B4200
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶
0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#23745) — 43 parça
◀

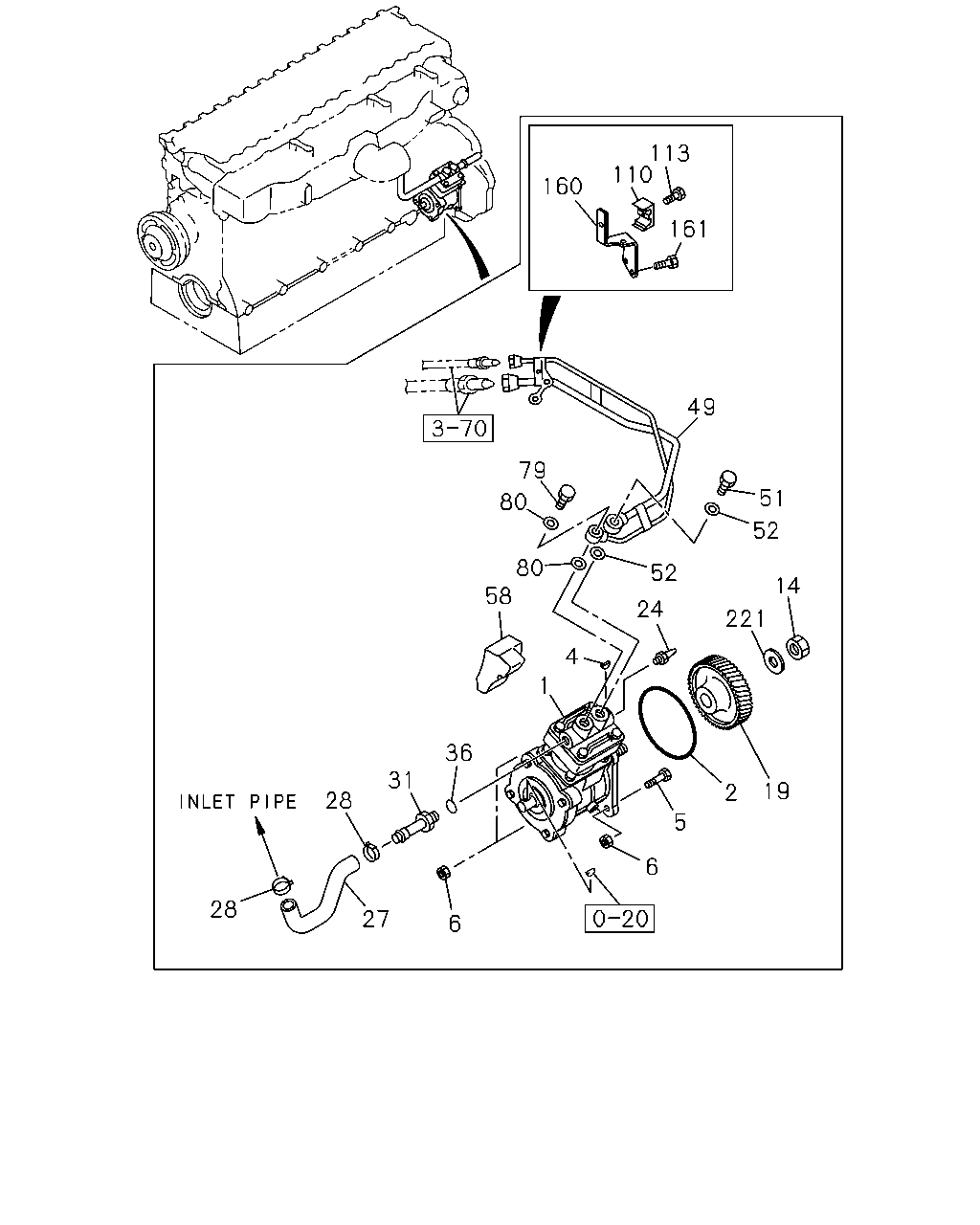

[038A] PIPING AND OTHER PARTS (33 parça)
[038A] AIR CMPR COVER (10 parça)
▶
113
110
160
161
49
79
51
80
52
80
58
52
14
24
221
4
1
36
31
19
2
28
5
6
28
27
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-94396-891-4
01
1
9706-1107
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98187-309-1
01
1
1108-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6
1-09623-464-0
01
1
9706-
4
KEY; INJ PUMP GEAR
9-08055-516-0
01
1
9706-
5
BOLT; AIR CMPR FIX
M12X95 FLANGE
8-94396-485-1
01
1
9706-
6
NUT; AIR CMPR
M10 FLANGE MAL
0-91150-110-0
02
1
9706-0602
6
NUT; AIR CMPR
M10 FLANGE MAL
0-91180-110-0
02
1
0603-
6
NUT; AIR CMPR
M12 FLANGE
0-91150-112-0
01
1
9706-0602
6
NUT; AIR CMPR
M12 FLANGE MAL
0-91180-112-0
01
1
0603-
14
NUT; GEAR
M20
9-99110-520-0
01
1
9706-0512
14
NUT; GEAR
M20
0-91110-520-0
01
1
0601-
19
GEAR; INJ PUMP
Z=35
8-94336-157-4
01
1
9706-
24
POINTER; AIR CMPR
L=21
9-11327-602-0
01
1
9706-
27
HOSE; AIR CMPR,SUCTION
8-94394-809-1
01
1
9706-
28
CLIP; HOSE,AIR CMPR
ID=26
1-09707-091-0
02
1
9706-
31
PIPE; AIR,AIR CMPR SUCTION
8-94399-942-1
01
1
9706-
36
GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
01
1
9706-
49
PIPE; AIR,CHARGE
8-94390-063-1
01
1
9706-0112
49
PIPE; AIR,CHARGE
8-94394-275-1
01
1
0201-
51
BOLT; EYE,AIR PIPE TO CMPR
M20X38
1-09675-133-1
01
1
9706-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0
9-09571-420-0
02
1
9706-
58
SPACER; AIR CMPR
8-94395-675-1
01
1
9706-
79
BOLT; EYE,AIR PIPE TO CMPR
M18X33
1-09675-058-0
01
1
9706-
80
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4
1-09630-087-0
02
1
9706-
110
CLIP; AIR PIPE
8-94393-037-0
01
1
9706-
113
BOLT; CLIP,AIR PIPE
M6X40 W/LK&PL WASHER
0-50140-640-0
01
1
9706-9709
113
BOLT; CLIP,AIR PIPE
M6X40 FLANGE
0-28080-640-0
01
1
9710-0512
113
BOLT; CLIP,AIR PIPE
M6X40 FLANGE
0-28050-640-0
01
1
0601-
160
BRACKET; AIR PIPE
8-94394-569-0
01
1
9706-
161
BOLT; BRKT,AIR PIPE
M8X16 FLANGE
0-28080-816-0
02
1
9706-0512
161
BOLT; BRKT,AIR PIPE
M8X16 FLANGE MAL
0-28050-816-0
02
1
0601-
221
WASHER; PL,GEAR
ID=21
9-09160-520-0
01
1
9706-0605
221
WASHER; PL,GEAR
ID=21
0-91610-520-0
01
1
0606-
216
190
217
215
218
190
220
220
190
166
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
166
BOLT; COVER FIX
M10X25 FLANGE
0-28181-025-0
02
1
9706-9805
166
BOLT; COVER FIX
M10X25 FLANGE
0-28781-025-0
02
1
9806-0512
166
BOLT; COVER FIX
M10X25 FLANGE
0-28751-025-0
02
1
0601-
190
WASHER; PL,COVER
ID=10.5 OD=26
9-09160-710-0
03
1
9706-
215
COVER; AIR CMPR
8-94390-408-0
01
1
9706-
216
SPACER; COVER
8-94394-990-1
01
1
9706-
217
NUT; COVER
M10
9-09110-410-0
01
1
9706-0512
217
NUT; COVER
M10 MAL
0-91110-510-0
01
1
0601-
218
INSULATOR; COVER
8-94394-995-2
01
1
9706-
220
TUBE; DIST
OD=13 T=9.5
8-94140-427-1
03
1
9706-
