◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20B - MANUAL TRANSMISSION ASM AND CASE ▶
2-20B — MANUAL TRANSMISSION ASM AND CASE (#2374) — 60 parça

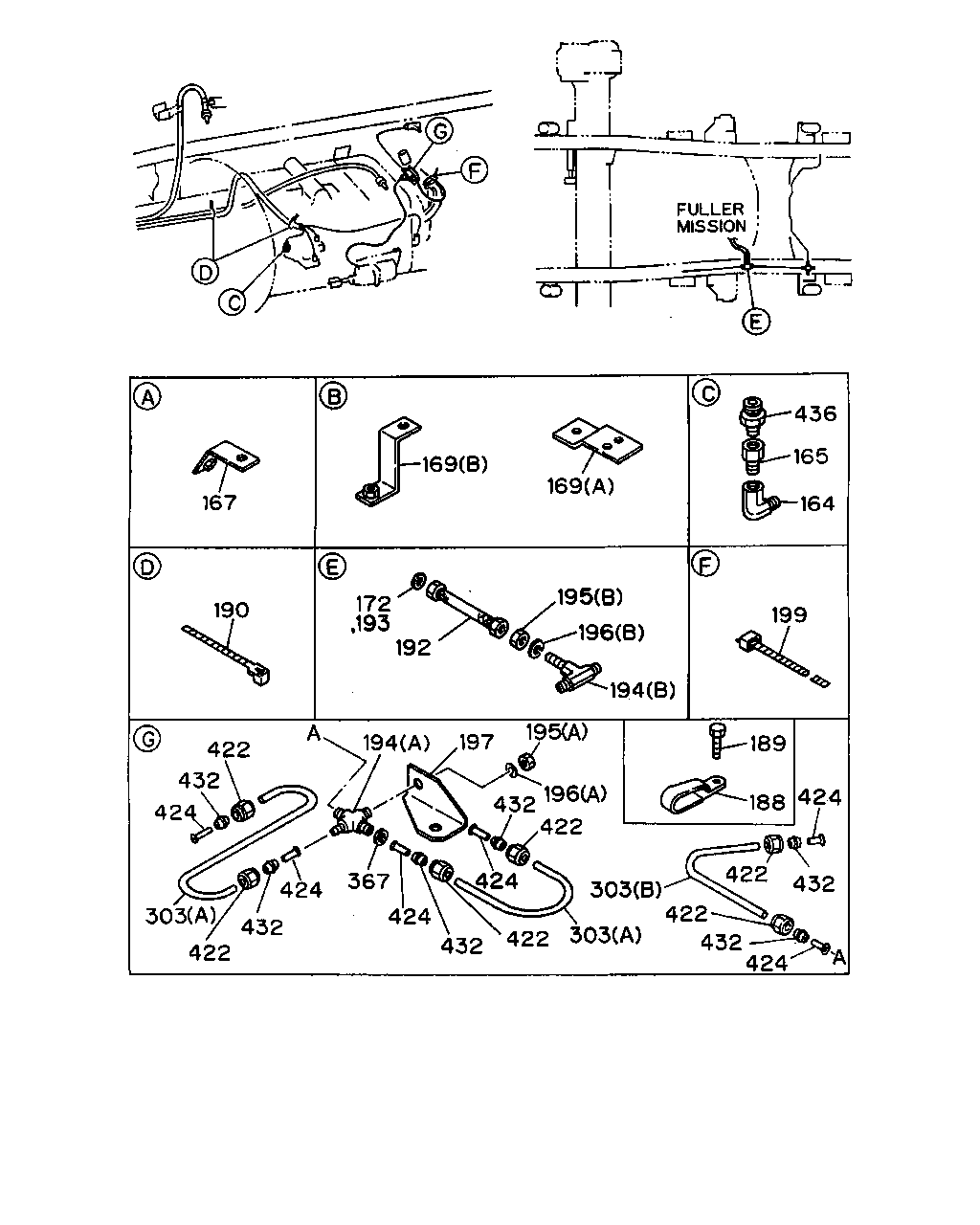

çizim 27962
167 169 169 436 165 164 199 195 196 194 192 193 172 190 422 432 424 303 422 432 424 367 424 432 422 303 432 424 422 303 424 432 422 195 197 194 196 189 188 424 422 432
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
164 CONNECTOR; ELBOW 1-33619-290-0 02 1 9002- ● ● ● ● ● ●
165 ADAPTER; STRAIGHT 1-33619-291-0 02 1 9002- ● ● ● ● ● ●
167 BRACKET; CLIP,AIR TUBE 1-47465-769-0 01 1 9002- ● ● ● ● ● ●
169 BRACKET; CLIP,PIPE HOSE
(A) 		1-47475-633-0 01 1 9002- ● ● ● ● ● ●
169 BRACKET; CLIP,PIPE HOSE
8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) (B) 77X80 T=3.2 		1-46147-083-0 01 1 9002- ● ● ●
169 BRACKET; CLIP,PIPE HOSE
8PD1 STD ENG(38L),10PD1 STD ENG(40L),12PD1 STDENG(42L) (B) 50X65 		1-47475-689-0 01 1 9002- ● ● ●
172 GASKET; AIR HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9307- ● ● ●
188 CLIP; PIPE,BRKT
ID=10.5 & 14.5 L=20 		1-09700-716-0 01 1 9002-9007 ● ● ● ● ● ●
188 CLIP; PIPE,BRKT
ID=10.5 & 14.5 L=20 		1-09701-085-0 01 1 9008-9306 ● ● ● ● ● ●
188 CLIP; PIPE,BRKT
ID=18 L=50 		1-09701-072-0 01 1 9307-9412 ● ● ●
188 CLIP; PIPE,BRKT
ID=19 L=50 		9-09525-886-0 01 1 9501- ● ● ●
189 BOLT; PIPE CLIP
M8X16 W/LK WASHER 		9-01910-816-0 01 1 9002-9005 ● ● ● ● ● ●
189 BOLT; PIPE CLIP
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9006-9302 ● ● ● ● ● ●
189 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9303- ● ● ● ● ● ●
190 CLIP; BAND,CONT TUBE
L=250 		5-09707-030-0 01 1 9002- ● ● ● ● ● ●
190 CLIP; BAND,CONT TUBE
L=140 		5-09707-031-0 01 1 9002-9007 ● ● ● ● ● ●
190 CLIP; BAND,CONT TUBE
L=140 		5-09707-031-0 02 1 9008- ● ● ● ● ● ●
192 HOSE; FLEX,TRANS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=480 		0-07150-480-0 01 1 9002- ● ● ● ● ● ●
192 HOSE; FLEX,TRANS
12PD1 STD ENG(42L) L=600 		0-07150-600-0 01 1 9002-9306 ● ●
192 HOSE; FLEX,TRANS
8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> L=650 		0-07150-650-0 01 1 9002- ● ● ●
193 GASKET; FLEX HOSE
EXC. NYLON TUBE AIR PIPING<Z29> ID=11 OD=18 		9-09572-510-0 02 1 9002- ● ● ● ● ● ●
194 UNION; NYLON TUBE
NYLON TUBE AIR PIPING<Z29> (A) M14 3WAY 		1-09664-066-0 01 1 9002-9306 ● ● ●
194 UNION; NYLON TUBE
NYLON TUBE AIR PIPING<Z29> (A) 		1-09660-545-0 01 1 9307- ● ●
194 UNION; NYLON TUBE
NYLON TUBE AIR PIPING<Z29> (B) 		1-09664-104-0 01 1 9307- ● ●
195 NUT; TUBE UNION
NYLON TUBE AIR PIPING<Z29> (A) M12 		9-99110-412-0 01 1 9002-9304 ● ● ●
195 NUT; TUBE UNION
NYLON TUBE AIR PIPING<Z29> (A) M12 		9-99110-512-0 01 1 9305-9306 ● ● ●
195 NUT; TUBE UNION
NYLON TUBE AIR PIPING<Z29> (A) M12 		9-99110-312-0 01 1 9307- ● ●
195 NUT; TUBE UNION
NYLON TUBE AIR PIPING<Z29> (B) UNS 17/32-24 B=17 		1-09487-023-0 01 1 9307- ● ●
196 WASHER; LK,TUBE UNION
NYLON TUBE AIR PIPING<Z29> (A) ID=12.2 		9-09150-512-0 01 1 9002- ● ● ●
196 WASHER; LK,TUBE UNION
NYLON TUBE AIR PIPING<Z29> (B) ID=14.2 		9-09150-514-0 01 1 9307- ● ●
197 BRACKET; UNION
NYLON TUBE AIR PIPING<Z29> 		1-47475-905-0 01 1 9002- ● ● ●
199 CLIP; NYLON TUBE
NYLON TUBE AIR PIPING<Z29> L=250 		1-09707-126-0 01 1 9002- ● ● ●
303 TUBE; NYLON
NYLON TUBE AIR PIPING<Z29> (A) 		1-09369-578-0 02 1 9002-9306 ● ● ●
303 TUBE; NYLON
NYLON TUBE AIR PIPING<Z29> (B) SERVICED BY L=30000 OD=3/8" 		1-09368-250-0 01 1 9307- ● ●
303 TUBE; NYLON
NYLON TUBE AIR PIPING<Z29> (A) SERVICED BY L=30000 OD=3/8" 		1-09368-250-0 02 1 9307- ● ●
367 WASHER; PL,BRKT
NYLON TUBE AIR PIPING<Z29> 		1-53459-587-0 01 1 9101- ● ● ●
422 NUT; SLEEVE
NYLON TUBE AIR PIPING<Z29> 		1-09660-212-0 04 1 9002-9306 ● ● ●
422 NUT; SLEEVE
NYLON TUBE AIR PIPING<Z29> OD=3/8" 		1-09660-557-0 04 1 9307- ● ●
424 RING; INSERT
NYLON TUBE AIR PIPING<Z29> 		1-09669-054-0 04 1 9002-9306 ● ● ●
424 RING; INSERT
NYLON TUBE AIR PIPING<Z29> OD=3/8" 		1-09669-108-0 06 1 9307-9404 ● ●
424 RING; INSERT
NYLON TUBE AIR PIPING<Z29> OD=3/8" 		1-09669-108-0 02 1 9405- ● ●
424 RING; INSERT
NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91 		1-09666-060-0 02 1 9406- ● ●
432 SLEEVE; TUBE
NYLON TUBE AIR PIPING<Z29> ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9002-9306 ● ● ●
432 SLEEVE; TUBE
NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91 		1-09666-060-0 06 1 9307-9404 ● ●
432 SLEEVE; TUBE
NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91 		1-09666-060-0 02 1 9405- ● ●
432 SLEEVE; TUBE
NYLON TUBE AIR PIPING<Z29> OD=3/8" 		1-09669-108-0 02 1 9406- ● ●
436 CONNECTOR; AIR HOSE,SUPPLY
EXC. NYLON TUBE AIR PIPING<Z29> L=35 		1-09660-039-0 01 1 9002-9306 ● ● ● ● ● ●
436 CONNECTOR; AIR HOSE,SUPPLY
NYLON TUBE AIR PIPING<Z29> M14 & NPT3/8 STRAIGHT 		1-09660-250-0 01 1 9002-9306 ● ● ● ●
436 CONNECTOR; AIR HOSE,SUPPLY
COUNTER SHAFT BRAKE MULTI DISC<BCP> NYLON TUBE AIR PIPING<Z29> L=31.24 		1-09660-555-0 01 1 9307-9412 ●
436 CONNECTOR; AIR HOSE,SUPPLY
COUNTER SHAFT BRAKE MULTI DISC<BCP> NYLON TUBE AIR PIPING<Z29> L=31.24 		1-09660-555-0 01 1 9501- ● ●
436 CONNECTOR; AIR HOSE,SUPPLY
6RB1TC ENG(30L) COUNTER SHAFT BRAKE MULTI DISC<BCP> EXC. NYLON TUBE AIR PIPING<Z29> L=35 		1-09660-039-0 01 1 9307- ●
436 CONNECTOR; AIR HOSE,SUPPLY
8PD1 STD ENG(38L),10PD1 STD ENG(40L) COUNTER SHAFT BRAKE<BAP> L=35 		1-09660-039-0 01 1 9307- ● ●

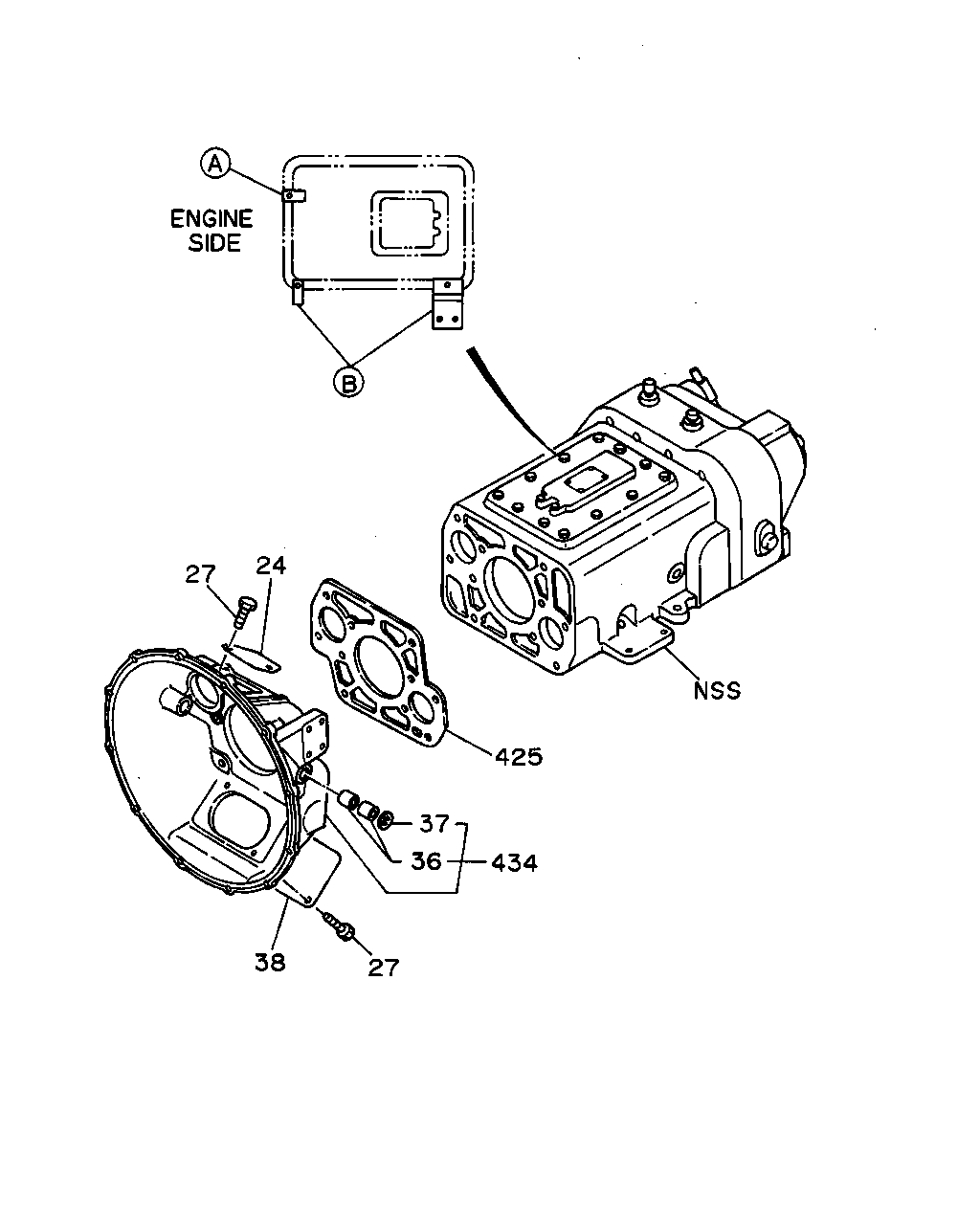

çizim 29514
27 38 36 434 37 425 24 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 COVER; CHECK HOLE,DUST 1-31131-003-0 01 1 9002- ● ● ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		9-01900-816-0 04 1 9002-9204 ● ● ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		0-50040-816-0 04 1 9205- ● ● ● ● ● ●
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-181-0 04 1 9002- ● ● ● ● ● ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-215-0 02 1 9002- ● ● ● ● ● ●
38 COVER; CHECK HOLE,LWR 1-31131-014-0 01 1 9002- ● ● ● ● ● ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-31121-004-0 01 1 9002- ● ● ● ● ● ●
434 HOUSING; CLU 1-31110-103-0 01 1 9002- ● ● ● ● ● ●
