2-20A — MANUAL TRANSMISSION ASM AND CASE (#2373) — 84 parça

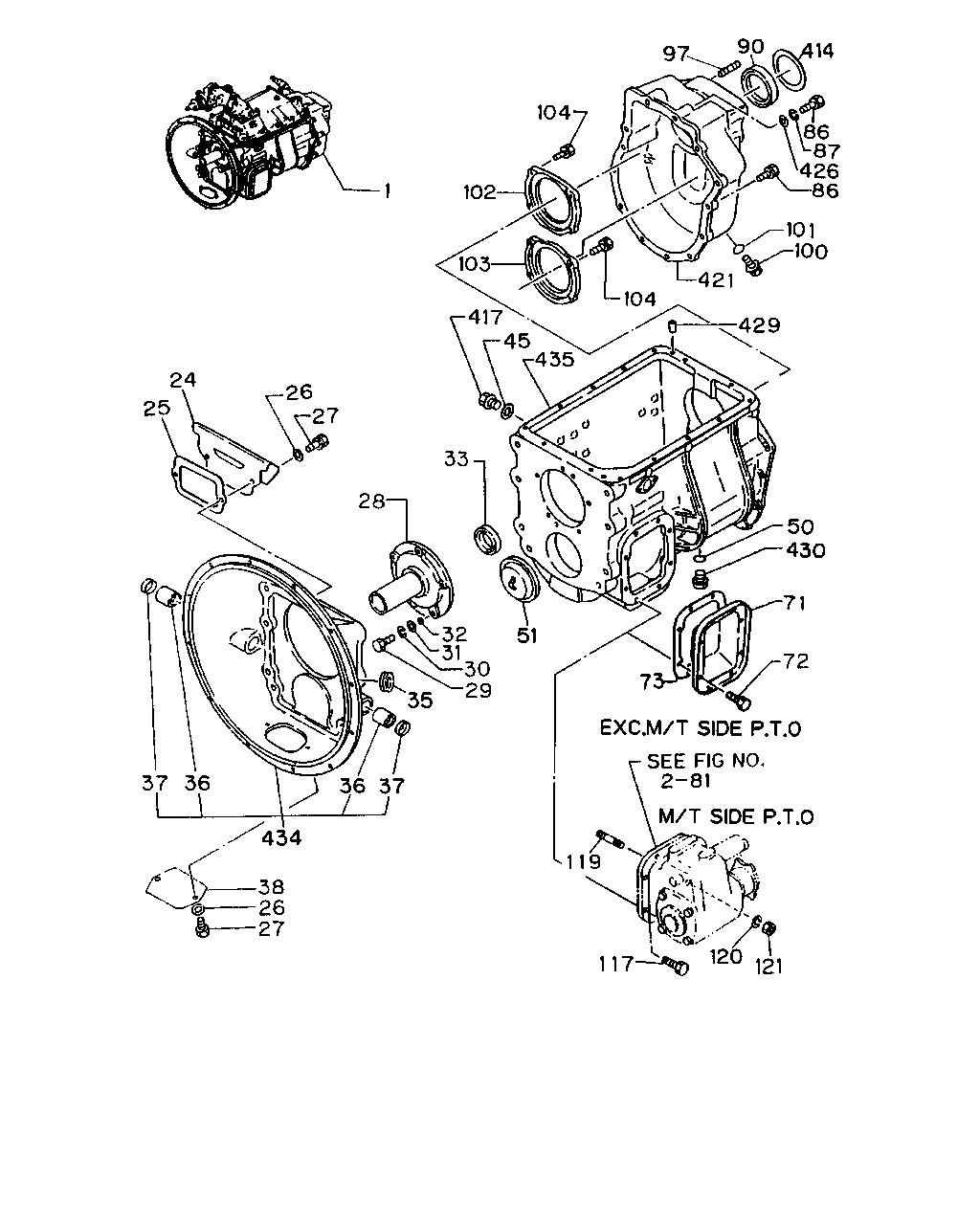

çizim 28139
1 102 104 97 90 414 86 87 426 86 101 100 421 104 103 45 417 429 435 33 27 26 24 25 28 32 31 30 29 51 35 37 36 434 36 37 38 26 27 119 117 120 121 73 72 71 430 50
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TRANSMISSION ASM; MANUAL 1-33026-990-0 01 1 9002- ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) 		1-33026-938-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) 		1-33037-830-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
6RB1 STD ENG(07L) FINAL GEAR 43/6 17.5"(W3U) 		1-33026-921-0 01 1 9002- ●
1 TRANSMISSION ASM; MANUAL
6RB1 STD ENG(07L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-33026-912-0 01 1 9002- ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) FINAL GEAR 43/6 17.5"(W3U) ASSISTER SHIFT CONTROL<WX8> 		1-33027-104-0 01 1 9002- ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) FINAL GEAR 43/6 17.5"(W3U) EXC. ASSISTER SHIFT CONTROL<WX8> 		1-33027-078-0 01 1 9002- ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) EXC. ASSISTER SHIFT CONTROL<WX8> 		1-33027-069-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ASSISTER SHIFT CONTROL<WX8> 		1-33027-095-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ASSISTER SHIFT CONTROL<WX8> 		1-33037-858-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) EXC. ASSISTER SHIFT CONTROL<WX8> 		1-33037-851-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
12PD1 STD ENG(42L) 		1-33027-993-0 01 1 9002- ●
1 TRANSMISSION ASM; MANUAL
6RB1 STD ENG(07L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33032-361-0 01 1 9002- ●
1 TRANSMISSION ASM; MANUAL
6RB1 STD ENG(07L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33032-348-0 01 1 9002- ●
24 COVER; CHECK HOLE,DUST 1-31131-030-0 01 1 9002- ● ● ●
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-31139-008-0 01 1 9002- ● ● ●
26 WASHER; PL,COVER
ID=8.4 OD=22 		9-09160-708-0 02 1 9002-9205 ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		9-01900-816-0 04 1 9002-9204 ● ● ●
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28080-812-0 04 1 9205- ● ● ●
28 COVER; FRT,TRANS CASE 1-33121-063-1 01 1 9002- ● ● ●
29 BOLT; FRT COVER
M10X32 		1-09020-120-1 05 1 9002-9205 ● ● ●
29 BOLT; FRT COVER
M10X28 FLANGE REAMER 		1-09040-089-0 05 1 9206- ● ● ●
30 WASHER; LK,FRT COVER
ID=10.2 		9-09150-510-0 05 1 9002-9205 ● ● ●
31 WASHER; PL,FRT COVER BOLT
ID=10.5 		9-09164-510-0 05 1 9002-9205 ● ● ●
32 GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=10 		1-09623-369-0 05 1 9002- ● ● ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-496-0 01 1 9002- ● ● ●
35 GROMMET; CLU HSG
OD=45 		9-31139-007-0 01 1 9002- ● ● ●
36 BEARING; NEEDLE,CLU HSG 1-09811-087-0 02 1 9002- ● ● ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-003-0 02 1 9002- ● ● ●
38 COVER; CHECK HOLE,LWR 1-31131-003-0 01 1 9002- ● ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5 		9-09920-392-0 01 1 9002-9405 ● ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9406- ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9002- ● ● ●
51 COVER; SEAL,COUNTER,FRT 1-33319-055-1 01 1 9002- ● ● ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33141-030-1 01 1 9002- ● ● ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER 		9-01921-020-0 08 1 9002-9204 ● ● ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER 		0-50051-020-0 08 1 9205-9205 ● ● ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE 		0-28181-016-0 08 1 9206- ● ● ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-33142-037-0 01 1 9002-9411 ● ● ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33142-043-0 01 1 9412- ● ●
86 BOLT; RR COVER
M10X16,M12X35 L=59 		1-09029-031-0 02 1 9002-9205 ● ●
86 BOLT; RR COVER
M12X30 & M10X16 		1-09049-018-0 02 1 9206-9512 ● ●
86 BOLT; RR COVER
M10X16,M12X30 L=57.7 		1-09049-018-0 03 1 9601- ●
86 BOLT; RR COVER
M12X70 		9-01656-270-0 02 1 9002-9205 ● ●
86 BOLT; RR COVER
M12X65 		1-09044-077-0 02 1 9206- ● ●
86 BOLT; RR COVER
M12X40 		9-01991-240-0 10 1 9002-9205 ● ●
86 BOLT; RR COVER
M12X40 		9-01931-240-0 10 1 9002-9205 ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 10 1 9206-9512 ● ● ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 09 1 9601- ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 10 1 9601- ●
87 WASHER; LK,RR COVER
ID=12.2 		9-09150-512-0 04 1 9002-9205 ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-472-0 01 1 9002-9406 ● ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-577-1 01 1 9407- ● ●
97 STUD; PARKING BRK
M16X41 L=62 		1-09302-151-0 01 1 9002- ● ● ●
100 PLUG; DRAIN RR COVER
M24X17 FLANGE 		1-09604-023-0 01 1 9002- ● ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9002- ● ●
102 RETAINER; BRG UPR,MAINSHAFT 1-33151-035-1 01 1 9002- ● ●
103 RETAINER; BRG 1-33151-035-1 01 1 9002- ● ●
104 BOLT; BRG RET
M10X30 W/LK WASHER 		0-50051-030-0 08 1 9002-9205 ● ●
104 BOLT; BRG RET
M10X25 		1-09049-006-1 08 1 9206- ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		0-50051-025-0 03 1 9002-9205 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE 		0-28181-022-0 04 1 9206- ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER 		0-50051-040-0 02 1 9002-9006 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 		0-16806-050-0 02 1 9007-9205 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE 		0-28181-050-0 02 1 9206- ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37 M10X25 L=37.5 		9-04501-025-0 03 1 9002-9203 ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40 		9-04411-025-0 03 1 9204-9205 ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40 		9-04411-025-0 02 1 9206- ● ● ●
120 WASHER; LK,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 05 1 9002-9205 ● ● ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 		9-09110-410-0 03 1 9002-9205 ● ● ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91150-210-0 02 1 9206- ● ● ●
414 COVER; DUST,RR COVER 1-33139-011-1 01 1 9002- ● ● ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-021-0 01 1 9002-9405 ● ● ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 9406- ● ●
421 COVER; RR,TRANS 1-33131-122-2 01 1 9002-9011 ● ●
421 COVER; RR,TRANS 1-33131-138-1 01 1 9012- ● ●
421 COVER; RR,TRANS 1-33131-109-1 01 1 9002- ●
426 WASHER; PL,RR COVER
ID=12.5 		9-09160-512-0 04 1 9002-9205 ● ●
429 PIN; STRAIGHT
OD=10 L=18 		9-08151-018-0 02 1 9002- ● ● ●
430 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-023-0 01 1 9002- ● ● ●
434 HOUSING; CLU
6RB1 STD ENG(07L),10PD1 STD ENG(40L) STEEL 		1-31110-118-8 01 1 9002- ● ● ●
434 HOUSING; CLU
12PD1 STD ENG(42L) STEEL 		1-31110-134-0 01 1 9002-9306 ●
435 CASE; TRANS 1-33111-195-1 01 1 9002- ● ●
435 CASE; TRANS 1-33111-197-1 01 1 9002- ●
