◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11032 - LT134(LHD) EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#23720) — 34 parça

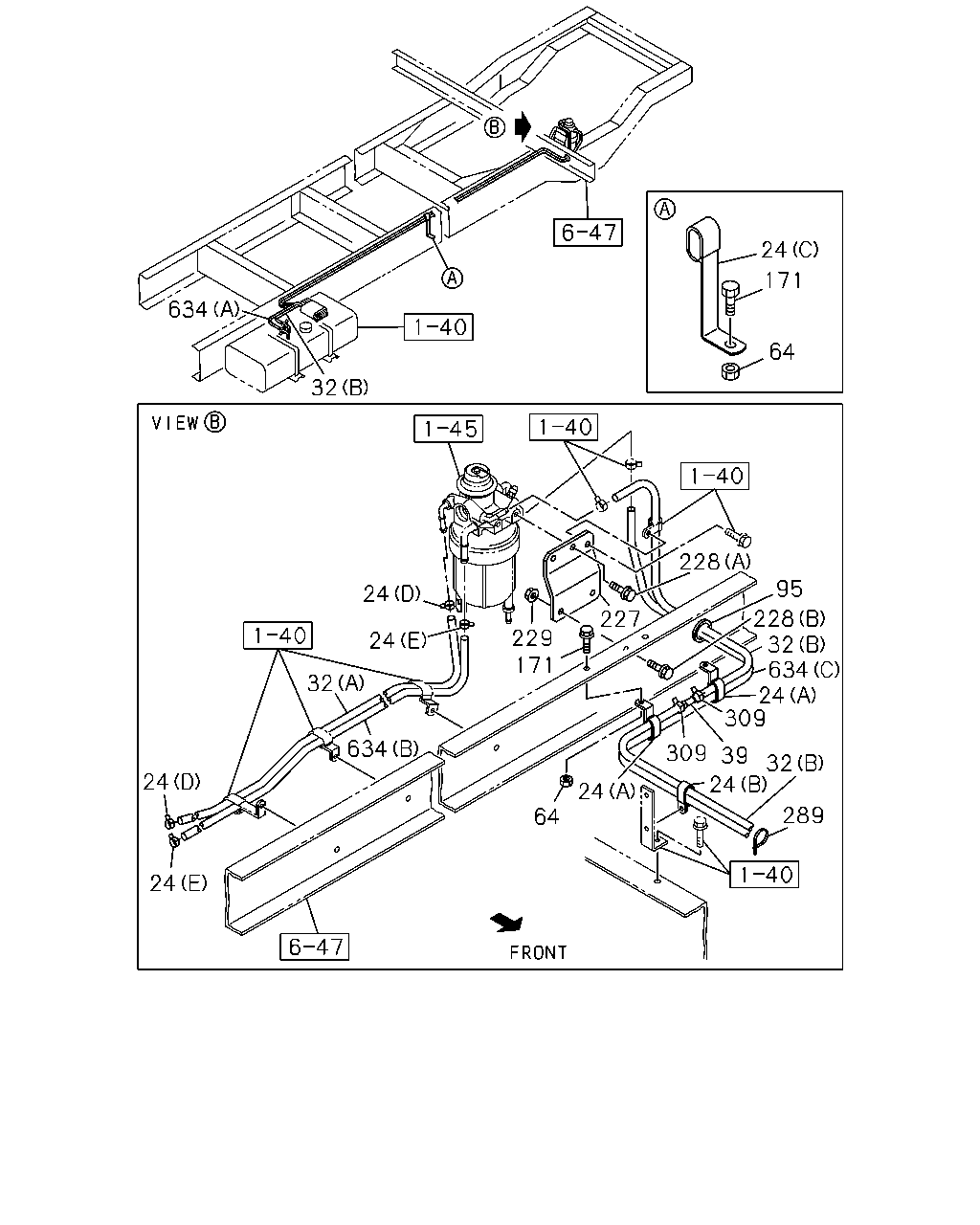

çizim 139076
24 171 634 64 32 227 228 95 24 228 32 634 24 309 229 171 24 32 634 309 39 32 24 24 24 289 64 24
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
LOW DECK WO/REAR BODY<PK4> (C) 		1-09700-537-0 01 1 0801-
24 CLIP; FUEL HOSE
LOW DECK WO/REAR BODY<PK4> (A) ID=14X29 H=30 L=25 		1-09701-101-0 11 1 0801-
24 CLIP; FUEL HOSE
(B) ID=16X2 L=20 		0-95325-536-0 01 1 0612-
24 CLIP; FUEL HOSE
(C) ID=14X2 H=85 L=30 		1-09701-062-0 01 1 0612-0712
24 CLIP; FUEL HOSE
EXC. LOW DECK WO/REAR BODY<PK4> (C) ID=14X2 H=85 L=30 		1-09701-062-0 01 1 0801-
24 CLIP; FUEL HOSE
(A) ID=14X29 H=30 L=25 		1-09701-101-0 12 1 0612-0712
24 CLIP; FUEL HOSE
EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=14X29 H=30 L=25 		1-09701-101-0 12 1 0801-
24 CLIP; FUEL HOSE
(D) ID=14 		1-09704-102-0 02 1 0612-
24 CLIP; FUEL HOSE
(E) ID=13 		8-94238-571-0 02 1 0612-
32 PIPE; DELIVERY,FUEL TANK
(A) L=1200 SERVICED BY L=3000 		0-01260-300-0 01 1 0612-0808
32 PIPE; DELIVERY,FUEL TANK
(A) L=1200 		8-98130-493-0 01 1 0809-
32 PIPE; DELIVERY,FUEL TANK
(B) L=7000 SERVICED BY L=8000 		0-01260-800-0 01 1 0612-
39 PIPE; FUEL 8-98009-438-1 01 1 0612-
64 NUT; CLIP
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 13 1 0801-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 14 1 0612-0712
64 NUT; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 14 1 0801-
95 BUSHING; PIPE,FUEL TANK 9-09575-632-0 01 1 0612-
171 BOLT; CLIP
LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 10 1 0801-
171 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0612-
171 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 11 1 0612-0712
171 BOLT; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 11 1 0801-
227 BRACKET; FUEL SEDIMENTER 1-19755-234-1 01 1 0612-
228 BOLT; BRKT,SEDIMENTER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0612-
228 BOLT; BRKT,SEDIMENTER
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0612-
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0612-
289 CLIP; BAND,HOSE
LOW DECK WO/REAR BODY<PK4> L=250 		5-09707-030-1 03 1 0801-
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 02 1 0612-0712
289 CLIP; BAND,HOSE
EXC. LOW DECK WO/REAR BODY<PK4> L=250 		5-09707-030-1 02 1 0801-
309 CLIP; PIPE
ID=14 		1-09704-102-0 01 1 0612-
309 CLIP; PIPE
ID=13 		8-94238-571-0 01 1 0612-
634 HOSE; RUBBER RETURN
(A) L=60 SERVICED BY L=3000 		0-01259-300-0 01 1 0612-0702
634 HOSE; RUBBER RETURN
(A) L=100 SERVICED BY L=3000 		0-01260-300-0 01 1 0703-
634 HOSE; RUBBER RETURN
(B) L=1200 SERVICED BY L=3000 		0-01558-300-0 01 1 0612-
634 HOSE; RUBBER RETURN
(C) SERVICED BY L=7000 		0-01558-700-0 01 1 0612-
