1-40 — FUEL TANK (#23719) — 51 parça

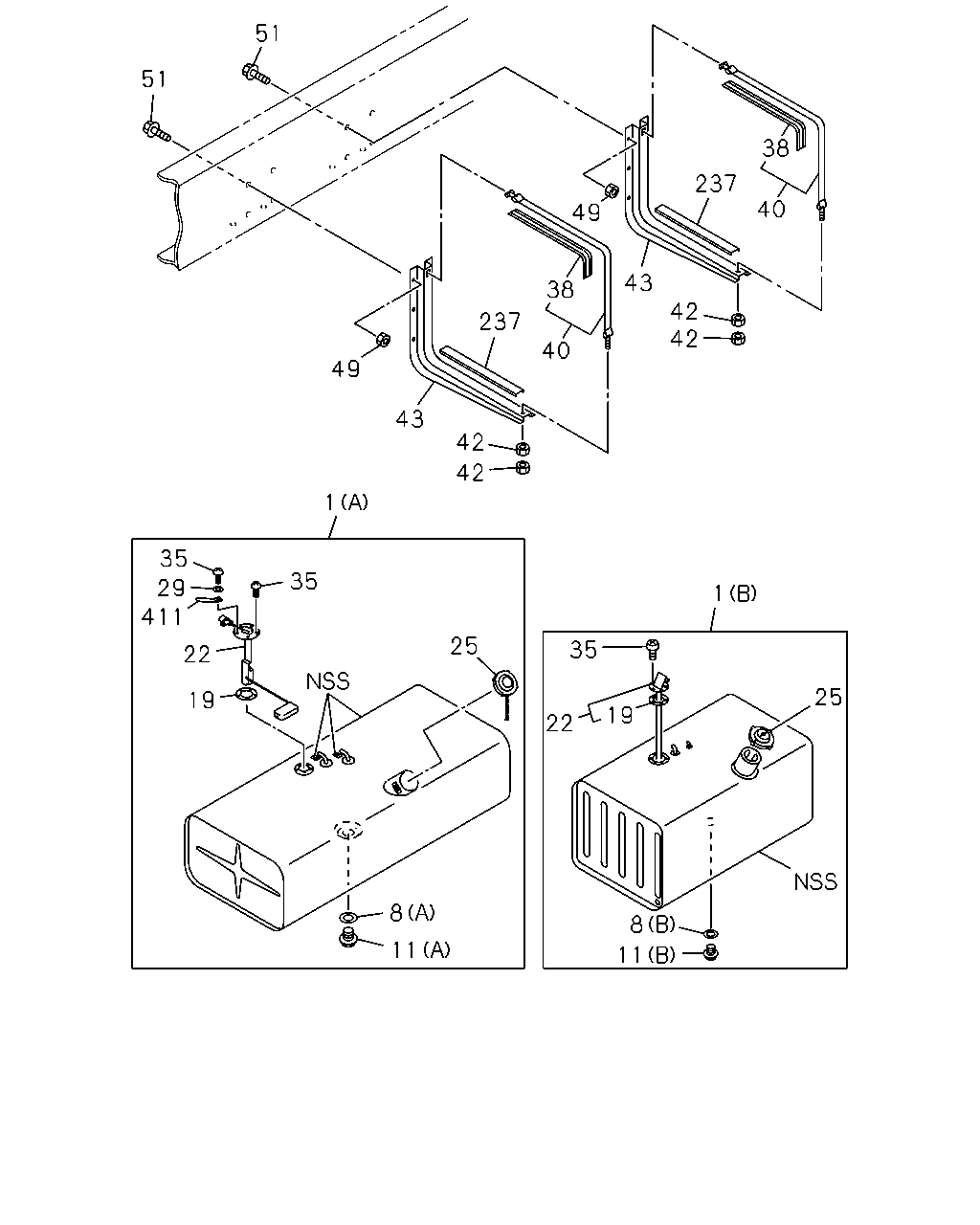

çizim 139073
51 51 38 237 40 49 43 38 42 42 237 40 49 43 42 42 1 35 35 29 1 411 25 35 22 25 19 19 22 8 8 11 11
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20> (A) 1220X533X323 200L 		1-22400-995-2 01 1 0612-
1 TANK; FUEL
FUEL TANK 280L<RF4> (B) 880X649X549 300L 		1-22401-108-2 01 1 0612-1505
1 TANK; FUEL
FUEL TANK 280L<RF4> (B) 880X649X549 300L 		8-98298-799-0 01 1 1506-
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> (A) T=2.0 		8-98030-375-0 01 1 0612-
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 280L<RF4> (B) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0612-
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> (A) M36 		1-09604-052-0 01 1 0612-
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 280L<RF4> (B) M14X14 		9-09862-156-0 01 1 0612-
19 GASKET; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71 		5-83148-001-0 01 1 0612-
19 GASKET; FUEL TANK UNIT
FUEL TANK 280L<RF4> ID=45 OD=67 		1-83149-003-0 01 1 0612-
22 UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		1-83141-084-1 01 1 0612-
22 UNIT; FUEL TANK
FUEL TANK 280L<RF4> 		1-83141-118-0 01 1 0612-1505
22 UNIT; FUEL TANK
FUEL TANK 280L<RF4> 		8-98296-673-0 01 1 1506-
25 CAP; FILLER,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		1-22440-028-0 01 1 0612-
25 CAP; FILLER,FUEL TANK
FUEL TANK 280L<RF4> 		1-22440-046-1 01 1 0612-
29 WASHER; PL,FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20> ID=5.3 		0-91610-505-0 01 1 0612-
35 SCREW; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20> M5X10 W/LK WASHER 		0-36220-510-0 05 1 0612-
35 SCREW; FUEL TANK UNIT
FUEL TANK 280L<RF4> M4X10 W/PL WASHER 		0-36210-410-0 05 1 0612-1505
35 SCREW; FUEL TANK UNIT
FUEL TANK 280L<RF4> M4X10 W/LK WASHER 		0-36220-410-0 05 1 1506-
38 INSULATION; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4> L=540 		1-22553-014-2 02 1 0802-
38 INSULATION; SUPPORT BELT
FUEL TANK 280L<RF4> L=650 		1-22553-022-1 02 1 0612-
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> L=790 		1-22550-186-2 02 1 0612-0712
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4> L=790 		1-22550-186-2 02 1 0801-
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 280L<RF4> 		1-22550-222-3 02 1 0612-
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 0612-
43 BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> 		9-22555-005-0 04 1 0801-
43 BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		1-53461-206-1 02 1 0612-0712
43 BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4> 		1-53461-206-1 02 1 0801-
43 BRACKET; FUEL TANK
FUEL TANK 280L<RF4> 		1-53461-544-0 02 1 0612-
49 NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> M12 		0-91111-512-0 08 1 0801-
49 NUT; BRKT
M12 		0-91110-512-0 08 1 0612-0712
49 NUT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M12 		0-91110-512-0 08 1 0801-
51 BOLT; BRKT TO FRAME
FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> M12X359 		9-22559-030-2 04 1 0801-
51 BOLT; BRKT TO FRAME
M12X35 FLANGE 		0-28651-235-0 08 1 0612-0712
51 BOLT; BRKT TO FRAME
EXC. LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE 		0-28651-235-0 08 1 0801-
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> L=540 		1-22553-006-0 04 1 0801-
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> L=480 		1-22553-002-0 02 1 0612-0712
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4> L=480 		1-22553-002-0 02 1 0801-
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 280L<RF4> L=580 		1-22553-003-0 02 1 0612-
411 CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 200L FRAME SIDE<N20> L=50 		1-09700-416-0 01 1 0612-

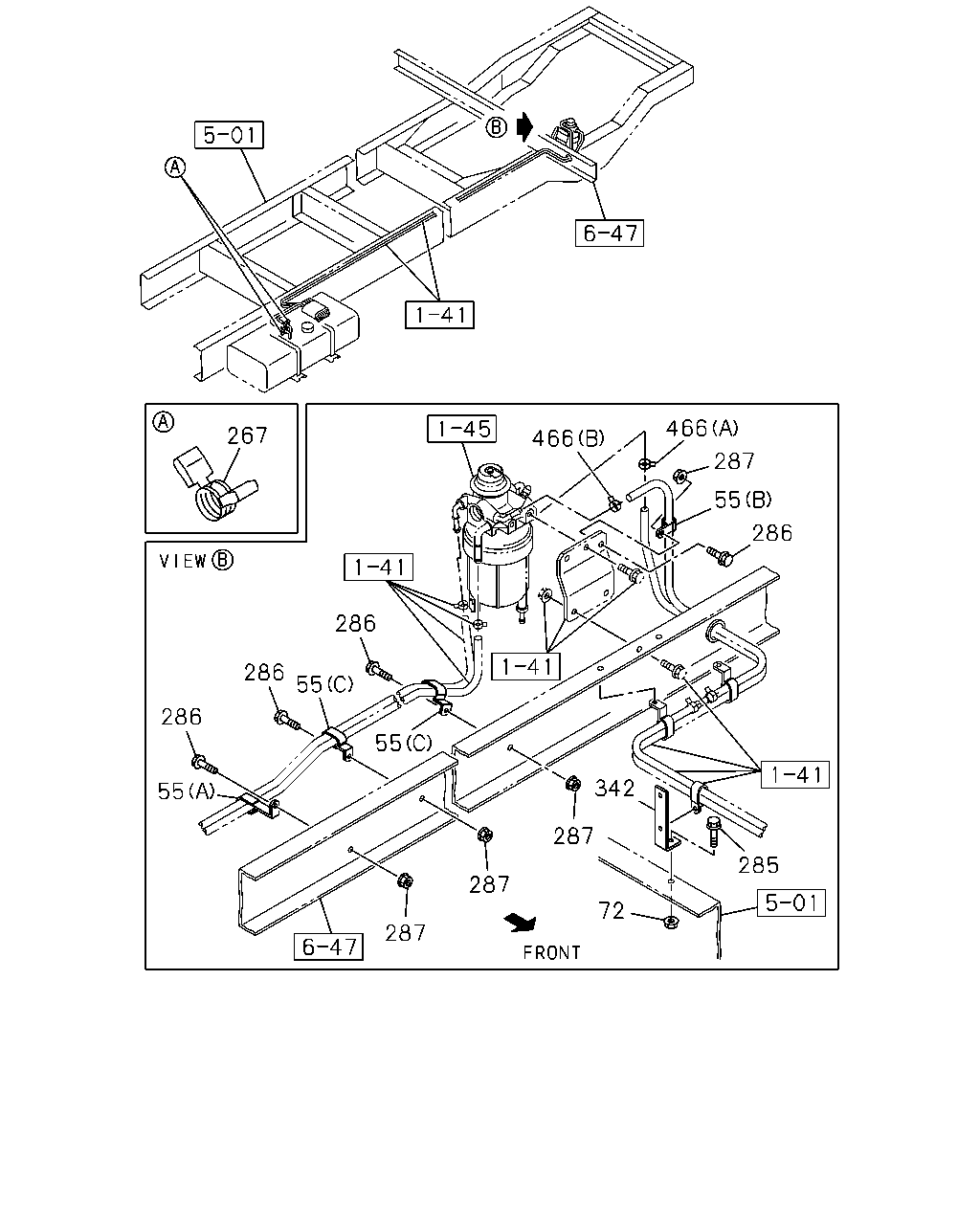

çizim 139080
466 267 466 287 55 286 286 286 55 286 55 342 55 287 285 287 72 287
BalonParca AdiParca NoAdetTipApplied Date
55 CLIP; FUEL PIPE
(A) ID=20 L=60 		1-09700-901-0 01 1 0612-
55 CLIP; FUEL PIPE
(B) ID=14.5 L=20 		1-09701-012-0 01 1 0612-
55 CLIP; FUEL PIPE
(C) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0612-
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0612-
267 CLIP; BAND,VINYL PIPE
ID=14 		1-09704-102-0 02 1 0612-
285 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0612-
286 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0612-
286 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0612-
287 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0612-
342 BRACKET; FUEL HOSE
L=120 H=35 		1-82698-088-0 01 1 0612-
466 CLIP
(A) ID=14 		1-09704-102-0 01 1 0612-
466 CLIP
(B) ID=13 		8-94238-571-0 01 1 0612-
