1-01 — ACCELERATOR PEDAL AND CONTROL (#23712) — 29 parça

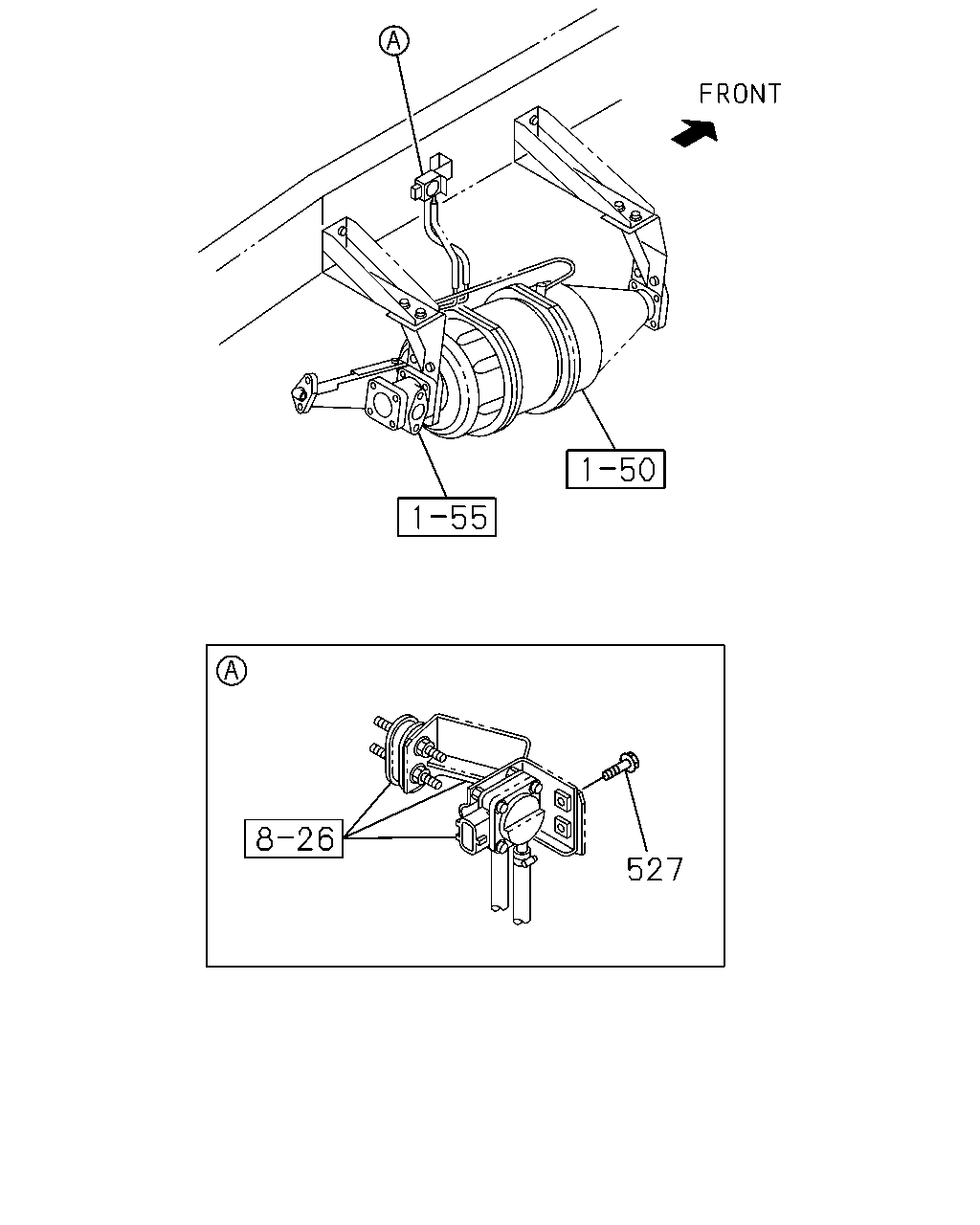

çizim 139059
527
BalonParca AdiParca NoAdetTipApplied Date
527 BOLT; ACCEL SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0612-

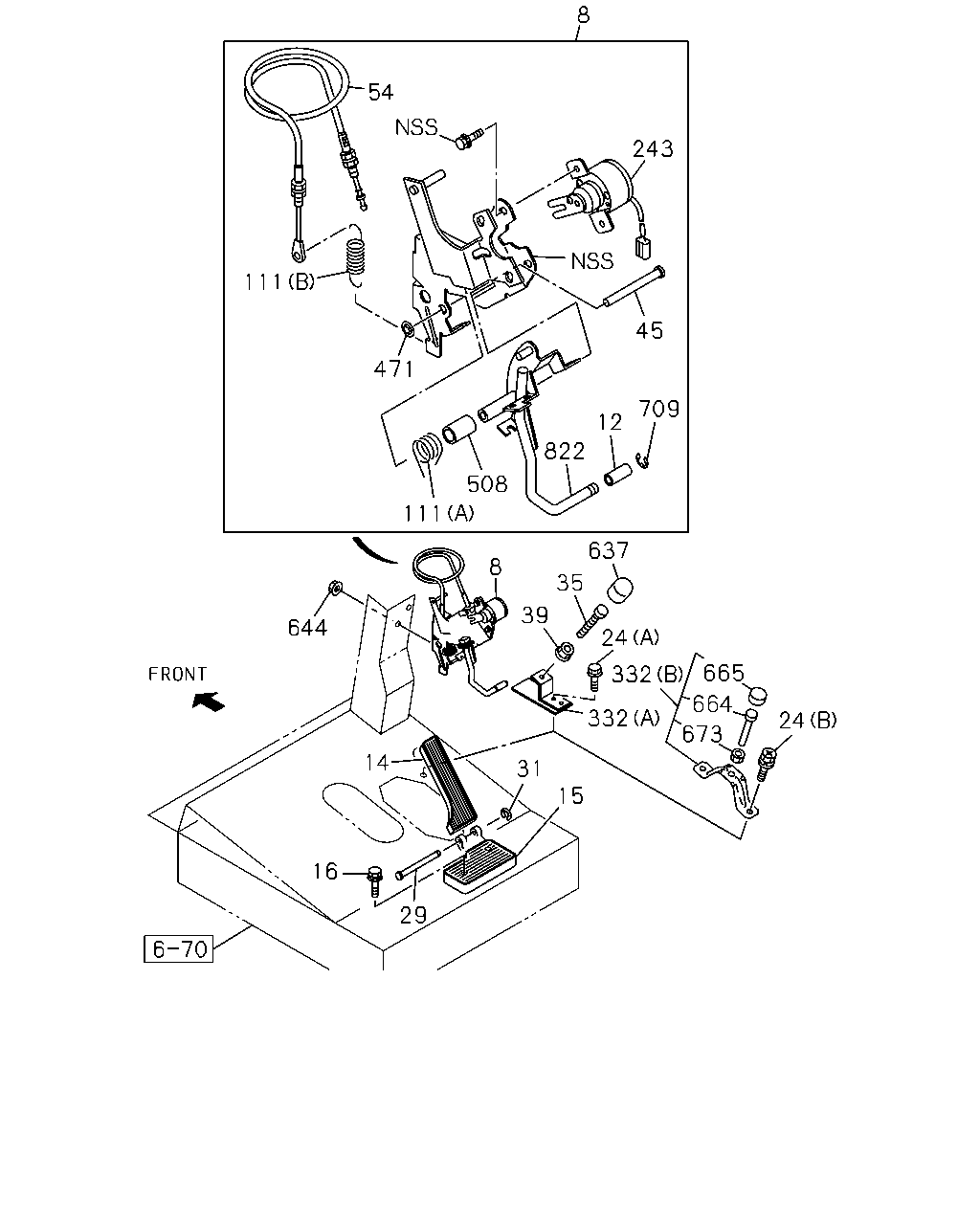

çizim 139060
8 54 243 45 709 12 822 508 111 471 111 8 637 35 39 24 332 332 665 664 673 24 644 14 31 15 29 16
BalonParca AdiParca NoAdetTipApplied Date
8 LINK ASM; ENG CONT 1-23240-112-2 01 1 0612-
12 ROLLER; ENG CONT LEVER 1-09989-007-0 01 1 0612-1101
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0612-
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0612-
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X30 W/PL WASHER 		1-09981-448-0 02 1 0612-
24 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0612-1302
24 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-
29 SHAFT; ACCEL PEDAL
OD=8 L=74 		1-09987-206-0 01 1 0612-
31 RING; SNAP,ACCEL PEDAL
ID=6 		0-91805-506-0 01 1 0612-
35 STOPPER; ACCEL PEDAL
M8X45 		0-20800-845-0 01 1 0612-1302
39 NUT; ACCEL PEDAL STOPPER
M8 FLANGE 		0-91180-108-0 01 1 0612-1302
45 PIN; ACCEL CONT PEDAL
OD=8.0 L=69 		1-71907-298-0 01 1 0612-
54 CABLE; ENG CONT
L=846 		1-71907-634-1 01 1 0612-
111 SPRING; RETURN
(A) 		8-97853-205-1 01 1 0612-
111 SPRING; RETURN
(B) 		8-97997-917-0 01 1 0612-
243 SENSOR; ACCEL 8-97602-416-0 01 1 0612-0910
243 SENSOR; ACCEL 8-98131-263-0 01 1 0911-
332 BRACKET; ACCEL PEDAL STOPPER
(A) 		1-23335-521-0 01 1 0612-1302
332 BRACKET; ACCEL PEDAL STOPPER
(B) 		1-73998-937-1 01 1 1303-
471 NUT; LEVER
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0612-
508 BUSHING; LINK ROD
L=31.5 		1-53459-627-0 01 1 0612-
637 GROMMET; ACCEL CABLE
RUBBER 		1-23249-009-0 01 1 0612-1302
644 NUT; LINK,ENG CONT
M8 FLANGE 		0-91180-108-0 02 1 0612-
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 1303-
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 1303-
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 1303-
709 RING; SNAP
ID=6 		0-91805-506-0 01 1 0612-1101
822 LEVER ASM; ENG CONT 1-23249-030-1 01 1 0612-
