0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#23709) — 61 parça

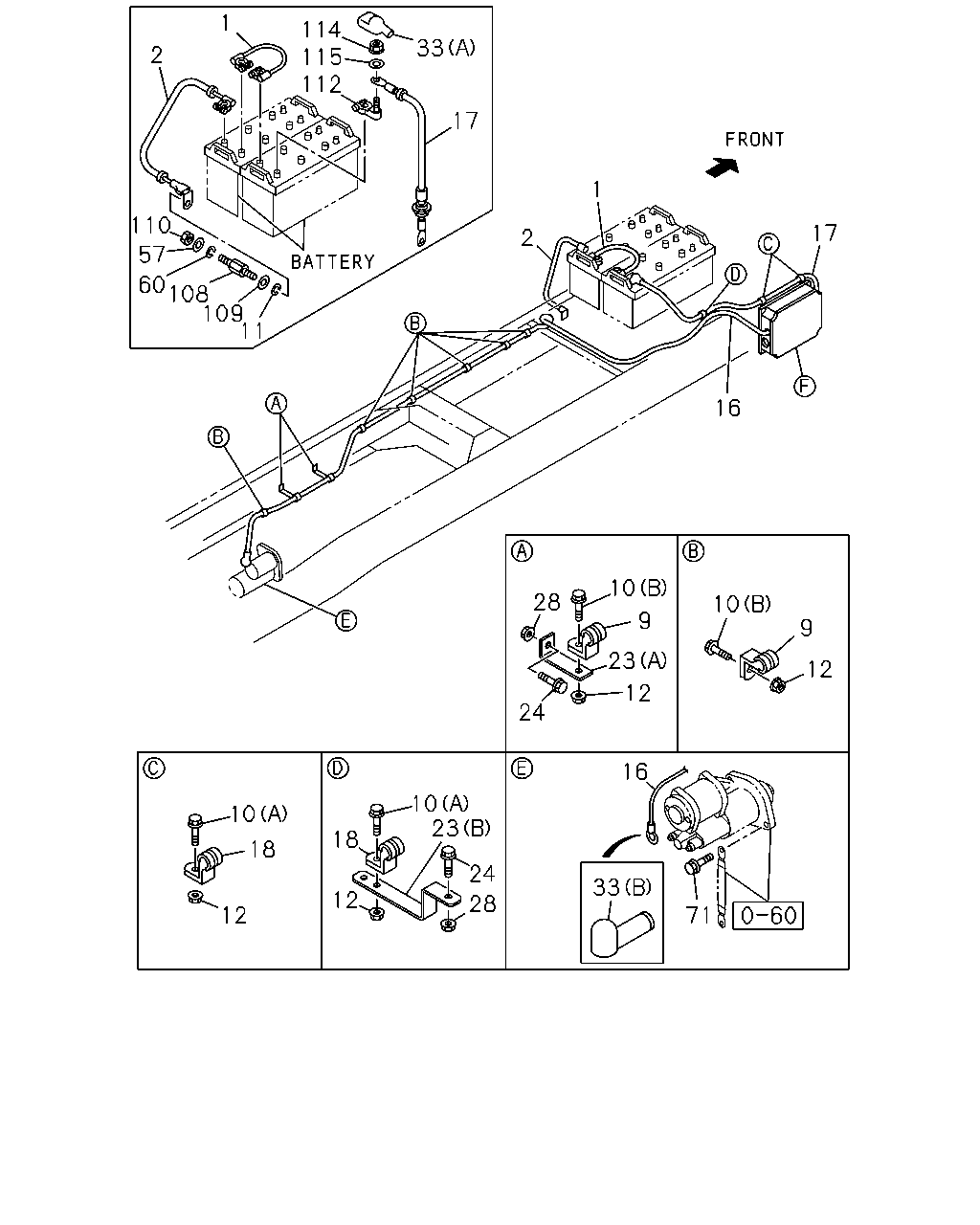

1 114 115 112 33 2 17 1 110 17 2 57 60 108 109 11 16 10 28 10 9 9 23 12 12 24 16 10 23 10 18 18 24 12 33 28 12 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=450	1-82650-389-1	01	1	0612-
2	CABLE; BATTERY L=1400	1-82650-408-0	01	1	0612-
9	CLIP; BATTERY CABLE ID=20 H=23 L=27	1-09700-861-0	08	1	0612-
10	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28650-825-0	03	1	0612-0712
10	BOLT; BATTERY CABLE CLIP EXC. LOW DECK WO/REAR BODY<PK4> (A) M8X25 FLANGE	0-28650-825-0	03	1	0801-
10	BOLT; BATTERY CABLE CLIP (B) M8X30 FLANGE	0-28650-830-0	08	1	0612-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0612-
12	NUT; BATTERY CABLE CLIP LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	08	1	0801-
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	11	1	0612-0705
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	10	1	0706-0712
12	NUT; BATTERY CABLE CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	10	1	0801-
16	CABLE; STARTER TO RELAY L=4400	1-82652-924-0	01	1	0612-
17	CABLE; BATTERY (+) TO RELAY L=1700	1-82650-366-1	01	1	0612-
18	CLIP; BATTERY CABLE ID=20 H=23 L=27	1-09700-861-0	03	1	0612-0712
18	CLIP; BATTERY CABLE EXC. LOW DECK WO/REAR BODY<PK4> ID=20 H=23 L=27	1-09700-861-0	03	1	0801-
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	02	1	0612-
23	BRACKET; CABLE CLIP TO FRAME (B)	1-83573-052-0	01	1	0612-0712
23	BRACKET; CABLE CLIP TO FRAME EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-83573-052-0	01	1	0801-
24	BOLT; BRKT TO FRAME LOW DECK WO/REAR BODY<PK4> M8X35 FLANGE	0-28650-835-0	02	1	0801-
24	BOLT; BRKT TO FRAME M8X35 FLANGE	0-28650-835-0	03	1	0612-0712
24	BOLT; BRKT TO FRAME EXC. LOW DECK WO/REAR BODY<PK4> M8X35 FLANGE	0-28650-835-0	03	1	0801-
28	NUT; BRKT TO FRAME LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	02	1	0801-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	0612-0712
28	NUT; BRKT TO FRAME EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	03	1	0801-
33	CAP; INSULATOR (A) BLACK	1-82699-106-0	01	1	0612-
33	CAP; INSULATOR (B)	1-82699-431-0	01	1	0612-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0612-
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0612-
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28051-020-0	01	1	0612-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0612-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0612-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0612-
112	TERMINAL; BATTERY <+>	1-82695-175-0	01	1	0612-
114	NUT; CABLE,BATTERY TERMINAL M10	0-91110-510-0	01	1	0612-
115	WASHER; LK,CABLE,BATTERY ID=10.2	0-91510-510-0	01	1	0612-

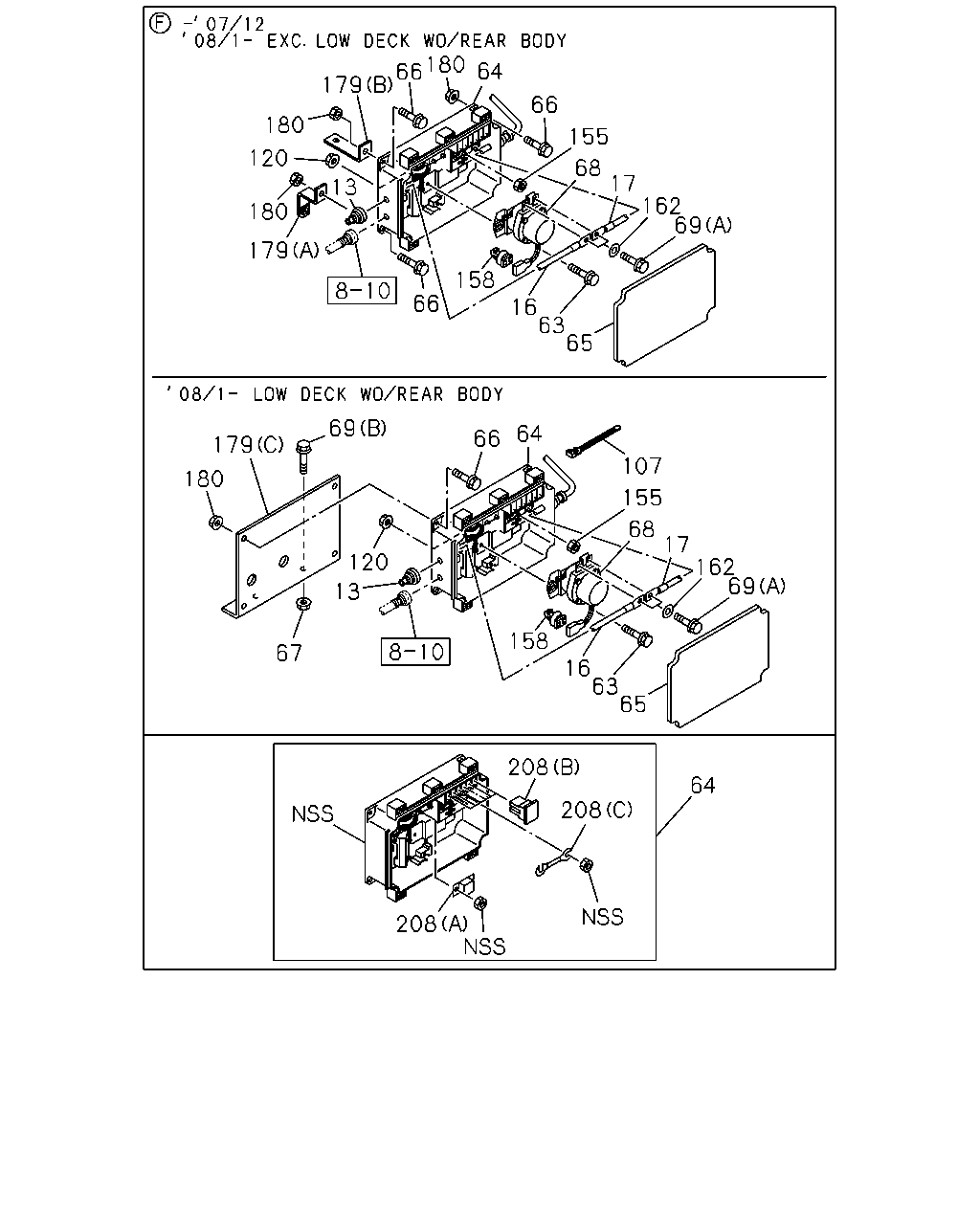

180 66 179 64 66 180 155 120 68 17 162 69 13 180 179 158 66 16 63 65 69 64 66 179 107 180 155 68 17 162 69 120 13 158 67 16 63 65 208 64 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0612-
16	CABLE; STARTER TO RELAY L=4400	1-82652-924-0	01	1	0612-
17	CABLE; BATTERY (+) TO RELAY L=1700	1-82650-366-1	01	1	0612-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0612-
64	BOX; BATTERY RELAY	1-82510-651-0	01	1	0612-
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	0612-
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0612-
67	NUT; BRKT LOW DECK WO/REAR BODY<PK4> M10 FLANGE	0-91180-110-0	02	1	0801-0801
67	NUT; BRKT LOW DECK WO/REAR BODY<PK4> M10 FLANGE	0-91180-210-0	02	1	0802-
68	RELAY; BATTERY	1-82550-313-0	01	1	0612-
69	BOLT; CABLE BATTERY LOW DECK WO/REAR BODY<PK4> (B) M10X30 FLANGE	0-28651-030-0	02	1	0801-
69	BOLT; CABLE BATTERY (A) M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0612-
107	CLIP; BAND LOW DECK WO/REAR BODY<PK4> L=250	5-09707-030-1	06	1	0801-
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	0612-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0612-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0612-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0612-
179	BRACKET; COVER LOW DECK WO/REAR BODY<PK4> (C)	8-98072-634-1	01	1	0801-
179	BRACKET; COVER (A)	1-47478-981-0	02	1	0612-0712
179	BRACKET; COVER EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-47478-981-0	02	1	0801-
179	BRACKET; COVER (B) L=95	1-82699-085-0	02	1	0612-0712
179	BRACKET; COVER EXC. LOW DECK WO/REAR BODY<PK4> (B) L=95	1-82699-085-0	02	1	0801-
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	0612-
208	FUSE (A) 80A	1-82516-031-0	01	1	0612-
208	FUSE (B) 40A GREEN	8-94468-662-0	05	1	0612-
208	FUSE (C) 125A	9-82941-130-1	01	1	0612-
