◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08A - CLUTCH MASTER CYLINDER ▶

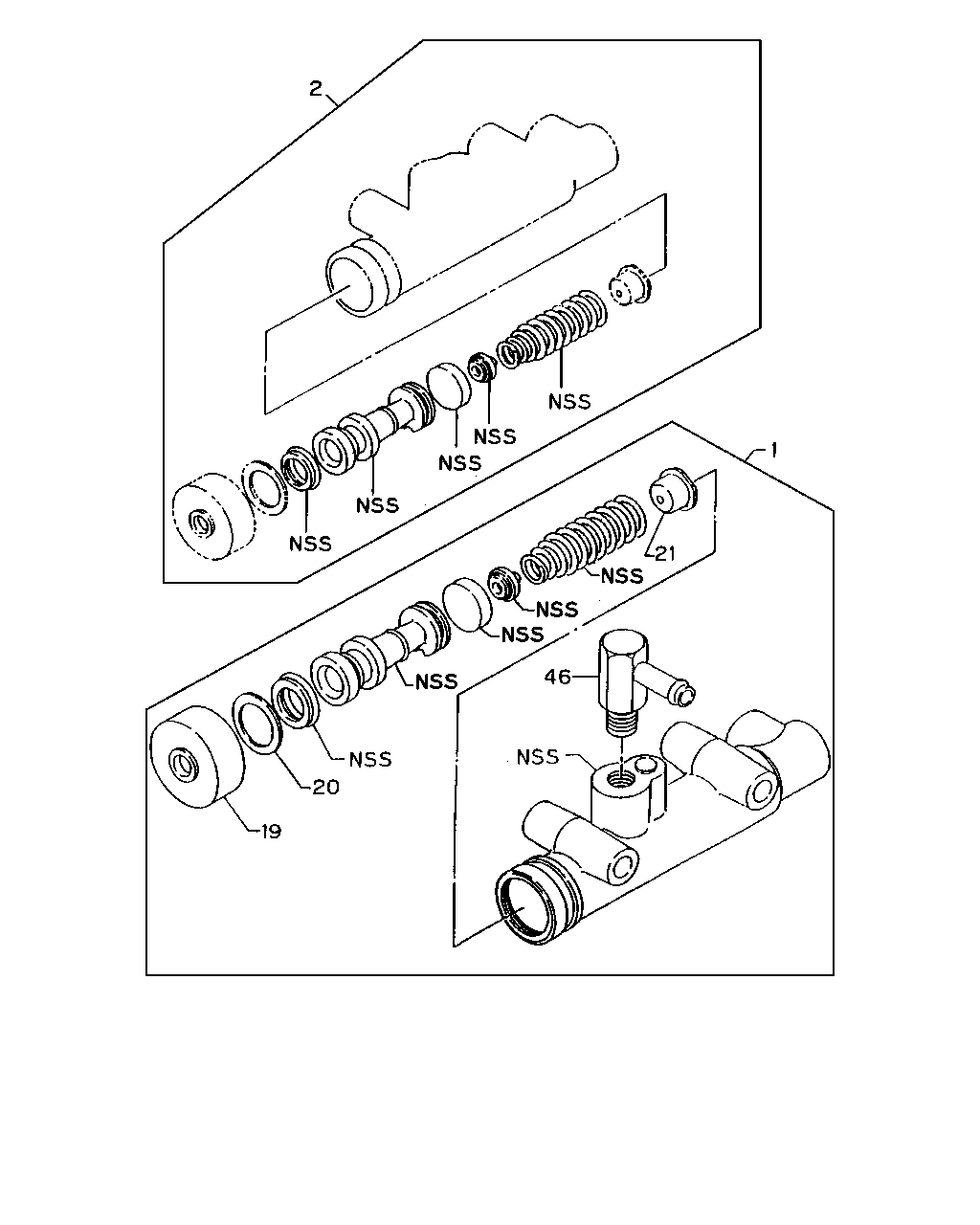

2-08A — CLUTCH MASTER CYLINDER (#2370) — 12 parça
çizim 27831
2 1 21 46 20 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER ASM; CLUTCH MASTER
EXZ&RHD(EX*5**) 		1-47500-222-0 01 1 9002- ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
EXZ&LHD(EX*6**) 		1-47500-206-1 01 1 9002-9006 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
EXZ&LHD(EX*6**) 		1-47500-231-0 01 1 9007- ● ● ●
2 REPAIR KIT; CLU M/CYL
EXZ&RHD(EX*5**) 		1-87830-370-1 01 1 9002-9006 ● ● ●
2 REPAIR KIT; CLU M/CYL 1-87830-370-1 01 1 9007- ● ● ●
2 REPAIR KIT; CLU M/CYL
EXZ&LHD(EX*6**) 		1-85576-114-0 01 1 9002-9006 ● ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9002- ● ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9002- ● ● ●
21 VALVE; CHECK
EXZ&RHD(EX*5**) 		1-47565-004-0 01 1 9002-9006 ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9007- ● ● ●
21 VALVE; CHECK
EXZ&LHD(EX*6**) 		9-47565-041-0 01 1 9002-9006 ● ● ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 9002- ● ● ●
