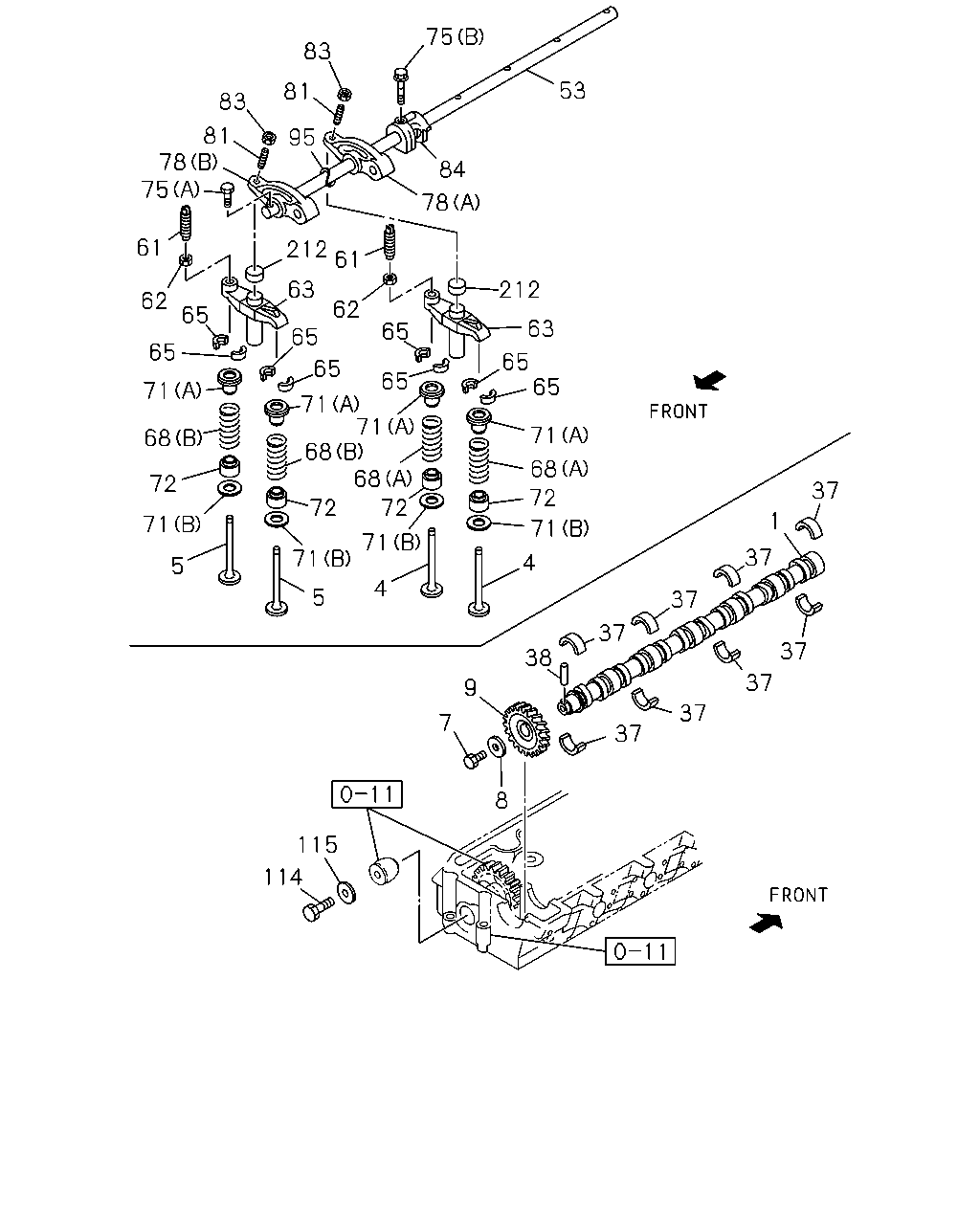

0-14 — CAMSHAFT AND VALVE (#23688) — 50 parça

75 83 53 81 83 81 78 75 95 84 78 61 212 61 63 212 62 62 65 63 65 65 65 65 65 65 65 71 71 71 68 68 71 68 68 72 37 72 72 72 1 71 71 71 37 71 4 5 4 5 37 37 37 38 37 9 37 7 37 8 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAMSHAFT	8-97601-438-0	01	1	0612-1311
1	CAMSHAFT	8-98227-261-1	01	1	1312-
4	VALVE; INL	8-94395-882-2	12	1	0612-
5	VALVE; EXH	8-97209-876-4	12	1	0612-
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0612-
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0612-
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	0612-
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0612-
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0612-
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0612-
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0612-
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	0612-
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	0612-
63	BRIDGE	8-94392-002-3	12	1	0612-
65	COLLAR; SPLIT	5-12565-004-0	48	1	0612-
68	SPRING; VLV (B) MARK RED	8-97210-682-0	12	1	0612-
68	SPRING; VLV (A) MARK BLUE	8-97352-888-0	12	1	0612-
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	0612-
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	0612-
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0612-
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0612-
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0612-
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	0612-
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	0612-
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0612-
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0612-
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0612-
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0612-
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0612-
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0612-
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0612-

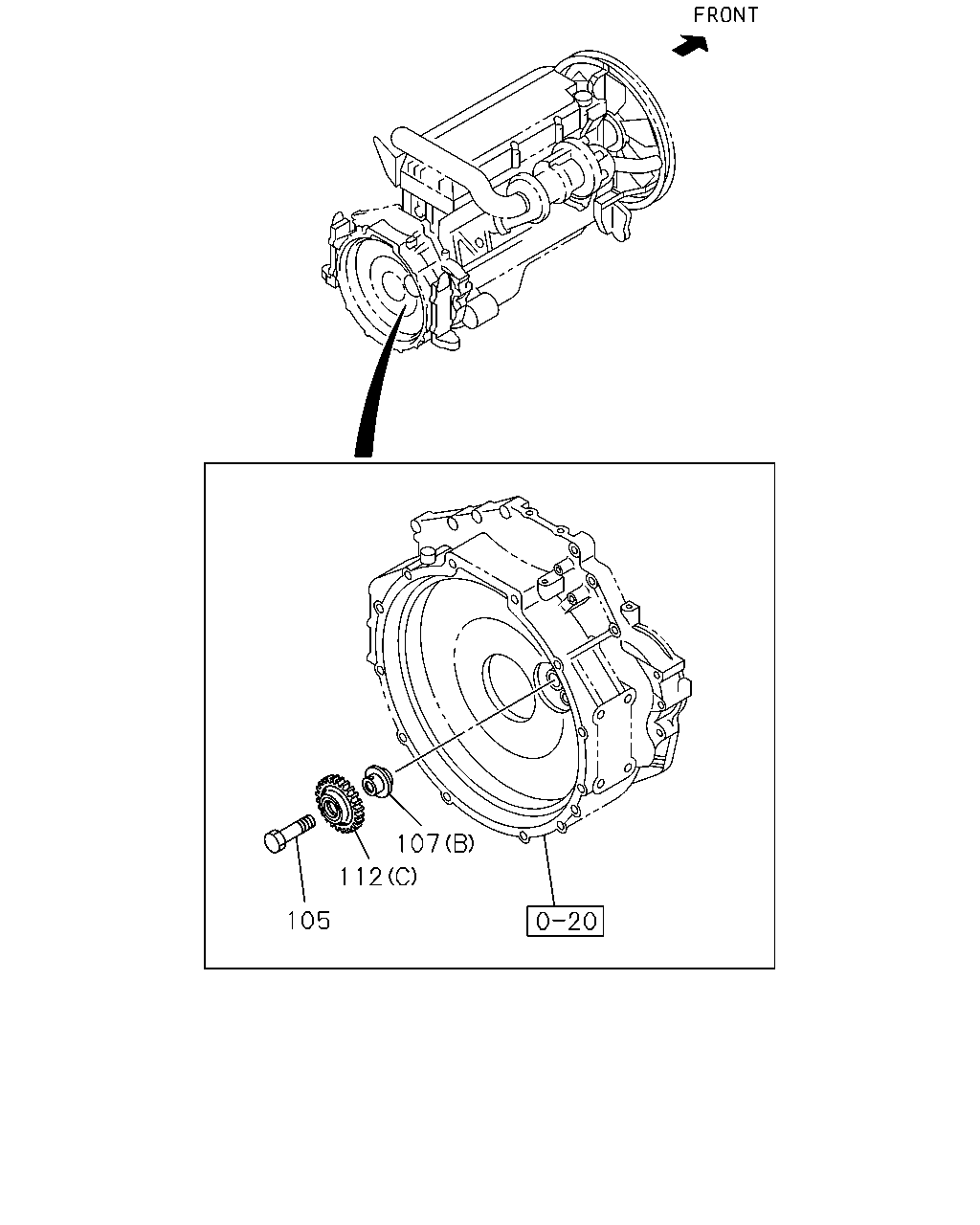

107 112 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	0612-
107	SHAFT; IDLE GEAR (C)	8-98060-780-0	01	1	0612-
107	SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	0612-
107	SHAFT; IDLE GEAR (B)	8-97350-021-0	01	1	0612-
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	0612-1402
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	0612-
112	GEAR; IDLE (C) Z=34	8-97606-771-0	01	1	0612-

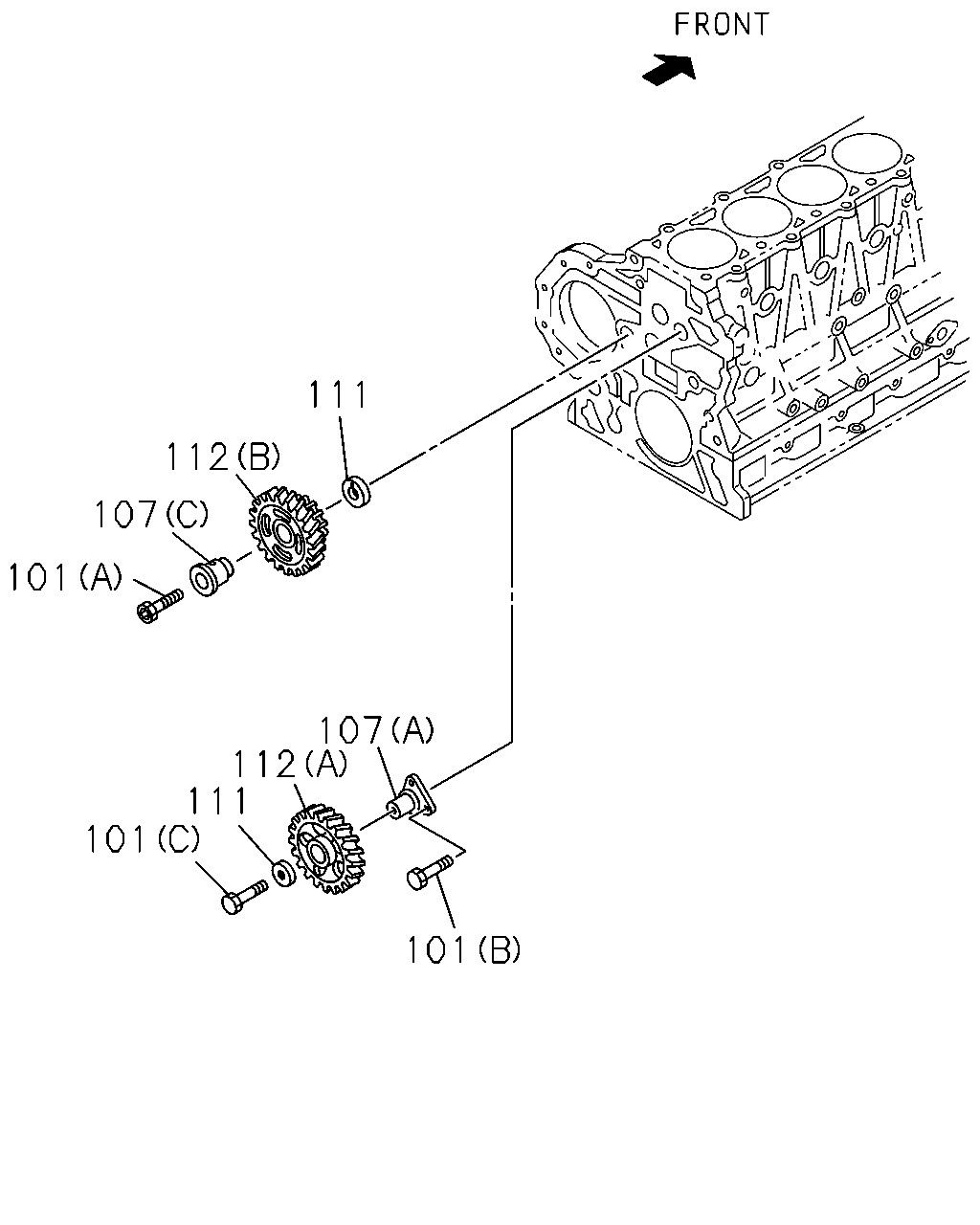

111 112 107 101 107 112 111 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	BOLT; THRUST COLLAR (A) M14X60	0-16956-460-0	01	1	0612-
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0612-
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0612-
107	SHAFT; IDLE GEAR (C)	8-98060-780-0	01	1	0612-
107	SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	0612-
107	SHAFT; IDLE GEAR (B)	8-97350-021-0	01	1	0612-
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0612-
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	0612-1402
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	0612-
112	GEAR; IDLE (C) Z=34	8-97606-771-0	01	1	0612-
