Isuzu WW
▶
TRUCKS
▶
EXD
▶
11038 - EXD RHD EURO4
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#23681) — 57 parça
◀

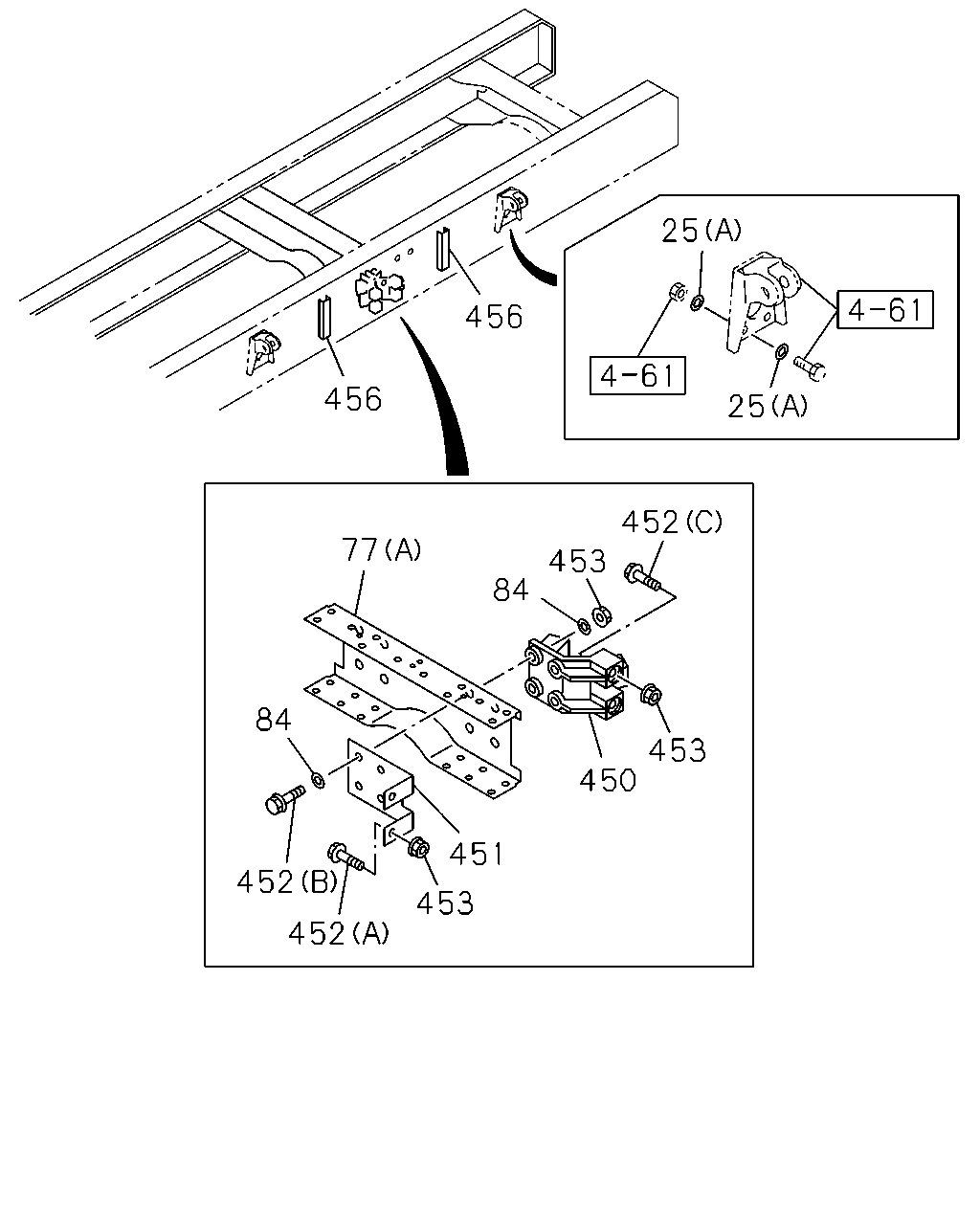

[501A] BRACKET;REAR (16 parça)

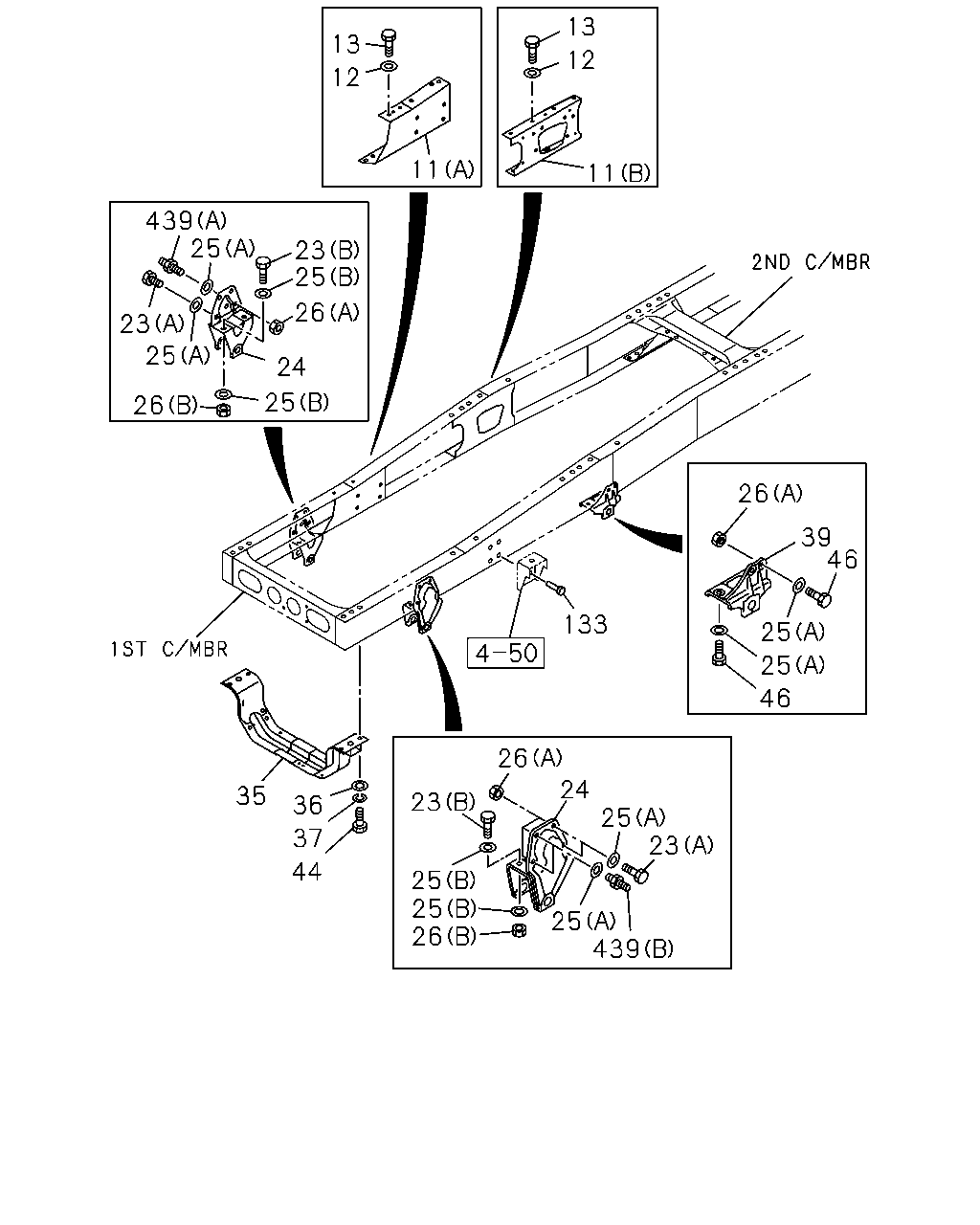

[501A] BRACKET;FRONT AND UNDER MEMBER (28 parça)

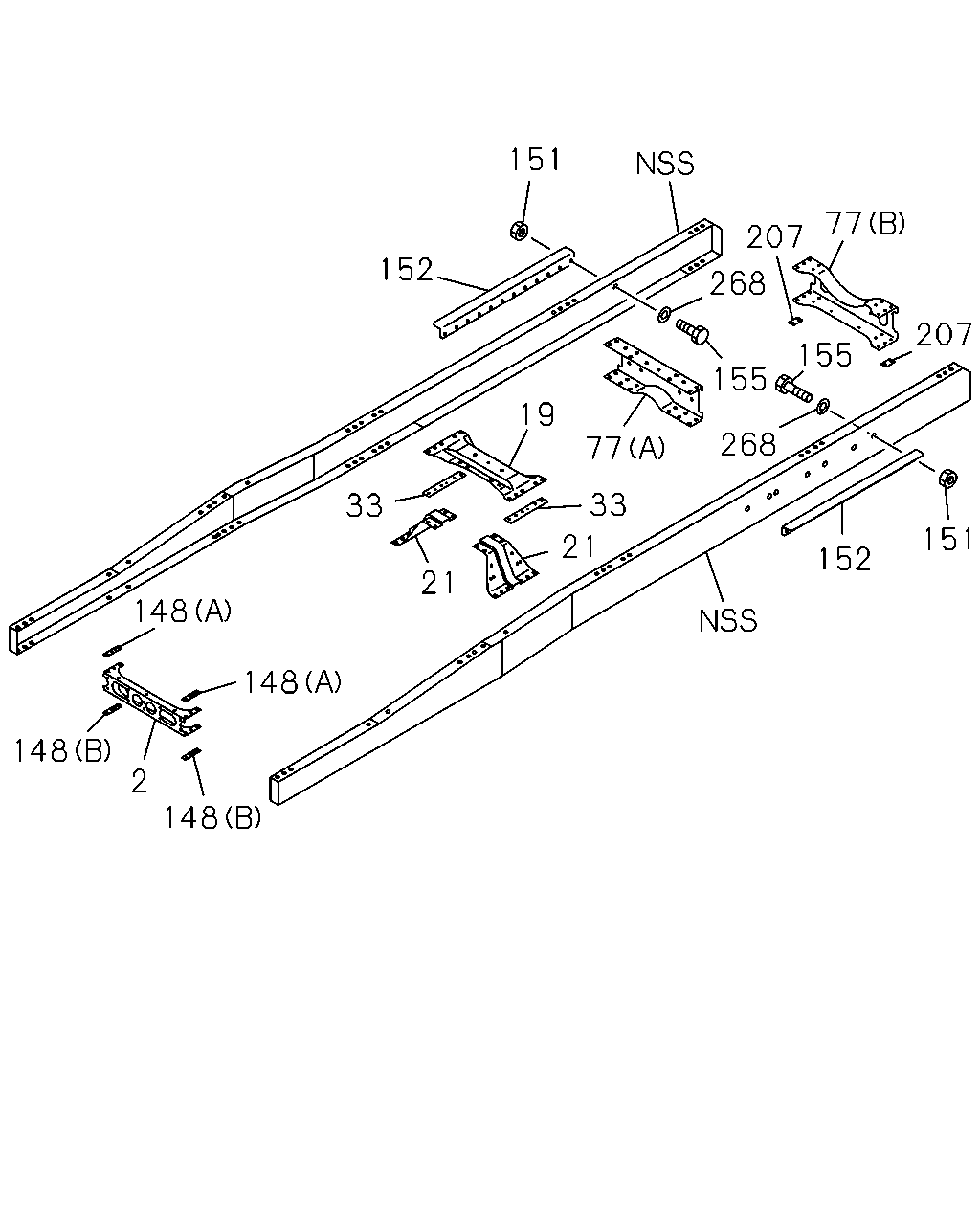

[501A] CROSS MEMBER (13 parça)
▶
25
456
456
25
452
77
453
84
84
453
450
451
452
453
452
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0610-1504
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1505-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
26
1
0610-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
26
1
1202-
77
MEMBER; CROSS,TRUNNION RR
(B)
1-53181-970-3
01
1
0610-
77
MEMBER; CROSS,TRUNNION RR
(A)
1-53182-096-1
01
1
0610-
84
WASHER; PL,BRKT
ID=16.2
1-09503-223-0
16
1
0610-1504
84
WASHER; PL,BRKT
ID=16.2
1-09503-316-0
16
1
1505-
450
BRACKET; V ROD
1-53353-122-1
02
1
0610-
451
GUSSET; V ROD
1-53167-641-0
01
1
0610-
451
GUSSET; V ROD
1-53167-642-0
01
1
0610-
452
BOLT; V ROD
(B) M16X70
1-09000-673-0
08
1
0610-
452
BOLT; V ROD
(C) M16X90
1-09000-675-0
04
1
0610-
452
BOLT; V ROD
(A) M16X50
1-09000-679-0
04
1
0610-
453
NUT; V ROD
M16 FLANGE
1-09440-066-0
16
1
0610-
456
PATCH; STOPPER
1-53119-203-0
04
1
0610-
13
13
12
12
11
11
439
25
23
25
26
23
25
26
24
25
26
39
46
133
25
25
46
26
24
25
23
35
23
36
37
25
25
26
44
25
439
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
0610-
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
0610-
11
BRACKET; ENG MTG
(B)
8-98056-611-1
01
1
0610-
11
BRACKET; ENG MTG
(B)
8-98056-612-0
01
1
0610-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
02
1
0610-1201
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
02
1
1202-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
02
1
0610-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
05
1
0610-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
0610-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
0610-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
0610-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0610-1504
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1505-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
26
1
0610-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
26
1
1202-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
12
1
0610-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0610-
35
MEMBER; UNDER
1-53174-263-2
01
1
0610-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0610-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0610-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
0610-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
0610-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
0610-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
0610-
133
RIVET; BRKT
D13X36 PLATED TAPER END
0-67901-336-0
04
1
0610-
133
RIVET; BRKT
D13X40 PLATED TAPER END
0-67901-340-0
02
1
0610-
439
STUD; BRKT,SPR
(A) M12X35,M14X45 L=100
1-09029-075-0
01
1
0610-
439
STUD; BRKT,SPR
(B) M12X25,M14X45 L=81
1-09029-103-0
02
1
0610-
151
77
207
152
268
155
207
155
19
268
77
33
33
151
21
152
148
21
148
148
2
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97604-959-3
01
1
0610-
19
MEMBER; CROSS,2ND
1-53174-231-1
01
1
0610-
21
GUSSET; 2ND CROSS
1-53164-185-1
02
1
0610-
33
SPACER; 2ND C/MBR,UPR
1-53168-351-1
02
1
0610-
77
MEMBER; CROSS,TRUNNION RR
(B)
1-53181-970-3
01
1
0610-
77
MEMBER; CROSS,TRUNNION RR
(A)
1-53182-096-1
01
1
0610-
148
SPACER; C/MBR
(A)
1-53168-400-1
02
1
0610-
148
SPACER; C/MBR
(B)
1-53168-403-1
02
1
0610-
151
NUT; OUTRIGGER
M16
0-91110-516-0
24
1
0610-
152
OUTRIGGER
8-98043-412-1
02
1
0610-
155
BOLT; OUTRIGGER
M16X50
0-20951-650-0
24
1
0610-
207
SPACER; 4TH C/MBR
1-53168-171-1
02
1
0610-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
24
1
0610-
