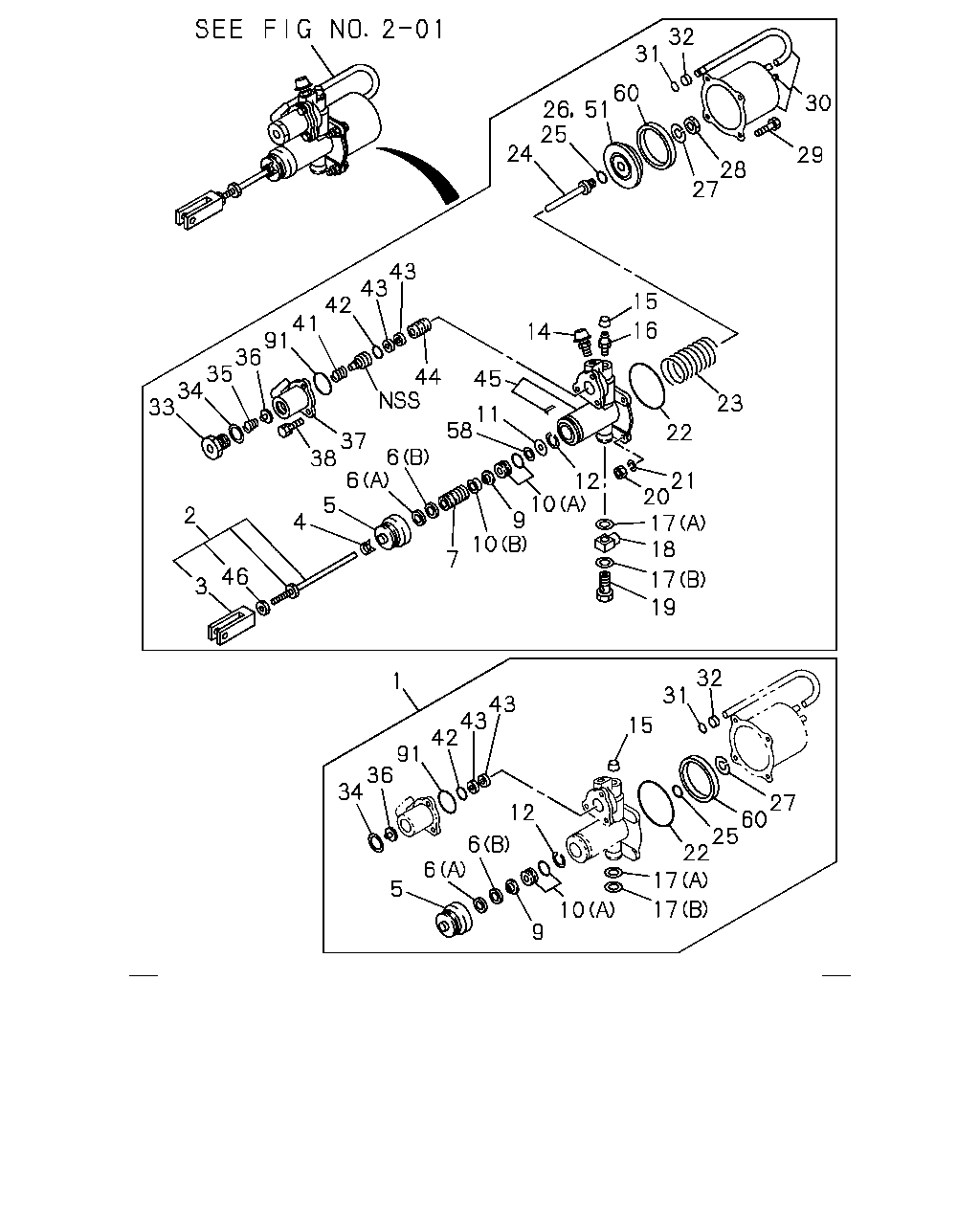

2-07A — CLUTCH BOOSTER; MINIPACK (#2368) — 75 parça

32 31 60 51 26 25 24 30 29 28 27 15 14 16 23 22 21 20 12 10 9 17 10 7 18 17 19 32 31 15 27 60 25 22 17 17 10 9 12 6 6 5 34 36 1 91 42 43 43 3 46 2 4 5 6 38 37 44 6 58 11 45 43 43 42 41 91 36 35 34 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	REPAIR KIT; CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-326-0	01	1	9002-	●	●	●
1	REPAIR KIT; CLU BOOSTER 12PD1 STD ENG(42L)	1-31829-305-0	01	1	9002-9306	●
2	ROD; PUSH,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31824-147-0	01	1	9002-9306	●	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-163-0	01	1	9307-	●		●
2	ROD; PUSH,CLU BOOSTER 12PD1 STD ENG(42L)	1-31824-115-0	01	1	9002-9306	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	9002-	●	●	●
4	CLAMP; BOOSTER	1-31829-168-0	01	1	9002-	●	●	●
5	GUARD; PISTON,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-174-0	01	1	9002-	●	●	●
5	GUARD; PISTON,CLU BOOSTER 12PD1 STD ENG(42L)	1-31829-304-0	01	1	9002-9306	●
6	GASKET; PISTON CUP,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (A)	1-31829-055-0	01	1	9002-9306	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (B)	1-31829-056-0	01	1	9002-9306	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	9501-	●		●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	9501-	●		●
6	GASKET; PISTON CUP,CLU BOOSTER 12PD1 STD ENG(42L) (A)	1-31829-283-0	01	1	9002-9306	●
6	GASKET; PISTON CUP,CLU BOOSTER 12PD1 STD ENG(42L) (B)	1-31829-284-0	01	1	9002-9306	●
7	PISTON; CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31821-013-0	01	1	9002-	●	●	●
7	PISTON; CLU BOOSTER 12PD1 STD ENG(42L)	1-31821-047-0	01	1	9002-9306	●
9	GASKET; PISTON CUP,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-003-0	01	1	9002-	●	●	●
9	GASKET; PISTON CUP,CLU BOOSTER 12PD1 STD ENG(42L)	1-31829-286-0	01	1	9002-9306	●
10	RETAINER; PISTON,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (A)	1-31829-107-0	01	1	9002-	●	●	●
10	RETAINER; PISTON,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (B)	1-31829-108-0	01	1	9002-	●	●	●
10	RETAINER; PISTON,CLU BOOSTER 12PD1 STD ENG(42L) (A)	1-31829-285-0	01	1	9002-9306	●
10	RETAINER; PISTON,CLU BOOSTER 12PD1 STD ENG(42L) (B)	1-31829-293-0	01	1	9002-9306	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	9002-	●	●	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	9002-	●	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-102-0	01	1	9002-	●	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	9002-	●	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	9002-	●	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	9002-	●	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	9002-	●	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	9002-	●	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	9002-	●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	9002-	●	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	9002-	●	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-09623-322-0	01	1	9002-	●	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 12PD1 STD ENG(42L)	1-31829-281-0	01	1	9002-9306	●
23	SPRING; SHELL,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-110-0	01	1	9002-	●	●	●
23	SPRING; SHELL,CLU BOOSTER 12PD1 STD ENG(42L)	1-31829-295-0	01	1	9002-9306	●
24	ROD; PUSH,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-112-0	01	1	9002-	●	●	●
24	ROD; PUSH,CLU BOOSTER 12PD1 STD ENG(42L)	1-31824-121-0	01	1	9002-9306	●
25	GASKET; PUSH ROD,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-09623-321-0	01	1	9002-	●	●	●
25	GASKET; PUSH ROD,CLU BOOSTER 12PD1 STD ENG(42L)	1-31829-277-0	01	1	9002-9306	●
26	PISTON; SHELL,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31821-017-0	01	1	9002-	●	●	●
27	SPRING; CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-111-0	01	1	9002-	●	●	●
27	SPRING; CLU BOOSTER 12PD1 STD ENG(42L)	1-31829-291-0	01	1	9002-9306	●
28	NUT; PUSH ROD,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	9-88510-365-0	01	1	9002-	●	●	●
28	NUT; PUSH ROD,CLU BOOSTER 12PD1 STD ENG(42L)	1-31829-290-0	01	1	9002-9306	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	9002-	●	●	●
30	SHELL; CYL,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31811-061-0	01	1	9002-	●	●	●
30	SHELL; CYL,CLU BOOSTER 12PD1 STD ENG(42L)	1-31811-052-0	01	1	9002-9303	●
30	SHELL; CYL,CLU BOOSTER 12PD1 STD ENG(42L)	1-31811-077-0	01	1	9304-9306	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	9002-	●	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	9002-	●	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	9002-	●	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	9002-	●	●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	9002-	●	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	9002-	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-053-0	01	1	9002-	●	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	9002-	●	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-288-0	01	1	9002-9306	●	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-422-0	01	1	9307-	●	●	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	9002-	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	9002-	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-049-0	01	1	9002-	●	●	●
45	PLATE; END,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31811-060-0	01	1	9002-	●	●	●
45	PLATE; END,CLU BOOSTER 12PD1 STD ENG(42L)	1-31811-054-0	01	1	9002-9303	●
45	PLATE; END,CLU BOOSTER 12PD1 STD ENG(42L)	1-31811-079-0	01	1	9304-9306	●
46	NUT; PUSH ROD,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31824-126-0	01	1	9002-	●	●	●
46	NUT; PUSH ROD,CLU BOOSTER 12PD1 STD ENG(42L) M10	9-09111-410-0	01	1	9002-9306	●
51	PLATE; PISTON,SHELL,CLU BOOSTER 12PD1 STD ENG(42L)	1-31821-050-0	01	1	9002-9303	●
51	PLATE; PISTON,SHELL,CLU BOOSTER 12PD1 STD ENG(42L)	1-31821-060-0	01	1	9304-9306	●
58	WASHER; PISTON,CLU BOOSTER 12PD1 STD ENG(42L)	1-31829-294-0	01	1	9002-9306	●
60	GASKET; SHELL,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-058-0	01	1	9002-	●	●	●
60	GASKET; SHELL,CLU BOOSTER 12PD1 STD ENG(42L)	1-31829-292-0	01	1	9002-9306	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	9002-	●	●	●
