6-01 — FRONT BUMPER (#23678) — 52 parça

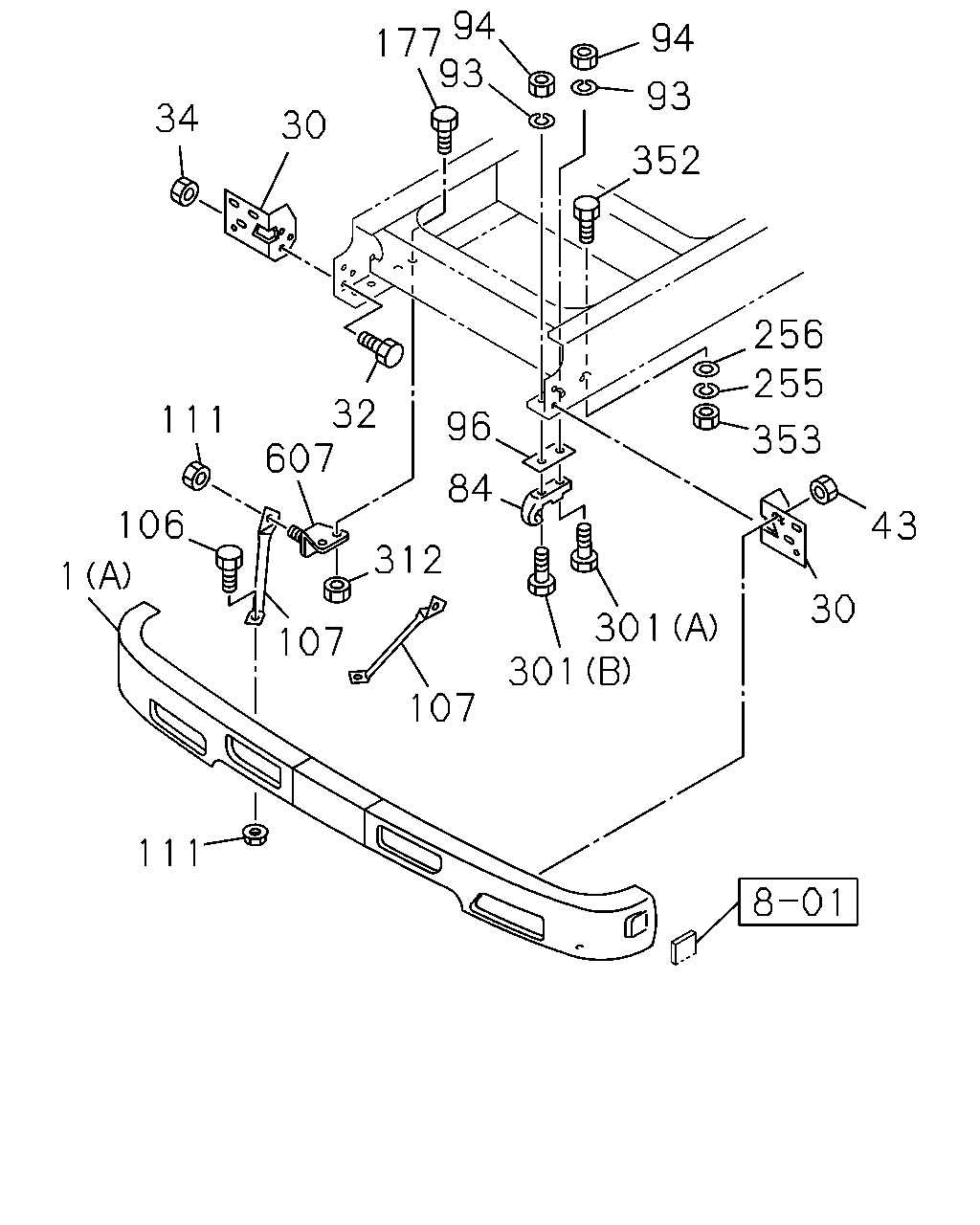

94 177 93 94 93 34 30 352 256 255 32 607 111 96 353 84 106 43 1 30 301 301 107 107 111 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT HONG KONG EQUIPMENT(PQ1) (A) WHITE	1-71211-368-3	01	1	0609-
1	BUMPER ASM; FRT SINGAPORE EQUIPMENT(WQ3) (B)	1-71210-941-1	01	1	0609-
30	BRACKET; FRT BUMPER HONG KONG EQUIPMENT(PQ1)	1-71230-208-3	01	1	0609-
30	BRACKET; FRT BUMPER HONG KONG EQUIPMENT(PQ1)	1-71230-568-1	01	1	0609-
30	BRACKET; FRT BUMPER SINGAPORE EQUIPMENT(WQ3)	1-71230-481-0	01	1	0609-
30	BRACKET; FRT BUMPER SINGAPORE EQUIPMENT(WQ3)	1-71230-482-0	01	1	0609-
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0609-
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	06	1	0609-
43	NUT; BRKT TO BUMPER HONG KONG EQUIPMENT(PQ1) M10 FLANGE	0-91180-210-0	06	1	0609-
43	NUT; BRKT TO BUMPER SINGAPORE EQUIPMENT(WQ3) M10 FLANGE	0-91180-210-0	04	1	0609-
84	HOOK HONG KONG EQUIPMENT(PQ1)	1-57181-003-5	01	1	0609-
84	HOOK SINGAPORE EQUIPMENT(WQ3)	1-57181-017-2	01	1	0609-
93	WASHER; LK,HOOK ID=14.2	0-91510-514-0	02	1	0609-
94	NUT; HOOK M14	0-91110-514-0	02	1	0609-
96	PLATE; DIST,HOOK HONG KONG EQUIPMENT(PQ1)	1-53497-713-0	01	1	0609-
106	BOLT; AIR DAM HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28650-616-0	02	1	0609-
107	STAY; AIR DAM HONG KONG EQUIPMENT(PQ1)	1-71260-231-0	01	1	0609-
107	STAY; AIR DAM HONG KONG EQUIPMENT(PQ1)	8-98049-667-0	01	1	0609-
111	NUT; STAY HONG KONG EQUIPMENT(PQ1) M6 FLANGE	0-91180-206-0	02	1	0609-
111	NUT; STAY HONG KONG EQUIPMENT(PQ1) M10 FLANGE	0-91180-210-0	02	1	0609-
177	BOLT HONG KONG EQUIPMENT(PQ1) M10X30 FLANGE	0-28651-030-0	04	1	0609-
255	WASHER; LK HONG KONG EQUIPMENT(PQ1) ID=14.2	0-91510-514-0	01	1	0609-
256	WASHER; PL HONG KONG EQUIPMENT(PQ1) ID=15	9-09651-069-0	01	1	0609-1201
256	WASHER; PL HONG KONG EQUIPMENT(PQ1) ID=15	8-98010-627-1	01	1	1202-
301	BOLT; HOOK TO FRAME (A) M14X60	0-10861-460-0	01	1	0609-
301	BOLT; HOOK TO FRAME (B) M14X70	0-10861-470-0	01	1	0609-
312	NUT; BRKT HONG KONG EQUIPMENT(PQ1) M10 FLANGE	0-91180-210-0	04	1	0609-
352	BOLT; FRAME HONG KONG EQUIPMENT(PQ1) M14X40	0-20851-440-0	01	1	0609-
353	NUT; FRAME HONG KONG EQUIPMENT(PQ1) M14	0-91110-514-0	01	1	0609-
607	BRACKET HONG KONG EQUIPMENT(PQ1)	8-98002-432-1	01	1	0609-
607	BRACKET HONG KONG EQUIPMENT(PQ1)	8-98002-433-1	01	1	0609-

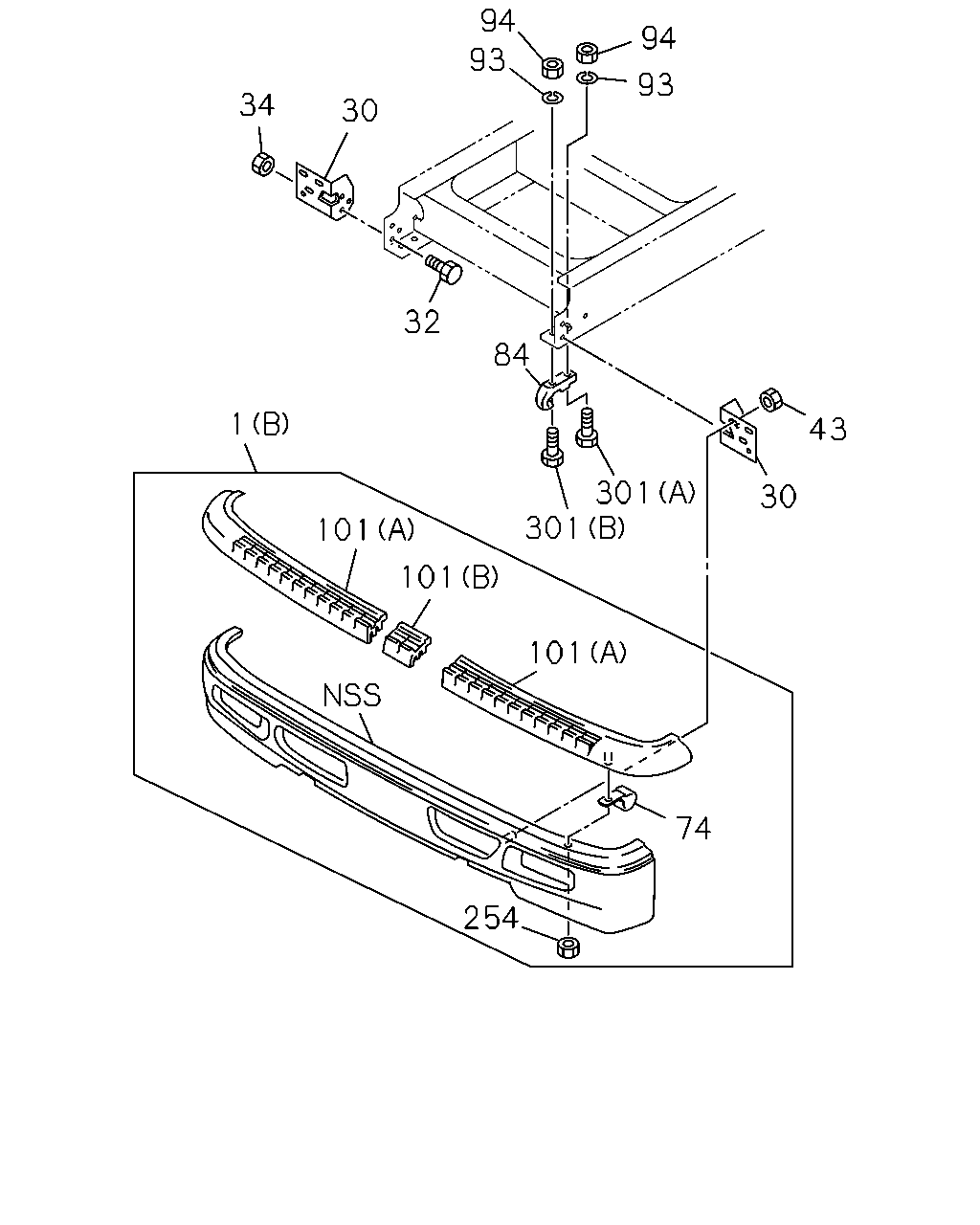

94 93 94 93 34 30 32 84 1 43 301 301 30 101 101 101 74 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT HONG KONG EQUIPMENT(PQ1) (A) WHITE	1-71211-368-3	01	1	0609-
1	BUMPER ASM; FRT SINGAPORE EQUIPMENT(WQ3) (B)	1-71210-941-1	01	1	0609-
30	BRACKET; FRT BUMPER HONG KONG EQUIPMENT(PQ1)	1-71230-208-3	01	1	0609-
30	BRACKET; FRT BUMPER HONG KONG EQUIPMENT(PQ1)	1-71230-568-1	01	1	0609-
30	BRACKET; FRT BUMPER SINGAPORE EQUIPMENT(WQ3)	1-71230-481-0	01	1	0609-
30	BRACKET; FRT BUMPER SINGAPORE EQUIPMENT(WQ3)	1-71230-482-0	01	1	0609-
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0609-
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	06	1	0609-
43	NUT; BRKT TO BUMPER HONG KONG EQUIPMENT(PQ1) M10 FLANGE	0-91180-210-0	06	1	0609-
43	NUT; BRKT TO BUMPER SINGAPORE EQUIPMENT(WQ3) M10 FLANGE	0-91180-210-0	04	1	0609-
74	CLIP; FOG LAMP HARNESS SINGAPORE EQUIPMENT(WQ3)	1-09701-203-0	05	1	0609-
84	HOOK HONG KONG EQUIPMENT(PQ1)	1-57181-003-5	01	1	0609-
84	HOOK SINGAPORE EQUIPMENT(WQ3)	1-57181-017-2	01	1	0609-
93	WASHER; LK,HOOK ID=14.2	0-91510-514-0	02	1	0609-
94	NUT; HOOK M14	0-91110-514-0	02	1	0609-
101	STEP; BUMPER SINGAPORE EQUIPMENT(WQ3) (A)	1-71260-080-1	01	1	0609-
101	STEP; BUMPER SINGAPORE EQUIPMENT(WQ3) (A)	1-71260-081-1	01	1	0609-
101	STEP; BUMPER SINGAPORE EQUIPMENT(WQ3) (B)	1-71260-082-1	01	1	0609-
254	NUT; STEP SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	11	1	0609-
301	BOLT; HOOK TO FRAME (A) M14X60	0-10861-460-0	01	1	0609-
301	BOLT; HOOK TO FRAME (B) M14X70	0-10861-470-0	01	1	0609-
