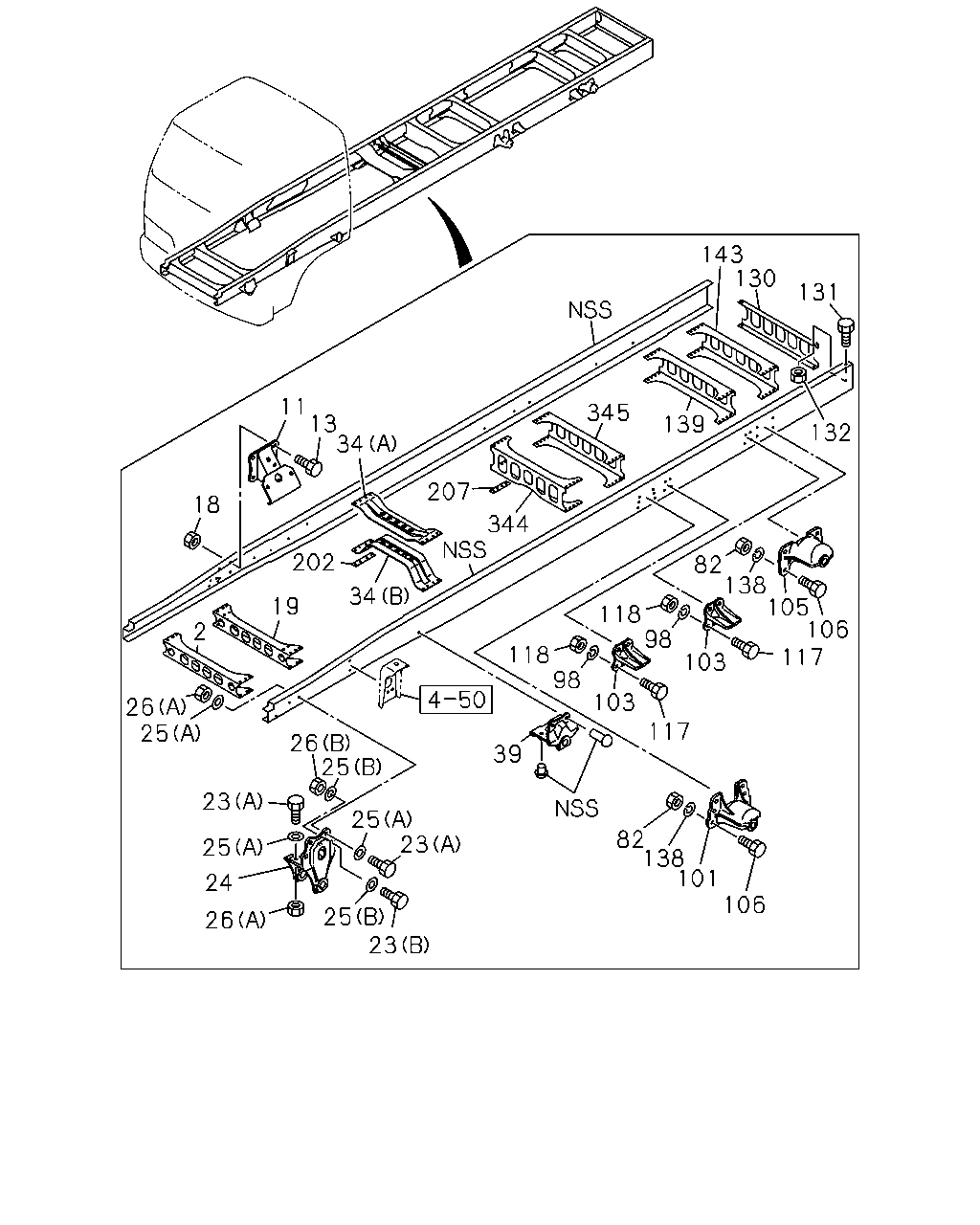

5-01 — FRAME AND OTHER PARTS
(#23673) — 37 parça
Tümü
A - WHEEL BASE 4800MM
B - WHEEL BASE 5500MM
143
130
131
11
13
34
345
139
132
207
18
344
82
138
105
106
117
202
34
19
2
118
98
118
98
103
103
26
25
117
26
25
39
23
25
23
82
138
101
25
24
106
25
23
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
1-53181-892-4
01
1
0609-
●
●
11
BRACKET; ENG MTG
1-53211-197-0
02
1
0609-
●
●
13
BOLT; BRKT,ENG MTG
M12X40 FLANGE
0-28661-240-0
08
1
0609-
●
●
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
0609-
●
●
19
MEMBER; CROSS,2ND
8-97611-712-0
01
1
0609-
●
●
23
BOLT; BRKT,SPR
(A) M14X50
0-10956-450-0
08
1
0609-
●
●
23
BOLT; BRKT,SPR
(B) M16X60
0-10956-660-0
04
1
0609-
●
●
24
BRACKET; FRT SPR,FRT
1-53351-115-6
02
1
0609-
●
●
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0609-
●
●
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
16
1
0609-1201
●
●
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
16
1
1202-
●
●
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
08
1
0609-
●
●
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0609-
●
●
34
MEMBER; CROSS,3RD
(B)
1-53175-359-1
01
1
0609-
●
34
MEMBER; CROSS,3RD
(A)
1-53175-358-1
01
1
0609-
●
●
34
MEMBER; CROSS,3RD
(B)
1-53175-360-1
01
1
0609-
●
39
BRACKET; FRT SPR,RR
1-53352-052-1
02
1
0609-
●
●
82
NUT; BRKT
M14
0-91110-514-0
22
1
0609-
●
●
98
WASHER; LK,STOPPER
ID=14.2
0-91510-614-0
16
1
0609-
●
●
101
BRACKET; RR SPR,FRT
1-53353-090-4
02
1
0609-
●
●
103
STOPPER; SUB SPR
1-53356-059-1
04
1
0609-
●
●
105
BRACKET; RR SPR,RR
1-53354-074-0
02
1
0609-
●
●
106
BOLT; BRKT
M14X40
0-20851-440-0
22
1
0609-
●
●
117
BOLT; STOPPER
M14X45
0-20801-445-0
16
1
0609-
●
●
118
NUT; STOPPER
M14
0-91110-514-0
16
1
0609-
●
●
130
MEMBER; CROSS,END
1-53181-516-2
01
1
0609-
●
●
131
BOLT; END C/MBR
M10X30 FLANGE
0-28651-030-0
04
1
0609-
●
●
132
NUT; END C/MBR
M10 FLANGE
0-91180-110-0
04
1
0609-
●
●
138
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
22
1
0609-
●
●
139
MEMBER; CROSS,6TH
1-53181-465-9
01
1
0609-
●
●
143
MEMBER; CROSS,7TH
1-53181-465-9
01
1
0609-
●
202
SPACER; 3RD C/MBR
1-53178-015-0
02
1
0609-
●
207
SPACER; 4TH C/MBR
T=4.5
1-53168-357-0
02
1
0609-
●
207
SPACER; 4TH C/MBR
T=7.0
1-53168-321-0
02
1
0609-
●
●
344
MEMBER; CROSS,4TH
1-53181-604-3
01
1
0609-
●
●
345
MEMBER; CROSS,5TH
1-53181-465-9
01
1
0609-
●
345
MEMBER; CROSS,5TH
1-53181-604-3
01
1
0609-
●
