4-80 — ROAD WHEEL (#23672) — 56 parça

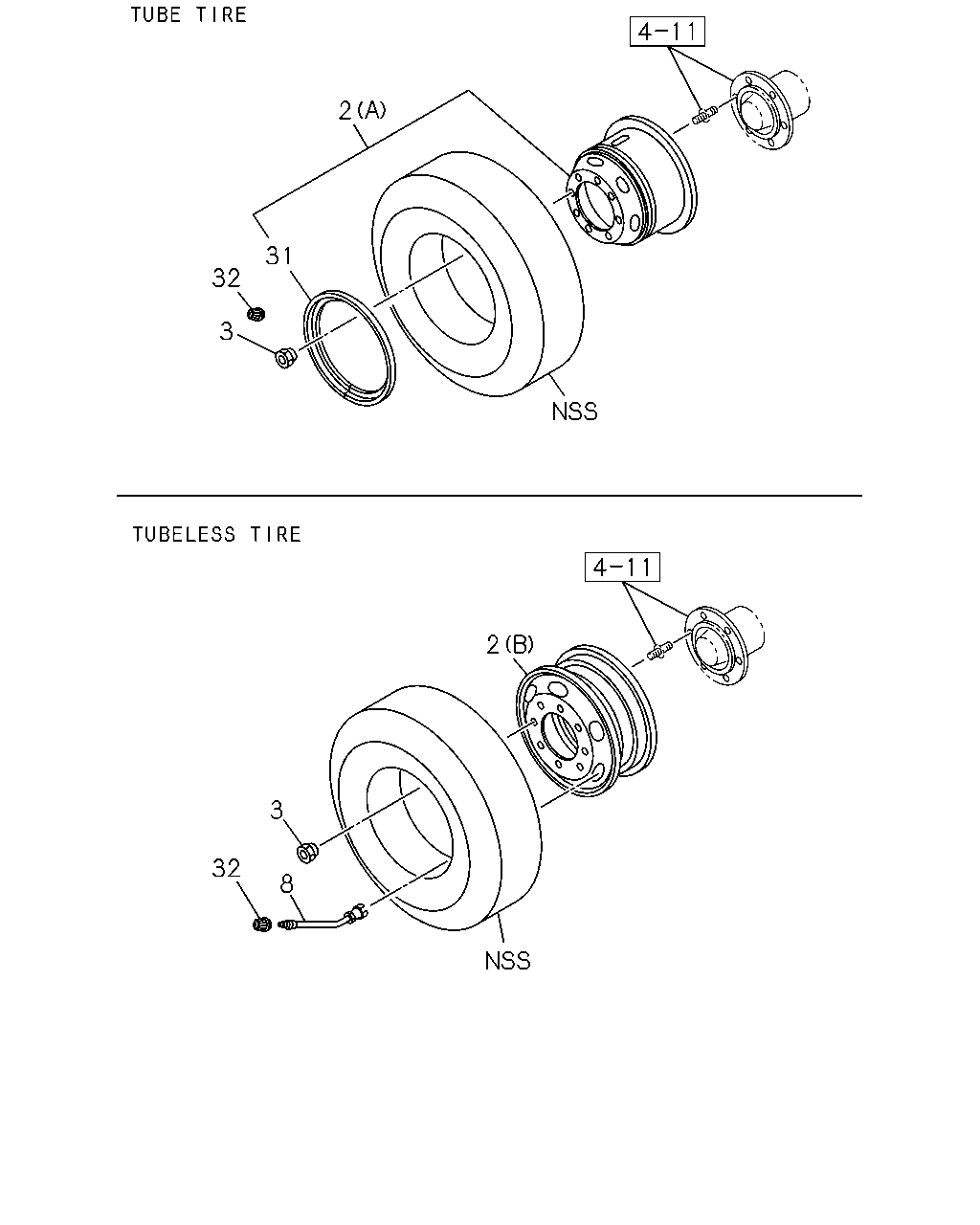

2 31 32 3 2 3 32 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) (B) SPARE	1-42350-407-1	01	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-407-1	01	1	0609-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-642-0	01	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-642-0	01	1	0609-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-641-0	01	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-641-0	01	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) (B)	1-42350-407-1	06	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-642-0	06	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-641-0	06	1	0609-
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	0609-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	0609-
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE	1-42370-020-3	01	1	0609-
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-020-3	01	1	0609-
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) FRONT,REAR	1-42370-020-3	06	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-040-0	01	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> EXC. DISC WHEEL SPARE<N79> SPARE	1-42355-040-0	01	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-012-1	01	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-012-1	01	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> FRONT,REAR	1-42355-040-0	06	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> FRONT,REAR	1-42355-012-1	06	1	0609-
32	CAP; VALVE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42374-001-0	07	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	07	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	06	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	06	1	0609-

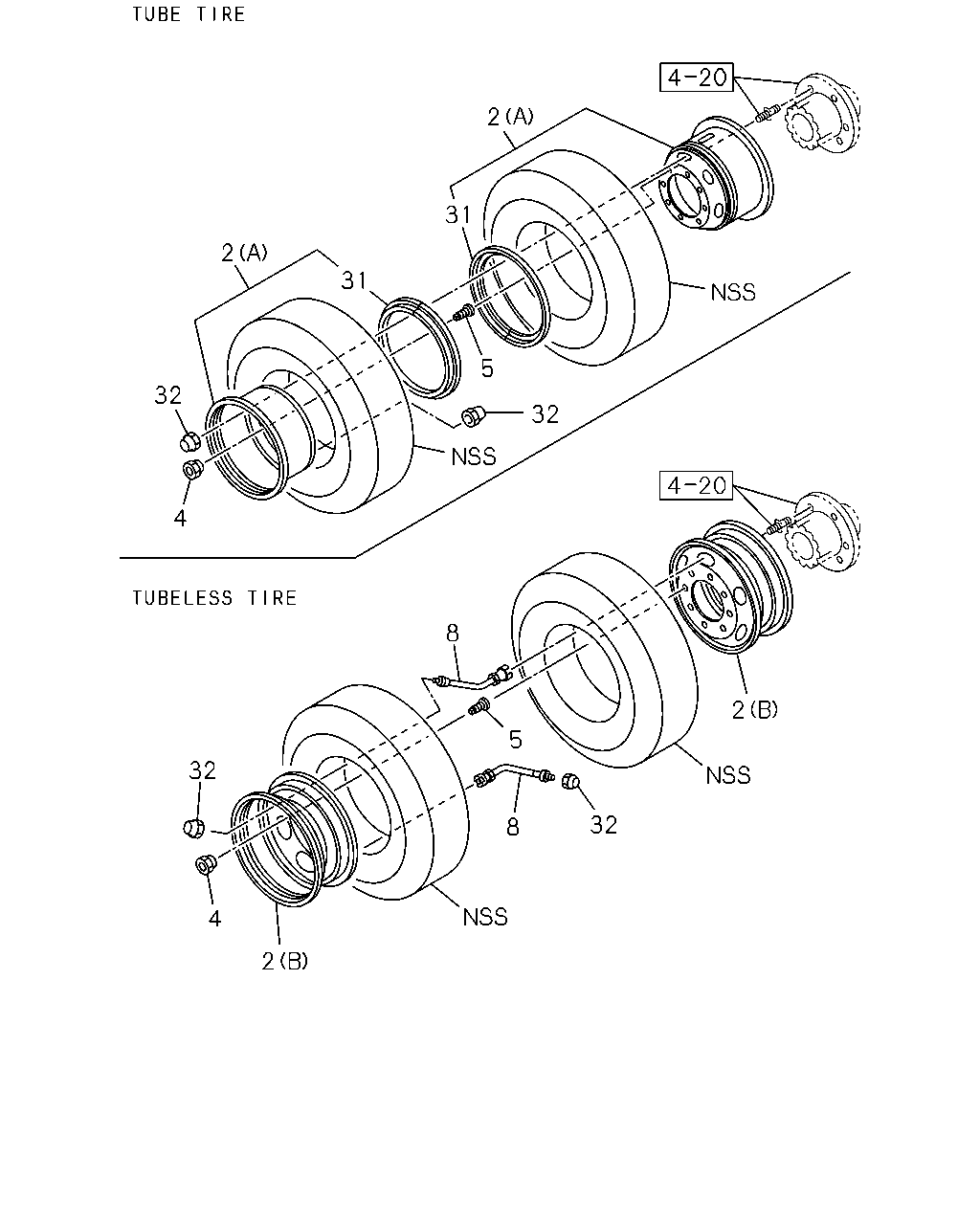

2 31 2 31 5 32 32 4 8 2 5 32 32 8 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) (B) SPARE	1-42350-407-1	01	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-407-1	01	1	0609-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-642-0	01	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-642-0	01	1	0609-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-641-0	01	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED WHITE<W20> (A) SPARE	1-42350-641-0	01	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) (B)	1-42350-407-1	06	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-642-0	06	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> (A)	1-42350-641-0	06	1	0609-
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	0609-0610
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0611-
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	0609-0610
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0611-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	08	1	0609-0610
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0611-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	08	1	0609-0610
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0611-
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE	1-42370-020-3	01	1	0609-
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-020-3	01	1	0609-
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) FRONT,REAR	1-42370-020-3	06	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-040-0	01	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED WHITE<W20> EXC. DISC WHEEL SPARE<N79> SPARE	1-42355-040-0	01	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-012-1	01	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED WHITE<W20> SPARE	1-42355-012-1	01	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPECIAL PAINTED WHITE<W20> FRONT,REAR	1-42355-040-0	06	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED WHITE<W20> FRONT,REAR	1-42355-012-1	06	1	0609-
32	CAP; VALVE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42374-001-0	07	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	07	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	06	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 20X6.50T 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	06	1	0609-
