Sayfa 2-05B - Isuzu EPC

2-05B — CLUTCH PIPING (#2367) — 206 parça

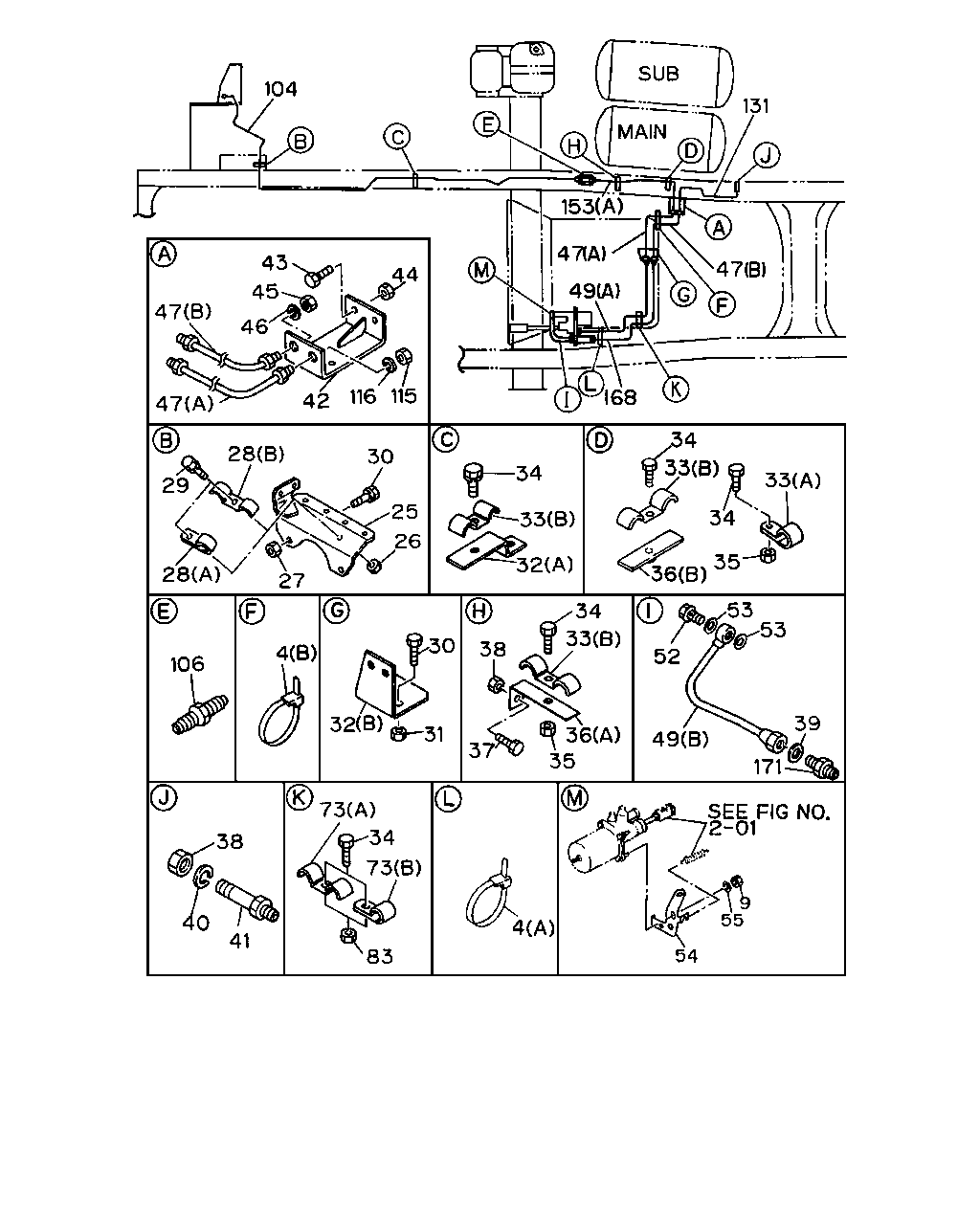

104 131 153 47 47 49 168 44 43 47 45 46 47 42 116 115 28 29 30 26 25 27 28 34 33 32 34 33 33 35 34 36 53 53 52 39 171 49 35 36 33 38 34 37 31 30 32 4 106 38 40 41 83 73 34 73 4 54 9 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	CLIP; FLEX HOSE,CLU CONT (A) L=250	5-09707-030-0	01	1	9002-	●	●	●	●	●	●
4	CLIP; FLEX HOSE,CLU CONT (B) L=140	5-09707-031-0	01	1	9002-	●	●	●	●	●	●
9	NUT; BRKT,FLEX HOSE M8	9-09110-408-0	02	1	9002-	●	●	●	●	●	●
25	BRACKET; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-894-0	01	1	9002-9306	●	●	●	●	●	●
25	BRACKET; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-47476-835-0	01	1	9307-	●	●
25	BRACKET; OIL PIPE	1-47476-835-0	01	1	9307-						●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-	●	●	●	●	●	●
27	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9306	●	●	●	●	●	●
27	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●	●				●
28	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-			●	●		●
28	CLIP; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●			●
28	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (B) ID=11 & 9 L=15 & 15	1-09700-655-0	01	1	9002-9009	●	●			●
28	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=11 L=20	9-09525-035-0	01	1	9010-	●	●			●
28	CLIP; OIL PIPE 8PD1 STD ENG(38L) (A) ID=9 L=40	9-09524-875-0	01	1	9307-						●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●
30	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●
30	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●
30	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●	●	●	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-9404	●	●	●	●	●	●
30	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●				●
31	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9404	●	●			●
32	BRACKET; CLIP OIL PIPE (A)	1-47475-774-0	01	1	9002-	●	●	●	●	●	●
32	BRACKET; CLIP OIL PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-47476-055-2	01	1	9002-9404	●	●			●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) 6RB1 STD ENG(07L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9002-9306		●	●	●		●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9306	●	●	●	●	●	●
33	CLIP; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=11 & 9 L=20 & 18	1-09700-713-0	01	1	9002-	●	●	●	●	●	●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) (C) ID=9 L=16	9-09524-822-0	01	1	9002-		●	●	●		●
33	CLIP; OIL PIPE EXC. DRIVER SEAT W/ARM REST(SGP) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9307-	●
33	CLIP; OIL PIPE EXZ&RHD(EX5*) EXC. DRIVER SEAT W/ARM REST(SGP) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9307-		●				●
33	CLIP; OIL PIPE EXZ&RHD(EX5*) 10PD1 STD ENG(40L) DRIVER SEAT W/ARM REST(SGP) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9307-		●				●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) 10PD1 STD ENG(40L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9307-		●				●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9002-9306		●	●
33	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9002-9009	●	●			●
33	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9010-	●	●			●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) 6RB1 STD ENG(07L) M8X16 FLANGE	0-28080-816-0	03	1	9002-9306		●	●	●		●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9307	●	●	●	●	●	●
34	BOLT; PIPE CLIP EXC. DRIVER SEAT W/ARM REST(SGP) M8X25 FLANGE	0-28080-825-0	01	1	9308-	●
34	BOLT; PIPE CLIP EXZ&RHD(EX5*) EXC. DRIVER SEAT W/ARM REST(SGP) M8X25 FLANGE	0-28080-825-0	01	1	9308-		●				●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9009	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9010-	●	●	●	●	●	●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204		●	●	●		●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) M6X16 FLANGE	0-28080-616-0	01	1	9205-		●	●	●		●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 STD ENG(42L) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9306		●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 STD ENG(42L) M8X14 W/LK WASHER	9-01900-814-0	02	1	9204-9306		●	●
34	BOLT; PIPE CLIP EXZ&RHD(EX5*) 10PD1 STD ENG(40L) DRIVER SEAT W/ARM REST(SGP) M8X16 W/LK WASHER	0-50040-816-0	03	1	9307-		●				●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) 10PD1 STD ENG(40L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9307-		●				●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9009	●	●	●	●	●	●
34	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	02	1	9002-9009	●	●			●
34	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	03	1	9010-	●	●			●
35	NUT; PIPE CLIP EXZ&LHD(EX6*) M8	9-09110-408-0	03	1	9010-9306		●	●	●		●
35	NUT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9010-9306	●				●
35	NUT; PIPE CLIP EXZ&RHD(EX5*) NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9010-9306		●
35	NUT; PIPE CLIP EXZ&LHD(EX6*) 6RB1 STD ENG(07L) M8	9-09110-408-0	03	1	9002-9009		●	●	●		●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-9009	●	●	●	●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9010-9306	●	●	●	●	●	●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 STD ENG(42L) M8	9-09110-408-0	02	1	9010-9203		●	●
35	NUT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9307-	●
35	NUT; PIPE CLIP EXZ&RHD(EX5*) DRIVER SEAT W/ARM REST(SGP) M8	9-09110-408-0	03	1	9307-		●				●
35	NUT; PIPE CLIP EXZ&LHD(EX6*) M8	9-09110-408-0	03	1	9307-		●				●
35	NUT; PIPE CLIP EXZ&RHD(EX5*) NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9307-		●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9307-	●
35	NUT; PIPE CLIP EXZ&RHD(EX5*) EXC. DRIVER SEAT W/ARM REST(SGP),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-		●				●
35	NUT; PIPE CLIP EXZ&LHD(EX6*) M8	9-09110-408-0	01	1	9307-		●				●
36	BRACKET; CLIP EXC. NYLON TUBE AIR PIPING<Z29> (A) L=55	1-47475-304-0	01	1	9002-	●	●	●	●	●	●
36	BRACKET; CLIP EXZ&LHD(EX6*) (B) L=50	1-47475-299-2	02	1	9002-9307		●	●	●		●
36	BRACKET; CLIP EXZ&RHD(EX5*) 10PD1 STD ENG(40L) DRIVER SEAT W/ARM REST(SGP) (B) L=50	1-47475-299-2	03	1	9308-		●				●
36	BRACKET; CLIP EXZ&LHD(EX6*) 10PD1 STD ENG(40L) (B) L=50	1-47475-299-2	03	1	9308-		●				●
37	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●	●	●	●	●
37	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●	●	●	●	●
37	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9303-9306	●	●	●	●	●	●
37	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9307-	●	●
37	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9307-						●
37	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	01	1	9307-						●
38	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-	●	●	●	●	●	●
38	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-	●	●	●	●	●	●
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-	●	●	●	●	●	●
40	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-	●	●	●	●	●	●
41	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12 L=62.5	9-09223-206-1	01	1	9002-	●	●	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47475-592-2	01	1	9002-	●	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9002-	●	●	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	02	1	9002-	●	●				●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	02	1	9002-	●	●	●	●	●	●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> (A) AIR L=320	0-07030-320-0	01	1	9002-	●	●	●	●	●	●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (B) OIL L=320	1-09364-477-0	01	1	9002-	●	●	●	●	●	●
47	HOSE; FLEX,CLU CONT 8PD1 STD ENG(38L),10PD1 STD ENG(40L) (B) OIL L=445	1-09364-478-0	01	1	9002-		●	●			●
47	HOSE; FLEX,CLU CONT 8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> (A) AIR L=450	0-07030-450-0	01	1	9002-		●	●			●
47	HOSE; FLEX,CLU CONT 12PD1 STD ENG(42L) (A) AIR L=380	0-07030-380-0	01	1	9002-9306		●
47	HOSE; FLEX,CLU CONT 12PD1 STD ENG(42L) (B) OIL L=380	1-09364-261-0	01	1	9002-9306		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=615 SERVICED BY L=660	1-47437-954-0	01	1	9002-9306	●	●	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=632 SERVICED BY L=660	1-47426-381-0	01	1	9307-	●	●				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. NYLON TUBE AIR PIPING<Z29> (B) L=206	1-47439-426-1	01	1	9002-	●	●	●	●	●	●
52	BOLT; EYE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●	●	●	●	●
53	GASKET; JOINT BOLT EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●	●	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47465-890-0	01	1	9002-	●	●	●	●	●	●
55	WASHER; LK,BRKT,FLEX HOSE ID=8.2	9-09150-508-0	02	1	9002-	●	●	●	●	●	●
73	CLIP; OIL PIPE (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●	●	●
73	CLIP; OIL PIPE (B) ID=35 L=35 W/NUT	1-09700-684-0	01	1	9002-9208	●	●	●	●	●	●
73	CLIP; OIL PIPE (B) ID=35 H=45 L=33	1-09700-947-0	01	1	9209-	●	●	●	●	●	●
83	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-	●	●	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1978 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306	●	●	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6RB1TC ENG(30L) EXC. NYLON TUBE AIR PIPING<Z29> L=1986 SERVICED BY L=2150	1-47426-394-0	01	1	9307-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L) L=2537 SERVICED BY L=2700	1-47426-396-0	01	1	9307-		●				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=2489 SERVICED BY L=2700	1-47434-415-0	01	1	9002-9306		●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 8PD1 STD ENG(38L) L=2483 SERVICED BY L=2700	1-47426-396-0	01	1	9307-		●				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NYLON TUBE AIR PIPING<Z29> L=1826 SERVICED BY L=1950	1-47434-414-0	01	1	9002-9306	●	●			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NYLON TUBE AIR PIPING<Z29> L=1818 SERVICED BY L=1950	1-47426-393-0	01	1	9307-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9002-9306	●	●	●	●	●	●
106	UNION; OIL PIPE M12 STRAIGHT	9-09233-008-1	01	1	9307-9509	●	●				●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9510-	●	●				●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-	●	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=460 SERVICED BY L=460	9-47415-349-0	01	1	9002-9306	●	●	●	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=460 SERVICED BY L=500	1-47426-343-0	01	1	9307-	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXZ&LHD(EX6*) (B) L=1206 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306		●	●	●		●
153	PIPE ASM; CLU,UNION TO FLEX EXZ&LHD(EX6*) (B) L=1206 SERVICED BY L=1250	1-47426-388-0	01	1	9307-		●				●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (A) L=1023 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1TC ENG(30L) (A) L=1023 SERVICED BY L=1100	1-47426-387-0	01	1	9307-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (A) L=528 SERVICED BY L=550	1-47437-953-0	01	1	9002-9306		●	●
153	PIPE ASM; CLU,UNION TO FLEX 8PD1 STD ENG(38L),10PD1 STD ENG(40L) (A) L=533 SERVICED BY L=550	1-47426-377-0	01	1	9307-9405	●	●				●
153	PIPE ASM; CLU,UNION TO FLEX 8PD1 STD ENG(38L),10PD1 STD ENG(40L) (A) L=538 SERVICED BY L=550	1-47426-377-0	01	1	9406-	●	●				●
168	PIPE; AIR,FLEX HOSE TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=693 SERVICED BY L=700	1-47434-466-0	01	1	9002-	●	●	●	●	●	●
171	CONNECTOR; CLU BOOSTER	1-09650-256-1	01	1	9002-	●	●	●	●	●	●

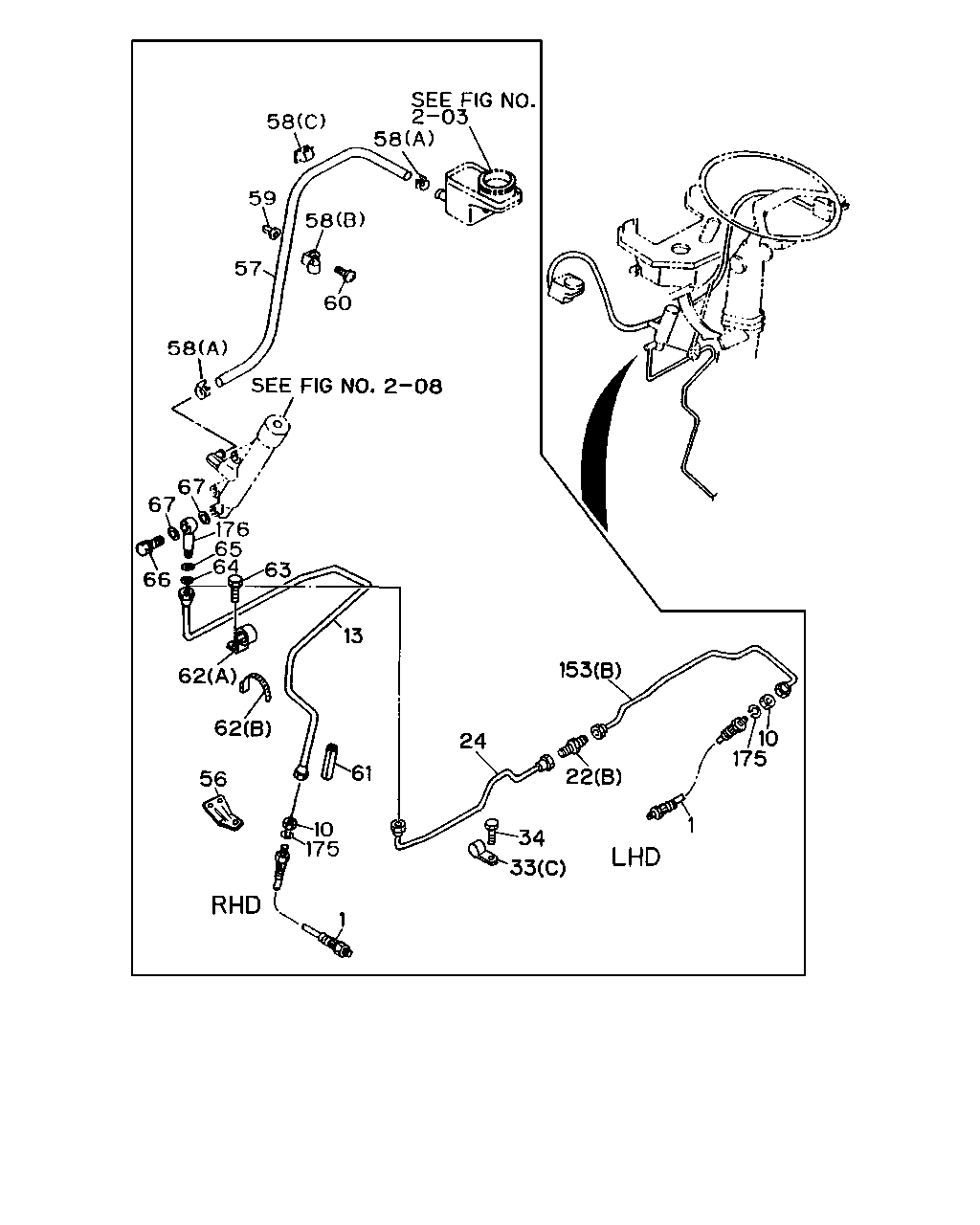

1 175 10 56 62 62 61 13 24 34 33 1 175 10 22 153 63 64 65 176 66 67 67 58 57 59 58 58 58 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	HOSE; FLEX,CLU CONT EXC. CAB UP 50MM(W60),NYLON TUBE AIR PIPING<Z29> L=840	1-09364-466-0	01	1	9002-	●	●	●	●	●	●
1	HOSE; FLEX,CLU CONT CAB UP 50MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> L=950	1-09364-469-0	01	1	9002-	●	●			●
1	HOSE; FLEX,CLU CONT NYLON TUBE AIR PIPING<Z29> L=580	1-09364-429-0	01	1	9002-	●	●			●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-	●	●	●	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL EXZ&RHD(EX5*) L=716	1-47416-575-1	01	1	9002-9306			●	●		●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL EXC. NYLON TUBE AIR PIPING<Z29> L=716	1-47416-575-1	01	1	9002-9306	●				●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL EXZ&RHD(EX5*) EXC. NYLON TUBE AIR PIPING<Z29> L=716	1-47416-575-1	01	1	9002-9306		●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL EXC. NYLON TUBE AIR PIPING<Z29> L=716	1-47425-253-1	01	1	9307-	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL EXZ&RHD(EX5*) EXC. NYLON TUBE AIR PIPING<Z29> L=716	1-47425-253-1	01	1	9307-		●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL EXZ&RHD(EX5*) L=716	1-47425-253-1	01	1	9307-						●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL NYLON TUBE AIR PIPING<Z29> L=717	1-47418-759-0	01	1	9002-9306	●	●			●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL NYLON TUBE AIR PIPING<Z29> L=717	1-47425-254-1	01	1	9307-	●	●
22	UNION; CLU PIPE EXZ&LHD(EX6*) (B) M12 STRAIGHT	9-09233-008-1	01	1	9002-9509		●	●	●		●
22	UNION; CLU PIPE EXZ&LHD(EX6*) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-		●	●	●		●
24	PIPE ASM; CLU,M/CYL TO UNION EXZ&LHD(EX6*) L=933	1-47416-511-2	01	1	9002-9306		●	●	●		●
24	PIPE ASM; CLU,M/CYL TO UNION EXZ&LHD(EX6*) L=933	1-47425-256-0	01	1	9307-		●				●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) 6RB1 STD ENG(07L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9002-9306		●	●	●		●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9306	●	●	●	●	●	●
33	CLIP; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=11 & 9 L=20 & 18	1-09700-713-0	01	1	9002-	●	●	●	●	●	●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) (C) ID=9 L=16	9-09524-822-0	01	1	9002-		●	●	●		●
33	CLIP; OIL PIPE EXC. DRIVER SEAT W/ARM REST(SGP) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9307-	●
33	CLIP; OIL PIPE EXZ&RHD(EX5*) EXC. DRIVER SEAT W/ARM REST(SGP) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9307-		●				●
33	CLIP; OIL PIPE EXZ&RHD(EX5*) 10PD1 STD ENG(40L) DRIVER SEAT W/ARM REST(SGP) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9307-		●				●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) 10PD1 STD ENG(40L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9307-		●				●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9002-9306		●	●
33	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9002-9009	●	●			●
33	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9010-	●	●			●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) 6RB1 STD ENG(07L) M8X16 FLANGE	0-28080-816-0	03	1	9002-9306		●	●	●		●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9307	●	●	●	●	●	●
34	BOLT; PIPE CLIP EXC. DRIVER SEAT W/ARM REST(SGP) M8X25 FLANGE	0-28080-825-0	01	1	9308-	●
34	BOLT; PIPE CLIP EXZ&RHD(EX5*) EXC. DRIVER SEAT W/ARM REST(SGP) M8X25 FLANGE	0-28080-825-0	01	1	9308-		●				●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9009	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9010-	●	●	●	●	●	●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204		●	●	●		●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) M6X16 FLANGE	0-28080-616-0	01	1	9205-		●	●	●		●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 STD ENG(42L) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9306		●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 STD ENG(42L) M8X14 W/LK WASHER	9-01900-814-0	02	1	9204-9306		●	●
34	BOLT; PIPE CLIP EXZ&RHD(EX5*) 10PD1 STD ENG(40L) DRIVER SEAT W/ARM REST(SGP) M8X16 W/LK WASHER	0-50040-816-0	03	1	9307-		●				●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) 10PD1 STD ENG(40L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9307-		●				●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9009	●	●	●	●	●	●
34	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	02	1	9002-9009	●	●			●
34	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	03	1	9010-	●	●			●
56	BRACKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29>	1-47475-919-0	01	1	9307-	●	●			●
57	HOSE; CLU M/CYL TO OIL TANK EXZ&RHD(EX5*) L=1800	1-09360-320-0	01	1	9002-		●	●	●		●
57	HOSE; CLU M/CYL TO OIL TANK L=1800	1-09360-320-0	01	1	9002-	●				●
57	HOSE; CLU M/CYL TO OIL TANK EXZ&LHD(EX6*) L=1800	1-09360-320-0	01	1	9002-		●	●	●		●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=15	1-09704-018-1	02	1	9002-9006	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=16	1-09707-171-0	02	1	9007-	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (C) ID=15	1-09987-115-0	01	1	9002-	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL EXZ&RHD(EX5*) (B) ID=16 H=24 L=20	9-09527-015-0	01	1	9002-		●	●	●		●
58	CLIP; RUBBER HOSE TO M/CYL (B) ID=16 H=24 L=20	9-09527-015-0	01	1	9002-	●				●
59	GROMMET; SCREW,RUBBER HOSE CLIP,CLU EXZ&RHD(EX5*)	5-09983-012-0	01	1	9002-		●	●	●		●
59	GROMMET; SCREW,RUBBER HOSE CLIP,CLU	5-09983-012-0	01	1	9002-	●				●
60	SCREW; RUBBER HOSE CLIP,CLU CONT EXZ&RHD(EX5*) M5X16 TAPPING W/PL WASHER	0-74100-516-0	01	1	9002-		●	●	●		●
60	SCREW; RUBBER HOSE CLIP,CLU CONT M5X16 TAPPING W/PL WASHER	0-74100-516-0	01	1	9002-	●				●
61	SLEEVE; RUBBER,CLU PIPE NYLON TUBE AIR PIPING<Z29> OD=16.8 L=50	1-09369-010-0	02	1	9002-9409	●	●			●
62	CLIP; CLU PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=8 H=30 L=20	8-94220-978-0	01	1	9002-	●	●	●	●	●	●
62	CLIP; CLU PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=9 H=20 L=20	9-09527-008-0	01	1	9002-	●	●	●	●	●	●
62	CLIP; CLU PIPE NYLON TUBE AIR PIPING<Z29> (B) L=140	5-09707-031-0	02	1	9002-	●	●			●
63	BOLT; CLIP,PIPE EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9002-	●	●	●	●	●	●
64	SEAL; EYE JOINT,CLU M/CYL	1-73998-453-0	01	1	9002-	●	●	●	●	●	●
65	WASHER; PL,SEAL,CLU M/CYL ID=15 OD=30	9-09160-614-0	01	1	9002-	●	●	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9002-	●	●	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9002-	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXZ&LHD(EX6*) (B) L=1206 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306		●	●	●		●
153	PIPE ASM; CLU,UNION TO FLEX EXZ&LHD(EX6*) (B) L=1206 SERVICED BY L=1250	1-47426-388-0	01	1	9307-		●				●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (A) L=1023 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1TC ENG(30L) (A) L=1023 SERVICED BY L=1100	1-47426-387-0	01	1	9307-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (A) L=528 SERVICED BY L=550	1-47437-953-0	01	1	9002-9306		●	●
153	PIPE ASM; CLU,UNION TO FLEX 8PD1 STD ENG(38L),10PD1 STD ENG(40L) (A) L=533 SERVICED BY L=550	1-47426-377-0	01	1	9307-9405	●	●				●
153	PIPE ASM; CLU,UNION TO FLEX 8PD1 STD ENG(38L),10PD1 STD ENG(40L) (A) L=538 SERVICED BY L=550	1-47426-377-0	01	1	9406-	●	●				●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●	●	●
176	JOINT; EYE,CLU M/CYL FLUID	1-09674-088-0	01	1	9002-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
