Isuzu WW
▶
TRUCKS
▶
FSR
▶
11028 - FSR(RHD) EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

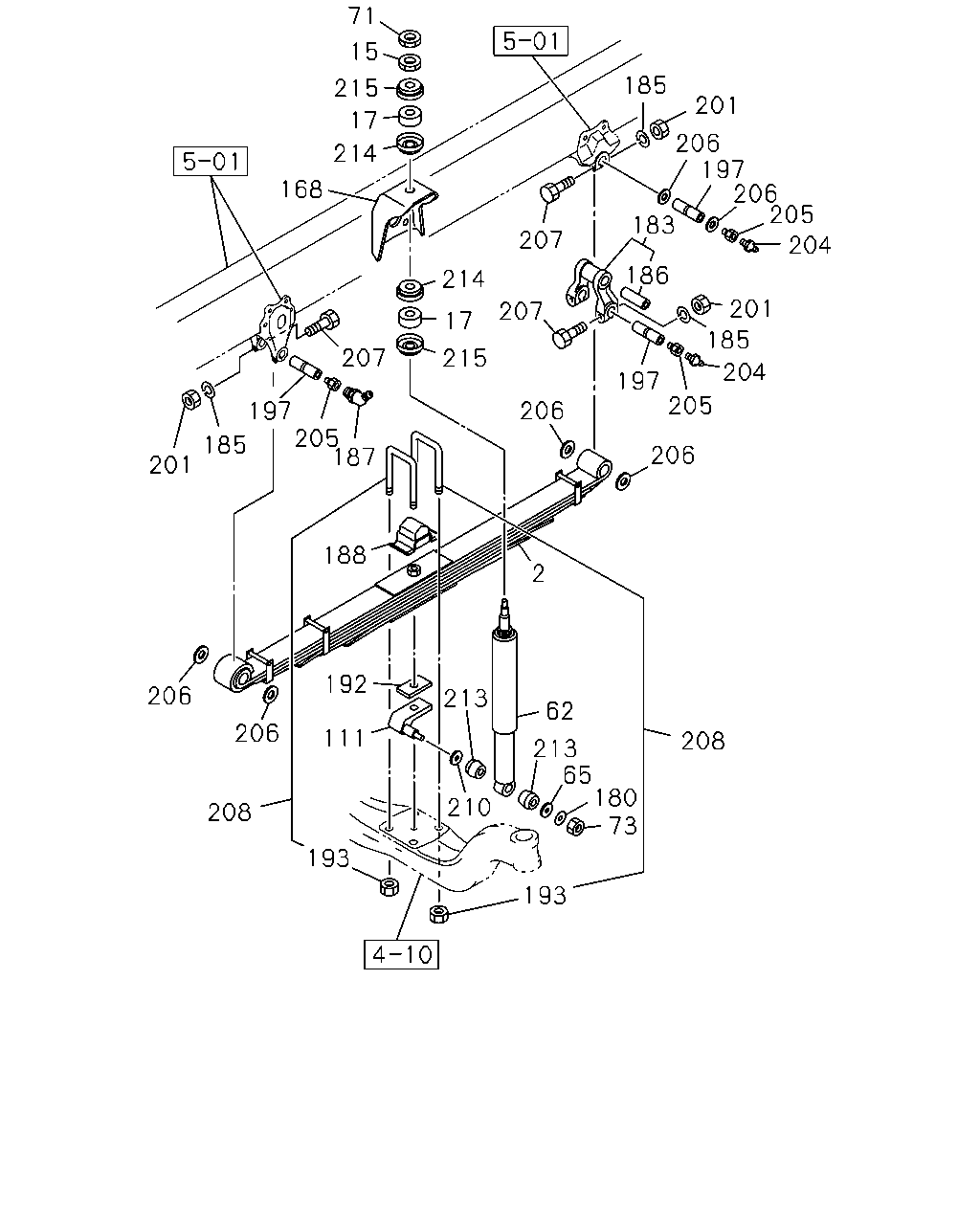

4-50 — FRONT SUSPENSION
(#23668) — 37 parça
71
15
185
215
201
17
206
197
206
205
214
168
183
207
204
186
214
201
207
17
185
207
215
204
197
205
206
197
205
187
185
206
201
188
2
192
206
213
62
206
111
208
213
65
180
73
210
208
193
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF
1-51130-341-0
02
1
0609-
15
NUT; S/ABS,UPR
M12
1-09400-006-0
02
1
0609-0910
15
NUT; S/ABS,UPR
M12
8-98010-412-0
02
1
0911-
17
BUSHING; RUBBER,S/ABS
9-51631-050-0
04
1
0609-
62
ABSORBER ASM; SHOCK,FRT
1-51630-180-4
02
1
0609-
62
ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS
1-87610-153-0
02
1
0609-
65
WASHER; S/ABS
ID=23
1-51631-019-0
02
1
0609-
71
NUT; LK,S/ABS,UPR
M12
1-09400-006-0
02
1
0609-0910
71
NUT; LK,S/ABS,UPR
M12
8-98010-412-0
02
1
0911-
73
NUT; BRKT,SHOCK
M16
0-91110-516-0
02
1
0609-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-720-1
01
1
0609-1004
111
SUPPORTER; S/ABS,FRT SUSP
8-98153-481-0
01
1
1005-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-721-1
01
1
0609-1004
111
SUPPORTER; S/ABS,FRT SUSP
8-98153-482-0
01
1
1005-
168
BRACKET; S/ABS,FRT SUSP
1-51681-306-0
02
1
0609-
180
WASHER; PL,PIN
ID=17 OD=30
0-91610-516-0
02
1
0609-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
0609-
185
WASHER; LK,PIN
ID=12.2
0-91510-612-0
12
1
0609-
186
BUSHING; SHACKLE
OD=38
1-51351-009-0
02
1
0609-0902
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
0903-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
0609-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-085-2
02
1
0609-
192
PIECE; DIST
80X144 ID=17.5
1-51177-284-1
01
1
0609-
193
NUT; U BOLT
M22
0-91112-822-0
08
1
0609-1206
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1207-
197
PIN; FRT SPR,FRT
1-51161-031-0
06
1
0609-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
0609-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
04
1
0609-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
0609-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
0609-
207
BOLT; SPR TO SHACKLE
M12X80
0-10856-280-0
12
1
0609-
208
U-BOLT SET; FRT SPRING
L=210
1-87870-380-1
04
1
0609-1206
208
U-BOLT SET; FRT SPRING
L=210
1-87870-498-0
04
1
1207-
210
WASHER; S/ABS,OUTER
ID=17
1-51631-020-0
02
1
0609-
213
BUSHING; RUBBER,LWR
1-51631-009-1
04
1
0609-
214
WASHER; S/ABS,UPR,INNER
ID=16.8
1-51631-022-0
04
1
0609-
215
WASHER; S/ABS,UPR,OUTER
ID=14.5
9-51631-051-0
04
1
0609-
