4-42 — POWER STEERING OIL PUMP (#23667) — 63 parça

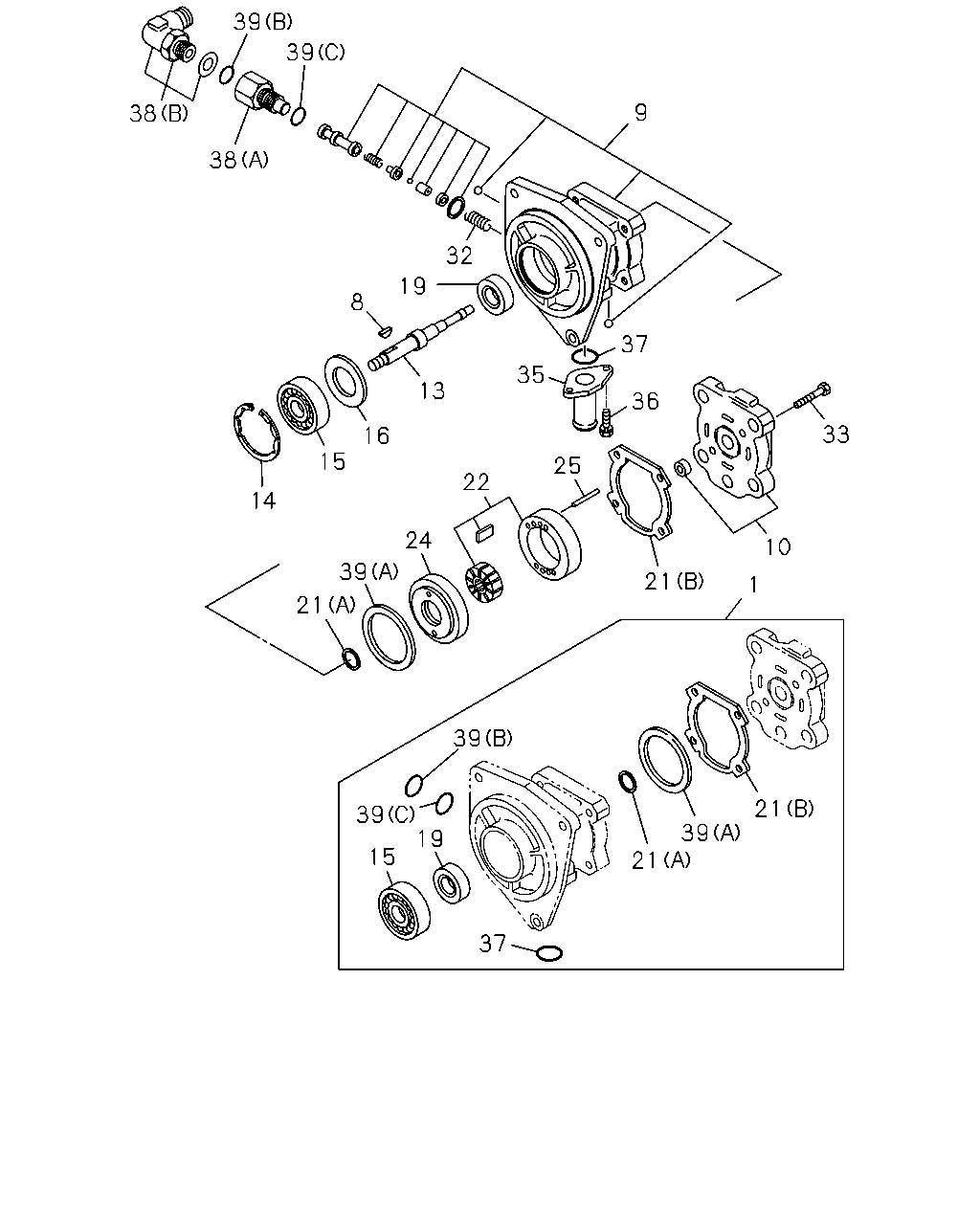

39 39 9 38 38 32 19 8 37 35 13 36 33 16 15 25 22 14 24 10 39 21 1 21 39 21 39 19 39 15 21 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: B = 8-98202-666-0	1-85574-073-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-589-1	1-85574-080-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	9-08055-413-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-589-1	1-19511-183-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98202-666-0	8-98203-278-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-98202-666-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-589-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-19519-264-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-589-1	1-19519-258-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 8-98202-666-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-589-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-19519-341-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-33739-271-0	02	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	8-94475-376-0	01	1	-
33	BOLT; COVER ASM PART: B = 8-98202-666-0	1-19519-346-1	04	1	-
33	BOLT; COVER ASM PART: A = 1-19500-589-1	1-48119-054-0	04	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	8-94395-492-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: B = 8-98202-666-0	1-19519-124-1	02	1	-
36	BOLT; CONN,PIPE ASM PART: A = 1-19500-589-1	8-94461-139-1	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-33739-070-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-19519-307-1	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 1-19500-589-1	1-19519-323-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98202-666-0	1-19519-343-1	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: B = 8-98202-666-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-589-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	9-48429-028-0	01	1	-

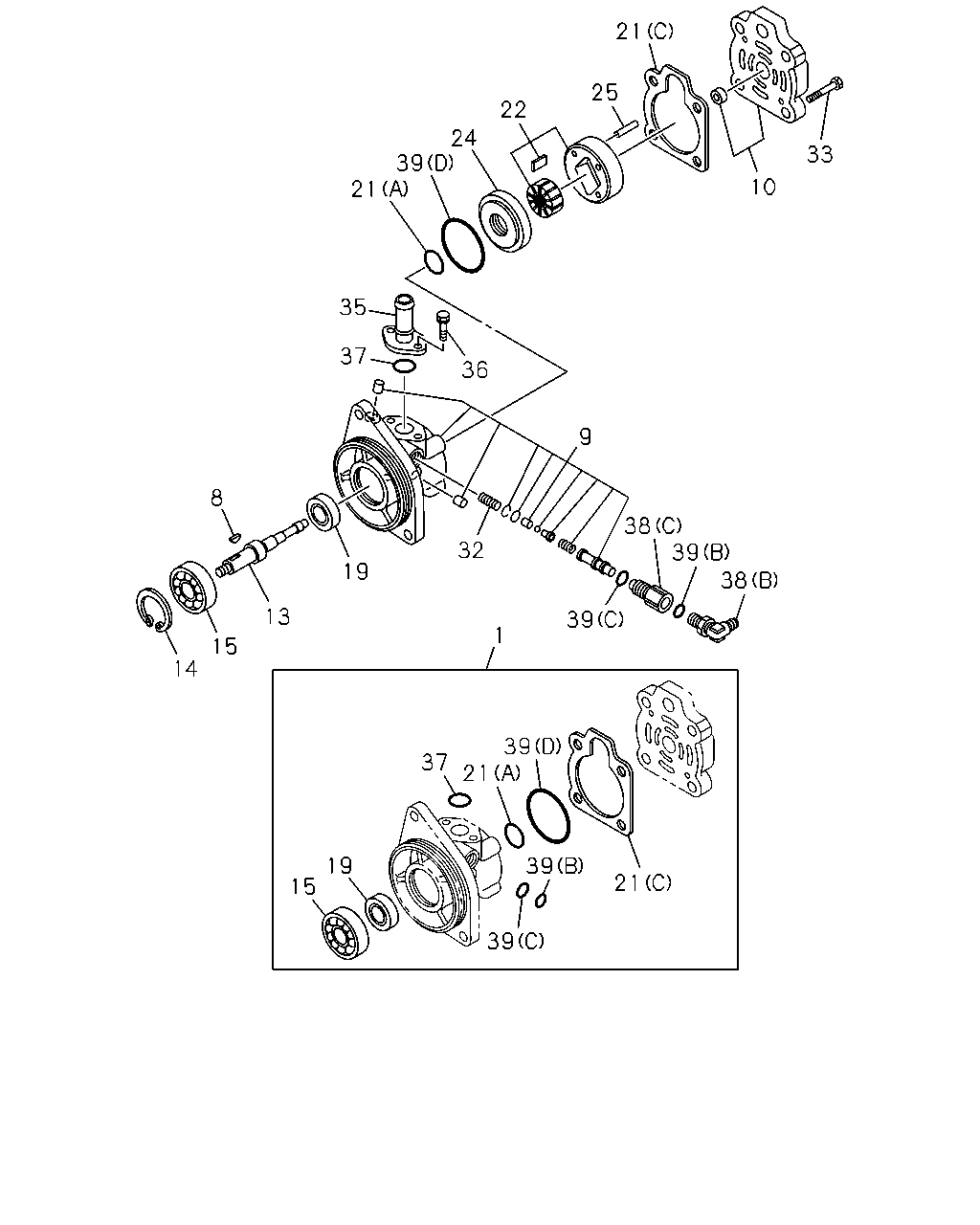

21 39 19 15 39 39 21 37 1 39 38 39 38 9 32 19 13 15 14 8 37 35 36 21 39 24 22 25 21 10 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: B = 8-98202-666-0	1-85574-073-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-589-1	1-85574-080-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	9-08055-413-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-589-1	1-19511-183-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98202-666-0	8-98203-278-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-98202-666-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-589-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-19519-264-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 8-98202-666-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-589-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-19519-341-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-33739-271-0	02	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	8-94475-376-0	01	1	-
33	BOLT; COVER ASM PART: B = 8-98202-666-0	1-19519-346-1	04	1	-
33	BOLT; COVER ASM PART: A = 1-19500-589-1	1-48119-054-0	04	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	8-94395-492-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: B = 8-98202-666-0	1-19519-124-1	02	1	-
36	BOLT; CONN,PIPE ASM PART: A = 1-19500-589-1	8-94461-139-1	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-33739-070-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-19519-307-1	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 1-19500-589-1	1-19519-323-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98202-666-0	1-19519-343-1	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: B = 8-98202-666-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-589-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-589-1, B = 8-98202-666-0	9-48429-028-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
