4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#23664) — 40 parça

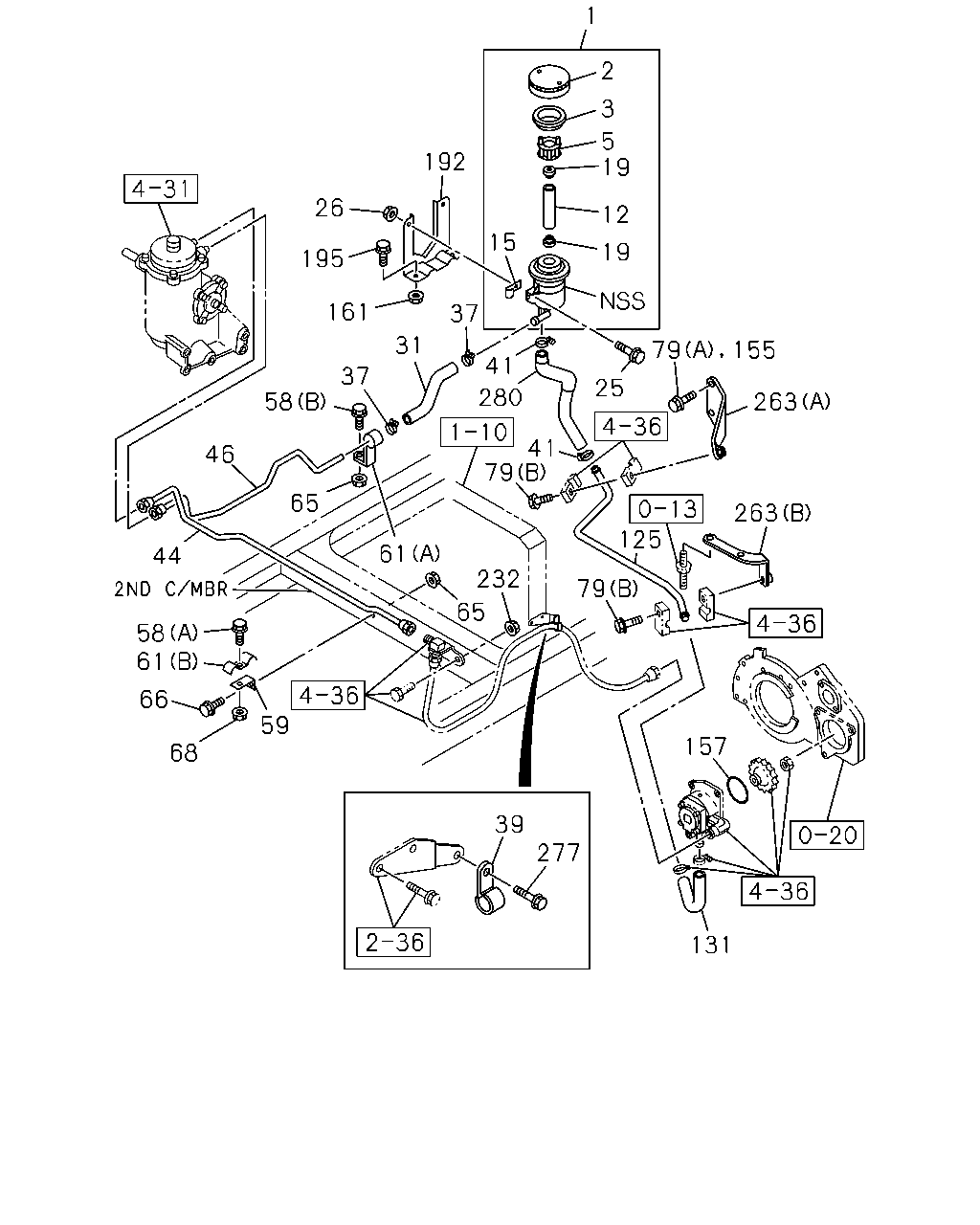

çizim 24348
1 2 3 5 19 192 26 12 15 19 195 161 37 31 79 155 41 37 25 280 58 263 41 79 46 65 263 125 61 44 232 79 65 58 61 59 66 157 68 39 277 131
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0609-1006
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007-
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0609-1006
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0609-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0609-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0609-
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0609-
19 SEAT; OIL TANK 1-21249-004-0 02 1 0609-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0609-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0609-
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 0609-
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0609-
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 0609-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0609-
44 PIPE; OIL,P/S UNIT TO NIPPLE
FRONT AXLE F049(FS4) 		1-21116-968-0 01 1 0609-
46 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT AXLE F049(FS4) 		1-21117-437-0 01 1 0609-
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0609-
58 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0609-
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 0609-
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0609-
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 0609-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0609-
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0609-
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0609-
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 04 1 0609-
79 BOLT; BRKT
(B) M8X45 FLANGE 		0-28050-845-0 01 1 0609-
125 CONNECTOR; P/S PUMP 8-97613-776-1 01 1 0609-
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0609-0702
131 HOSE; RUBBER,P/S 8-98067-907-0 01 1 0703-
155 BOLT; CONNECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 0609-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-467-0 01 1 0609-
161 NUT; P/S PIPE
M10 FLANGE 		0-91180-110-0 01 1 0609-
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 0609-
195 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 02 1 0609-
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0609-
263 BRACKET; P/S PIPE
(A) 		8-97614-668-1 01 1 0609-
263 BRACKET; P/S PIPE
(B) 		8-98049-251-0 01 1 0609-
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0609-
280 HOSE; P/S OIL PUMP,INL 1-21117-905-0 01 1 0609-
